Torque Limiter Major Specifications
Model No. :TL200-1
PDF Outline Drawing
CAD data in DXF format
TL200-1
(Click here for a list of all DXF files )
3D CAD data
Standard Price
Contact us for details.
Delivery
Contact us for details.
| ※ | The CAD data contained herein is made available to you via the CAD drawing library; PARTcommunity is provided by CADENAS WEB2CAD Co. |
| ※ | Please direct your inquiries regarding the CAD data service or PARTcommunity to: CADENAS WEB2CAD Co. TEL: +81 (3) 5961-5031 FAX: +81 (3) 5961-5032 |
Catalogs ・Instruction Manuals
Transmission Capacity and Dimensions Units :mm
| Set torque range N・m |
Max. Rotation Speed r/min |
Plain bore Diameter | Smallest Shaft Bore Diameter | Maximum Shaft Bore Diameter | Bushing length | Bushing OD | Center member bore diameter | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2.9~9.8 | 1800 | 7 | 9 | 14 | 3.8 6.0 |
30 |
|

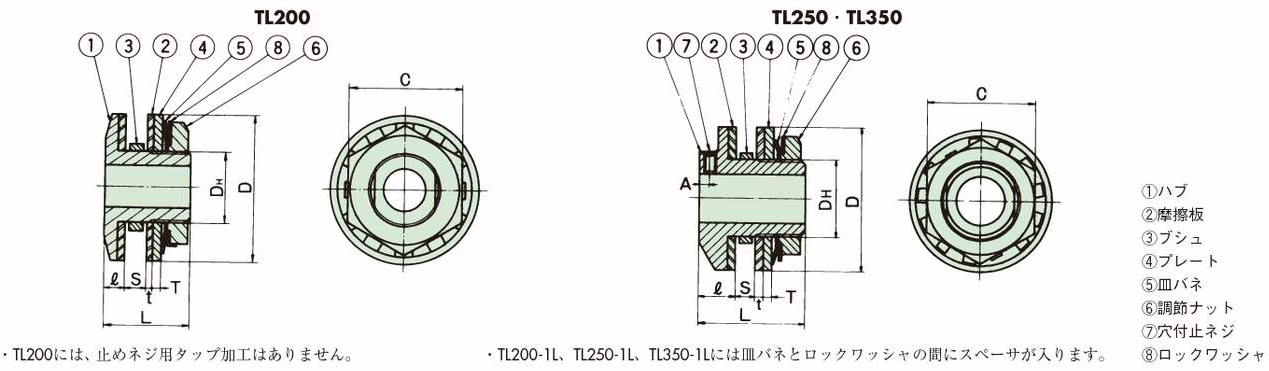

| Dimensions | Mass kg |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| D | DH | L | ℓ | T | t | S Max. |
A | C | Adjusted nut diameter x pitch | Set screw diameter | |
| 50 | 24 | 29 | 6.5 | 2.6 | 2.5 | 7 | - | 38 | M24×1.0 | - | 0.2 |
Note)
1.Socket head set screws are supplied.
2.The torque values above are values for continuous slip torque, intended for protecting the equipment from overload.
3.To select the bushing length, refer to the pages in the catalog on bushing selection.
4.On the TL200, setting to the shaft by socket head set screw is not possible. Use a snap ring for the shaft or end plate.
