Troi Drive 　Major Specifications

Model No. ：TD175S3600BR-LR


[Click to enlarge ]

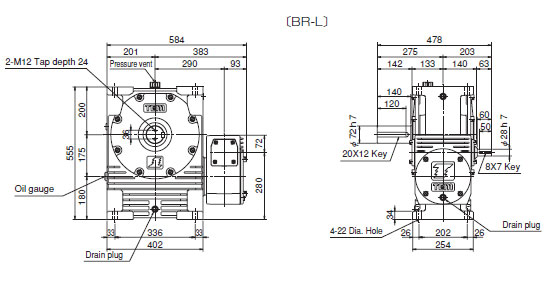

PDF Outline Drawing

Model No. ：TD175S3600BR-LR

CAD data in DXF format

Contact us for details.
（Click here for a list of all DXF files )

3D CAD data

Contact us for details.

Standard Price

Contact us for details.

Delivery

Contact us for details.

Catalogs ・Instruction Manuals

Transmission Capacity Table

Nominal Reduction Ratio Actual Reduction Ratio Input 1750　r/min Input 1450　r/min Input 1150　r/min Input 950　r/min Input 500　r/min Input 100　r/min Estimated Mass
kg
Input
kW		 Output torque Input
kW		 Output torque Input
kW		 Output torque Input
kW		 Output torque Input
kW		 Output torque Input
kW		 Output torque
N･m kgf･m N･m kgf･m N･m kgf･m N･m kgf･m N･m kgf･m N･m kgf･m
3600 3900.00 0.82 7903 806 0.71 7903 806 0.59 7903 806 0.51 7903 806 0.31 7903 806 0.09 7903 806 247

Allowable Load of Output Shaft

Allowable Radial Load on Output Shaft Allowable Axial Load on Output Shaft
Output shaft speed 　59r/min below Output shaft speed 　59r/min below
N kgf N kgf
25500 2602 21034 2146

Standard package

Reducer
Lubrication System Oil bath (shipped filled)
Daphne Alpha Oil TE380
Keyway New JIS standard, normal grade 　JIS B1301-1976（Key is supplied with solid shaft models. ）
Paint specifications Munsell 5PB2/6（blue)
Primer: lacquer primer 　　Finish coat: lacquer-based paint
Rust Proofing Specifications Rust proof effective for 6 months when stored indoors (after shipping).
Outside: rust-proofing grease 　　　 Inside: sealed after lubrication oil is filled
Ambient conditions Installation Indoors
Ambient Temperature -10℃～50℃
Ambient Humidity 95% or less (no condensation)
Altitude No more than 1,000 m above sea level
Atmosphere Area must be free of corrosive and explosive gases, steam, condensation, and have little or no dust.
Installation direction Horizontal or vertical
