Worm Power Drives 　Major Specifications

Model No. ：SW200B1000L-RF


[Click to enlarge ]
※Refer to Page 78 of the catalog for shaft arrangements and relative direction of rotation.

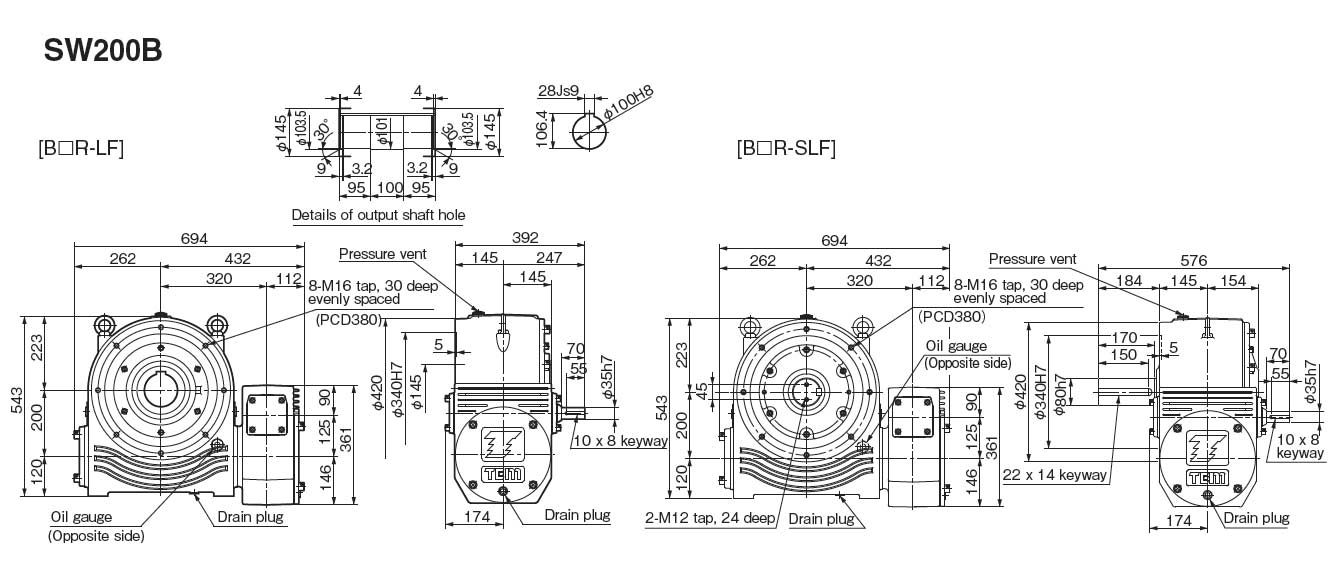

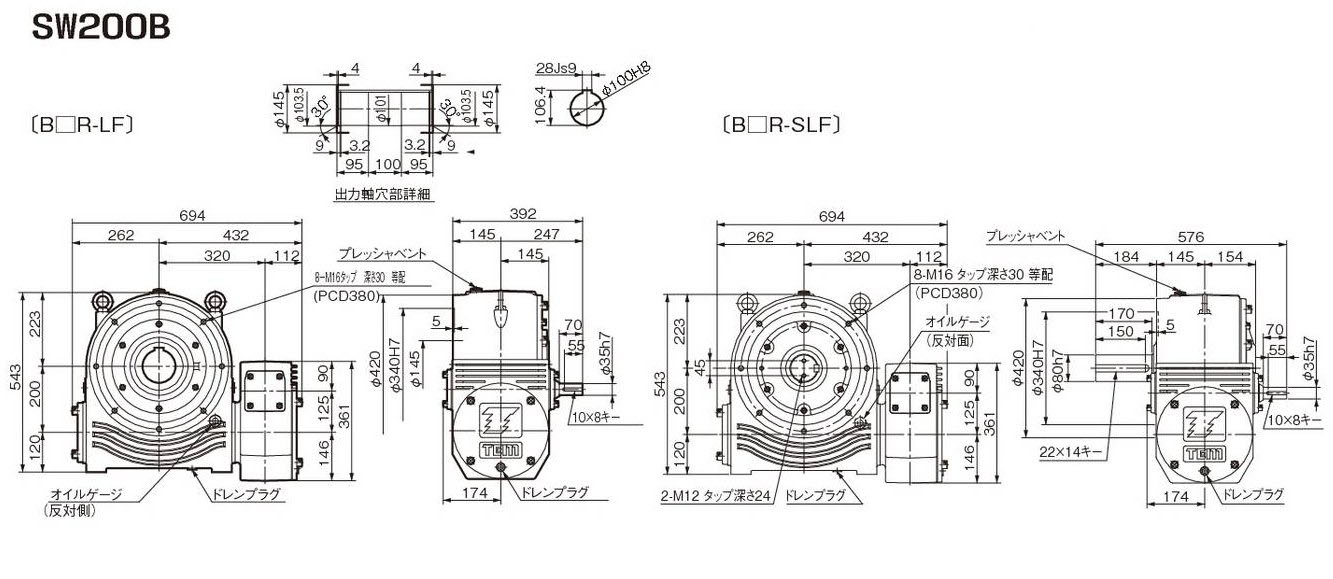

PDF Outline Drawing

Model No. ：SW200B1000L-RF

DXF drawings / 3D CAD data

Contact us for details.

Standard Price

Contact us for details.

Delivery

Contact us for details.

Catalogs ・Instruction Manuals

Transmission Capacity Table

Reduction ratio Input 1750　r/min Input 1450　r/min Input 1150　r/min Input 950　r/min Input 500　r/min Input 100　r/min Estimated Mass
kg
Input
kW		 Output torque Input
kW		 Output torque Input
kW		 Output torque Input
kW		 Output torque Input
kW		 Output torque Input
kW		 Output torque
N･m {kgf･m} N･m {kgf･m} N･m {kgf･m} N･m {kgf･m} N･m {kgf･m} N･m {kgf･m}
1000 1.93 5704 582 1.65 5704 582 1.36 5704 582 1.16 5704 582 0.70 5704 582 0.19 5704 582 294

Hollow output 　Allowable Radial Load

N {kgf}
22834 2330

Hollow output 　Allowable Axial Load

N {kgf}
16130 1646

Standard package

Reducer
Lubrication System Oil bath (shipped filled)
Daphne Alpha Oil TE260
Keyway New JIS standard, normal grade 　JIS B1301-1976（Key is supplied with solid shaft models. ）
（The key for the input shaft may be out of tolerance due to strain from heat treating. ）
Paint specifications Munsell 2.5G6/3 (green)
Primer: lacquer primer 　　Finish coat: lacquer-based paint
Rust Proofing Specifications Rust proof effective for 6 months when stored indoors (after shipping).
Outside: rust-proofing grease 　　　Inside: sealed after lubrication oil is filled
Ambient conditions Installation Indoors
Ambient Temperature -10℃～50℃
Ambient Humidity 95% or less (no condensation)
Altitude No more than 1,000 m above sea level
Atmosphere Area must be free of corrosive and explosive gases, steam, condensation, and have little or no dust.
Installation direction Horizontal or vertical
