Hypoid Motor TR series 　Major Specifications

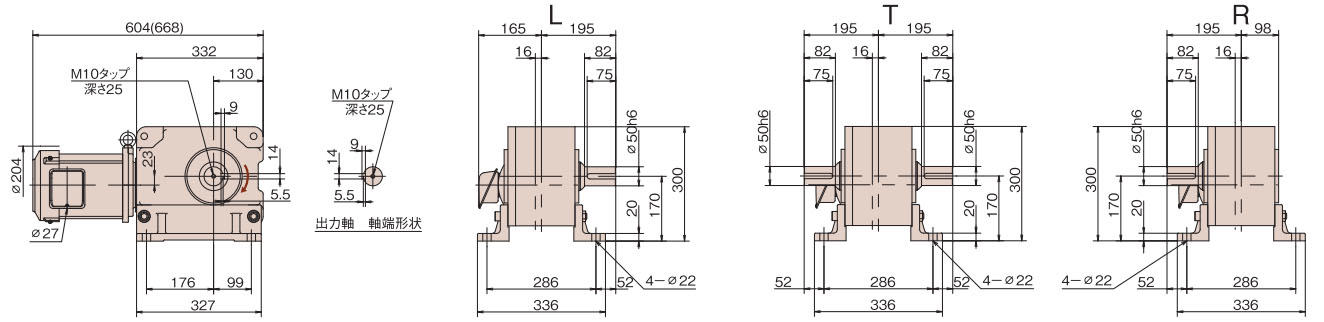

Model No. ：HMTR150-50L200TB

[Click to enlarge ]

※The dimensions in parenthesis ( ) are for a motor with a brake.

※	The CAD data contained herein is made available to you via the CAD drawing library; PARTcommunity is provided by CADENAS WEB2CAD Co.
※	Please direct your inquiries regarding the CAD data service or PARTcommunity to: 　CADENAS WEB2CAD Co. TEL: +81 (3) 5961-5031 FAX: +81 (3) 5961-5032

Motor Output	Actual Reduction Ratio	Gear Reduction Stages	Output shaft speed r/min 50/60/60Hz	Allowable torque on output shaft				Allowable OHL on Output Shaft		Estimated Mass kg
				50Hz		60Hz		Allowable OHL on Output Shaft
				N･m	{kgf･m}	N･m	{kgf･m}	N	{kgf}
1.5kW	1/200	3	7.5/9/9	※1176	※120	※1176	※120	9800	1000	76.0

The output shaft speed is the synchronized speed of the motor divided by the reduction ratio.

※The torque is limited on this model.

Phases	Poles	Frequency Hz	Voltage V 50/60/60Hz	Rated amperage A 50/60/60Hz	Rated Speed r/min 50/60/60Hz	Protection	Cooling	Rating	IE Code	Heat-resistance class	Brake Amperage on AC side A (Reference ) at20ﾟC
									IE3

Brake Type		Engaged when de-energized ・DC electromagnetic brake
Reducer	Lubrication System	Grease lubrication
	Keyway at shaft tip	New JIS standard key （JIS B1301-1976）：Output shaft key included （Keyways are normal grade. Hollow shaft models are excluded. ）
	Output shaft end	Tap holes provided （Hollow shaft models are excluded ）
Ambient conditions	Installation	Indoors free of dust and water
	Ambient Temperature	-20℃～40℃
	Ambient Humidity	85% or less (no condensation)
	Altitude	No more than 1,000 m above sea level
	Atmosphere	Area must be free of corrosive and explosive gases and steam.
	Mounting direction	Mounts on any angle, horizontal, vertical, or inclined.
Paint Color		Munsell 　2.5G6/3
