Hypoid Motor TR series 　Major Specifications

Model No. ：HMTR075-50U360S


[Click to enlarge ]

※The dimensions in parenthesis ( ) are for a motor with a brake.

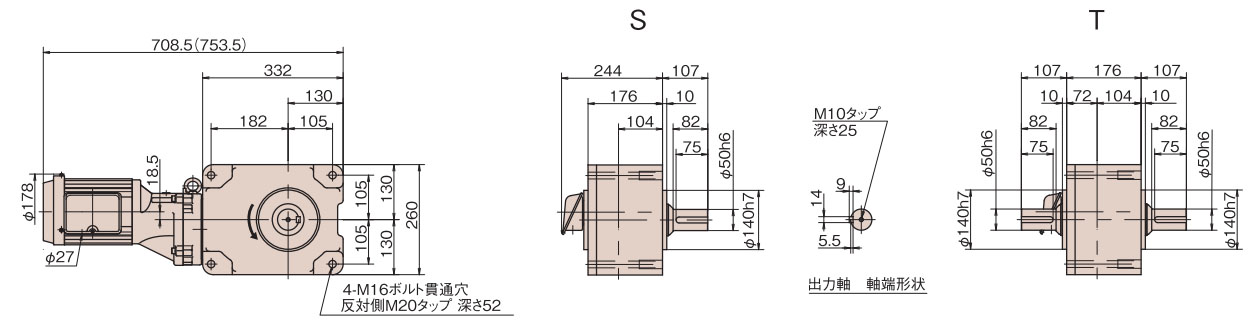

PDF Outline Drawing

Model No. ：HMTR075-50U360S

DXF drawings / 3D CAD data

Contact us for details.

Standard Price

Contact us for details.

Delivery

Contact us for details.

Catalogs ・Instruction Manuals

Transmission Capacity Table

Motor Output Actual Reduction Ratio Gear Reduction Stages Output shaft speed
r/min
50/60/60Hz		 Allowable torque on output shaft Allowable OHL on Output Shaft Estimated Mass
kg
50Hz 60Hz
N･m {kgf･m} N･m {kgf･m} N {kgf}
0.75kW 1/360 4 4.2/5/5 1166 119 973 99.3 9800 1000 66.0

The output shaft speed is the synchronized speed of the motor divided by the reduction ratio.

Motor Characteristics

Phases Poles Frequency
Hz		 Voltage
V
50/60/60Hz		 Rated amperage
A
50/60/60Hz		 Rated Speed
r/min
50/60/60Hz		 Protection Cooling Rating IE Code Heat-resistance class
3 Phase 4 50/60/60 200/200/220 4.0/3.5/3.4 1440/1730/1740 Totally enclosed fan-cooled
(IP44) 		Self-cooling
(IC411) 		Continuous(S1) IE3 155(F)

Standard package

Reducer
Lubrication System Grease lubrication
Keyway at shaft tip New JIS standard key （JIS B1301-1976）：Output shaft key included （Keyways are normal grade. Hollow shaft models are excluded. ）
Output shaft end Tap holes provided （Hollow shaft models are excluded ）
Ambient conditions Installation Indoors free of dust and water
Ambient Temperature -20℃～40℃
Ambient Humidity 85% or less (no condensation)
Altitude No more than 1,000 m above sea level
Atmosphere Area must be free of corrosive and explosive gases and steam.
Mounting direction Mounts on any angle, horizontal, vertical, or inclined.
Paint Color Munsell 　2.5G6/3
