Gear Motor TA series 　Major Specifications

Model No. ：GMTA040-24L5

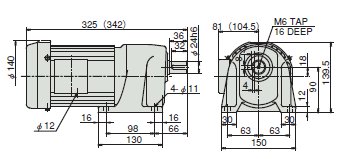

[Click to enlarge ]

※The dimensions in parenthesis ( ) are for a motor with a brake.

PDF Outline Drawing

Model No. ：GMTA040-24L5

DXF drawings / 3D CAD data

To CADENAS WEB2CAD website.

Standard Price

Contact us for details.

Delivery

Contact us for details.


※ The CAD data contained herein is made available to you via the CAD drawing library; PARTcommunity is provided by CADENAS WEB2CAD Co.
※ Please direct your inquiries regarding the CAD data service or PARTcommunity to:
　CADENAS WEB2CAD Co. TEL: +81 (3) 5961-5031 FAX: +81 (3) 5961-5032

Catalogs ・Instruction Manuals

Reducer Characteristics

Motor Output Frame number Nominal Reduction Ratio Gear Reduction Stages Output shaft speed
r/min
50/60/60Hz		 Allowable torque on output shaft Allowable OHL on Output Shaft Estimated Mass
kg
50Hz 60Hz
N･m {kgf･m} N･m {kgf･m} N {kgf}
0.4kW 24 1/5 2 300/360/360 12.1 1.23 10.0 1.02 686 70 7.5

The output shaft speed is the synchronized speed of the motor divided by the reduction ratio.

Motor Characteristics

Phases Poles Frequency
Hz		 Voltage
V
50/60/60Hz		 Rated amperage
A
50/60/60Hz		 Rated Speed
r/min
50/60/60Hz		 Protection Cooling Rating Insulation Class
3 Phase 4 50/60/60 200/200/220 2.3/2.0/2.0 1380/1650/1680 Totally enclosed fan-cooled
(IP44) 		Self-cooling
(IC411) 		Continuous Class E

Standard package

Reducer Lubrication System Grease lubrication
Keyway at shaft tip New JIS standard key （JIS B1301-1976）：Output shaft key included （Keyways are normal grade. ）
Output shaft end Tap holes provided
Ambient conditions Installation Indoors free of dust and water
Ambient Temperature -20℃～40℃
Ambient Humidity 85% or less (no condensation)
Altitude No more than 1,000 m above sea level
Atmosphere Area must be free of corrosive and explosive gases and steam.
Mounting direction Mounts on any angle, horizontal, vertical, or inclined.
Paint Color Munsell 　2.5G6/3
