Miter Gear Box 　Major Specifications

Model No. ：ED2M-1-LR-Y

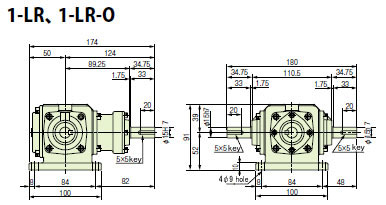

[Click to enlarge ]

・The phase of the keyway differs from the position shown in this figure.

Shaft Arrangement : 1-LR

The arrows in the figure indicate the rotation details.

PDF Outline Drawing

Model No. ：ED2M-1-LR-Y

CAD data in DXF format

ED2M-1-LR-Y
（Click here for a list of all DXF files )

3D CAD data

To CADENAS WEB2CAD website.

Standard Price

Contact us for details.

Delivery

Contact us for details.

※ The CAD data contained herein is made available to you via the CAD drawing library; PARTcommunity is provided by CADENAS WEB2CAD Co.
※ Please direct your inquiries regarding the CAD data service or PARTcommunity to:
　CADENAS WEB2CAD Co. TEL: +81 (3) 5961-5031 FAX: +81 (3) 5961-5032

Catalogs ・Instruction Manuals

Transmission Capacity Table

Reduction Ratio Lateral Shaft Speed
r/min 		Transmission Capacity ：Lateral 1-shaft type Allowable OHL Allowable Torque on Cross Shaft Moment of Inertia
{GD2}		 Backlash
Deg. 		Estimated Mass
kg		 Lubrication
Input
kW		 Cross Shaft Torque Lateral Shaft Cross shaft
N･m {kgf･m} N･m {kgf･m} N･m {kgf･m} N･m {kgf･m} ×10-3
kg･m2		 ×10-3
{kgf･m2}
1:1 3000 3.41 10.6 1.08 127 13.0 117 12.0 32.0 3.30 0.05 0.20 0.20
～
1.51		 2.0 Grease lubrication
2000 2.43 11.3 1.16 186 19.0 176 18.0
1750 2.15 11.5 1.17 216 22.0 196 20.0
1450 1.79 11.6 1.18 265 27.0 216 22.0
1150 1.43 11.7 1.19 323 33.0 235 24.0
870 1.12 12.1 1.23 402 41.0 255 26.0
580 0.74 12.1 1.23 549 56.0 314 32.0
300 0.39 12.3 1.26 696 71.0 392 40.0
100 0.13 12.7 1.30 980 100 588 60.0
10 0.01 13.0 1.33 980 100 588 60.0

・For operation between the listed speeds, calculate the transmission capacity by interpolation.

・If the speed of the lateral shaft is less than 10 r/min, use the figures for 10 r/min.

・This specifies the oil lubrication package if the speed of the lateral shaft exceeds 1750 r/min. (Special Specifications )
　The operational range and transmission capacity will be limited by the operating time, operating cycle, ambient temperature, and loading conditions. Contact us for further details.

Standard package

Reducer
Keyway at shaft tip New JIS standard key （JIS B1301-1976）：Output shaft key included （Keyways are normal grade. ）
Output shaft end Tap holes provided
Ambient conditions Installation Indoors free of dust and water
Ambient Temperature -10℃～50℃
Ambient Humidity 95% or less (no condensation)
Altitude No more than 1,000 m above sea level
Atmosphere Area must be free of corrosive and explosive gases and steam.
Mounting direction Mounts in any direction
Paint Color Munsell 　2.5G6/3
