DCBL Driver Major Specifications
Model No. ：DCRD040B10K

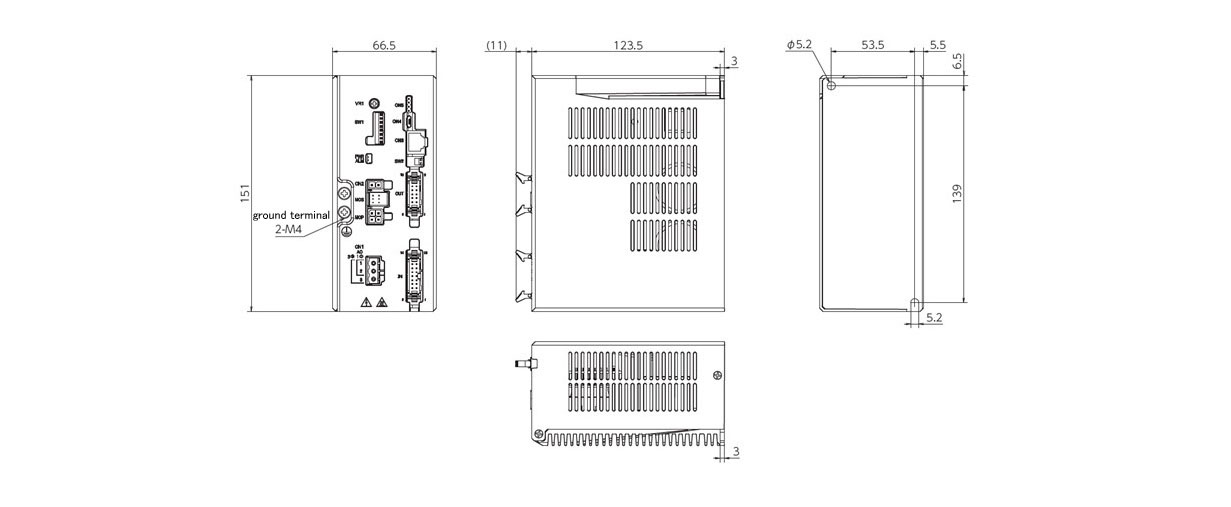

[Click to enlarge ]
Standard Price
Contact us for details.
Delivery
Contact us for details.
| ※ | The CAD data contained herein is made available to you via the CAD drawing library; PARTcommunity is provided by CADENAS WEB2CAD Co. |
| ※ | Please direct your inquiries regarding the CAD data service or PARTcommunity to: CADENAS WEB2CAD Co. TEL: +81 (3) 5961-5031 FAX: +81 (3) 5961-5032 |
Catalogs ・Instruction Manuals
List of Series
| 0.4kW | |||||
| Power Supply | Supply voltage | Single Phase /3 Phase AC200～240[V] | |||
| Allowable voltage fluctuation | ±10[%] | ||||
| Power source frequency | 50/60[Hz] | ||||
| Allowable frequency fluctuation | ±5[%] | ||||
| Rated input current | 3 Phase | 2.8 | |||
| Single Phase | 5.1 | ||||
| Control characteristics | Control system | Sine wave control | |||
| Speed control range | 100～2500[r/min](Short time 3000[r/min]) | ||||
| Speed command setting | Communication parameter 、Analog input 、Volume | ||||
| Acceleration ・Deceleration time | 100～10000[msec] | ||||
| Torque Limit | 170[%] | ||||
| Mounting | Installation method | Bolt mounting 、DIN rail installed (Optional ) | |||
| Mounting direction | Vertical | ||||
| Earth/ground | Earth/ground screw mounting | ||||
| Protection construction | IP20 | ||||
| Cooling | Self-cooling type | ||||
| Environment | Ambient Temperature | 0～50[℃] | |||
| Humidity | 85[%] below | ||||
| Storage temperature | -10～60[℃] | ||||
| Location | Indoors | ||||
| Atmosphere | No corrosive gas, explosive gas, steam 、Less dust in general plants | ||||
| Altitude | 1,000m below | ||||
| Vibration | 0.5G below 10～60Hz | ||||
| Protective function | Overvoltage | Detects DC overvoltage (over 400[V]) and stops operation | |||
| Short-circuit current | Detects short-circuit current and stops operation | ||||
| Overcurrent | Detects motor overcurrent and stops operation | ||||
| Overload | Stops operation when the set overload threshold continues for the overload detection time. | ||||
| Overspeed | Stops operation when the set rotation speed threshold continues for the overspeed detection time. | ||||
| Driver overheat | Detects board part temperature 110[℃] and stops operation | ||||
| Motor overheat | Detects exceeding the set motor temperature threshold and stops operation | ||||
| Undervoltage | Detects DC undervoltage (less than 150[V]) and stops operation | ||||
| Sensor abnormality | Detects an abnormality in the motor sensor signal and stops operation (Connector ：MOS missing detection ) | ||||
| Undercurrent | Detects motor low current and stops operation (Connector ：MOP missing detection ) | ||||
| Torque Limit | Stops operation stops when the set torque limit operation continues for the torque limit time. | ||||
| Memory damage protection | Detects internal memory damage/life and stops operation | ||||
| External stop signal | Detects stop signal input and stops operation | ||||
Options
DCBL Hypoid Motor extension cable
・The motor has a dedicated cable. When extending the cable, use this cable and connect the connectors together.
・Extend the ground wire by screwing the round crimp terminals together.
・When extending the cable, keep the total length of the cable to 10 m or less.
・No brake
| Model No. | L m | PDF drawing | Standard Price | Delivery |
|---|---|---|---|---|
| DCCM0005 | 0.5 | Contact us for details. | Contact us for details. | |
| DCCM0010 | 1.0 | Contact us for details. | Contact us for details. | |
| DCCM0020 | 2.0 | Contact us for details. | Contact us for details. | |
| DCCM0050 | 5.0 | Contact us for details. | Contact us for details. | |
| DCCM0100 | 10.0 | Contact us for details. | Contact us for details. |
・With brake
| Model No. | L m | PDF drawing | Standard Price | Delivery |
|---|---|---|---|---|
| DCCM0005B | 0.5 | Contact us for details. | Contact us for details. | |
| DCCM0010B | 1.0 | Contact us for details. | Contact us for details. | |
| DCCM0020B | 2.0 | Contact us for details. | Contact us for details. | |
| DCCM0050B | 5.0 | Contact us for details. | Contact us for details. | |
| DCCM0100B | 10.0 | Contact us for details. | Contact us for details. |
DCBL Driver extension cable
・When extending the cable, keep the total length of the cable to 10 m or less.
・For input signal
| Model No. | L m | PDF drawing | Standard Price | Delivery |
|---|---|---|---|---|
| DCCN0005 | 0.5 | Contact us for details. | Contact us for details. | |
| DCCN0010 | 1.0 | Contact us for details. | Contact us for details. | |
| DCCN0020 | 2.0 | Contact us for details. | Contact us for details. |
・For output signal
| Model No. | L m | PDF drawing | Standard Price | Delivery |
|---|---|---|---|---|
| DCCT0005 | 0.5 | Contact us for details. | Contact us for details. | |
| DCCT0010 | 1.0 | Contact us for details. | Contact us for details. | |
| DCCT0020 | 2.0 | Contact us for details. | Contact us for details. |
・For communication
| Model No. | L m | PDF drawing | Standard Price | Delivery |
|---|---|---|---|---|
| DCCS0005 | 0.5 | Contact us for details. | Contact us for details. | |
| DCCS0010 | 1.0 | Contact us for details. | Contact us for details. | |
| DCCS0020 | 2.0 | Contact us for details. | Contact us for details. |
Note )This cable uses T568B. Do not use T568A as it may cause communication failure or damage to parts.
DIN rail mounting bracket
・Fittings for mounting the DCBL driver on a DIN rail (35 mm).
| Model No. | PDF drawing | Standard Price | Delivery |
|---|---|---|---|
| DCDN075 | Contact us for details. | Contact us for details. |
Regenerative resistor
・Connect the connector to the DCBL driver.
| Model No. | capacity W | Resistance value Ω | PDF drawing | Standard Price | Delivery |
|---|---|---|---|---|---|
| DCKR075 | 120 | 200 | Contact us for details. | Contact us for details. |
