Croise Motor Major Specifications
Model No. ：HCMA020-220H200

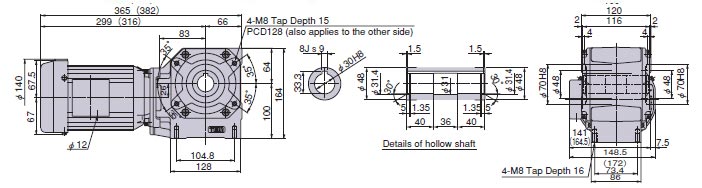

[Click to enlarge ]
※The dimensions in parenthesis ( ) are for a motor with a brake.
Standard Price
Contact us for details.
Delivery
Contact us for details.
| ※ | The CAD data contained herein is made available to you via the CAD drawing library; PARTcommunity is provided by CADENAS WEB2CAD Co. |
| ※ | Please direct your inquiries regarding the CAD data service or PARTcommunity to: CADENAS WEB2CAD Co. TEL: +81 (3) 5961-5031 FAX: +81 (3) 5961-5032 |
Catalogs ・Instruction Manuals
Reducer Characteristics
| Motor Output | Actual Reduction Ratio | Gear Reduction Stages | Output shaft speed r/min 50/60/60Hz |
Allowable torque on output shaft | Allowable OHL on Output Shaft | Estimated Mass kg |
||||
|---|---|---|---|---|---|---|---|---|---|---|
| N･m | {kgf･m} | N･m | {kgf･m} | |||||||
| 50Hz | 60Hz | N | {kgf} | |||||||
| 0.2kW | 1/200 | 2 | 7.5/9/9 | 139.0 | 14.2 | 120.0 | 12.3 | 3970 | 405 | 15.0 |
The output shaft speed is the synchronized speed of the motor divided by the reduction ratio.
Motor Characteristics
| Phases | Poles | Frequency Hz |
Voltage V 50/60/60Hz |
Rated amperage A 50/60/60Hz |
Rated Speed r/min 50/60/60Hz |
Protection | Cooling | Rating | Insulation Class |
|---|---|---|---|---|---|---|---|---|---|
| 3 Phase | 4 | 50/60/60 | 200/200/220 | 1.2/1.1/1.1 | 1420/1700/1720 | Totally enclosed fan-cooled (IP44) |
Self-cooling (IC411) |
Continuous | Class E |
Standard package
| Reducer |
Lubrication System | Oil lubrication |
|---|---|---|
| Keyway at shaft tip | New JIS standard key （JIS B 1301-1976 normal grade ）：Output shaft key included （Hollow shaft models are excluded ） | |
| Output shaft end | Tap holes provided （Hollow shaft models are excluded ） | |
| Ambient conditions | Installation | Indoors free of dust and water |
| Ambient Temperature | 0℃～40℃ | |
| Ambient Humidity | 85% or less (no condensation) | |
| Altitude | No more than 1,000 m above sea level | |
| Atmosphere | Area must be free of corrosive and explosive gases and steam. | |
| Mounting direction | The standard package is designed for horizontal mounting. Specify if you wish to mount the unit in a non-horizontal position. | |
| Paint Color | Munsell 2.5G6/3 | |
Options
Shaft cover
・A cover is available for CROISE MOTOR with a hollow shaft. This cover protects the end of the hollow shaft opposite the mounting side. (Material: SS400)
・Size (Unit: mm), PDF drawings
| Model No. | Frame number | ΦA | B | C | PDF drawing | Standard Price | Delivery |
|---|---|---|---|---|---|---|---|
| CSM22CAP | 22 | 74 | 20 | 18 | Contact us for details. | Contact us for details. |
Torque Arm
・A torque arm is available for hollow shaft models that are to be shaft mounted. (Material: SS400)
・Size (Unit: mm), PDF drawings
| Model No. | Reducer frame no. | A | B PCD |
ΦC | ΦD | E | F | ΦJ | ΦK | M度 | T | Bolt size | Tightening torque | Mass kg |
PDF drawing | Standard Price | Delivery | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| N・m | {kgf・m} | |||||||||||||||||
| CSM22TA | 22 | 140 | 128 | 148 | 108 | 20 | 35 | 11 | 9 | 35゜ | 6 | M8×20 | 26 | 2.6 | 0.7 | Contact us for details. | Contact us for details. | |
Base
・A base is available for face mount models with a hollow shaft. This base is used for base or flange mounting.
・Size (Unit: mm), PDF drawings
| Model No. | Reducer frame no. | A | B | C | D | E | F | G | H | ΦI | ΦJ | ΦK | L | Bolt size | Tightening torque | Mass kg |
PDF drawing | Standard Price | Delivery | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| N・m | {kgf・m} | |||||||||||||||||||
| CSM22BA | 22 | 166 | 136 | 140 | 110 | 41 | 14 | 73.4 | 104.8 | 9 | 11 | 80 | 88 | M8×25 | 26 | {2.6} | 0.5 | Contact us for details. | Contact us for details. | |
