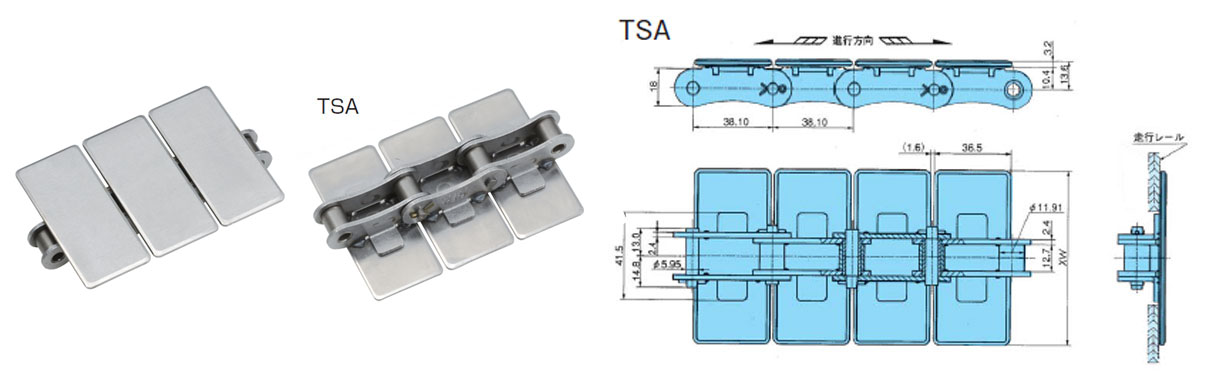

Stainless Steel Top Chain TSA Major Specifications
TSA
Features
- ・Stainless steel conveyor chain with top plates attached to ANSI double pitch chain. Standard sprockets for ANSI double pitch chains can be used.
- ・Base chain is available in NP (nickel-plated), Lambda, or SS (all stainless steel) specifi cations.
- ・Available in a wide variety of special fi nishes to suit various applications and work environments. Includes hard chromium plated, buffed top plates, and heat-treated top plates for improved wear resistance.
[Click to enlarge ]
| ※ | The CAD data contained herein is made available to you via the CAD drawing library; PARTcommunity is provided by CADENAS WEB2CAD Co. |
| ※ | Please direct your inquiries regarding the CAD data service or PARTcommunity to: CADENAS WEB2CAD Co. TEL: +81 (3) 5961-5031 FAX: +81 (3) 5961-5032 |
Catalogs ・Instruction Manuals
Major Specifications
| Chain Pitch mm |
Specification | Model | Top plate width XW mm |
Max. allowable load kN |
Estimated Mass kg/m |
Operating Temperature Range ﾟC |

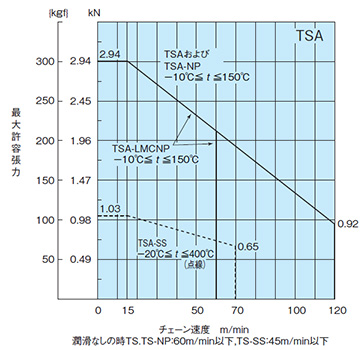

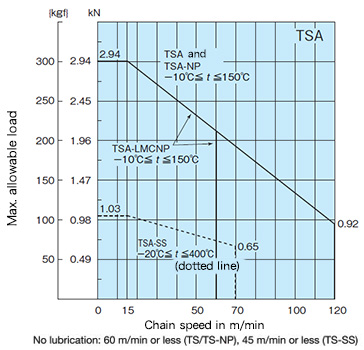

Allowable load graphs |
Number of links per one unit of chain |
|---|---|---|---|---|---|---|---|---|
| 38.10 | Standard Series | TSA550 | 55.0 | 2.94 | 2.8 | -10～150 | See allowable load graphs |
80 |
| TSA635 | 63.5 | 3.0 | ||||||
| TSA762 | 76.2 | 3.3 | ||||||
| TSA826 | 82.6 | 3.5 | ||||||
| TSA950 | 95.0 | 3.8 | ||||||
| TSA1016 | 101.6 | 4.0 | ||||||
| TSA1100 | 110.0 | 4.2 | ||||||
| TSA1143 | 114.3 | 4.3 | ||||||
| TSA1270 | 127.0 | 4.6 | ||||||
| TSA1524 | 152.4 | 5.2 | ||||||
| TSA1905 | 190.5 | 6.1 | ||||||
| 38.10 | NP Series | TSA550-NP | 55.0 | 2.94 | 2.8 | -10～150 | See allowable load graphs |
80 |
| TSA635-NP | 63.5 | 3.0 | ||||||
| TSA762-NP | 76.2 | 3.3 | ||||||
| TSA826-NP | 82.6 | 3.5 | ||||||
| TSA950-NP | 95.0 | 3.8 | ||||||
| TSA1016-NP | 101.6 | 4.0 | ||||||
| TSA1100-NP | 110.0 | 4.2 | ||||||
| TSA1143-NP | 114.3 | 4.3 | ||||||
| TSA1270-NP | 127.0 | 4.6 | ||||||
| TSA1524-NP | 152.4 | 5.2 | ||||||
| TSA1905-NP | 190.5 | 6.1 | ||||||
| 38.10 | Lambda Series | TSA550-LMCNP | 55.0 | 2.94 | 2.8 | -10～150 | See allowable load graphs |
80 |
| TSA635-LMCNP | 63.5 | 3.0 | ||||||
| TSA762-LMCNP | 76.2 | 3.3 | ||||||
| TSA826-LMCNP | 82.6 | 3.5 | ||||||
| TSA950-LMCNP | 95.0 | 3.8 | ||||||
| TSA1016-LMCNP | 101.6 | 4.0 | ||||||
| TSA1100-LMCNP | 110.0 | 4.2 | ||||||
| TSA1143-LMCNP | 114.3 | 4.3 | ||||||
| TSA1270-LMCNP | 127.0 | 4.6 | ||||||
| TSA1524-LMCNP | 152.4 | 5.2 | ||||||
| TSA1905-LMCNP | 190.5 | 6.1 | ||||||
| 38.10 | SS Series | TSA550-SS | 55.0 | 1.03 | 2.8 | -20～400 | See allowable load graphs |
80 |
| TSA635-SS | 63.5 | 3.0 | ||||||
| TSA762-SS | 76.2 | 3.3 | ||||||
| TSA826-SS | 82.6 | 3.5 | ||||||
| TSA950-SS | 95.0 | 3.8 | ||||||
| TSA1016-SS | 101.6 | 4.0 | ||||||
| TSA1100-SS | 110.0 | 4.2 | ||||||
| TSA1143-SS | 114.3 | 4.3 | ||||||
| TSA1270-SS | 127.0 | 4.6 | ||||||
| TSA1524-SS | 152.4 | 5.2 | ||||||
| TSA1905-SS | 190.5 | 6.1 |
Notes
1.SS base chain plates differ slightly in shape.

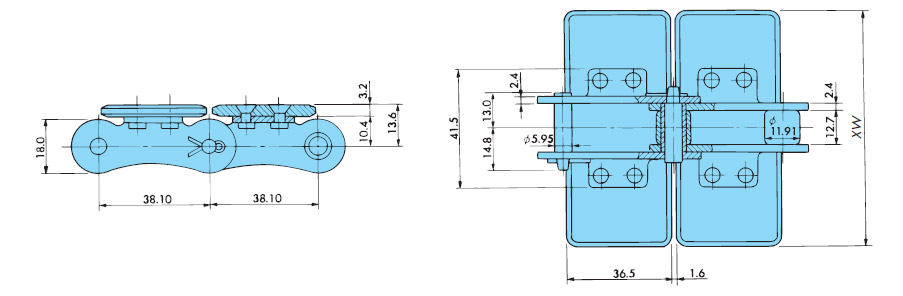

HTP type
[Click to enlarge ]
[Click to enlarge ]
| Chain Pitch kg/m |
Specification | Model | Top plate width XW mm |
Max. allowable load kN |
Estimated Mass kg/m |
Operating Temperature Range ﾟC |
Allowable load graphs |
Number of links per one unit of chain |
|---|---|---|---|---|---|---|---|---|
| 38.10 | HTP type | TSA550-HTP | 55.0 | - | - | - | - | - |
| TSA635-HTP | 63.5 | |||||||
| TSA762-HTP | 76.2 | |||||||
| TSA826-HTP | 82.6 | |||||||
| TSA950-HTP | 95.0 | |||||||
| TSA1016-HTP | 101.6 |
Notes
1.Top plates hardened to HRC 40+ (base chain standard carbon steel).
2.This is a made to order item.
3.Top plates are riveted to base chain.
Applicable sprockets
※Click the model No. for detailed information. Click to enlarge.
  |
|
Applicable plastic rail
※Click the model No. for detailed information. Click to enlarge.
  |
The plastic rail has no heat resistance or chemical resistance. |
||||||||||||||||||||
