Stainless Steel Top Chain TS 　Major Specifications

TS


Features

  • ・Stainless steel conveyor chain with top plates attached to ANSI double pitch chain. Standard sprockets for ANSI double pitch chains can be used.
  • ・Base chain is available in NP (nickel-plated), Lambda, or SS (all stainless steel) specifi cations.
  • ・Available in a wide variety of special fi nishes to suit various applications and work environments. Includes hard chromium plated, buffed top plates, and heat-treated top plates for improved wear resistance.

[Click to enlarge ]

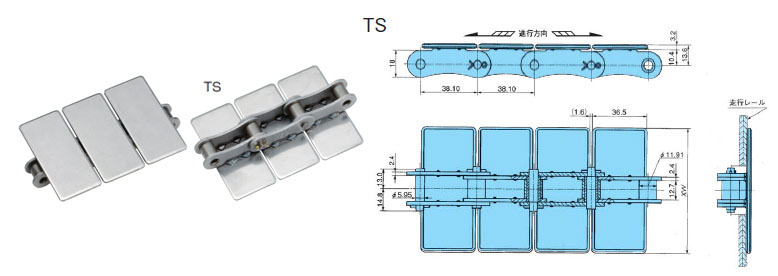

PDF Outline Drawing

Contact us for details.

DXF drawings / 3D CAD data

To CADENAS WEB2CAD website.

※ The CAD data contained herein is made available to you via the CAD drawing library; PARTcommunity is provided by CADENAS WEB2CAD Co.
※ Please direct your inquiries regarding the CAD data service or PARTcommunity to:
　CADENAS WEB2CAD Co. TEL: +81 (3) 5961-5031 FAX: +81 (3) 5961-5032

Catalogs ・Instruction Manuals

Major Specifications

Chain
Pitch
mm		 Package Model Top plate
width
XW
mm		 Max. allowable load
kN		 Estimated Mass
kg/m		 Operating Temperature Range
ﾟC		 Allowable

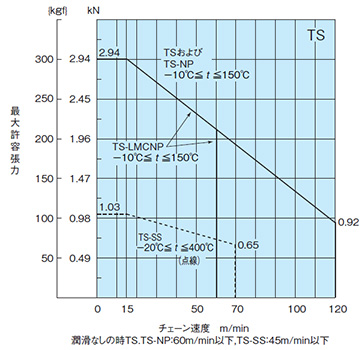

load graphs 		Number of links
per one unit
of chain
38.10 Standard Series TS550 55.0 2.94 2.5 -10～150 See allowable load graphs
 80
TS635 63.5 2.7
TS762 76.2 3.0
TS826 82.6 3.2
TS950 95.0 3.5
TS1016 101.6 3.7
TS1100 110.0 3.9
TS1143 114.3 4.0
TS1270 127.0 4.3
TS1524 152.4 4.9
TS1905 190.5 5.8
38.10 NP Series TS550-NP 55.0 2.94 2.5 -10～150 See allowable load graphs
 80
TS635-NP 63.5 2.7
TS762-NP 76.2 3.0
TS826-NP 82.6 3.2
TS950-NP 95.0 3.5
TS1016-NP 101.6 3.7
TS1100-NP 110.0 3.9
TS1143-NP 114.3 4.0
TS1270-NP 127.0 4.3
TS1524-NP 152.4 4.9
TS1905-NP 190.5 5.8
38.10 Lambda Series TS550-LMCNP 55.0 2.94 2.5 -10～150 See allowable load graphs
 80
TS635-LMCNP 63.5 2.7
TS762-LMCNP 76.2 3.0
TS826-LMCNP 82.6 3.2
TS950-LMCNP 95.0 3.5
TS1016-LMCNP 101.6 3.7
TS1100-LMCNP 110.0 3.9
TS1143-LMCNP 114.3 4.0
TS1270-LMCNP 127.0 4.3
TS1524-LMCNP 152.4 4.9
TS1905-LMCNP 190.5 5.8
38.10 SS Series TS550-SS 55.0 1.03 2.5 -20～400 See allowable load graphs
 80
TS635-SS 63.5 2.7
TS762-SS 76.2 3.0
TS826-SS 82.6 3.2
TS950-SS 95.0 3.5
TS1016-SS 101.6 3.7
TS1100-SS 110.0 3.9
TS1143-SS 114.3 4.0
TS1270-SS 127.0 4.3
TS1524-SS 152.4 4.9
TS1905-SS 190.5 5.8

Notes
　1.SS base chain plates differ slightly in shape.
　

CTP type

[Click to enlarge ]

Chain
Pitch
kg/m		 Package Model Top plate
width
XW
mm		 Max. allowable load
kN		 Estimated Mass
kg/m		 Operating Temperature Range
ﾟC		 Allowable
load graphs 		Number of links
per one unit
of chain
38.10 CTP type TS635-CTP 63.5 - - - - -
TS762-CTP 76.2

Notes
　1.This is a made to order item.
　2.Back flex radius is larger than standard TS chain. Contact a Tsubaki representative when using TS-CTP chain to replace Tsubaki standard TS chain.

Applicable sprockets

※Click the model No. for detailed information. Click to enlarge.



Type Material Base Model No. Working number of teeth range
With plain bore steel RF2060S-1B□T■ 9½～12½
Stainless RF2060S-1B□T-SS 9½～12½
Engineering plastic RF2060S-1B□T-P 9½～12½
Fit bore steel RF2060S-1B□T-H～ 9½～12½
Stainless RF2060S-1B□T-SS-H～ 9½～12½
Lock Sprocket S Type steel RF2060S-1B□T-S○○○○● 9½～12½

Applicable accessories

※Click the model No. for detailed information. Click to enlarge.

Disconnecting and Connecting Tools For TS Top Chains


Applicable Chains Model No. Application
TS TS-AST Disconnecting and Connecting

Applicable plastic rail

※Click the model No. for detailed information. Click to enlarge.



Rail material symbol Model No. Thickness
mm		 Width
mm
Main unit End Plate
PR-PH type PLF PR-PH□□□-PLF PR-PH□□□E-PLF 3～5 20～40
PR type M PR520-M PRE520-M 5 20

The plastic rail has no heat resistance or chemical resistance.
Contact a Tsubaki representative when using in special environments or usage conditions.
