Stainless Steel Top Chain TRU 　Major Specifications

TRU


Features

  • ・Sidefl exing chain equipped with fl oat-preventive tabs. Larger allowable load than TTU stainless steel top chain.

[Click to enlarge ]

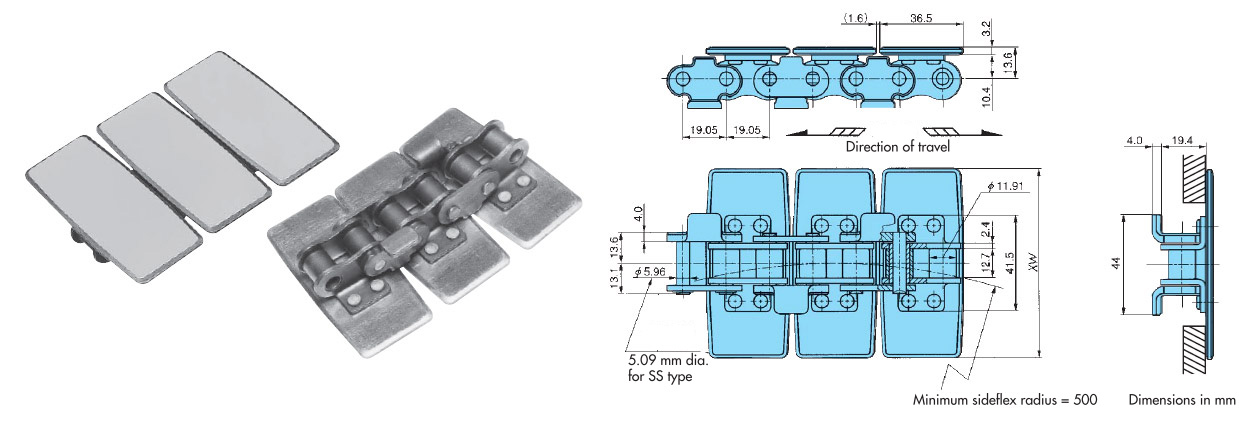

PDF Outline Drawing

Contact us for details.

DXF drawings / 3D CAD data

To CADENAS WEB2CAD website.

※ The CAD data contained herein is made available to you via the CAD drawing library; PARTcommunity is provided by CADENAS WEB2CAD Co.
※ Please direct your inquiries regarding the CAD data service or PARTcommunity to:
　CADENAS WEB2CAD Co. TEL: +81 (3) 5961-5031 FAX: +81 (3) 5961-5032

Catalogs ・Instruction Manuals

Major Specifications

Chain
Pitch
mm		 Package Model Top plate
width
XW
mm		 Max. allowable load
kN		 Estimated Mass
kg/m		 Operating Temperature Range
ﾟC		 Allowable
load graphs 		Number of links
per one unit
of chain

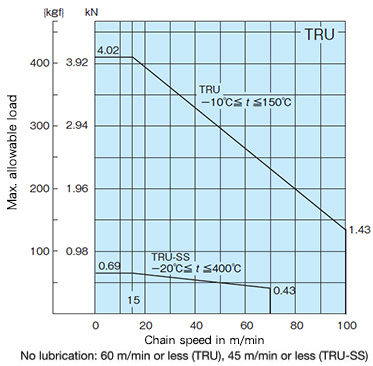

19.05 Standard Series TRU762-T 76.2 4.02 3.9 -10～150 See allowable load graphs
 160
TRU826-T 82.6 4.1
TRU1016-T 101.6 4.6
TRU1100-T 110.0 4.8
TRU1143-T 114.3 4.9
TRU1270-T 127.0 5.2
19.05 SS Series TRU762-T-SS 76.2 0.69 3.9 -20～400 See allowable load graphs
 160
TRU826-T-SS 82.6 4.1
TRU1016-T-SS 101.6 4.6
TRU1100-T-SS 110.0 4.8
TRU1143-T-SS 114.3 4.9
TRU1270-T-SS 127.0 5.2
19.05 NP Series TRU762-T-NP 76.2 4.02 3.9 -10～150 See allowable load graphs
 160
TRU826-T-NP 82.6 4.1
TRU1016-T-NP 101.6 4.6
TRU1100-T-NP 110.0 4.8
TRU1143-T-NP 114.3 4.9
TRU1270-T-NP 127.0 5.2

Material

Package Top Plates Base chain Rivets
Standard Series 18Crステンレス steel 13Crステンレス
SS Series 18-8ステンレス Nickel-plating steel 18-8ステンレス

Applicable sprockets

※Click the model No. for detailed information. Click to enlarge.

RS60 Sprockets





Type Material Base Model No.
With plain bore steel RS60-1B□T■
Stainless RS60-1B□T-SS
Engineering plastic RS60-1B□T-P
Fit bore steel RS60-1B□TQ-H～
Stainless RS60-1B□T-SS-H～
Lock Sprocket S Type steel RS60-1B□T■-S○○○○●
Lock Sprocket N Type steel RS60-1B□TQ-N○○○●
Sprockets can be used provided they have at least 19 teeth.

Applicable accessories

※Click the model No. for detailed information. Click to enlarge.

Disconnecting Tools For TRU and TTKU Top Chains


Applicable Chains Model No. Application
TRU, TTKU TRU-TTKU-AST only for disconnecting

Applicable plastic rail

※Click the model No. for detailed information. Click to enlarge.



Rail material symbol Model No. Thickness
mm		 Width
mm
Main unit End Plate
PR-PH type PLF PR-PH□□□-PLF PR-PH□□□E-PLF 3～5 20～40
PR type M PR520-M PRE520-M 5 20

The plastic rail has no heat resistance or chemical resistance.
Contact a Tsubaki representative when using in special environments or usage conditions.
