Plastic top chain TTUPT-M  Major Specifications

TTUPT-M

Features

  • Combining a magnetic wearstrip prevents the chain from floating in curved sections.

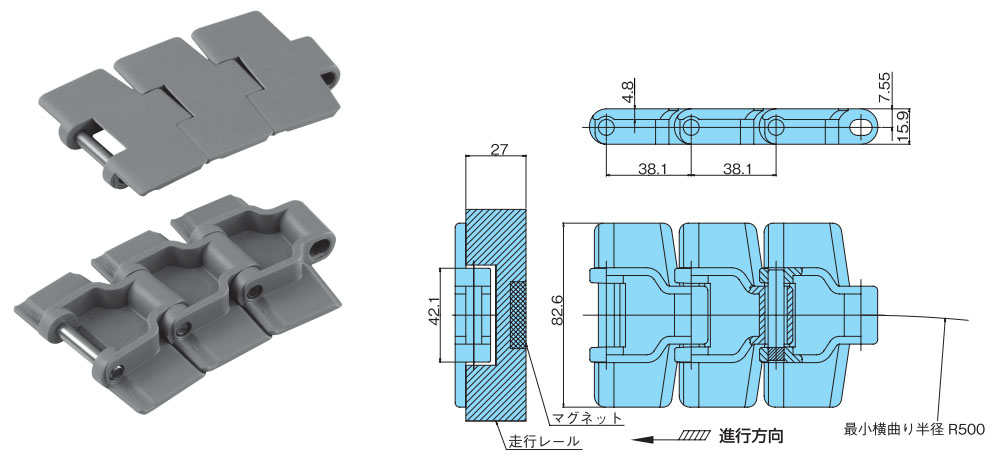

[ Click to enlarge ]
PDF Outline Drawing

Contact us for details.

CAD data in DXF format

See the table below

Click here for a list of all DXF files )

Major Specifications/Price/Delivery time

Package
(Click the series for more information. )
Package symbol Color Availability Allowable load
kN
Allowable speed
m/min
Operating Temperature Range
゚C
Pin material Allowable load graphs
With lube No lube
Low Friction/Anti-Wear  LFB Brown Click for further information 0.98 100 50 -20~(65)80 SUS304 Show allowable load graphs
Model No. Chain width
X
mm
Number of links
per one unit of chain
Chain
weight
kg/m
Availability DXF data Standard Price / link Delivery
TTUPT826M-LFB 82.6 80 1.15 DXF

Notes
 1.Availability
  ● : Standard product
  ○:Made-to-order product
  ×:Not available
  ▲:Special configurations may be available. Contact a Tsubaki representative for further information.
 2.Connecting pins not sold separately.
 3.Plastic pin type is not available.
 4.Operating temperature of ( ) is for wet conditions.
 5.Contact a Tsubaki representative regarding magnetic corner rails.

Applicable sprockets

※ Click the model No. for detailed information. Click to enlarge.



Sprockets (with Plain Bore)
Model No. Number of teeth Working number of teeth Pitch Diameter
mm
Plain bore Diameter
mm
Maximum Shaft Bore Diameter
mm
Type
TTUP900T - 9 111.40 Φ18 Φ47 Integrated type
TTUP912T 19 117.34
TTUP1000T - 10 123.29
TTUP1012T 21 10½ 129.26
TTUP1100T - 11 135.23
TTUP1112T 23 11½ 141.22
TTUP1200T - 12 147.21
TTUP1212T 25 12½ 153.20
TTUP1300T - 13 159.20
Lock Sprockets
Model No. Number of teeth Working number of teeth Pitch Diameter
mm
Bore diameter
mm
Type
TTUP900T-S□□□□ - 9 111.40 Φ15~Φ45 Integrated type
TTUP912T-S□□□□ 19 117.34
TTUP1000T-S□□□□ - 10 123.29
TTUP1012T-S□□□□ 21 10½ 129.26
TTUP1100T-S□□□□ - 11 135.23
TTUP1112T-S□□□□ 23 11½ 141.22
TTUP1200T-S□□□□ - 12 147.21
TTUP1212T-S□□□□ 25 12½ 153.20
TTUP1300T-S□□□□ - 13 159.20

Engineering Plastic Sprockets
Model No. Number of teeth Pitch Diameter
mm
Bore diameter
mm
Type
TP-C12■T-SPR 12 146.8 Φ25, Φ30, Φ35, Φ40 Split
×
( Drag to move. )
Model No.Number of teethPitch Diameter
mm
Bore diameter
mm
Type
TP-C12400T-SPR 12 146.8 Φ25 Split
TP-C12711T-SPR Φ30
TP-C12401T-SPR Φ35
TP-C12402T-SPR Φ40

Applicable idler wheels

※ Click the model No. for detailed information. Click to enlarge.


Model No. Equivalent no. of teeth Outer Diameter
mm
Bore diameter
mm
Type
TP-C12404T-IW 12 147 Φ30 Split

Applicable plastic rail

※ Click the model No. for detailed information. Click to enlarge.



Rail material symbol Model No. Thickness
mm
Width
mm
Main unit End Plate
PR type PMW PR520-PMW PRE520-PMW 5 20
M PR520-M PRE520-M 5 20
PR-PH type PLF PR-PH□□□-PLF PR-PH□□□E-PLF 3~5 20~40

The plastic rail has no heat resistance or chemical resistance.
Contact a Tsubaki representative when using in special environments or usage conditions.
