プラトップ®チェーンTTUPM838H形  Major Specifications

TTUPM838H

Features

  • プラスチックと金属ピンを融合させた“特殊2層D形プラピン”を採用
  • マグネット入りプラレールとの組合せで曲線部でのチェーン浮上り防止に最適

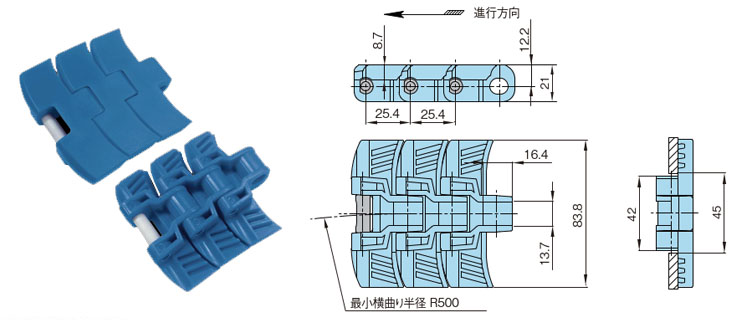

[ Click to enlarge ]
PDF Outline Drawing

Contact us for details.

CAD data in DXF format

See the table below

Click here for a list of all DXF files )

Major Specifications/Price/Delivery time

Package
(Click the series for more information. )
Package symbol Color Availability Allowable load
kN
Allowable speed
m/min
Operating Temperature Range
゚C
Pin material Allowable load graphs
With lube No lube
Low Friction/Anti-Wear  CB Blue Click for further information 1.9 100 50 -20~(60)80 Metal (nickel - plated) + Special engineering plastic Show allowable load graphs
Model No. Chain width
X
mm
Number of links
per one unit of chain
Chain
weight
kg/m
Availability DXF data Standard Price / link Delivery
TTUPM838H-CB 83.8 120 1.5 DXF
Advanced Low friction and Wear Resistant  ALF Light blue Click for further information 1.9 100 50 -20~(60)80 Martensitic stainless steel + Special engineering plastic Show allowable load graphs
Model No. Chain width
X
mm
Number of links
per one unit of chain
Chain
weight
kg/m
Availability DXF data Standard Price / link Delivery
TTUPM838H-ALF 83.8 120 1.5 DXF
Low Friction/Anti-Wear  HG Navy blue Click for further information 1.9 100 50 -20~(60)80 Martensitic stainless steel + Special engineering plastic Show allowable load graphs
Model No. Chain width
X
mm
Number of links
per one unit of chain
Chain
weight
kg/m
Availability DXF data Standard Price / link Delivery
TTUPM838H-HG 83.8 120 1.5 DXF

Applicable sprockets

※ Click the model No. for detailed information. Click to enlarge.




Split Sprockets(SW2500)
Model No. Number of teeth Pitch Diameter
mm
Bore diameter
mm
Type
WT-SW2500-16T■ 16 130.20 Φ25, Φ30, Φ35, Φ40 Split
WT-SW2500-18T■ 18 146.27 Φ25, Φ30, Φ35, Φ40
WT-SW2500-21T■ 21 170.40 Φ25, Φ30, Φ35, Φ40
×
( Drag to move. )
■分割形スプロケット(SW2500)
Model No.Number of teethPitch Diameter
mm
Bore diameter
mm
Type
WT-SW2500-16T25 16 130.20 Φ25 分割形
WT-SW2500-16T30 Φ30
WT-SW2500-16T35 Φ35
WT-SW2500-16T40 Φ40
×
( Drag to move. )
■分割形スプロケット(SW2500)
Model No.Number of teethPitch Diameter
mm
Bore diameter
mm
Type
WT-SW2500-18T25 18 146.27 Φ25 分割形
WT-SW2500-18T30 Φ30
WT-SW2500-18T35 Φ35
WT-SW2500-18T40 Φ40
×
( Drag to move. )
■分割形スプロケット(SW2500)
Model No.Number of teethPitch Diameter
mm
Bore diameter
mm
Type
WT-SW2500-21T25 21 170.40 Φ25 分割形
WT-SW2500-21T30 Φ30
WT-SW2500-21T35 Φ35
WT-SW2500-21T40 Φ40
Solid Sprockets(S2500)
Model No. Number of teeth Pitch Diameter
mm
Bore diameter
mm
Type
WT-S2500-16T 16 130.20 Bore shape and size are
made-to-order.
Integrated type
WT-S2500-18T 18 146.27
WT-S2500-21T 21 170.42

Applicable plastic rail

※ Click the model No. for detailed information. Click to enlarge.



Rail material symbol Model No. Thickness
mm
Width
mm
Main unit End Plate
PR type PMW PR520-PMW PRE520-PMW 5 20
M PR520-M PRE520-M 5 20
PR-PH type PLF PR-PH□□□-PLF PR-PH□□□E-PLF 3~5 20~40

The plastic rail has no heat resistance or chemical resistance.
Contact a Tsubaki representative when using in special environments or usage conditions.
