Plastic top chain TTPT  Major Specifications

TTPT

Features

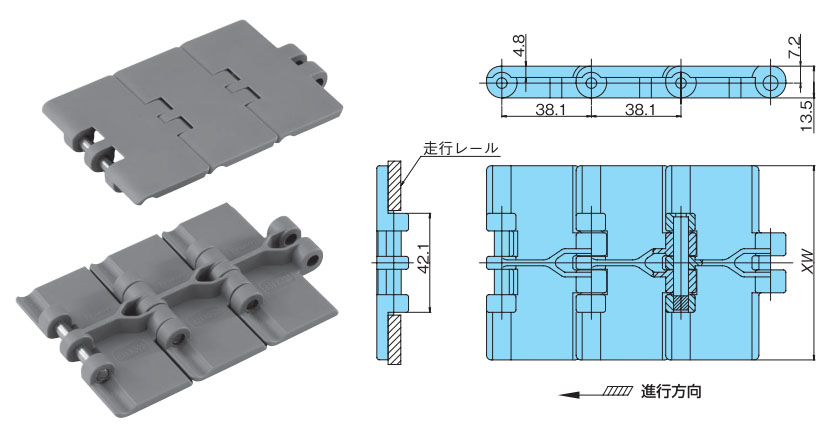

  • Plates are thicker than TTP chain. Ideal for applications where the plates would be susceptible to wear. (Plate thickness: TTPT = 4.8mm, TTP = 4.0mm)

[ Click to enlarge ]
PDF Outline Drawing

Contact us for details.

CAD data in DXF format

See the table below

Click here for a list of all DXF files )

Major Specifications/Price/Delivery time

Package
(Click the series for more information. )
Package symbol Color Availability Allowable load
kN
Allowable speed
m/min
Operating Temperature Range
゚C

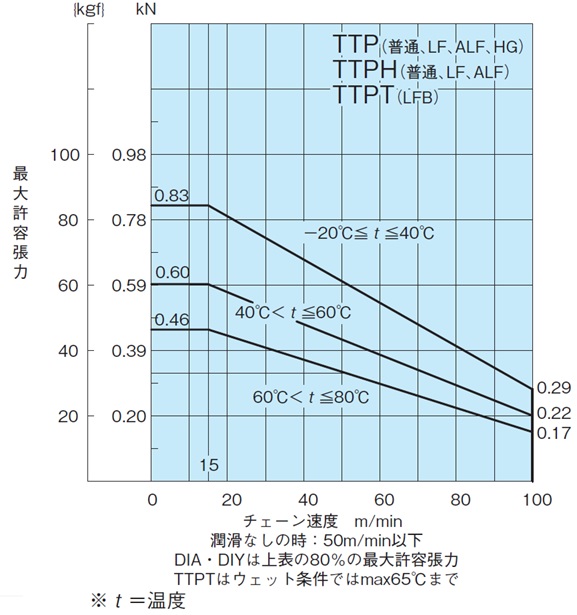

Pin material Allowable load graphs
With lube No lube
Low Friction/Anti-Wear  LFB Brown Click for further information 0.83 100 50 -20~(65)80 SUS304 Show allowable load graphs
Model No. Chain width
X
mm
Number of links
per one unit of chain
Chain
weight
kg/m
Availability DXF data Standard Price / link Delivery
TTPT826-LFB 82.6 80 1.04 DXF
TTPT1143-LFB 114.3 80 1.29 DXF
TTPT1905-LFB 190.5 80 1.82 DXF

Notes
 1.Availability
  ● : Standard product
  ○:Made-to-order product
  ×:Not available
  ▲:Special configurations may be available. Contact a Tsubaki representative for further information.
 2.Connecting pins not sold separately.
 3.Plastic pin type is not available.
 4.Operating temperature of ( ) is for wet conditions.

Applicable sprockets

※ Click the model No. for detailed information. Click to enlarge.




Sprockets (with Plain Bore)
Model No. Number of teeth Working number of teeth Pitch Diameter
mm
Plain bore Diameter
mm
Maximum Shaft Bore Diameter mm Type
TTP912T 19 117.34 Φ18 Φ40 Integrated type
TTP1012T 21 10½ 129.26
TTP1112T 23 11½ 141.22
TTP1212T 25 12½ 153.20
Lock Sprockets
Model No. Number of teeth Working number of teeth Pitch Diameter
mm
Bore diameter
mm
Type
TTP912T-S□□□□ 19 117.34 Φ15~Φ45 Integrated type
TTP1012T-S□□□□ 21 10½ 129.26
TTP1112T-S□□□□ 23 11½ 141.22
TTP1212T-S□□□□ 25 12½ 153.20
Engineering Plastic Sprockets
Model No. Number of teeth Working number of teeth Pitch Diameter
mm
Bore diameter
mm
Type
TP-C12■■■NT-SPR 21 10½ 129.26 Φ25, Φ30, Φ35, Φ40 Split
TP-C12■■■NT-SPR 23 11½ 141.22 Φ25, Φ30, Φ35, Φ40
TP-C12■■■NT-SPR 25 12½ 153.20 Φ25, Φ30, Φ35, Φ40
×
( Drag to move. )
■Engineering plastic sprockets (OEM supplied)
Model No.Number of teeth Working number of teeth Pitch Diameter
mm
Bore diameter
mm
Type
TP-C12057NT-SPR 21 10½ 129.26 Φ25 Split
TP-C12058NT-SPR Φ30
TP-C12059NT-SPR Φ35
TP-C12060NT-SPR Φ40
×
( Drag to move. )
■Engineering plastic sprockets (OEM supplied)
Model No.Number of teeth Working number of teeth Pitch Diameter
mm
Bore diameter
mm
Type
TP-C12104NT-SPR 23 11½ 141.22 Φ25 Split
TP-C12105NT-SPR Φ30
TP-C12106NT-SPR Φ35
TP-C12107NT-SPR Φ40
×
( Drag to move. )
■Engineering plastic sprockets (OEM supplied)
Model No.Number of teeth Working number of teeth Pitch Diameter
mm
Bore diameter
mm
Type
TP-C12069NT-SPR 25 12½ 153.20 Φ25 Split
TP-C12070NT-SPR Φ30
TP-C12071NT-SPR Φ35
TP-C12072NT-SPR Φ40

Applicable idler wheels

※ Click the model No. for detailed information. Click to enlarge.



Engineering Plastic?Idler wheels
Model No. Equivalent no. of teeth Outer Diameter
mm
Bore diameter
mm
Type
TP-C12■■■BT-IW 21 129.8 Φ25, Φ30, Φ40 Integrated type
TP-C12■■■BT-IW 23 142.2 Φ25, Φ30, Φ40
TP-C12■■■BT-IW 25 154.7 Φ25, Φ30, Φ40
TP-C12■■■BT-IW 21 129.8 Φ25, Φ30, Φ45, Φ40 Split
TP-C12■■■BT-IW 23 142.2 Φ25, Φ30, Φ45, Φ40
TP-C12■■■BT-IW 25 154.7 Φ25, Φ30, Φ45, Φ40
×
( Drag to move. )
■Engineering Plastic?Idler wheels (OEM supplied)
Model No.Equivalent no. of teeth Outer Diameter
mm
Bore diameter
mm
Type
TP-C12200BT-IW 21 129.8 Φ25 Integrated type
TP-C12201BT-IW Φ30
TP-C12203BT-IW Φ40
×
( Drag to move. )
■Engineering Plastic?Idler wheels (OEM supplied)
Model No.Equivalent no. of teeth Outer Diameter
mm
Bore diameter
mm
Type
TP-C12212BT-IW 23 142.2 Φ25 Integrated type
TP-C12213BT-IW Φ30
TP-C12215BT-IW Φ40
×
( Drag to move. )
■Engineering Plastic?Idler wheels (OEM supplied)
Model No.Equivalent no. of teeth Outer Diameter
mm
Bore diameter
mm
Type
TP-C12204BT-IW 25 154.7 Φ25 Integrated type
TP-C12205BT-IW Φ30
TP-C12207BT-IW Φ40
×
( Drag to move. )
■Engineering Plastic?Idler wheels (OEM supplied)
Model No.Equivalent no. of teeth Outer Diameter
mm
Bore diameter
mm
Type
TP-C12077BT-IW 21 129.8 Φ25 Split
TP-C12078BT-IW Φ30
TP-C12079BT-IW Φ35
TP-C12080BT-IW Φ40
×
( Drag to move. )
■Engineering Plastic?Idler wheels (OEM supplied)
Model No.Equivalent no. of teeth Outer Diameter
mm
Bore diameter
mm
Type
TP-C121928BT-IW 23 142.2 Φ25 Split
TP-C121929BT-IW Φ30
TP-C121930BT-IW Φ35
TP-C121931BT-IW Φ40
×
( Drag to move. )
■Engineering Plastic?Idler wheels (OEM supplied)
Model No.Equivalent no. of teeth Outer Diameter
mm
Bore diameter
mm
Type
TP-C12081BT-IW 25 154.7 Φ25 Split
TP-C12082BT-IW Φ30
TP-C12083BT-IW Φ35
TP-C12084BT-IW Φ40

Applicable plastic rail

※ Click the model No. for detailed information. Click to enlarge.



Rail material symbol Model No. Thickness
mm
Width
mm
Main unit End Plate
PR type PMW PR520-PMW PRE520-PMW 5 20
M PR520-M PRE520-M 5 20
PR-PH type PLF PR-PH□□□-PLF PR-PH□□□E-PLF 3~5 20~40

The plastic rail has no heat resistance or chemical resistance.
Contact a Tsubaki representative when using in special environments or usage conditions.
