Plastic top chain TPS  Major Specifications

TPS

Features

  • Approx. 40% higher maximum allowable load than TTP plastic top chain. Ideal for higher applied load conditions.
  • Uses the same sprockets as TTUP and TPU sideflexing plastic top chains. Designed to allow common sprockets to be used.
  • Models with plastic pins also available. All-plastic construction means light weight and easy handling. Longer service life under water lubrication than stainless steel pins.

[ Click to enlarge ]

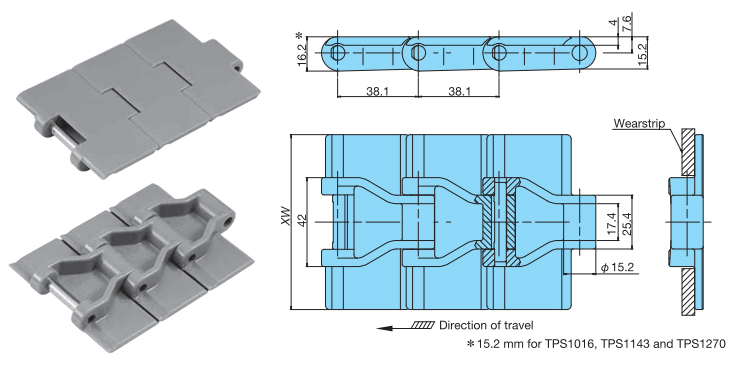

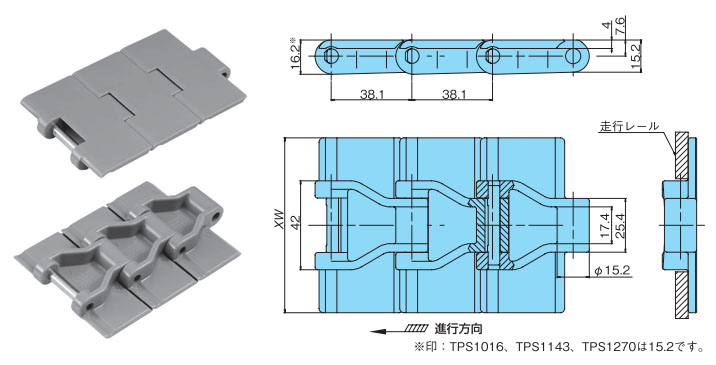

PDF Outline Drawing

Contact us for details.

CAD data in DXF format

See the table below

Click here for a list of all DXF files )

Major Specifications/Price/Delivery time

Package
(Click the series for more information. )
Package symbol Color Availability Allowable load
kN
Allowable speed
m/min
Operating Temperature Range
゚C
Pin material Allowable load graphs
With lube No lube
Normal  None Gray Click for further information 1.18 100 50 -20~80 SUS304 Show allowable load graphs
Model No. Chain width
X
mm
Number of links
per one unit of chain
Chain
weight
kg/m
Availability DXF data Standard Price / link Delivery
TPS762 76.2 80 0.85 DXF
TPS826 82.6 80 0.85 DXF
TPS1016 101.6 80 1.05 DXF
TPS1143 114.3 80 1.10 DXF
TPS1270 127.0 80 1.20 DXF
Low Friction/Anti-Wear  LFW White Click for further information 1.18 100 50 -20~80 SUS304 Show allowable load graphs
Model No. Chain width
X
mm
Number of links
per one unit of chain
Chain
weight
kg/m
Availability DXF data Standard Price / link Delivery
TPS762-LFW 76.2 80 0.85 DXF
TPS826-LFW 82.6 80 0.85 DXF
TPS1016-LFW 101.6 80 1.05 DXF
TPS1143-LFW 114.3 80 1.10 DXF
TPS1270-LFW 127.0 80 1.20 DXF
Low Friction/Anti-Wear  LFG Green Click for further information 1.18 100 50 -20~80 SUS304 Show allowable load graphs
Model No. Chain width
X
mm
Number of links
per one unit of chain
Chain
weight
kg/m
Availability DXF data Standard Price / link Delivery
TPS762-LFG 76.2 80 0.85 DXF
TPS826-LFG 82.6 80 0.85 DXF
TPS1016-LFG 101.6 80 1.05 DXF
TPS1143-LFG 114.3 80 1.10 DXF
TPS1270-LFG 127.0 80 1.20 DXF
Low Friction/Anti-Wear  LFB Brown Click for further information 1.18 100 50 -20~80 SUS304 Show allowable load graphs
Model No. Chain width
X
mm
Number of links
per one unit of chain
Chain
weight
kg/m
Availability DXF data Standard Price / link Delivery
TPS762-LFB 76.2 80 0.85 DXF
TPS826-LFB 82.6 80 0.85 DXF
TPS1016-LFB 101.6 80 1.05 DXF
TPS1143-LFB 114.3 80 1.10 DXF
TPS1270-LFB 127.0 80 1.20 DXF
Advanced Low friction and Wear Resistant  ALF Light blue Click for further information 1.18 100 50 -20~80 SUS304 Contact us for details.
Model No. Chain width
X
mm
Number of links
per one unit of chain
Chain
weight
kg/m
Availability DXF data Standard Price / link Delivery
TPS762-ALF 76.2 80 0.85 DXF
TPS826-ALF 82.6 80 0.85 DXF
TPS1016-ALF 101.6 80 1.05 DXF
TPS1143-ALF 114.3 80 1.10 DXF
TPS1270-ALF 127.0 80 1.20 DXF
Low Friction  WR Dark green Click for further information 1.18 100 50 -20~80 SUS304 Contact us for details.
Model No. Chain width
X
mm
Number of links
per one unit of chain
Chain
weight
kg/m
Availability DXF data Standard Price / link Delivery
TPS762-WR 76.2 80 0.85 DXF
TPS826-WR 82.6 80 0.85 DXF
TPS1016-WR 101.6 80 1.05 DXF
TPS1143-WR 114.3 80 1.10 DXF
TPS1270-WR 127.0 80 1.20 DXF
Heat Resistant/High Speed KV150 Black Click for further information Contact us for details.
Heat Resistant/High Speed KV180 Black Click for further information Contact us for details.
Heat Resistant/High Speed KV250 Black Click for further information Contact us for details.
High speed HS Cream × -
Chemical Resistant Y Matte white Contact us for details.
Electroconductive E Black Contact us for details.
Impact Resistant DIA Cream Contact us for details.
Impact Resistant DIY Green Contact us for details.
Antibacterial/Mold Resistant MWS Cream Contact us for details.
Metal Detectable MPD Black Contact us for details.
Metal Detectable MPW Black Contact us for details.

Notes
 1.Availability
  ● : Standard product
  ○:Made-to-order product
  ×:Not available
  ▲:Special configurations may be available. Contact a Tsubaki representative for further information.
 2.As of January 2009, knurled connecting pins have been changed to D-pins.
 3.Knurled-pin chain and D-pin chain cannot be connected. When replacing, always replace the entire chain.


Joint pin

Model No. Applicable model Pin material Price Delivery Drawings
TTUP-SUS-JPD TPS SUS304 Contact us for details. Contact us for details. Drawings

Applicable sprockets

※ Click the model No. for detailed information. Click to enlarge.



Sprockets (with Plain Bore)
Model No. Number of teeth Working number of teeth Pitch Diameter
mm
Plain bore Diameter
mm
Maximum Shaft Bore Diameter
mm
Type
TTUP900T - 9 111.40 Φ18 Φ47 Integrated type
TTUP912T 19 117.34
TTUP1000T - 10 123.29
TTUP1012T 21 10½ 129.26
TTUP1100T - 11 135.23
TTUP1112T 23 11½ 141.22
TTUP1200T - 12 147.21
TTUP1212T 25 12½ 153.20
TTUP1300T - 13 159.20
Lock Sprockets
Model No. Number of teeth Working number of teeth Pitch Diameter
mm
Bore diameter
mm
Type
TTUP900T-S□□□□ - 9 111.40 Φ15~Φ45 Integrated type
TTUP912T-S□□□□ 19 117.34
TTUP1000T-S□□□□ - 10 123.29
TTUP1012T-S□□□□ 21 10½ 129.26
TTUP1100T-S□□□□ - 11 135.23
TTUP1112T-S□□□□ 23 11½ 141.22
TTUP1200T-S□□□□ - 12 147.21
TTUP1212T-S□□□□ 25 12½ 153.20
TTUP1300T-S□□□□ - 13 159.20

Engineering Plastic Sprockets
Model No. Number of teeth Pitch Diameter
mm
Bore diameter
mm
Type
TP-C12■T-SPR 12 146.8 Φ25, Φ30, Φ35, Φ40 Split
×
( Drag to move. )
Model No.Number of teethPitch Diameter
mm
Bore diameter
mm
Type
TP-C12400T-SPR 12 146.8 Φ25 Split
TP-C12711T-SPR Φ30
TP-C12401T-SPR Φ35
TP-C12402T-SPR Φ40

Applicable idler wheels

※ Click the model No. for detailed information. Click to enlarge.



Engineering Plastic?Idler wheels
Model No. Equivalent no. of teeth Outer Diameter
mm
Bore diameter
mm
Type
TP-C12■■■BT-IW 21 129.8 Φ25, Φ30, Φ40 Integrated type
TP-C12■■■BT-IW 23 142.2 Φ25, Φ30, Φ40
TP-C12■■■BT-IW 25 154.7 Φ25, Φ30, Φ40
TP-C12■■■BT-IW 21 129.8 Φ25, Φ30, Φ45, Φ40 Split
TP-C12■■■BT-IW 23 142.2 Φ25, Φ30, Φ45, Φ40
TP-C12■■■BT-IW 25 154.7 Φ25, Φ30, Φ45, Φ40
×
( Drag to move. )
■Engineering Plastic?Idler wheels (OEM supplied)
Model No.Equivalent no. of teeth Outer Diameter
mm
Bore diameter
mm
Type
TP-C12200BT-IW 21 129.8 Φ25 Integrated type
TP-C12201BT-IW Φ30
TP-C12203BT-IW Φ40
×
( Drag to move. )
■Engineering Plastic?Idler wheels (OEM supplied)
Model No.Equivalent no. of teeth Outer Diameter
mm
Bore diameter
mm
Type
TP-C12212BT-IW 23 142.2 Φ25 Integrated type
TP-C12213BT-IW Φ30
TP-C12215BT-IW Φ40
×
( Drag to move. )
■Engineering Plastic?Idler wheels (OEM supplied)
Model No.Equivalent no. of teeth Outer Diameter
mm
Bore diameter
mm
Type
TP-C12204BT-IW 25 154.7 Φ25 Integrated type
TP-C12205BT-IW Φ30
TP-C12207BT-IW Φ40
×
( Drag to move. )
■Engineering Plastic?Idler wheels (OEM supplied)
Model No.Equivalent no. of teeth Outer Diameter
mm
Bore diameter
mm
Type
TP-C12077BT-IW 21 129.8 Φ25 Split
TP-C12078BT-IW Φ30
TP-C12079BT-IW Φ35
TP-C12080BT-IW Φ40
×
( Drag to move. )
■Engineering Plastic?Idler wheels (OEM supplied)
Model No.Equivalent no. of teeth Outer Diameter
mm
Bore diameter
mm
Type
TP-C121928BT-IW 23 142.2 Φ25 Split
TP-C121929BT-IW Φ30
TP-C121930BT-IW Φ35
TP-C121931BT-IW Φ40
×
( Drag to move. )
■Engineering Plastic?Idler wheels (OEM supplied)
Model No.Equivalent no. of teeth Outer Diameter
mm
Bore diameter
mm
Type
TP-C12081BT-IW 25 154.7 Φ25 Split
TP-C12082BT-IW Φ30
TP-C12083BT-IW Φ35
TP-C12084BT-IW Φ40

Model No. Equivalent no. of teeth Outer Diameter
mm
Bore diameter
mm
Type
TP-C12404T-IW 12 147 Φ30 Split

Applicable plastic rail

※ Click the model No. for detailed information. Click to enlarge.



Rail material symbol Model No. Thickness
mm
Width
mm
Main unit End Plate
PR type PMW PR520-PMW PRE520-PMW 5 20
M PR520-M PRE520-M 5 20
PR-PH type PLF PR-PH□□□-PLF PR-PH□□□E-PLF 3~5 20~40

The plastic rail has no heat resistance or chemical resistance.
Contact a Tsubaki representative when using in special environments or usage conditions.

Applicable accessories

※ Click the model No. for detailed information. Click to enlarge.

Disconnecting Tools For TPS826, TTUP826 and TPU826 Top Chains


Applicable Chains Model No. Application
TPS, TTUP, TPU826-KV TPS-TPU-KV-AST Disconnecting and Connecting
