Plastic top chain TPRF2060  Major Specifications

TPRF2060

Features

  • Double-pitch top chain featuring wider plastic top plates for better product support.
  • RF2060S sprockets can be used (working number of teeth is 9½ or more).

[ Click to enlarge ]

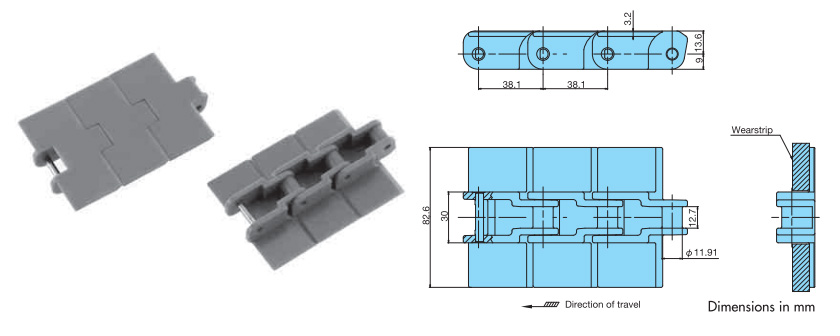

PDF Outline Drawing

Contact us for details.

CAD data in DXF format

See the table below

Click here for a list of all DXF files )

Major Specifications/Price/Delivery time

Package
(Click the series for more information. )
Package symbol Color Availability Allowable load
kN
Allowable speed
m/min
Operating Temperature Range
゚C
Pin material Allowable load graphs
With lube No lube
Normal  None Gray Click for further information 0.88 60 60 -20~80 SUS304 Show allowable load graphs
Model No. Chain width
X
mm
Number of links
per one unit of chain
Chain
weight
kg/m
Availability DXF data Standard Price / link Delivery
TPRF2060 82.6 80 0.9 DXF
Low Friction/Anti-Wear  LFW White Click for further information 0.88 60 60 -20~80 SUS304 Show allowable load graphs
Model No. Chain width
X
mm
Number of links
per one unit of chain
Chain
weight
kg/m
Availability DXF data Standard Price / link Delivery
TPRF2060-LFW 82.6 80 0.9 DXF
Low Friction/Anti-Wear  LFG Green Click for further information 0.88 60 60 -20~80 SUS304 Show allowable load graphs
Model No. Chain width
X
mm
Number of links
per one unit of chain
Chain
weight
kg/m
Availability DXF data Standard Price / link Delivery
TPRF2060-LFG 82.6 80 0.9 DXF
Low Friction/Anti-Wear  LFB Brown Click for further information 0.88 60 60 -20~80 SUS304 Show allowable load graphs
Model No. Chain width
X
mm
Number of links
per one unit of chain
Chain
weight
kg/m
Availability DXF data Standard Price / link Delivery
TPRF2060-LFB 82.6 80 0.9 DXF
Advanced Low friction and Wear Resistant  ALF Light blue Click for further information 0.88 60 60 -20~80 SUS304 Show allowable load graphs
Model No. Chain width
X
mm
Number of links
per one unit of chain
Chain
weight
kg/m
Availability DXF data Standard Price / link Delivery
TPRF2060-ALF 82.6 80 0.9 DXF
Low Friction  WR Dark green Click for further information 0.88 60 60 -20~80 SUS304 Contact us for details.
Model No. Chain width
X
mm
Number of links
per one unit of chain
Chain
weight
kg/m
Availability DXF data Standard Price / link Delivery
TPRF2060-WR 82.6 80 0.9 DXF
Heat Resistant/High Speed KV150,180,250 Black × -
High speed HS Cream × -
Chemical Resistant Y Matte white Contact us for details.
Electroconductive E Black Contact us for details. Show allowable load graphs
Impact Resistant DIA Cream Contact us for details. Show allowable load graphs
Impact Resistant DIY Green Contact us for details.
Antibacterial/Mold Resistant MWS Cream Contact us for details.
Metal Detectable MPD Black Contact us for details.
Metal Detectable MPW Black Contact us for details.

Notes
 1.Availability
  ○:Made-to-order product
  ×:Not available
  ▲:Special configurations may be available. Contact a Tsubaki representative for further information.
 2.Plastic pin type is not available.


Joint pin

Model No. Applicable model Pin material Price Delivery Drawings
RSP60-SUS-JPD TPRF2060 SUS304 Contact us for details. Contact us for details. Drawings

Applicable sprockets

※ Click the model No. for detailed information. Click to enlarge.


Type Material Base Model No. Working number of teeth range
With plain bore steel RF2060S-1B□T 9½~12½
Stainless RF2060S-1B□T-SS 9½~12½
Engineering plastic RF2060S-1B□T-P 9½~12½
Fit bore steel RF2060S-1B□T-H~ 9½~12½
Stainless RF2060S-1B□T-SS-H~ 9½~12½
Lock Sprocket S Type steel RF2060S-1B□T-S○○○○● 9½~12½

Applicable plastic rail

※ Click the model No. for detailed information. Click to enlarge.



Rail material symbol Model No. Thickness
mm
Width
mm
Main unit End Plate
PR type PMW PR520-PMW PRE520-PMW 5 20
M PR520-M PRE520-M 5 20
PR-PH type PLF PR-PH□□□-PLF PR-PH□□□E-PLF 3~5 20~40

The plastic rail has no heat resistance or chemical resistance.
Contact a Tsubaki representative when using in special environments or usage conditions.
