Plastic top chain TPH  Major Specifications

TPH

Features

  • Comb-toothed plates minimize gaps between links. Ideal for conveying unstable containers such as plastic bottles, dessert cups, and paper packs.
  • Surface of top plate is fl atter and smoother. Effective in preventing container wobbling and toppling during conveyance.
  • Plates are perforated with numerous drainage holes that effectively remove excess lubricant and water remaining on plate surface.
  • Same basic dimensions as TPS plastic top chain. Can provide stable container conveyance simply by replacing the chain.
  • Models with plastic pins also available. All-plastic construction means light weight and easy handling. Longer service life under water lubrication than stainless steel pins.

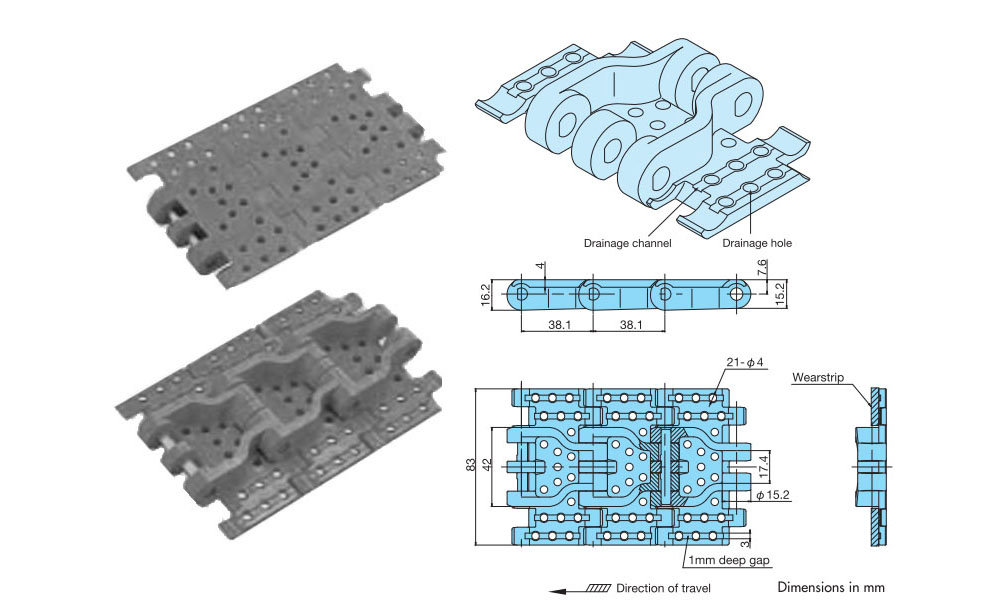

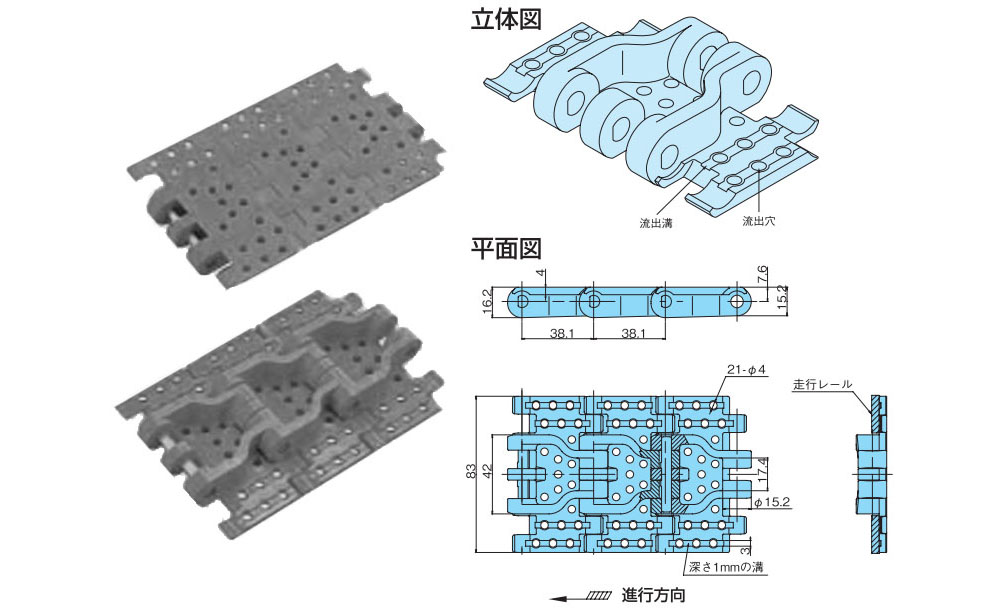

[ Click to enlarge ]
PDF Outline Drawing

Contact us for details.

CAD data in DXF format

See the table below

Click here for a list of all DXF files )

Major Specifications/Price/Delivery time

Package
(Click the series for more information. )
Package symbol Color Availability Allowable load
kN
Allowable speed
m/min
Operating Temperature Range
゚C
Pin material Allowable load graphs
With lube No lube
Normal  None Gray Click for further information 1.18 100 50 -20~80 SUS304 Show allowable load graphs
Model No. Chain width
X
mm
Number of links
per one unit of chain
Chain
weight
kg/m
Availability DXF data Standard Price / link Delivery
TPH830 83 80 1.0 DXF
Low Friction/Anti-Wear  LFW White Click for further information 1.18 100 50 -20~80 SUS304 Show allowable load graphs
Model No. Chain width
X
mm
Number of links
per one unit of chain
Chain
weight
kg/m
Availability DXF data Standard Price / link Delivery
TPH830-LFW 83 80 1.0 DXF
Low Friction/Anti-Wear  LFG Green Click for further information 1.18 100 50 -20~80 SUS304 Show allowable load graphs
Model No. Chain width
X
mm
Number of links
per one unit of chain
Chain
weight
kg/m
Availability DXF data Standard Price / link Delivery
TPH830-LFG 83 80 1.0 DXF
Low Friction/Anti-Wear  LFB Brown Click for further information 1.18 100 50 -20~80 SUS304 Show allowable load graphs
Model No. Chain width
X
mm
Number of links
per one unit of chain
Chain
weight
kg/m
Availability DXF data Standard Price / link Delivery
TPH830-LFB 83 80 1.0 DXF
Advanced Low friction and Wear Resistant  ALF Light blue Click for further information 1.18 100 50 -20~80 SUS304 Show allowable load graphs
Model No. Chain width
X
mm
Number of links
per one unit of chain
Chain
weight
kg/m
Availability DXF data Standard Price / link Delivery
TPH830-ALF 83 80 1.0 DXF
Low Friction  WR Dark green Click for further information 1.18 100 50 -20~80 SUS304 Contact us for details.
Model No. Chain width
X
mm
Number of links
per one unit of chain
Chain
weight
kg/m
Availability DXF data Standard Price / link Delivery
TPH830-WR 83 80 1.0 DXF
Heat Resistant/High Speed KV150,180,250 Black × -
High speed HS Cream × -
Chemical Resistant Y Matte white Contact us for details.
Electroconductive E Black Contact us for details.
Impact Resistant DIA Cream Contact us for details. Show allowable load graphs
Impact Resistant DIY Green Contact us for details. Show allowable load graphs
Antibacterial/Mold Resistant MWS Cream Contact us for details.
Metal Detectable MPD Black Contact us for details.
Metal Detectable MPW Black Contact us for details.

Notes
 1.Availability
  ● : Standard product
  ○:Made-to-order product
  ×:Not available
  ▲:Special configurations may be available. Contact a Tsubaki representative for further information.

Applicable sprockets

※ Click the model No. for detailed information. Click to enlarge.



Sprockets (with Plain Bore)
Model No. Number of teeth Working number of teeth Pitch Diameter
mm
Plain bore Diameter
mm
Maximum Shaft Bore Diameter
mm
Type
TTUP900T - 9 111.40 Φ18 Φ47 Integrated type
TTUP912T 19 117.34
TTUP1000T - 10 123.29
TTUP1012T 21 10½ 129.26
TTUP1100T - 11 135.23
TTUP1112T 23 11½ 141.22
TTUP1200T - 12 147.21
TTUP1212T 25 12½ 153.20
TTUP1300T - 13 159.20
Lock Sprockets
Model No. Number of teeth Working number of teeth Pitch Diameter
mm
Bore diameter
mm
Type
TTUP900T-S□□□□ - 9 111.40 Φ15~Φ45 Integrated type
TTUP912T-S□□□□ 19 117.34
TTUP1000T-S□□□□ - 10 123.29
TTUP1012T-S□□□□ 21 10½ 129.26
TTUP1100T-S□□□□ - 11 135.23
TTUP1112T-S□□□□ 23 11½ 141.22
TTUP1200T-S□□□□ - 12 147.21
TTUP1212T-S□□□□ 25 12½ 153.20
TTUP1300T-S□□□□ - 13 159.20

Engineering Plastic Sprockets
Model No. Number of teeth Pitch Diameter
mm
Bore diameter
mm
Type
TP-C12■T-SPR 12 146.8 Φ25, Φ30, Φ35, Φ40 Split
×
( Drag to move. )
Model No.Number of teethPitch Diameter
mm
Bore diameter
mm
Type
TP-C12400T-SPR 12 146.8 Φ25 Split
TP-C12711T-SPR Φ30
TP-C12401T-SPR Φ35
TP-C12402T-SPR Φ40

Applicable idler wheels

※ Click the model No. for detailed information. Click to enlarge.



Engineering Plastic?Idler wheels
Model No. Equivalent no. of teeth Outer Diameter
mm
Bore diameter
mm
Type
TP-C12■■■BT-IW 21 129.8 Φ25, Φ30, Φ40 Integrated type
TP-C12■■■BT-IW 23 142.2 Φ25, Φ30, Φ40
TP-C12■■■BT-IW 25 154.7 Φ25, Φ30, Φ40
TP-C12■■■BT-IW 21 129.8 Φ25, Φ30, Φ45, Φ40 Split
TP-C12■■■BT-IW 23 142.2 Φ25, Φ30, Φ45, Φ40
TP-C12■■■BT-IW 25 154.7 Φ25, Φ30, Φ45, Φ40
×
( Drag to move. )
■Engineering Plastic?Idler wheels (OEM supplied)
Model No.Equivalent no. of teeth Outer Diameter
mm
Bore diameter
mm
Type
TP-C12200BT-IW 21 129.8 Φ25 Integrated type
TP-C12201BT-IW Φ30
TP-C12203BT-IW Φ40
×
( Drag to move. )
■Engineering Plastic?Idler wheels (OEM supplied)
Model No.Equivalent no. of teeth Outer Diameter
mm
Bore diameter
mm
Type
TP-C12212BT-IW 23 142.2 Φ25 Integrated type
TP-C12213BT-IW Φ30
TP-C12215BT-IW Φ40
×
( Drag to move. )
■Engineering Plastic?Idler wheels (OEM supplied)
Model No.Equivalent no. of teeth Outer Diameter
mm
Bore diameter
mm
Type
TP-C12204BT-IW 25 154.7 Φ25 Integrated type
TP-C12205BT-IW Φ30
TP-C12207BT-IW Φ40
×
( Drag to move. )
■Engineering Plastic?Idler wheels (OEM supplied)
Model No.Equivalent no. of teeth Outer Diameter
mm
Bore diameter
mm
Type
TP-C12077BT-IW 21 129.8 Φ25 Split
TP-C12078BT-IW Φ30
TP-C12079BT-IW Φ35
TP-C12080BT-IW Φ40
×
( Drag to move. )
■Engineering Plastic?Idler wheels (OEM supplied)
Model No.Equivalent no. of teeth Outer Diameter
mm
Bore diameter
mm
Type
TP-C121928BT-IW 23 142.2 Φ25 Split
TP-C121929BT-IW Φ30
TP-C121930BT-IW Φ35
TP-C121931BT-IW Φ40
×
( Drag to move. )
■Engineering Plastic?Idler wheels (OEM supplied)
Model No.Equivalent no. of teeth Outer Diameter
mm
Bore diameter
mm
Type
TP-C12081BT-IW 25 154.7 Φ25 Split
TP-C12082BT-IW Φ30
TP-C12083BT-IW Φ35
TP-C12084BT-IW Φ40

Model No. Equivalent no. of teeth Outer Diameter
mm
Bore diameter
mm
Type
TP-C12404T-IW 12 147 Φ30 Split

Applicable plastic rail

※ Click the model No. for detailed information. Click to enlarge.



Rail material symbol Model No. Thickness
mm
Width
mm
Main unit End Plate
PR type PMW PR520-PMW PRE520-PMW 5 20
M PR520-M PRE520-M 5 20
PR-PH type PLF PR-PH□□□-PLF PR-PH□□□E-PLF 3~5 20~40

The plastic rail has no heat resistance or chemical resistance.
Contact a Tsubaki representative when using in special environments or usage conditions.
