Plastic Block Chain RSP-P  Major Specifications

RSP-P

Features

  • Smaller chain pitch than plastic top chain allows use of sprockets with a smaller outer diameter, effectively reducing the gap between the end of one conveyor and the start of the next conveyor.
  • Diverse range of chain pitches and link widths available. Suitable for a wide range of applications.
  • Standard ANSI sprockets can be used.
  • Block shape and small link width ideal for conveying small goods.
  • Multiple strands can be used in parallel; ideal for conveying pallets.
  • All-plastic construction means light weight and easy handling. Longer service life under water lubrication than stainless steel pins.

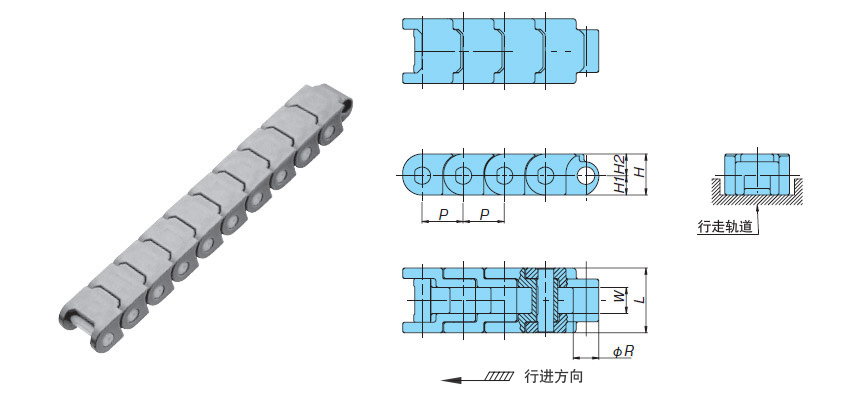

[ Click to enlarge ]
PDF Outline Drawing

Contact us for details.

CAD data in DXF format

See the table below

Click here for a list of all DXF files )

3D CAD data

To CADENAS WEB2CAD website.

The CAD data contained herein is made available to you via the CAD drawing library; PARTcommunity is provided by CADENAS WEB2CAD Co.
Please direct your inquiries regarding the CAD data service or PARTcommunity to:
 CADENAS WEB2CAD Co. TEL: +81 (3) 5961-5031 FAX: +81 (3) 5961-5032

Major Specifications/Price/Delivery time

Package
(Click the series for more information. )
Package symbol Color Availability Allowable load
kN
Allowable speed
m/min
Operating Temperature Range
゚C
Pin material Allowable load graphs
With lube No lube
Normal  None White Click for further information 60 60 -20~(60)80 Special engineering plastic Click for further information
Model No. Dimensions mm
P R W L H1 H2 H
RSP40P 12.7 7.92 7.95 20 6 6.7 12.7
RSP60P 19.05 11.91 12.7 30 8.5 8.8 17.3
Model No. Chain
size
Allowable load
kN
Number of links
per one unit of chain
Chain
weight
kg/m
Allowable load graphs DXF data Standard Price / link Delivery

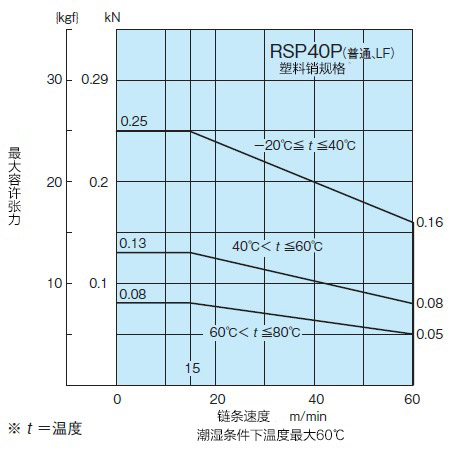

RSP40P 40 0.25 240 0.26 Show allowable load graphsDXF

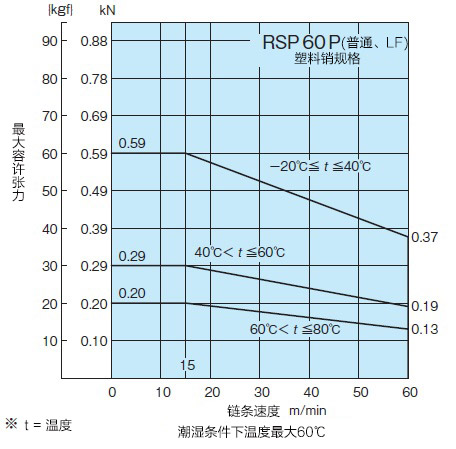

RSP60P 60 0.59 160 0.53 Show allowable load graphsDXF
Low Friction/Anti-Wear  LFW White Click for further information 60 60 -20~(60)80 Special engineering plastic Click for further information
Model No. Dimensions mm
P R W L H1 H2 H
RSP40P-LFW 12.7 7.92 7.95 20 6 6.7 12.7
RSP60P-LFW 19.05 11.91 12.7 30 8.5 8.8 17.3
Model No. Chain
size
Allowable load
kN
Number of links
per one unit of chain
Chain
weight
kg/m
Allowable load graphs DXF data Standard Price / link Delivery
RSP40P-LFW 40 0.25 240 0.26 Show allowable load graphsDXF
RSP60P-LFW 60 0.59 160 0.53 Show allowable load graphsDXF
Low Friction/Anti-Wear  LFG Green Click for further information 60 60 -20~(60)80 Special engineering plastic Click for further information
Model No. Dimensions mm
P R W L H1 H2 H
RSP40P-LFG 12.7 7.92 7.95 20 6 6.7 12.7
RSP60P-LFG 19.05 11.91 12.7 30 8.5 8.8 17.3
Model No. Chain
size
Allowable load
kN
Number of links
per one unit of chain
Chain
weight
kg/m
Allowable load graphs DXF data Standard Price / link Delivery
RSP40P-LFG 40 0.25 240 0.26 Show allowable load graphsDXF
RSP60P-LFG 60 0.59 160 0.53 Show allowable load graphsDXF
Low Friction/Anti-Wear  LFB Brown Click for further information 60 60 -20~(60)80 Special engineering plastic Click for further information
Model No. Dimensions mm
P R W L H1 H2 H
RSP40P-LFB 12.7 7.92 7.95 20 6 6.7 12.7
RSP60P-LFB 19.05 11.91 12.7 30 8.5 8.8 17.3
Model No. Chain
size
Allowable load
kN
Number of links
per one unit of chain
Chain
weight
kg/m
Allowable load graphs DXF data Standard Price / link Delivery
RSP40P-LFB 40 0.25 240 0.26 Show allowable load graphsDXF
RSP60P-LFB 60 0.59 160 0.53 Show allowable load graphsDXF
Advanced Low friction and Wear Resistant ALF Light blue × - -
Low Friction  WR Dark green Click for further information 60 60 -20~(60)80 Special engineering plastic Contact us for details.
Model No. Dimensions mm
P R W L H1 H2 H
RSP40P-WR 12.7 7.92 7.95 20 6 6.7 12.7
RSP60P-WR 19.05 11.91 12.7 30 8.5 8.8 17.3
Model No. Chain
size
Allowable load
kN
Number of links
per one unit of chain
Chain
weight
kg/m
DXF data Standard Price / link Delivery
RSP40P-WR 40 0.25 240 0.26 DXF
RSP60P-WR 60 0.59 160 0.53 DXF
Heat Resistant/High Speed KV150 Black × - -
Heat Resistant/High Speed KV180 Black × - -
Heat Resistant/High Speed KV250 Black × - -
Chemical Resistant Y Matte white - Contact us for details.
Super chemical Resistant SY Matte white × - -
Electroconductive E Black Contact us for details.
Impact Resistant DIA Cream × - -
Antibacterial/Mold Resistant MWS Cream Contact us for details.
Metal Detectable MPD Black × - -
Metal Detectable MPW Black × - -

Notes
 1.Availability
  ● : Standard product
  ○:Made-to-order product
  ×:Not available
  ▲:Special configurations may be available. Contact a Tsubaki representative for further information.
 2.The plastic connecting pin is colored orange so as to distinguish it from base-chain pins (colored white).
 3.Operating temperature of ( ) is for wet conditions.


Joint pin

Model No. Applicable model Pin material Price Delivery Drawings
RSP40P-PLA-JPD RSP40P 特殊エンプラ(オレンジ色) Contact us for details. Contact us for details. Drawings
RSP60P-PLA-JPD RSP60P 特殊エンプラ(オレンジ色) Contact us for details. Contact us for details. Drawings

Applicable sprockets

※ Click the model No. for detailed information. Click to enlarge.

RS40 Sprockets


Type Material Base Model No.
With plain bore steel RS40-1B□T■
Stainless RS40-1B□T-SS
Engineering plastic RS40-1B□T-P
Fit bore steel RS40-1B□TQ-H~
Stainless RS40-1B□T-SS-H~
Lock Sprocket S Type steel RS40-1B□T■-S○○○○●
Lock sprocket N type steel RS40-1B□TQ-N○○○●
Sprockets can be used provided they have at least 14 teeth.

RS60 Sprockets


Type Material Base Model No.
With plain bore steel RS60-1B□T■
Stainless RS60-1B□T-SS
Engineering plastic RS60-1B□T-P
Fit bore steel RS60-1B□TQ-H~
Stainless RS60-1B□T-SS-H~
Lock Sprocket S Type steel RS60-1B□T■-S○○○○●
Lock sprocket N type steel RS60-1B□TQ-N○○○●
Sprockets can be used provided they have at least 14 teeth.

Applicable plastic rail

※ Click the model No. for detailed information. Click to enlarge.



Rail material symbol Model No. Thickness
mm
Width
mm
Main unit End Plate
PR type PMW PR520-PMW PRE520-PMW 5 20
M PR520-M PRE520-M 5 20
PR-PH type PLF PR-PH□□□-PLF PR-PH□□□E-PLF 3~5 20~40

The plastic rail has no heat resistance or chemical resistance.
Contact a Tsubaki representative when using in special environments or usage conditions.
