Plastic Block Chain RSP-2  Major Specifications

RSP-2

Features

  • Link width is double that of RSP60 chain. Suitable for conveying wider goods.
  • Approx. 40% higher maximum allowable load than RSP60 plastic chain. Ideal for higher applied load conditions.

[ Click to enlarge ]

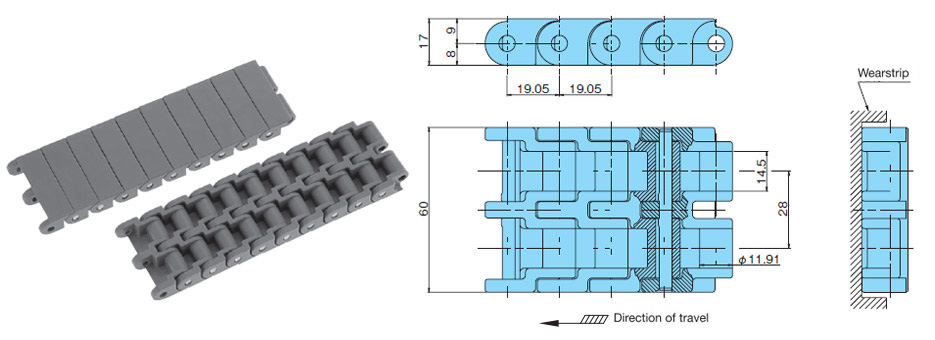

PDF Outline Drawing

Contact us for details.

CAD data in DXF format

See the table below

Click here for a list of all DXF files )

Major Specifications/Price/Delivery time

Package
(Click the series for more information. )
Package symbol Color Availability Allowable load
kN
Allowable speed
m/min
Operating Temperature Range
゚C

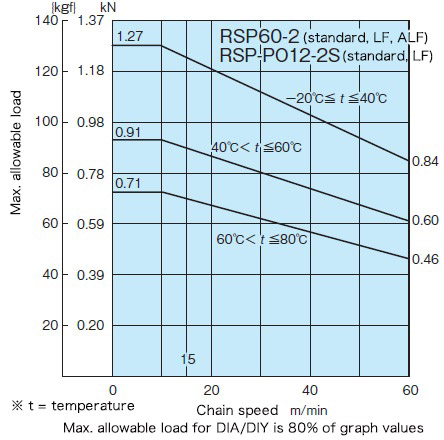

Pin material Allowable load graphs
With lube No lube
Normal  None Gray 1.27 60 60 -20~80 SUS304 Show allowable load graphs
Model No. Number of links
per one unit of chain
Chain
weight
kg/m
DXF data Standard Price / link Delivery
RSP60-2 160 1.5 DXF
Low Friction/Anti-Wear  LFW White 1.27 60 60 -20~80 SUS304 Show allowable load graphs
Model No. Number of links
per one unit of chain
Chain
weight
kg/m
DXF data Standard Price / link Delivery
RSP60-LFW-2 160 1.5 DXF
Low Friction/Anti-Wear  LFG Green 1.27 60 60 -20~80 SUS304 Show allowable load graphs
Model No. Number of links
per one unit of chain
Chain
weight
kg/m
DXF data Standard Price / link Delivery
RSP60-LFG-2 160 1.5 DXF
Low Friction/Anti-Wear  LFB Brown 1.27 60 60 -20~80 SUS304 Show allowable load graphs
Model No. Number of links
per one unit of chain
Chain
weight
kg/m
DXF data Standard Price / link Delivery
RSP60-LFB-2 160 1.5 DXF
Advanced Low friction and Wear Resistant  ALF Light blue 1.27 60 60 -20~80 SUS304 Show allowable load graphs
Model No. Number of links
per one unit of chain
Chain
weight
kg/m
DXF data Standard Price / link Delivery
RSP60-ALF-2 160 1.5 DXF
Low Friction  WR Dark green 1.27 60 60 -20~80 SUS304 Contact us for details.
Model No. Number of links
per one unit of chain
Chain
weight
kg/m
DXF data Standard Price / link Delivery
RSP60-WR-2 160 1.5 DXF
Heat Resistant/High Speed KV150 Black × - -
Heat Resistant/High Speed KV180 Black × - -
Heat Resistant/High Speed KV250 Black × - -
Chemical Resistant Y Matte white Contact us for details.
Super chemical Resistant SY Matte white × - -
Electroconductive E Black Contact us for details.
Impact Resistant DIA Cream Contact us for details. Show allowable load graphs
Impact Resistant DIY Green Contact us for details. Show allowable load graphs
Antibacterial/Mold Resistant MWS Cream Contact us for details.
Metal Detectable MPD Black Contact us for details.
Metal Detectable MPW Black × - -

Notes
 1.Availability
  ● : Standard product
  ○:Made-to-order product
  ×:Not available
  ▲:Special configurations may be available. Contact a Tsubaki representative for further information.
 2.Plastic pin type is not available.


Joint pin

Model No. Applicable model Pin material Price Delivery Drawings
RSP60-2-SUS-JPD RSP-2 SUS304 Contact us for details. Contact us for details. Drawings

Applicable sprockets

※ Click the model No. for detailed information. Click to enlarge.



Type Material Base Model No.
With plain bore steel RS60-1B□T■
Stainless RS60-1B□T-SS
Engineering plastic RS60-1B□T-P
上記スプロケットの削り出し仕様、歯数12枚以上がお使いいただけます。 2列スプロケットは使用できません。1列B形を2つ、歯の位相を合わせてお使いください。 スプロケットの間にはディスタンスを入れて幅調整をしてください。

Applicable plastic rail

※ Click the model No. for detailed information. Click to enlarge.



Rail material symbol Model No. Thickness
mm
Width
mm
Main unit End Plate
PR type PMW PR520-PMW PRE520-PMW 5 20
M PR520-M PRE520-M 5 20
PR-PH type PLF PR-PH□□□-PLF PR-PH□□□E-PLF 3~5 20~40

The plastic rail has no heat resistance or chemical resistance.
Contact a Tsubaki representative when using in special environments or usage conditions.
