Plastic modular chain WT3086G-K  Major Specifications

WT3086G-K

Features

  • Combination of wide type and narrow type plastic module like bricks enables a wide conveying surface suitable for conveying bulk quantities.
  • Simple construction with four parts allows for easy part replacement and reduced maintenance time.
  • With tab guide attachments, suitable for lateral conveyor-to-conveyor transfer.
  • Conveying surface is perforated with numerous drainage holes that effectively remove excess lubricant and water remaining on conveying surface.
  • All-plastic construction. Lightweight and easy to handle.

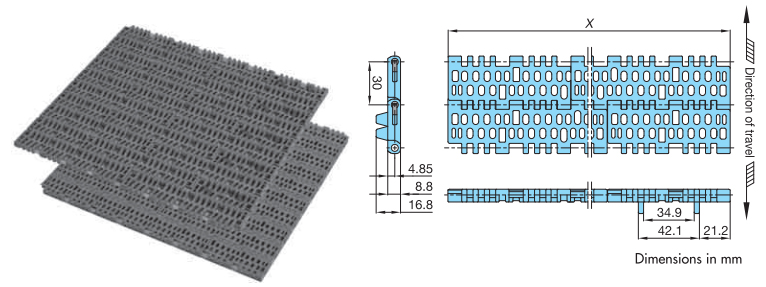

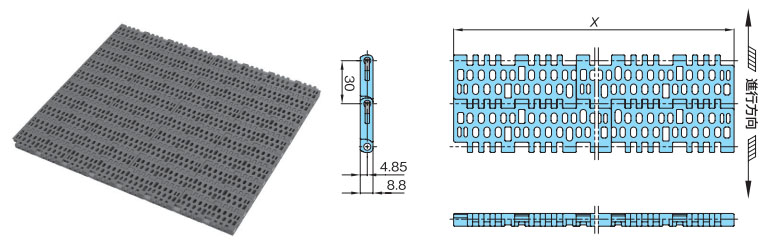

[ Click to enlarge ]
PDF Outline Drawing

Contact us for details.

CAD data in DXF format

See the table below

Click here for a list of all DXF files )

Major Specifications/Price/Delivery time

Chain pitch mm Open area %
30 27
Package
(Click the series for more information. )
Package symbol Color Availability Allowable load
per 1m width
kN/m
Mass per
1m2
kg/m2
Allowable speed
m/min
Operating Temperature Range
゚C
Pin material Allowable load graphs
With lube No lube
Normal None Gray 10.5 6.0 50 50 -20~(60)80 Special engineering plastic
Low Friction/Anti-Wear LFW White 10.5 6.0 50 50 -20~(60)80 Special engineering plastic
Low Friction/Anti-Wear  LFG Green 10.5 6.0 50 50 -20~(60)80 Special engineering plastic Show allowable load graphs
Model No. Chain width
X
mm
Number of links
per one unit of chain
Max. allowable tension
kN
Chain
weight
kg/m
DXF data Standard Price / link Delivery
WT3086G-K170-LFG 170 140 1.78 1.02 DXF
WT3086G-K255-LFG 255 140 2.67 1.53 DXF
WT3086G-K340-LFG 340 140 3.57 2.04 DXF
WT3086G-K425-LFG 425 140 4.46 2.55 DXF
WT3086G-K510-LFG 510 60 5.35 3.06 DXF
WT3086G-K595-LFG 595 60 6.24 3.57 DXF
WT3086G-K680-LFG 680 60 7.14 4.08 DXF
WT3086G-K765-LFG 765 60 8.03 4.59 DXF
WT3086G-K850-LFG 850 60 8.92 5.10 DXF
WT3086G-K935-LFG 935 60 9.81 5.61 DXF
WT3086G-K1020-LFG 1020 60 10.7 6.12 DXF
WT3086G-K1190-LFG 1190 60 12.4 7.14 DXF
WT3086G-K1360-LFG 1360 60 14.2 8.16 DXF
WT3086G-K1530-LFG 1530 60 16.0 9.18 DXF
Low Friction/Anti-Wear LFB Brown 10.5 6.0 50 50 -20~(60)80 Special engineering plastic
Advanced Low friction and Wear Resistant ALF Light blue 10.5 6.0 50 50 -20~(60)80 Special engineering plastic Show allowable load graphs
Low Friction  NLF Dark gray 10.5 6.0 50 50 -20~(60)80 Special engineering plastic Contact us for details.
Model No. Chain width
X
mm
Number of links
per one unit of chain
Max. allowable tension
kN
Chain
weight
kg/m
DXF data Standard Price / link Delivery
WT3086G-K170-NLF 170 140 1.78 1.02 DXF
WT3086G-K255-NLF 255 140 2.67 1.53 DXF
WT3086G-K340-NLF 340 140 3.57 2.04 DXF
WT3086G-K425-NLF 425 140 4.46 2.55 DXF
WT3086G-K510-NLF 510 60 5.35 3.06 DXF
WT3086G-K595-NLF 595 60 6.24 3.57 DXF
WT3086G-K680-NLF 680 60 7.14 4.08 DXF
WT3086G-K765-NLF 765 60 8.03 4.59 DXF
WT3086G-K850-NLF 850 60 8.92 5.10 DXF
WT3086G-K935-NLF 935 60 9.81 5.61 DXF
WT3086G-K1020-NLF 1020 60 10.7 6.12 DXF
WT3086G-K1190-NLF 1190 60 12.4 7.14 DXF
WT3086G-K1360-NLF 1360 60 14.2 8.16 DXF
WT3086G-K1530-NLF 1530 60 16.0 9.18 DXF
Low Friction  WR Dark green 10.5 6.0 50 50 -20~(60)80 Special engineering plastic Contact us for details.
Model No. Chain width
X
mm
Number of links
per one unit of chain
Max. allowable tension
kN
Chain
weight
kg/m
DXF data Standard Price / link Delivery
WT3086G-K170-WR 170 140 1.78 1.02 DXF
WT3086G-K255-WR 255 140 2.67 1.53 DXF
WT3086G-K340-WR 340 140 3.57 2.04 DXF
WT3086G-K425-WR 425 140 4.46 2.55 DXF
WT3086G-K510-WR 510 60 5.35 3.06 DXF
WT3086G-K595-WR 595 60 6.24 3.57 DXF
WT3086G-K680-WR 680 60 7.14 4.08 DXF
WT3086G-K765-WR 765 60 8.03 4.59 DXF
WT3086G-K850-WR 850 60 8.92 5.10 DXF
WT3086G-K935-WR 935 60 9.81 5.61 DXF
WT3086G-K1020-WR 1020 60 10.7 6.12 DXF
WT3086G-K1190-WR 1190 60 12.4 7.14 DXF
WT3086G-K1360-WR 1360 60 14.2 8.16 DXF
WT3086G-K1530-WR 1530 60 16.0 9.18 DXF
Heat Resistant/High Speed KV150,180,250 Black × -
High Temperature HTW White × -
Chemical Resistant Y Matte white × -
Electroconductive E Black Contact us for details.
Impact Resistant DIA/DIY Cream/Green × -
Antibacterial/Mold Resistant MWS Cream × -
Metal Detectable MPD/MPW Black × -
Middle Friction MF Yellow Contact us for details.

Notes
 1.Values for max. allowable load are at ambient temperature (20℃) and assume that tension acts uniformly over the entire chain width.
  Also, it differ depending on usage conditions such as operating temperature, speed, etc. See the load graph of chain.
 2.Availability
  ○:Made-to-order product
  ×:Not available
  ▲:Special configurations may be available. Contact a Tsubaki representative for further information.
 3.Operating temperature of ( ) is for wet conditions.
 4.MF Medium Friction series must be used without lubrication (lube-free).
 5.Chain width can be formed from 85mm wide units. Widths greater than the above available upon request.
  Contact a Tsubaki representative for further information.
 6.Chain width X shown is a nominal width. Actual width range is 0~-0.7% at 20℃operating temperature.
  Chain width is subject to expansion or contraction with changes in temperature.
  Expansion/contraction rate is 0.00015/℃ based on reference temperature of 20℃.

Applicable sprockets

※ Click the model No. for detailed information. Click to enlarge.






Split Sprockets(SW1500)
Model No. Number of teeth Pitch Diameter
mm
Bore diameter
mm
Type
WT-SW1500-24T■ 24 114.9 Φ25, Φ30, Φ35, Φ40, □40 Split
WT-SW1500-32T■ 32 153.0 □40, □50, □60
WT-SW1500-33T■ 33 157.8 □40, □65
×
( Drag to move. )
■SW1500 Split Sprockets
Model No.Number of teethPitch Diameter
mm
Bore diameter
mm
Type
WT-SW1500-24T25 24 114.9 Φ25 分割形
WT-SW1500-24T30 Φ30
WT-SW1500-24T35 Φ35
WT-SW1500-24T40 Φ40
WT-SW1500-24T40S □40
×
( Drag to move. )
■SW1500 Split Sprockets
Model No.Number of teethPitch Diameter
mm
Bore diameter
mm
Type
WT-SW1500-32T40S 32 153.0 □40 分割形
WT-SW1500-32T50S □50
WT-SW1500-32T60S □60
×
( Drag to move. )
■SW1500 Split Sprockets
Model No.Number of teethPitch Diameter
mm
Bore diameter
mm
Type
WT-SW1500-33T40S 33 157.8 □40 分割形
WT-SW1500-32T65S □65
Solid Sprockets(S1500)
Model No. Number of teeth Pitch Diameter
mm
Bore diameter
mm
Plain bore Diameter
mm
Type
WT-S1500-24T 24 114.9 Bore shape
and size
are
made-to-order.
Φ20 Integrated type
WT-S1500-25T 25 119.7
WT-S1500-27T 27 129.2
WT-S1500-31T 31 148.3
WT-S1500-32T 32 153.0
WT-S1500-33T 33 157.8

Applicable idler sprockets

※ Click the model No. for detailed information. Click to enlarge.



Model No. Number of teeth Pitch Diameter
mm
Bore diameter
mm
Type
WT-SW1500-24T■-IW 24 114.9 Φ30.3, Φ35.3, Φ40.3 Split
WT-SW1500-32T■-IW 32 153.0 Φ30.3, Φ35.3, Φ40.3
×
( Drag to move. )
Model No.Number of teethPitch Diameter
mm
Bore diameter
mm
Type
WT-SW1500-24T30-IW 24 114.9 Φ30.3 Split
WT-SW1500-24T35-IW Φ35.3
WT-SW1500-24T40-IW Φ40.3
×
( Drag to move. )
Model No.Number of teethPitch Diameter
mm
Bore diameter
mm
Type
WT-SW1500-32T30-IW 32 153.0 Φ30.3 Split
WT-SW1500-32T35-IW Φ35.3
WT-SW1500-32T40-IW Φ40.3

Applicable plastic rail

※ Click the model No. for detailed information. Click to enlarge.



Rail material symbol Model No. Thickness
mm
Width
mm
Main unit End Plate
PR type PMW PR520-PMW PRE520-PMW 5 20
M PR520-M PRE520-M 5 20
PR-PH type PLF PR-PH□□□-PLF PR-PH□□□E-PLF 3~5 20~40

The plastic rail has no heat resistance or chemical resistance.
Contact a Tsubaki representative when using in special environments or usage conditions.
