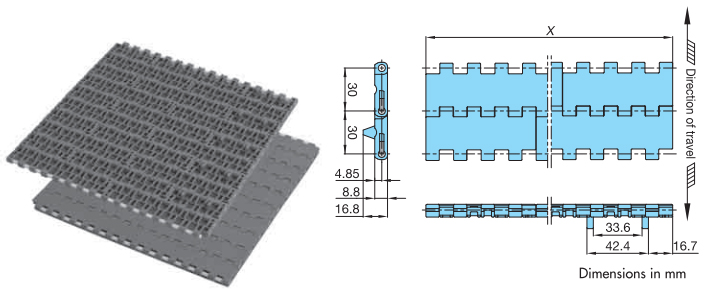

Package (Click the series for more information. ) |
Package symbol |
Color |
Availability |
Max. allowable tension kN/m |
Chain mass kg/m2 |
Allowable speed m/min |
Operating Temperature Range ゚C |
Pin material |
Material of the plug |
Color of the plug |
Allowable load graphs |
With lube |
No lube |
Standard series (with electrostatic preventive) |
None |
Gray |
△ |
10.5 |
6.3 |
50 |
50 |
-20~(60)80 |
Special engineering plastic |
Polyacetal |
Yellow |
- |
|
Model No. |
Chain width X mm |
Number of links per one unit of chain |
Max. allowable load kN |
Chain weight kg/m |
DXF data |
Standard Price / link |
Delivery |
WT3005G-K06 |
152.4 |
140 |
1.60 |
0.96 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K09 |
228.6 |
140 |
2.40 |
1.44 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K12 |
304.8 |
140 |
3.20 |
1.92 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K15 |
381.0 |
140 |
4.00 |
2.40 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K18 |
457.2 |
140 |
4.80 |
2.88 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K21 |
533.4 |
60 |
5.60 |
3.36 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K24 |
609.6 |
60 |
6.40 |
3.84 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K27 |
685.8 |
60 |
7.20 |
4.32 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K30 |
762.0 |
60 |
8.00 |
4.80 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K33 |
838.2 |
60 |
8.80 |
5.28 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K36 |
914.4 |
60 |
9.60 |
5.76 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K39 |
990.6 |
60 |
10.4 |
6.24 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K42 |
1066.8 |
60 |
11.2 |
6.72 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K45 |
1143.0 |
60 |
12.0 |
7.20 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K48 |
1219.2 |
60 |
12.8 |
7.68 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K51 |
1295.4 |
40 |
13.6 |
8.17 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K54 |
1371.6 |
40 |
14.4 |
8.65 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K60 |
1524.0 |
40 |
16.0 |
9.61 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K63 |
1600.2 |
お問合せください |
16.8 |
10.09 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K66 |
1676.4 |
お問合せください |
17.6 |
10.57 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K69 |
1752.6 |
お問合せください |
18.4 |
11.05 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K72 |
1828.8 |
お問合せください |
19.2 |
11.53 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K75 |
1905 |
お問合せください |
20.0 |
12.01 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K78 |
1981.2 |
お問合せください |
20.8 |
12.49 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K81 |
2057.4 |
お問合せください |
21.6 |
12.97 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K84 |
2133.6 |
お問合せください |
22.4 |
13.45 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K87 |
2209.8 |
お問合せください |
23.2 |
13.93 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K90 |
2286 |
お問合せください |
24.0 |
14.41 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K93 |
2362.2 |
お問合せください |
24.8 |
14.89 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K96 |
2438.4 |
お問合せください |
25.6 |
15.37 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K99 |
2514.6 |
お問合せください |
26.4 |
15.85 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K102 |
2590.8 |
お問合せください |
27.2 |
16.33 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K105 |
2667 |
お問合せください |
28.0 |
16.81 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K108 |
2743.2 |
お問合せください |
28.8 |
17.29 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K111 |
2819.4 |
お問合せください |
29.6 |
17.77 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K114 |
2895.6 |
お問合せください |
30.4 |
18.25 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K117 |
2971.8 |
お問合せください |
31.2 |
18.73 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K120 |
3048 |
お問合せください |
32.0 |
19.21 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K123 |
3124.2 |
お問合せください |
32.8 |
19.69 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K126 |
3200.4 |
お問合せください |
33.6 |
20.17 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K129 |
3276.6 |
お問合せください |
34.4 |
20.65 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K132 |
3352.8 |
お問合せください |
35.2 |
21.13 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K135 |
3429 |
お問合せください |
36.0 |
21.61 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K138 |
3505.2 |
お問合せください |
36.8 |
22.09 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K141 |
3581.4 |
お問合せください |
37.6 |
22.57 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K144 |
3657.6 |
お問合せください |
38.4 |
23.05 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K147 |
3733.8 |
お問合せください |
39.2 |
23.53 |
DXF | Contact us for details. |
Contact us for details. |
|
Standard series (with electrostatic preventive) |
B |
Blue |
△ |
10.5 |
6.3 |
50 |
50 |
-20~(60)80 |
Special engineering plastic |
Polyacetal |
Yellow |
- |
|
Model No. |
Chain width X mm |
Number of links per one unit of chain |
Max. allowable load kN |
Chain weight kg/m |
DXF data |
Standard Price / link |
Delivery |
WT3005G-K06-B |
152.4 |
140 |
1.60 |
0.96 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K09-B |
228.6 |
140 |
2.40 |
1.44 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K12-B |
304.8 |
140 |
3.20 |
1.92 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K15-B |
381.0 |
140 |
4.00 |
2.40 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K18-B |
457.2 |
140 |
4.80 |
2.88 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K21-B |
533.4 |
60 |
5.60 |
3.36 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K24-B |
609.6 |
60 |
6.40 |
3.84 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K27-B |
685.8 |
60 |
7.20 |
4.32 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K30-B |
762.0 |
60 |
8.00 |
4.80 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K33-B |
838.2 |
60 |
8.80 |
5.28 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K36-B |
914.4 |
60 |
9.60 |
5.76 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K39-B |
990.6 |
60 |
10.4 |
6.24 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K42-B |
1066.8 |
60 |
11.2 |
6.72 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K45-B |
1143.0 |
60 |
12.0 |
7.20 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K48-B |
1219.2 |
60 |
12.8 |
7.68 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K51-B |
1295.4 |
40 |
13.6 |
8.17 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K54-B |
1371.6 |
40 |
14.4 |
8.65 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K60-B |
1524.0 |
40 |
16.0 |
9.61 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K63-B |
1600.2 |
お問合せください |
16.8 |
10.09 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K66-B |
1676.4 |
お問合せください |
17.6 |
10.57 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K69-B |
1752.6 |
お問合せください |
18.4 |
11.05 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K72-B |
1828.8 |
お問合せください |
19.2 |
11.53 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K75-B |
1905 |
お問合せください |
20.0 |
12.01 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K78-B |
1981.2 |
お問合せください |
20.8 |
12.49 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K81-B |
2057.4 |
お問合せください |
21.6 |
12.97 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K84-B |
2133.6 |
お問合せください |
22.4 |
13.45 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K87-B |
2209.8 |
お問合せください |
23.2 |
13.93 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K90-B |
2286 |
お問合せください |
24.0 |
14.41 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K93-B |
2362.2 |
お問合せください |
24.8 |
14.89 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K96-B |
2438.4 |
お問合せください |
25.6 |
15.37 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K99-B |
2514.6 |
お問合せください |
26.4 |
15.85 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K102-B |
2590.8 |
お問合せください |
27.2 |
16.33 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K105-B |
2667 |
お問合せください |
28.0 |
16.81 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K108-B |
2743.2 |
お問合せください |
28.8 |
17.29 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K111-B |
2819.4 |
お問合せください |
29.6 |
17.77 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K114-B |
2895.6 |
お問合せください |
30.4 |
18.25 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K117-B |
2971.8 |
お問合せください |
31.2 |
18.73 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K120-B |
3048 |
お問合せください |
32.0 |
19.21 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K123-B |
3124.2 |
お問合せください |
32.8 |
19.69 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K126-B |
3200.4 |
お問合せください |
33.6 |
20.17 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K129-B |
3276.6 |
お問合せください |
34.4 |
20.65 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K132-B |
3352.8 |
お問合せください |
35.2 |
21.13 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K135-B |
3429 |
お問合せください |
36.0 |
21.61 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K138-B |
3505.2 |
お問合せください |
36.8 |
22.09 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K141-B |
3581.4 |
お問合せください |
37.6 |
22.57 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K144-B |
3657.6 |
お問合せください |
38.4 |
23.05 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K147-B |
3733.8 |
お問合せください |
39.2 |
23.53 |
DXF | Contact us for details. |
Contact us for details. |
|
Standard series (with electrostatic preventive) |
BL |
Sky blue |
△ |
10.5 |
6.3 |
50 |
50 |
-20~(60)80 |
Special engineering plastic |
Polyacetal |
Yellow |
- |
|
Model No. |
Chain width X mm |
Number of links per one unit of chain |
Max. allowable load kN |
Chain weight kg/m |
DXF data |
Standard Price / link |
Delivery |
WT3005G-K06-BL |
152.4 |
140 |
1.60 |
0.96 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K09-BL |
228.6 |
140 |
2.40 |
1.44 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K12-BL |
304.8 |
140 |
3.20 |
1.92 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K15-BL |
381.0 |
140 |
4.00 |
2.40 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K18-BL |
457.2 |
140 |
4.80 |
2.88 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K21-BL |
533.4 |
60 |
5.60 |
3.36 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K24-BL |
609.6 |
60 |
6.40 |
3.84 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K27-BL |
685.8 |
60 |
7.20 |
4.32 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K30-BL |
762.0 |
60 |
8.00 |
4.80 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K33-BL |
838.2 |
60 |
8.80 |
5.28 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K36-BL |
914.4 |
60 |
9.60 |
5.76 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K39-BL |
990.6 |
60 |
10.4 |
6.24 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K42-BL |
1066.8 |
60 |
11.2 |
6.72 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K45-BL |
1143.0 |
60 |
12.0 |
7.20 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K48-BL |
1219.2 |
60 |
12.8 |
7.68 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K51-BL |
1295.4 |
40 |
13.6 |
8.17 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K54-BL |
1371.6 |
40 |
14.4 |
8.65 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K60-BL |
1524.0 |
40 |
16.0 |
9.61 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K63-BL |
1600.2 |
お問合せください |
16.8 |
10.09 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K66-BL |
1676.4 |
お問合せください |
17.6 |
10.57 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K69-BL |
1752.6 |
お問合せください |
18.4 |
11.05 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K72-BL |
1828.8 |
お問合せください |
19.2 |
11.53 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K75-BL |
1905 |
お問合せください |
20.0 |
12.01 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K78-BL |
1981.2 |
お問合せください |
20.8 |
12.49 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K81-BL |
2057.4 |
お問合せください |
21.6 |
12.97 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K84-BL |
2133.6 |
お問合せください |
22.4 |
13.45 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K87-BL |
2209.8 |
お問合せください |
23.2 |
13.93 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K90-BL |
2286 |
お問合せください |
24.0 |
14.41 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K93-BL |
2362.2 |
お問合せください |
24.8 |
14.89 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K96-BL |
2438.4 |
お問合せください |
25.6 |
15.37 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K99-BL |
2514.6 |
お問合せください |
26.4 |
15.85 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K102-BL |
2590.8 |
お問合せください |
27.2 |
16.33 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K105-BL |
2667 |
お問合せください |
28.0 |
16.81 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K108-BL |
2743.2 |
お問合せください |
28.8 |
17.29 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K111-BL |
2819.4 |
お問合せください |
29.6 |
17.77 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K114-BL |
2895.6 |
お問合せください |
30.4 |
18.25 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K117-BL |
2971.8 |
お問合せください |
31.2 |
18.73 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K120-BL |
3048 |
お問合せください |
32.0 |
19.21 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K123-BL |
3124.2 |
お問合せください |
32.8 |
19.69 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K126-BL |
3200.4 |
お問合せください |
33.6 |
20.17 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K129-BL |
3276.6 |
お問合せください |
34.4 |
20.65 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K132-BL |
3352.8 |
お問合せください |
35.2 |
21.13 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K135-BL |
3429 |
お問合せください |
36.0 |
21.61 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K138-BL |
3505.2 |
お問合せください |
36.8 |
22.09 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K141-BL |
3581.4 |
お問合せください |
37.6 |
22.57 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K144-BL |
3657.6 |
お問合せください |
38.4 |
23.05 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K147-BL |
3733.8 |
お問合せください |
39.2 |
23.53 |
DXF | Contact us for details. |
Contact us for details. |
|
Low Friction/Anti-Wear |
LFW |
White |
△ |
10.5 |
6.3 |
50 |
50 |
-20~(60)80 |
Special engineering plastic |
Polyacetal |
Yellow |
- |
|
Model No. |
Chain width X mm |
Number of links per one unit of chain |
Max. allowable load kN |
Chain weight kg/m |
DXF data |
Standard Price / link |
Delivery |
WT3005G-K06-LFW |
152.4 |
140 |
1.60 |
0.96 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K09-LFW |
228.6 |
140 |
2.40 |
1.44 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K12-LFW |
304.8 |
140 |
3.20 |
1.92 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K15-LFW |
381.0 |
140 |
4.00 |
2.40 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K18-LFW |
457.2 |
140 |
4.80 |
2.88 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K21-LFW |
533.4 |
60 |
5.60 |
3.36 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K24-LFW |
609.6 |
60 |
6.40 |
3.84 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K27-LFW |
685.8 |
60 |
7.20 |
4.32 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K30-LFW |
762.0 |
60 |
8.00 |
4.80 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K33-LFW |
838.2 |
60 |
8.80 |
5.28 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K36-LFW |
914.4 |
60 |
9.60 |
5.76 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K39-LFW |
990.6 |
60 |
10.4 |
6.24 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K42-LFW |
1066.8 |
60 |
11.2 |
6.72 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K45-LFW |
1143.0 |
60 |
12.0 |
7.20 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K48-LFW |
1219.2 |
60 |
12.8 |
7.68 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K51-LFW |
1295.4 |
40 |
13.6 |
8.17 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K54-LFW |
1371.6 |
40 |
14.4 |
8.65 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K60-LFW |
1524.0 |
40 |
16.0 |
9.61 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K63-LFW |
1600.2 |
お問合せください |
16.8 |
10.09 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K66-LFW |
1676.4 |
お問合せください |
17.6 |
10.57 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K69-LFW |
1752.6 |
お問合せください |
18.4 |
11.05 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K72-LFW |
1828.8 |
お問合せください |
19.2 |
11.53 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K75-LFW |
1905 |
お問合せください |
20.0 |
12.01 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K78-LFW |
1981.2 |
お問合せください |
20.8 |
12.49 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K81-LFW |
2057.4 |
お問合せください |
21.6 |
12.97 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K84-LFW |
2133.6 |
お問合せください |
22.4 |
13.45 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K87-LFW |
2209.8 |
お問合せください |
23.2 |
13.93 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K90-LFW |
2286 |
お問合せください |
24.0 |
14.41 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K93-LFW |
2362.2 |
お問合せください |
24.8 |
14.89 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K96-LFW |
2438.4 |
お問合せください |
25.6 |
15.37 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K99-LFW |
2514.6 |
お問合せください |
26.4 |
15.85 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K102-LFW |
2590.8 |
お問合せください |
27.2 |
16.33 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K105-LFW |
2667 |
お問合せください |
28.0 |
16.81 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K108-LFW |
2743.2 |
お問合せください |
28.8 |
17.29 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K111-LFW |
2819.4 |
お問合せください |
29.6 |
17.77 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K114-LFW |
2895.6 |
お問合せください |
30.4 |
18.25 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K117-LFW |
2971.8 |
お問合せください |
31.2 |
18.73 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K120-LFW |
3048 |
お問合せください |
32.0 |
19.21 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K123-LFW |
3124.2 |
お問合せください |
32.8 |
19.69 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K126-LFW |
3200.4 |
お問合せください |
33.6 |
20.17 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K129-LFW |
3276.6 |
お問合せください |
34.4 |
20.65 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K132-LFW |
3352.8 |
お問合せください |
35.2 |
21.13 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K135-LFW |
3429 |
お問合せください |
36.0 |
21.61 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K138-LFW |
3505.2 |
お問合せください |
36.8 |
22.09 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K141-LFW |
3581.4 |
お問合せください |
37.6 |
22.57 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K144-LFW |
3657.6 |
お問合せください |
38.4 |
23.05 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K147-LFW |
3733.8 |
お問合せください |
39.2 |
23.53 |
DXF | Contact us for details. |
Contact us for details. |
|
Low Friction/Anti-Wear |
LFG |
Green |
○ |
10.5 |
6.3 |
50 |
50 |
-20~(60)80 |
Special engineering plastic |
Polyacetal |
Yellow |
Show allowable load graphs |
|
Model No. |
Chain width X mm |
Number of links per one unit of chain |
Max. allowable load kN |
Chain weight kg/m |
DXF data |
Standard Price / link |
Delivery |
WT3005G-K06-LFG |
152.4 |
140 |
1.60 |
0.96 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K09-LFG |
228.6 |
140 |
2.40 |
1.44 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K12-LFG |
304.8 |
140 |
3.20 |
1.92 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K15-LFG |
381.0 |
140 |
4.00 |
2.40 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K18-LFG |
457.2 |
140 |
4.80 |
2.88 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K21-LFG |
533.4 |
60 |
5.60 |
3.36 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K24-LFG |
609.6 |
60 |
6.40 |
3.84 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K27-LFG |
685.8 |
60 |
7.20 |
4.32 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K30-LFG |
762.0 |
60 |
8.00 |
4.80 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K33-LFG |
838.2 |
60 |
8.80 |
5.28 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K36-LFG |
914.4 |
60 |
9.60 |
5.76 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K39-LFG |
990.6 |
60 |
10.4 |
6.24 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K42-LFG |
1066.8 |
60 |
11.2 |
6.72 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K45-LFG |
1143.0 |
60 |
12.0 |
7.20 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K48-LFG |
1219.2 |
60 |
12.8 |
7.68 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K51-LFG |
1295.4 |
40 |
13.6 |
8.17 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K54-LFG |
1371.6 |
40 |
14.4 |
8.65 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K60-LFG |
1524.0 |
40 |
16.0 |
9.61 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K63-LFG |
1600.2 |
お問合せください |
16.8 |
10.09 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K66-LFG |
1676.4 |
お問合せください |
17.6 |
10.57 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K69-LFG |
1752.6 |
お問合せください |
18.4 |
11.05 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K72-LFG |
1828.8 |
お問合せください |
19.2 |
11.53 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K75-LFG |
1905 |
お問合せください |
20.0 |
12.01 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K78-LFG |
1981.2 |
お問合せください |
20.8 |
12.49 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K81-LFG |
2057.4 |
お問合せください |
21.6 |
12.97 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K84-LFG |
2133.6 |
お問合せください |
22.4 |
13.45 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K87-LFG |
2209.8 |
お問合せください |
23.2 |
13.93 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K90-LFG |
2286 |
お問合せください |
24.0 |
14.41 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K93-LFG |
2362.2 |
お問合せください |
24.8 |
14.89 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K96-LFG |
2438.4 |
お問合せください |
25.6 |
15.37 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K99-LFG |
2514.6 |
お問合せください |
26.4 |
15.85 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K102-LFG |
2590.8 |
お問合せください |
27.2 |
16.33 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K105-LFG |
2667 |
お問合せください |
28.0 |
16.81 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K108-LFG |
2743.2 |
お問合せください |
28.8 |
17.29 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K111-LFG |
2819.4 |
お問合せください |
29.6 |
17.77 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K114-LFG |
2895.6 |
お問合せください |
30.4 |
18.25 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K117-LFG |
2971.8 |
お問合せください |
31.2 |
18.73 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K120-LFG |
3048 |
お問合せください |
32.0 |
19.21 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K123-LFG |
3124.2 |
お問合せください |
32.8 |
19.69 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K126-LFG |
3200.4 |
お問合せください |
33.6 |
20.17 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K129-LFG |
3276.6 |
お問合せください |
34.4 |
20.65 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K132-LFG |
3352.8 |
お問合せください |
35.2 |
21.13 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K135-LFG |
3429 |
お問合せください |
36.0 |
21.61 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K138-LFG |
3505.2 |
お問合せください |
36.8 |
22.09 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K141-LFG |
3581.4 |
お問合せください |
37.6 |
22.57 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K144-LFG |
3657.6 |
お問合せください |
38.4 |
23.05 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K147-LFG |
3733.8 |
お問合せください |
39.2 |
23.53 |
DXF | Contact us for details. |
Contact us for details. |
|
Low Friction/Anti-Wear |
LFB |
Brown |
△ |
10.5 |
6.3 |
50 |
50 |
-20~(60)80 |
Special engineering plastic |
Polyacetal |
Yellow |
- |
|
Model No. |
Chain width X mm |
Number of links per one unit of chain |
Max. allowable load kN |
Chain weight kg/m |
DXF data |
Standard Price / link |
Delivery |
WT3005G-K06-LFB |
152.4 |
140 |
1.60 |
0.96 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K09-LFB |
228.6 |
140 |
2.40 |
1.44 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K12-LFB |
304.8 |
140 |
3.20 |
1.92 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K15-LFB |
381.0 |
140 |
4.00 |
2.40 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K18-LFB |
457.2 |
140 |
4.80 |
2.88 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K21-LFB |
533.4 |
60 |
5.60 |
3.36 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K24-LFB |
609.6 |
60 |
6.40 |
3.84 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K27-LFB |
685.8 |
60 |
7.20 |
4.32 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K30-LFB |
762.0 |
60 |
8.00 |
4.80 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K33-LFB |
838.2 |
60 |
8.80 |
5.28 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K36-LFB |
914.4 |
60 |
9.60 |
5.76 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K39-LFB |
990.6 |
60 |
10.4 |
6.24 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K42-LFB |
1066.8 |
60 |
11.2 |
6.72 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K45-LFB |
1143.0 |
60 |
12.0 |
7.20 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K48-LFB |
1219.2 |
60 |
12.8 |
7.68 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K51-LFB |
1295.4 |
40 |
13.6 |
8.17 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K54-LFB |
1371.6 |
40 |
14.4 |
8.65 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K60-LFB |
1524.0 |
40 |
16.0 |
9.61 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K63-LFB |
1600.2 |
お問合せください |
16.8 |
10.09 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K66-LFB |
1676.4 |
お問合せください |
17.6 |
10.57 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K69-LFB |
1752.6 |
お問合せください |
18.4 |
11.05 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K72-LFB |
1828.8 |
お問合せください |
19.2 |
11.53 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K75-LFB |
1905 |
お問合せください |
20.0 |
12.01 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K78-LFB |
1981.2 |
お問合せください |
20.8 |
12.49 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K81-LFB |
2057.4 |
お問合せください |
21.6 |
12.97 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K84-LFB |
2133.6 |
お問合せください |
22.4 |
13.45 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K87-LFB |
2209.8 |
お問合せください |
23.2 |
13.93 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K90-LFB |
2286 |
お問合せください |
24.0 |
14.41 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K93-LFB |
2362.2 |
お問合せください |
24.8 |
14.89 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K96-LFB |
2438.4 |
お問合せください |
25.6 |
15.37 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K99-LFB |
2514.6 |
お問合せください |
26.4 |
15.85 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K102-LFB |
2590.8 |
お問合せください |
27.2 |
16.33 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K105-LFB |
2667 |
お問合せください |
28.0 |
16.81 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K108-LFB |
2743.2 |
お問合せください |
28.8 |
17.29 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K111-LFB |
2819.4 |
お問合せください |
29.6 |
17.77 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K114-LFB |
2895.6 |
お問合せください |
30.4 |
18.25 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K117-LFB |
2971.8 |
お問合せください |
31.2 |
18.73 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K120-LFB |
3048 |
お問合せください |
32.0 |
19.21 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K123-LFB |
3124.2 |
お問合せください |
32.8 |
19.69 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K126-LFB |
3200.4 |
お問合せください |
33.6 |
20.17 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K129-LFB |
3276.6 |
お問合せください |
34.4 |
20.65 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K132-LFB |
3352.8 |
お問合せください |
35.2 |
21.13 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K135-LFB |
3429 |
お問合せください |
36.0 |
21.61 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K138-LFB |
3505.2 |
お問合せください |
36.8 |
22.09 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K141-LFB |
3581.4 |
お問合せください |
37.6 |
22.57 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K144-LFB |
3657.6 |
お問合せください |
38.4 |
23.05 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K147-LFB |
3733.8 |
お問合せください |
39.2 |
23.53 |
DXF | Contact us for details. |
Contact us for details. |
|
Advanced Low Friction/Wear Resistant |
ALF |
Light blue |
○ |
10.5 |
6.3 |
50 |
50 |
-20~(60)80 |
Special engineering plastic |
Polyacetal |
Yellow |
Show allowable load graphs |
|
Model No. |
Chain width X mm |
Number of links per one unit of chain |
Max. allowable load kN |
Chain weight kg/m |
DXF data |
Standard Price / link |
Delivery |
WT3005G-K06-ALF |
152.4 |
140 |
1.60 |
0.96 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K09-ALF |
228.6 |
140 |
2.40 |
1.44 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K12-ALF |
304.8 |
140 |
3.20 |
1.92 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K15-ALF |
381.0 |
140 |
4.00 |
2.40 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K18-ALF |
457.2 |
140 |
4.80 |
2.88 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K21-ALF |
533.4 |
60 |
5.60 |
3.36 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K24-ALF |
609.6 |
60 |
6.40 |
3.84 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K27-ALF |
685.8 |
60 |
7.20 |
4.32 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K30-ALF |
762.0 |
60 |
8.00 |
4.80 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K33-ALF |
838.2 |
60 |
8.80 |
5.28 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K36-ALF |
914.4 |
60 |
9.60 |
5.76 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K39-ALF |
990.6 |
60 |
10.4 |
6.24 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K42-ALF |
1066.8 |
60 |
11.2 |
6.72 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K45-ALF |
1143.0 |
60 |
12.0 |
7.20 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K48-ALF |
1219.2 |
60 |
12.8 |
7.68 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K51-ALF |
1295.4 |
40 |
13.6 |
8.17 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K54-ALF |
1371.6 |
40 |
14.4 |
8.65 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K60-ALF |
1524.0 |
40 |
16.0 |
9.61 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K63-ALF |
1600.2 |
お問合せください |
16.8 |
10.09 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K66-ALF |
1676.4 |
お問合せください |
17.6 |
10.57 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K69-ALF |
1752.6 |
お問合せください |
18.4 |
11.05 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K72-ALF |
1828.8 |
お問合せください |
19.2 |
11.53 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K75-ALF |
1905 |
お問合せください |
20.0 |
12.01 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K78-ALF |
1981.2 |
お問合せください |
20.8 |
12.49 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K81-ALF |
2057.4 |
お問合せください |
21.6 |
12.97 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K84-ALF |
2133.6 |
お問合せください |
22.4 |
13.45 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K87-ALF |
2209.8 |
お問合せください |
23.2 |
13.93 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K90-ALF |
2286 |
お問合せください |
24.0 |
14.41 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K93-ALF |
2362.2 |
お問合せください |
24.8 |
14.89 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K96-ALF |
2438.4 |
お問合せください |
25.6 |
15.37 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K99-ALF |
2514.6 |
お問合せください |
26.4 |
15.85 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K102-ALF |
2590.8 |
お問合せください |
27.2 |
16.33 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K105-ALF |
2667 |
お問合せください |
28.0 |
16.81 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K108-ALF |
2743.2 |
お問合せください |
28.8 |
17.29 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K111-ALF |
2819.4 |
お問合せください |
29.6 |
17.77 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K114-ALF |
2895.6 |
お問合せください |
30.4 |
18.25 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K117-ALF |
2971.8 |
お問合せください |
31.2 |
18.73 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K120-ALF |
3048 |
お問合せください |
32.0 |
19.21 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K123-ALF |
3124.2 |
お問合せください |
32.8 |
19.69 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K126-ALF |
3200.4 |
お問合せください |
33.6 |
20.17 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K129-ALF |
3276.6 |
お問合せください |
34.4 |
20.65 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K132-ALF |
3352.8 |
お問合せください |
35.2 |
21.13 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K135-ALF |
3429 |
お問合せください |
36.0 |
21.61 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K138-ALF |
3505.2 |
お問合せください |
36.8 |
22.09 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K141-ALF |
3581.4 |
お問合せください |
37.6 |
22.57 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K144-ALF |
3657.6 |
お問合せください |
38.4 |
23.05 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K147-ALF |
3733.8 |
お問合せください |
39.2 |
23.53 |
DXF | Contact us for details. |
Contact us for details. |
|
Low Friction |
NLF |
Dark gray |
○ |
10.5 |
6.3 |
50 |
50 |
-20~(60)80 |
Special engineering plastic |
Polyacetal |
Yellow |
Contact us for details. |
|
Model No. |
Chain width X mm |
Number of links per one unit of chain |
Max. allowable load kN |
Chain weight kg/m |
DXF data |
Standard Price / link |
Delivery |
WT3005G-K06-NLF |
152.4 |
140 |
1.60 |
0.96 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K09-NLF |
228.6 |
140 |
2.40 |
1.44 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K12-NLF |
304.8 |
140 |
3.20 |
1.92 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K15-NLF |
381.0 |
140 |
4.00 |
2.40 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K18-NLF |
457.2 |
140 |
4.80 |
2.88 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K21-NLF |
533.4 |
60 |
5.60 |
3.36 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K24-NLF |
609.6 |
60 |
6.40 |
3.84 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K27-NLF |
685.8 |
60 |
7.20 |
4.32 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K30-NLF |
762.0 |
60 |
8.00 |
4.80 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K33-NLF |
838.2 |
60 |
8.80 |
5.28 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K36-NLF |
914.4 |
60 |
9.60 |
5.76 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K39-NLF |
990.6 |
60 |
10.4 |
6.24 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K42-NLF |
1066.8 |
60 |
11.2 |
6.72 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K45-NLF |
1143.0 |
60 |
12.0 |
7.20 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K48-NLF |
1219.2 |
60 |
12.8 |
7.68 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K51-NLF |
1295.4 |
40 |
13.6 |
8.17 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K54-NLF |
1371.6 |
40 |
14.4 |
8.65 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K60-NLF |
1524.0 |
40 |
16.0 |
9.61 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K63-NLF |
1600.2 |
お問合せください |
16.8 |
10.09 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K66-NLF |
1676.4 |
お問合せください |
17.6 |
10.57 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K69-NLF |
1752.6 |
お問合せください |
18.4 |
11.05 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K72-NLF |
1828.8 |
お問合せください |
19.2 |
11.53 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K75-NLF |
1905 |
お問合せください |
20.0 |
12.01 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K78-NLF |
1981.2 |
お問合せください |
20.8 |
12.49 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K81-NLF |
2057.4 |
お問合せください |
21.6 |
12.97 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K84-NLF |
2133.6 |
お問合せください |
22.4 |
13.45 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K87-NLF |
2209.8 |
お問合せください |
23.2 |
13.93 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K90-NLF |
2286 |
お問合せください |
24.0 |
14.41 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K93-NLF |
2362.2 |
お問合せください |
24.8 |
14.89 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K96-NLF |
2438.4 |
お問合せください |
25.6 |
15.37 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K99-NLF |
2514.6 |
お問合せください |
26.4 |
15.85 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K102-NLF |
2590.8 |
お問合せください |
27.2 |
16.33 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K105-NLF |
2667 |
お問合せください |
28.0 |
16.81 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K108-NLF |
2743.2 |
お問合せください |
28.8 |
17.29 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K111-NLF |
2819.4 |
お問合せください |
29.6 |
17.77 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K114-NLF |
2895.6 |
お問合せください |
30.4 |
18.25 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K117-NLF |
2971.8 |
お問合せください |
31.2 |
18.73 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K120-NLF |
3048 |
お問合せください |
32.0 |
19.21 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K123-NLF |
3124.2 |
お問合せください |
32.8 |
19.69 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K126-NLF |
3200.4 |
お問合せください |
33.6 |
20.17 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K129-NLF |
3276.6 |
お問合せください |
34.4 |
20.65 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K132-NLF |
3352.8 |
お問合せください |
35.2 |
21.13 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K135-NLF |
3429 |
お問合せください |
36.0 |
21.61 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K138-NLF |
3505.2 |
お問合せください |
36.8 |
22.09 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K141-NLF |
3581.4 |
お問合せください |
37.6 |
22.57 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K144-NLF |
3657.6 |
お問合せください |
38.4 |
23.05 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K147-NLF |
3733.8 |
お問合せください |
39.2 |
23.53 |
DXF | Contact us for details. |
Contact us for details. |
|
Low Friction |
WR |
Dark green |
△ |
10.5 |
6.3 |
50 |
50 |
-20~(60)80 |
Special engineering plastic |
Polyacetal |
Yellow |
- |
|
Model No. |
Chain width X mm |
Number of links per one unit of chain |
Max. allowable load kN |
Chain weight kg/m |
DXF data |
Standard Price / link |
Delivery |
WT3005G-K06-WR |
152.4 |
140 |
1.60 |
0.96 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K09-WR |
228.6 |
140 |
2.40 |
1.44 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K12-WR |
304.8 |
140 |
3.20 |
1.92 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K15-WR |
381.0 |
140 |
4.00 |
2.40 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K18-WR |
457.2 |
140 |
4.80 |
2.88 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K21-WR |
533.4 |
60 |
5.60 |
3.36 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K24-WR |
609.6 |
60 |
6.40 |
3.84 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K27-WR |
685.8 |
60 |
7.20 |
4.32 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K30-WR |
762.0 |
60 |
8.00 |
4.80 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K33-WR |
838.2 |
60 |
8.80 |
5.28 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K36-WR |
914.4 |
60 |
9.60 |
5.76 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K39-WR |
990.6 |
60 |
10.4 |
6.24 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K42-WR |
1066.8 |
60 |
11.2 |
6.72 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K45-WR |
1143.0 |
60 |
12.0 |
7.20 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K48-WR |
1219.2 |
60 |
12.8 |
7.68 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K51-WR |
1295.4 |
40 |
13.6 |
8.17 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K54-WR |
1371.6 |
40 |
14.4 |
8.65 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K60-WR |
1524.0 |
40 |
16.0 |
9.61 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K63-WR |
1600.2 |
お問合せください |
16.8 |
10.09 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K66-WR |
1676.4 |
お問合せください |
17.6 |
10.57 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K69-WR |
1752.6 |
お問合せください |
18.4 |
11.05 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K72-WR |
1828.8 |
お問合せください |
19.2 |
11.53 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K75-WR |
1905 |
お問合せください |
20.0 |
12.01 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K78-WR |
1981.2 |
お問合せください |
20.8 |
12.49 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K81-WR |
2057.4 |
お問合せください |
21.6 |
12.97 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K84-WR |
2133.6 |
お問合せください |
22.4 |
13.45 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K87-WR |
2209.8 |
お問合せください |
23.2 |
13.93 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K90-WR |
2286 |
お問合せください |
24.0 |
14.41 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K93-WR |
2362.2 |
お問合せください |
24.8 |
14.89 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K96-WR |
2438.4 |
お問合せください |
25.6 |
15.37 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K99-WR |
2514.6 |
お問合せください |
26.4 |
15.85 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K102-WR |
2590.8 |
お問合せください |
27.2 |
16.33 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K105-WR |
2667 |
お問合せください |
28.0 |
16.81 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K108-WR |
2743.2 |
お問合せください |
28.8 |
17.29 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K111-WR |
2819.4 |
お問合せください |
29.6 |
17.77 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K114-WR |
2895.6 |
お問合せください |
30.4 |
18.25 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K117-WR |
2971.8 |
お問合せください |
31.2 |
18.73 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K120-WR |
3048 |
お問合せください |
32.0 |
19.21 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K123-WR |
3124.2 |
お問合せください |
32.8 |
19.69 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K126-WR |
3200.4 |
お問合せください |
33.6 |
20.17 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K129-WR |
3276.6 |
お問合せください |
34.4 |
20.65 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K132-WR |
3352.8 |
お問合せください |
35.2 |
21.13 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K135-WR |
3429 |
お問合せください |
36.0 |
21.61 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K138-WR |
3505.2 |
お問合せください |
36.8 |
22.09 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K141-WR |
3581.4 |
お問合せください |
37.6 |
22.57 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K144-WR |
3657.6 |
お問合せください |
38.4 |
23.05 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K147-WR |
3733.8 |
お問合せください |
39.2 |
23.53 |
DXF | Contact us for details. |
Contact us for details. |
|
Package (Click the series for more information. ) |
Package symbol |
Color |
Availability |
Max. allowable tension kN/m |
Chain mass kg/m2 |
Allowable speed m/min |
Operating Temperature Range ゚C |
Pin material |
Material of the plug |
Color of the plug |
Allowable load graphs |
With lube |
No lube |
Low Friction/Anti-Wear |
HG |
Navy blue |
△ |
10.5 |
6.3 |
50 |
50 |
-20~(60)80 |
Special engineering plastic |
Polyacetal |
Yellow |
- |
|
Model No. |
Chain width X mm |
Number of links per one unit of chain |
Max. allowable load kN |
Chain weight kg/m |
DXF data |
Standard Price / link |
Delivery |
WT3005G-K06-HG |
152.4 |
140 |
1.60 |
0.96 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K09-HG |
228.6 |
140 |
2.40 |
1.44 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K12-HG |
304.8 |
140 |
3.20 |
1.92 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K15-HG |
381.0 |
140 |
4.00 |
2.40 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K18-HG |
457.2 |
140 |
4.80 |
2.88 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K21-HG |
533.4 |
60 |
5.60 |
3.36 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K24-HG |
609.6 |
60 |
6.40 |
3.84 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K27-HG |
685.8 |
60 |
7.20 |
4.32 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K30-HG |
762.0 |
60 |
8.00 |
4.80 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K33-HG |
838.2 |
60 |
8.80 |
5.28 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K36-HG |
914.4 |
60 |
9.60 |
5.76 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K39-HG |
990.6 |
60 |
10.4 |
6.24 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K42-HG |
1066.8 |
60 |
11.2 |
6.72 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K45-HG |
1143.0 |
60 |
12.0 |
7.20 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K48-HG |
1219.2 |
60 |
12.8 |
7.68 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K51-HG |
1295.4 |
40 |
13.6 |
8.17 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K54-HG |
1371.6 |
40 |
14.4 |
8.65 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K60-HG |
1524.0 |
40 |
16.0 |
9.61 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K63-HG |
1600.2 |
お問合せください |
16.8 |
10.09 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K66-HG |
1676.4 |
お問合せください |
17.6 |
10.57 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K69-HG |
1752.6 |
お問合せください |
18.4 |
11.05 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K72-HG |
1828.8 |
お問合せください |
19.2 |
11.53 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K75-HG |
1905 |
お問合せください |
20.0 |
12.01 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K78-HG |
1981.2 |
お問合せください |
20.8 |
12.49 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K81-HG |
2057.4 |
お問合せください |
21.6 |
12.97 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K84-HG |
2133.6 |
お問合せください |
22.4 |
13.45 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K87-HG |
2209.8 |
お問合せください |
23.2 |
13.93 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K90-HG |
2286 |
お問合せください |
24.0 |
14.41 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K93-HG |
2362.2 |
お問合せください |
24.8 |
14.89 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K96-HG |
2438.4 |
お問合せください |
25.6 |
15.37 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K99-HG |
2514.6 |
お問合せください |
26.4 |
15.85 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K102-HG |
2590.8 |
お問合せください |
27.2 |
16.33 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K105-HG |
2667 |
お問合せください |
28.0 |
16.81 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K108-HG |
2743.2 |
お問合せください |
28.8 |
17.29 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K111-HG |
2819.4 |
お問合せください |
29.6 |
17.77 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K114-HG |
2895.6 |
お問合せください |
30.4 |
18.25 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K117-HG |
2971.8 |
お問合せください |
31.2 |
18.73 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K120-HG |
3048 |
お問合せください |
32.0 |
19.21 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K123-HG |
3124.2 |
お問合せください |
32.8 |
19.69 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K126-HG |
3200.4 |
お問合せください |
33.6 |
20.17 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K129-HG |
3276.6 |
お問合せください |
34.4 |
20.65 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K132-HG |
3352.8 |
お問合せください |
35.2 |
21.13 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K135-HG |
3429 |
お問合せください |
36.0 |
21.61 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K138-HG |
3505.2 |
お問合せください |
36.8 |
22.09 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K141-HG |
3581.4 |
お問合せください |
37.6 |
22.57 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K144-HG |
3657.6 |
お問合せください |
38.4 |
23.05 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K147-HG |
3733.8 |
お問合せください |
39.2 |
23.53 |
DXF | Contact us for details. |
Contact us for details. |
|
Electroconductive |
E |
Black |
△ |
8.0 |
6.3 |
50 |
50 |
-20~(60)80 |
Special engineering plastic |
Polyacetal |
Yellow |
- |
|
Model No. |
Chain width X mm |
Number of links per one unit of chain |
Max. allowable load kN |
Chain weight kg/m |
DXF data |
Standard Price / link |
Delivery |
WT3005G-K06-E |
152.4 |
140 |
1.21 |
0.96 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K09-E |
228.6 |
140 |
1.82 |
1.44 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K12-E |
304.8 |
140 |
2.43 |
1.92 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K15-E |
381.0 |
140 |
3.04 |
2.40 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K18-E |
457.2 |
140 |
3.65 |
2.88 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K21-E |
533.4 |
60 |
4.26 |
3.36 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K24-E |
609.6 |
60 |
4.87 |
3.84 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K27-E |
685.8 |
60 |
5.48 |
4.32 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K30-E |
762.0 |
60 |
6.09 |
4.80 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K33-E |
838.2 |
60 |
6.70 |
5.28 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K36-E |
914.4 |
60 |
7.31 |
5.76 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K39-E |
990.6 |
60 |
7.92 |
6.24 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K42-E |
1066.8 |
60 |
8.53 |
6.72 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K45-E |
1143.0 |
60 |
9.14 |
7.20 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K48-E |
1219.2 |
60 |
9.75 |
7.68 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K51-E |
1295.4 |
40 |
10.3 |
8.17 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K54-E |
1371.6 |
40 |
10.9 |
8.65 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K60-E |
1524.0 |
40 |
12.1 |
9.61 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K63-E |
1600.2 |
お問合せください |
12.8 |
10.09 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K66-E |
1676.4 |
お問合せください |
13.4 |
10.57 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K69-E |
1752.6 |
お問合せください |
14.0 |
11.05 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K72-E |
1828.8 |
お問合せください |
14.6 |
11.53 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K75-E |
1905 |
お問合せください |
15.2 |
12.01 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K78-E |
1981.2 |
お問合せください |
15.8 |
12.49 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K81-E |
2057.4 |
お問合せください |
16.4 |
12.97 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K84-E |
2133.6 |
お問合せください |
17.0 |
13.45 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K87-E |
2209.8 |
お問合せください |
17.6 |
13.93 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K90-E |
2286 |
お問合せください |
18.2 |
14.41 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K93-E |
2362.2 |
お問合せください |
18.8 |
14.89 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K96-E |
2438.4 |
お問合せください |
19.5 |
15.37 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K99-E |
2514.6 |
お問合せください |
20.1 |
15.85 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K102-E |
2590.8 |
お問合せください |
20.7 |
16.33 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K105-E |
2667 |
お問合せください |
21.3 |
16.81 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K108-E |
2743.2 |
お問合せください |
21.9 |
17.29 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K111-E |
2819.4 |
お問合せください |
22.5 |
17.77 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K114-E |
2895.6 |
お問合せください |
23.1 |
18.25 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K117-E |
2971.8 |
お問合せください |
23.7 |
18.73 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K120-E |
3048 |
お問合せください |
24.3 |
19.21 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K123-E |
3124.2 |
お問合せください |
24.9 |
19.69 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K126-E |
3200.4 |
お問合せください |
25.6 |
20.17 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K129-E |
3276.6 |
お問合せください |
26.2 |
20.65 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K132-E |
3352.8 |
お問合せください |
26.8 |
21.13 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K135-E |
3429 |
お問合せください |
27.4 |
21.61 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K138-E |
3505.2 |
お問合せください |
28.0 |
22.09 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K141-E |
3581.4 |
お問合せください |
28.6 |
22.57 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K144-E |
3657.6 |
お問合せください |
29.2 |
23.05 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K147-E |
3733.8 |
お問合せください |
29.8 |
23.53 |
DXF | Contact us for details. |
Contact us for details. |
|
Antibacterial/Mold Resistant |
MWS |
Cream |
△ |
10.5 |
6.3 |
50 |
50 |
-20~(60)80 |
Special engineering plastic |
Polyacetal |
Yellow |
- |
|
Model No. |
Chain width X mm |
Number of links per one unit of chain |
Max. allowable load kN |
Chain weight kg/m |
DXF data |
Standard Price / link |
Delivery |
WT3005G-K06-MWS |
152.4 |
140 |
1.60 |
0.96 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K09-MWS |
228.6 |
140 |
2.40 |
1.44 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K12-MWS |
304.8 |
140 |
3.20 |
1.92 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K15-MWS |
381.0 |
140 |
4.00 |
2.40 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K18-MWS |
457.2 |
140 |
4.80 |
2.88 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K21-MWS |
533.4 |
60 |
5.60 |
3.36 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K24-MWS |
609.6 |
60 |
6.40 |
3.84 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K27-MWS |
685.8 |
60 |
7.20 |
4.32 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K30-MWS |
762.0 |
60 |
8.00 |
4.80 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K33-MWS |
838.2 |
60 |
8.80 |
5.28 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K36-MWS |
914.4 |
60 |
9.60 |
5.76 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K39-MWS |
990.6 |
60 |
10.4 |
6.24 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K42-MWS |
1066.8 |
60 |
11.2 |
6.72 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K45-MWS |
1143.0 |
60 |
12.0 |
7.20 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K48-MWS |
1219.2 |
60 |
12.8 |
7.68 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K51-MWS |
1295.4 |
40 |
13.6 |
8.17 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K54-MWS |
1371.6 |
40 |
14.4 |
8.65 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K60-MWS |
1524.0 |
40 |
16.0 |
9.61 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K63-MWS |
1600.2 |
お問合せください |
16.8 |
10.09 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K66-MWS |
1676.4 |
お問合せください |
17.6 |
10.57 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K69-MWS |
1752.6 |
お問合せください |
18.4 |
11.05 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K72-MWS |
1828.8 |
お問合せください |
19.2 |
11.53 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K75-MWS |
1905 |
お問合せください |
20.0 |
12.01 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K78-MWS |
1981.2 |
お問合せください |
20.8 |
12.49 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K81-MWS |
2057.4 |
お問合せください |
21.6 |
12.97 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K84-MWS |
2133.6 |
お問合せください |
22.4 |
13.45 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K87-MWS |
2209.8 |
お問合せください |
23.2 |
13.93 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K90-MWS |
2286 |
お問合せください |
24.0 |
14.41 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K93-MWS |
2362.2 |
お問合せください |
24.8 |
14.89 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K96-MWS |
2438.4 |
お問合せください |
25.6 |
15.37 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K99-MWS |
2514.6 |
お問合せください |
26.4 |
15.85 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K102-MWS |
2590.8 |
お問合せください |
27.2 |
16.33 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K105-MWS |
2667 |
お問合せください |
28.0 |
16.81 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K108-MWS |
2743.2 |
お問合せください |
28.8 |
17.29 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K111-MWS |
2819.4 |
お問合せください |
29.6 |
17.77 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K114-MWS |
2895.6 |
お問合せください |
30.4 |
18.25 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K117-MWS |
2971.8 |
お問合せください |
31.2 |
18.73 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K120-MWS |
3048 |
お問合せください |
32.0 |
19.21 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K123-MWS |
3124.2 |
お問合せください |
32.8 |
19.69 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K126-MWS |
3200.4 |
お問合せください |
33.6 |
20.17 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K129-MWS |
3276.6 |
お問合せください |
34.4 |
20.65 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K132-MWS |
3352.8 |
お問合せください |
35.2 |
21.13 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K135-MWS |
3429 |
お問合せください |
36.0 |
21.61 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K138-MWS |
3505.2 |
お問合せください |
36.8 |
22.09 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K141-MWS |
3581.4 |
お問合せください |
37.6 |
22.57 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K144-MWS |
3657.6 |
お問合せください |
38.4 |
23.05 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K147-MWS |
3733.8 |
お問合せください |
39.2 |
23.53 |
DXF | Contact us for details. |
Contact us for details. |
|
Middle Friction series (for dry condition) |
MF |
Yellow |
△ |
7.8 |
6.3 |
- |
50 |
-20~80 |
Special engineering plastic |
Polyacetal |
Yellow |
- |
|
Model No. |
Chain width X mm |
Number of links per one unit of chain |
Max. allowable load kN |
Chain weight kg/m |
DXF data |
Standard Price / link |
Delivery |
WT3005G-K06-MF |
152.4 |
140 |
1.18 |
0.96 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K09-MF |
228.6 |
140 |
1.78 |
1.44 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K12-MF |
304.8 |
140 |
2.37 |
1.92 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K15-MF |
381.0 |
140 |
2.97 |
2.40 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K18-MF |
457.2 |
140 |
3.56 |
2.88 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K21-MF |
533.4 |
60 |
4.16 |
3.36 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K24-MF |
609.6 |
60 |
4.75 |
3.84 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K27-MF |
685.8 |
60 |
5.34 |
4.32 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K30-MF |
762.0 |
60 |
5.94 |
4.80 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K33-MF |
838.2 |
60 |
6.53 |
5.28 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K36-MF |
914.4 |
60 |
7.13 |
5.76 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K39-MF |
990.6 |
60 |
7.72 |
6.24 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K42-MF |
1066.8 |
60 |
8.32 |
6.72 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K45-MF |
1143.0 |
60 |
8.91 |
7.20 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K48-MF |
1219.2 |
60 |
9.50 |
7.68 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K51-MF |
1295.4 |
40 |
10.1 |
8.17 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K54-MF |
1371.6 |
40 |
10.6 |
8.65 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K60-MF |
1524.0 |
40 |
11.8 |
9.61 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K63-MF |
1600.2 |
お問合せください |
12.4 |
10.09 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K66-MF |
1676.4 |
お問合せください |
13.0 |
10.57 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K69-MF |
1752.6 |
お問合せください |
13.6 |
11.05 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K72-MF |
1828.8 |
お問合せください |
14.2 |
11.53 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K75-MF |
1905 |
お問合せください |
14.8 |
12.01 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K78-MF |
1981.2 |
お問合せください |
15.4 |
12.49 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K81-MF |
2057.4 |
お問合せください |
16.0 |
12.97 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K84-MF |
2133.6 |
お問合せください |
16.6 |
13.45 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K87-MF |
2209.8 |
お問合せください |
17.2 |
13.93 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K90-MF |
2286 |
お問合せください |
17.8 |
14.41 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K93-MF |
2362.2 |
お問合せください |
18.4 |
14.89 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K96-MF |
2438.4 |
お問合せください |
19.0 |
15.37 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K99-MF |
2514.6 |
お問合せください |
19.6 |
15.85 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K102-MF |
2590.8 |
お問合せください |
20.2 |
16.33 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K105-MF |
2667 |
お問合せください |
20.8 |
16.81 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K108-MF |
2743.2 |
お問合せください |
21.3 |
17.29 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K111-MF |
2819.4 |
お問合せください |
21.9 |
17.77 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K114-MF |
2895.6 |
お問合せください |
22.5 |
18.25 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K117-MF |
2971.8 |
お問合せください |
23.1 |
18.73 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K120-MF |
3048 |
お問合せください |
23.7 |
19.21 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K123-MF |
3124.2 |
お問合せください |
24.3 |
19.69 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K126-MF |
3200.4 |
お問合せください |
24.9 |
20.17 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K129-MF |
3276.6 |
お問合せください |
25.5 |
20.65 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K132-MF |
3352.8 |
お問合せください |
26.1 |
21.13 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K135-MF |
3429 |
お問合せください |
26.7 |
21.61 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K138-MF |
3505.2 |
お問合せください |
27.3 |
22.09 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K141-MF |
3581.4 |
お問合せください |
27.9 |
22.57 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K144-MF |
3657.6 |
お問合せください |
28.5 |
23.05 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K147-MF |
3733.8 |
お問合せください |
29.1 |
23.53 |
DXF | Contact us for details. |
Contact us for details. |
|
Ultraviolet Resistant |
UVR |
Light silver |
△ |
10.5 |
6.3 |
50 |
50 |
-20~(60)80 |
Special engineering plastic |
Polyacetal |
Yellow |
- |
|
Model No. |
Chain width X mm |
Number of links per one unit of chain |
Max. allowable load kN |
Chain weight kg/m |
DXF data |
Standard Price / link |
Delivery |
WT3005G-K06-UVR |
152.4 |
140 |
1.60 |
0.96 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K09-UVR |
228.6 |
140 |
2.40 |
1.44 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K12-UVR |
304.8 |
140 |
3.20 |
1.92 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K15-UVR |
381.0 |
140 |
4.00 |
2.40 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K18-UVR |
457.2 |
140 |
4.80 |
2.88 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K21-UVR |
533.4 |
60 |
5.60 |
3.36 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K24-UVR |
609.6 |
60 |
6.40 |
3.84 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K27-UVR |
685.8 |
60 |
7.20 |
4.32 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K30-UVR |
762.0 |
60 |
8.00 |
4.80 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K33-UVR |
838.2 |
60 |
8.80 |
5.28 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K36-UVR |
914.4 |
60 |
9.60 |
5.76 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K39-UVR |
990.6 |
60 |
10.4 |
6.24 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K42-UVR |
1066.8 |
60 |
11.2 |
6.72 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K45-UVR |
1143.0 |
60 |
12.0 |
7.20 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K48-UVR |
1219.2 |
60 |
12.8 |
7.68 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K51-UVR |
1295.4 |
40 |
13.6 |
8.17 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K54-UVR |
1371.6 |
40 |
14.4 |
8.65 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K60-UVR |
1524.0 |
40 |
16.0 |
9.61 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K63-UVR |
1600.2 |
お問合せください |
16.8 |
10.09 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K66-UVR |
1676.4 |
お問合せください |
17.6 |
10.57 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K69-UVR |
1752.6 |
お問合せください |
18.4 |
11.05 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K72-UVR |
1828.8 |
お問合せください |
19.2 |
11.53 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K75-UVR |
1905 |
お問合せください |
20.0 |
12.01 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K78-UVR |
1981.2 |
お問合せください |
20.8 |
12.49 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K81-UVR |
2057.4 |
お問合せください |
21.6 |
12.97 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K84-UVR |
2133.6 |
お問合せください |
22.4 |
13.45 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K87-UVR |
2209.8 |
お問合せください |
23.2 |
13.93 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K90-UVR |
2286 |
お問合せください |
24.0 |
14.41 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K93-UVR |
2362.2 |
お問合せください |
24.8 |
14.89 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K96-UVR |
2438.4 |
お問合せください |
25.6 |
15.37 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K99-UVR |
2514.6 |
お問合せください |
26.4 |
15.85 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K102-UVR |
2590.8 |
お問合せください |
27.2 |
16.33 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K105-UVR |
2667 |
お問合せください |
28.0 |
16.81 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K108-UVR |
2743.2 |
お問合せください |
28.8 |
17.29 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K111-UVR |
2819.4 |
お問合せください |
29.6 |
17.77 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K114-UVR |
2895.6 |
お問合せください |
30.4 |
18.25 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K117-UVR |
2971.8 |
お問合せください |
31.2 |
18.73 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K120-UVR |
3048 |
お問合せください |
32.0 |
19.21 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K123-UVR |
3124.2 |
お問合せください |
32.8 |
19.69 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K126-UVR |
3200.4 |
お問合せください |
33.6 |
20.17 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K129-UVR |
3276.6 |
お問合せください |
34.4 |
20.65 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K132-UVR |
3352.8 |
お問合せください |
35.2 |
21.13 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K135-UVR |
3429 |
お問合せください |
36.0 |
21.61 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K138-UVR |
3505.2 |
お問合せください |
36.8 |
22.09 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K141-UVR |
3581.4 |
お問合せください |
37.6 |
22.57 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K144-UVR |
3657.6 |
お問合せください |
38.4 |
23.05 |
DXF | Contact us for details. |
Contact us for details. |
WT3005G-K147-UVR |
3733.8 |
お問合せください |
39.2 |
23.53 |
DXF | Contact us for details. |
Contact us for details. |
|
Notes
1."○": Made-to-order product. "△" : Made-to-order product(RFQ).
Not available for materials that are not listed in Chain Material Table above.
2.The maximum allowable load indicates the value specified for a normal temperature (20℃) when load is evenly applied to the entire surface of the chain in a widthwide. The value depends on using conditions ( temperature, speed, etc). Refer to the load diagram of the chain. The upper graph indicates the value when the width is 1 meter. Calculate "planned width X maximum allowable load indicated" for the actual value.
3.Operating temperature of the value in parentheses is for wet condition.
4.The chain width greater that 1,600.2 mm(K63) is made-to-order (RFQ) product. "△"
5.The standard width is in increments of 3 inches. Available for the width greater than listed in catalog.
Contact a Tsubaki representative for the availability of the width greater than 3,733.8 mm and special width.
6.The chain width X is the nominal width and the actual width is about -0.7% at the ambient temperature of 20℃.
The chain width will expand or contract due to temperature change. The ratio which will be affected by the ambient temperature is 0.00012/℃ for Standard Series at the basis of 20℃.
