Plastic modular chain WT1515-W  Major Specifications

WT1515-W


Features

  • ・Users can select chain width in 50mm units (standard configurations).
  • ・Perfect for conveying beverage containers as well as mechanical parts.
  • ・Now easier to replace flat belt conveyors because chains are available in the same 50mm and 100mm widths these conveyors use.

[Click to enlarge ]

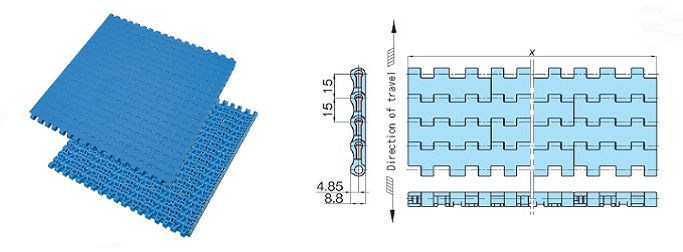

PDF Outline Drawing

Contact us for details.

DXF drawings / 3D CAD data

To CADENAS WEB2CAD website.

The CAD data contained herein is made available to you via the CAD drawing library; PARTcommunity is provided by CADENAS WEB2CAD Co.
Please direct your inquiries regarding the CAD data service or PARTcommunity to:
 CADENAS WEB2CAD Co. TEL: +81 (3) 5961-5031 FAX: +81 (3) 5961-5032

Catalogs ・Instruction Manuals

Major Specifications

Chain pitch mm Open area % Backbend radius mm
15 2 15

Standard series

Package
(Click the series for more information. )
Package symbol Color Availability Max. allowable
tension
kN/m
Chain
mass
kg/m2
Allowable speed
m/min
Operating Temperature Range
゚C
Pin material Material of the plug Color of the plug Allowable load graphs
With lube No lube
Standard series
(with electrostatic preventive)
None Gray 10.5 6.7 50(50) 50(30) -20~(60)80 Special engineering plastic Polyacetal Yellow
Model No. Chain width
X
mm
Number of links
per one unit of chain
Max. allowable load
kN
Chain
weight
kg/m
DXF data Standard Price / link Delivery
WT1515-W50 50 500 0.52 0.34 DXF
WT1515-W50-SP 50 500 0.52 0.34 DXF
WT1515-W100 100 500 1.05 0.67 DXF
WT1515-W100-SP 100 500 1.05 0.67 DXF
WT1515-W150 150 500 1.57 1.01 DXF
WT1515-W200 200 400 2.10 1.34 DXF
WT1515-W250 250 400 2.62 1.68 DXF
WT1515-W300 300 400 3.15 2.01 DXF
WT1515-W350 350 400 3.67 2.35 DXF
WT1515-W400 400 400 4.20 2.68 DXF
WT1515-W450 450 400 4.72 3.02 DXF
WT1515-W500 500 200 5.25 3.35 DXF
WT1515-W550 550 200 5.77 3.69 DXF
WT1515-W600 600 200 6.30 4.02 DXF
WT1515-W650 650 200 6.82 4.36 DXF
WT1515-W700 700 200 7.35 4.69 DXF
WT1515-W750 750 200 7.87 5.03 DXF
WT1515-W800 800 160 8.40 5.36 DXF
WT1515-W850 850 160 8.92 5.70 DXF
WT1515-W900 900 160 9.45 6.03 DXF
WT1515-W950 950 160 9.97 6.37 DXF
WT1515-W1000 1000 140 10.5 6.70 DXF
WT1515-W1050 1050 140 11.0 7.04 DXF
WT1515-W1100 1100 140 11.5 7.37 DXF
WT1515-W1150 1150 140 12.0 7.71 DXF
WT1515-W1200 1200 140 12.6 8.04 DXF
WT1515-W1250 1250 120 13.1 8.38 DXF
WT1515-W1300 1300 120 13.6 8.71 DXF
WT1515-W1350 1350 120 14.1 9.05 DXF
WT1515-W1400 1400 120 14.7 9.38 DXF
WT1515-W1450 1450 120 15.2 9.72 DXF
WT1515-W1500 1500 120 15.7 10.05 DXF
WT1515-W1550 1550 100 16.2 10.39 DXF
WT1515-W1600 1600 お問合せください 16.8 10.72 DXF
WT1515-W1650 1650 お問合せください 17.3 11.06 DXF
WT1515-W1700 1700 お問合せください 17.8 11.39 DXF
WT1515-W1750 1750 お問合せください 18.3 11.73 DXF
WT1515-W1800 1800 お問合せください 18.9 12.06 DXF
WT1515-W1850 1850 お問合せください 19.4 12.40 DXF
WT1515-W1900 1900 お問合せください 19.9 12.73 DXF
WT1515-W1950 1950 お問合せください 20.4 13.07 DXF
WT1515-W2000 2000 お問合せください 21.0 13.40 DXF
WT1515-W2050 2050 お問合せください 21.5 13.74 DXF
WT1515-W2100 2100 お問合せください 22.0 14.07 DXF
WT1515-W2150 2150 お問合せください 22.5 14.41 DXF
WT1515-W2200 2200 お問合せください 23.1 14.74 DXF
WT1515-W2250 2250 お問合せください 23.6 15.08 DXF
WT1515-W2300 2300 お問合せください 24.1 15.41 DXF
Standard series
(with electrostatic preventive)
B Blue 10.5 6.7 50(50) 50(30) -20~(60)80 Special engineering plastic Polyacetal Yellow
Model No. Chain width
X
mm
Number of links
per one unit of chain
Max. allowable load
kN
Chain
weight
kg/m
DXF data Standard Price / link Delivery
WT1515-W50-B 50 500 0.52 0.34 DXF
WT1515-W50-SP-B 50 500 0.52 0.34 DXF
WT1515-W100-B 100 500 1.05 0.67 DXF
WT1515-W100-SP-B 100 500 1.05 0.67 DXF
WT1515-W150-B 150 500 1.57 1.01 DXF
WT1515-W200-B 200 400 2.10 1.34 DXF
WT1515-W250-B 250 400 2.62 1.68 DXF
WT1515-W300-B 300 400 3.15 2.01 DXF
WT1515-W350-B 350 400 3.67 2.35 DXF
WT1515-W400-B 400 400 4.20 2.68 DXF
WT1515-W450-B 450 400 4.72 3.02 DXF
WT1515-W500-B 500 200 5.25 3.35 DXF
WT1515-W550-B 550 200 5.77 3.69 DXF
WT1515-W600-B 600 200 6.30 4.02 DXF
WT1515-W650-B 650 200 6.82 4.36 DXF
WT1515-W700-B 700 200 7.35 4.69 DXF
WT1515-W750-B 750 200 7.87 5.03 DXF
WT1515-W800-B 800 160 8.40 5.36 DXF
WT1515-W850-B 850 160 8.92 5.70 DXF
WT1515-W900-B 900 160 9.45 6.03 DXF
WT1515-W950-B 950 160 9.97 6.37 DXF
WT1515-W1000-B 1000 140 10.5 6.70 DXF
WT1515-W1050-B 1050 140 11.0 7.04 DXF
WT1515-W1100-B 1100 140 11.5 7.37 DXF
WT1515-W1150-B 1150 140 12.0 7.71 DXF
WT1515-W1200-B 1200 140 12.6 8.04 DXF
WT1515-W1250-B 1250 120 13.1 8.38 DXF
WT1515-W1300-B 1300 120 13.6 8.71 DXF
WT1515-W1350-B 1350 120 14.1 9.05 DXF
WT1515-W1400-B 1400 120 14.7 9.38 DXF
WT1515-W1450-B 1450 120 15.2 9.72 DXF
WT1515-W1500-B 1500 120 15.7 10.05 DXF
WT1515-W1550-B 1550 100 16.2 10.39 DXF
WT1515-W1600-B 1600 お問合せください 16.8 10.72 DXF
WT1515-W1650-B 1650 お問合せください 17.3 11.06 DXF
WT1515-W1700-B 1700 お問合せください 17.8 11.39 DXF
WT1515-W1750-B 1750 お問合せください 18.3 11.73 DXF
WT1515-W1800-B 1800 お問合せください 18.9 12.06 DXF
WT1515-W1850-B 1850 お問合せください 19.4 12.40 DXF
WT1515-W1900-B 1900 お問合せください 19.9 12.73 DXF
WT1515-W1950-B 1950 お問合せください 20.4 13.07 DXF
WT1515-W2000-B 2000 お問合せください 21.0 13.40 DXF
WT1515-W2050-B 2050 お問合せください 21.5 13.74 DXF
WT1515-W2100-B 2100 お問合せください 22.0 14.07 DXF
WT1515-W2150-B 2150 お問合せください 22.5 14.41 DXF
WT1515-W2200-B 2200 お問合せください 23.1 14.74 DXF
WT1515-W2250-B 2250 お問合せください 23.6 15.08 DXF
WT1515-W2300-B 2300 お問合せください 24.1 15.41 DXF
Standard series
(with electrostatic preventive)
BL Sky blue 10.5 6.7 50(50) 50(30) -20~(60)80 Special engineering plastic Polyacetal Yellow
Model No. Chain width
X
mm
Number of links
per one unit of chain
Max. allowable load
kN
Chain
weight
kg/m
DXF data Standard Price / link Delivery
WT1515-W50-BL 50 500 0.52 0.34 DXF
WT1515-W50-SP-BL 50 500 0.52 0.34 DXF
WT1515-W100-BL 100 500 1.05 0.67 DXF
WT1515-W100-SP-BL 100 500 1.05 0.67 DXF
WT1515-W150-BL 150 500 1.57 1.01 DXF
WT1515-W200-BL 200 400 2.10 1.34 DXF
WT1515-W250-BL 250 400 2.62 1.68 DXF
WT1515-W300-BL 300 400 3.15 2.01 DXF
WT1515-W350-BL 350 400 3.67 2.35 DXF
WT1515-W400-BL 400 400 4.20 2.68 DXF
WT1515-W450-BL 450 400 4.72 3.02 DXF
WT1515-W500-BL 500 200 5.25 3.35 DXF
WT1515-W550-BL 550 200 5.77 3.69 DXF
WT1515-W600-BL 600 200 6.30 4.02 DXF
WT1515-W650-BL 650 200 6.82 4.36 DXF
WT1515-W700-BL 700 200 7.35 4.69 DXF
WT1515-W750-BL 750 200 7.87 5.03 DXF
WT1515-W800-BL 800 160 8.40 5.36 DXF
WT1515-W850-BL 850 160 8.92 5.70 DXF
WT1515-W900-BL 900 160 9.45 6.03 DXF
WT1515-W950-BL 950 160 9.97 6.37 DXF
WT1515-W1000-BL 1000 140 10.5 6.70 DXF
WT1515-W1050-BL 1050 140 11.0 7.04 DXF
WT1515-W1100-BL 1100 140 11.5 7.37 DXF
WT1515-W1150-BL 1150 140 12.0 7.71 DXF
WT1515-W1200-BL 1200 140 12.6 8.04 DXF
WT1515-W1250-BL 1250 120 13.1 8.38 DXF
WT1515-W1300-BL 1300 120 13.6 8.71 DXF
WT1515-W1350-BL 1350 120 14.1 9.05 DXF
WT1515-W1400-BL 1400 120 14.7 9.38 DXF
WT1515-W1450-BL 1450 120 15.2 9.72 DXF
WT1515-W1500-BL 1500 120 15.7 10.05 DXF
WT1515-W1550-BL 1550 100 16.2 10.39 DXF
WT1515-W1600-BL 1600 お問合せください 16.8 10.72 DXF
WT1515-W1650-BL 1650 お問合せください 17.3 11.06 DXF
WT1515-W1700-BL 1700 お問合せください 17.8 11.39 DXF
WT1515-W1750-BL 1750 お問合せください 18.3 11.73 DXF
WT1515-W1800-BL 1800 お問合せください 18.9 12.06 DXF
WT1515-W1850-BL 1850 お問合せください 19.4 12.40 DXF
WT1515-W1900-BL 1900 お問合せください 19.9 12.73 DXF
WT1515-W1950-BL 1950 お問合せください 20.4 13.07 DXF
WT1515-W2000-BL 2000 お問合せください 21.0 13.40 DXF
WT1515-W2050-BL 2050 お問合せください 21.5 13.74 DXF
WT1515-W2100-BL 2100 お問合せください 22.0 14.07 DXF
WT1515-W2150-BL 2150 お問合せください 22.5 14.41 DXF
WT1515-W2200-BL 2200 お問合せください 23.1 14.74 DXF
WT1515-W2250-BL 2250 お問合せください 23.6 15.08 DXF
WT1515-W2300-BL 2300 お問合せください 24.1 15.41 DXF
Low Friction/Anti-Wear   LFW White 10.5 6.7 50(50) 50(30) -20~(60)80 Special engineering plastic Polyacetal Yellow
Model No. Chain width
X
mm
Number of links
per one unit of chain
Max. allowable load
kN
Chain
weight
kg/m
DXF data Standard Price / link Delivery
WT1515-W50-LFW 50 500 0.52 0.34 DXF
WT1515-W50-SP-LFW 50 500 0.52 0.34 DXF
WT1515-W100-LFW 100 500 1.05 0.67 DXF
WT1515-W100-SP-LFW 100 500 1.05 0.67 DXF
WT1515-W150-LFW 150 500 1.57 1.01 DXF
WT1515-W200-LFW 200 400 2.10 1.34 DXF
WT1515-W250-LFW 250 400 2.62 1.68 DXF
WT1515-W300-LFW 300 400 3.15 2.01 DXF
WT1515-W350-LFW 350 400 3.67 2.35 DXF
WT1515-W400-LFW 400 400 4.20 2.68 DXF
WT1515-W450-LFW 450 400 4.72 3.02 DXF
WT1515-W500-LFW 500 200 5.25 3.35 DXF
WT1515-W550-LFW 550 200 5.77 3.69 DXF
WT1515-W600-LFW 600 200 6.30 4.02 DXF
WT1515-W650-LFW 650 200 6.82 4.36 DXF
WT1515-W700-LFW 700 200 7.35 4.69 DXF
WT1515-W750-LFW 750 200 7.87 5.03 DXF
WT1515-W800-LFW 800 160 8.40 5.36 DXF
WT1515-W850-LFW 850 160 8.92 5.70 DXF
WT1515-W900-LFW 900 160 9.45 6.03 DXF
WT1515-W950-LFW 950 160 9.97 6.37 DXF
WT1515-W1000-LFW 1000 140 10.5 6.70 DXF
WT1515-W1050-LFW 1050 140 11.0 7.04 DXF
WT1515-W1100-LFW 1100 140 11.5 7.37 DXF
WT1515-W1150-LFW 1150 140 12.0 7.71 DXF
WT1515-W1200-LFW 1200 140 12.6 8.04 DXF
WT1515-W1250-LFW 1250 120 13.1 8.38 DXF
WT1515-W1300-LFW 1300 120 13.6 8.71 DXF
WT1515-W1350-LFW 1350 120 14.1 9.05 DXF
WT1515-W1400-LFW 1400 120 14.7 9.38 DXF
WT1515-W1450-LFW 1450 120 15.2 9.72 DXF
WT1515-W1500-LFW 1500 120 15.7 10.05 DXF
WT1515-W1550-LFW 1550 100 16.2 10.39 DXF
WT1515-W1600-LFW 1600 お問合せください 16.8 10.72 DXF
WT1515-W1650-LFW 1650 お問合せください 17.3 11.06 DXF
WT1515-W1700-LFW 1700 お問合せください 17.8 11.39 DXF
WT1515-W1750-LFW 1750 お問合せください 18.3 11.73 DXF
WT1515-W1800-LFW 1800 お問合せください 18.9 12.06 DXF
WT1515-W1850-LFW 1850 お問合せください 19.4 12.40 DXF
WT1515-W1900-LFW 1900 お問合せください 19.9 12.73 DXF
WT1515-W1950-LFW 1950 お問合せください 20.4 13.07 DXF
WT1515-W2000-LFW 2000 お問合せください 21.0 13.40 DXF
WT1515-W2050-LFW 2050 お問合せください 21.5 13.74 DXF
WT1515-W2100-LFW 2100 お問合せください 22.0 14.07 DXF
WT1515-W2150-LFW 2150 お問合せください 22.5 14.41 DXF
WT1515-W2200-LFW 2200 お問合せください 23.1 14.74 DXF
WT1515-W2250-LFW 2250 お問合せください 23.6 15.08 DXF
WT1515-W2300-LFW 2300 お問合せください 24.1 15.41 DXF
Low Friction/Anti-Wear   LFG Green 10.5 6.7 50(50) 50(30) -20~(60)80 Special engineering plastic Polyacetal Yellow Show allowable load graphs
Model No. Chain width
X
mm
Number of links
per one unit of chain
Max. allowable load
kN
Chain
weight
kg/m
DXF data Standard Price / link Delivery
WT1515-W50-LFG 50 500 0.52 0.34 DXF
WT1515-W50-SP-LFG 50 500 0.52 0.34 DXF
WT1515-W100-LFG 100 500 1.05 0.67 DXF
WT1515-W100-SP-LFG 100 500 1.05 0.67 DXF
WT1515-W150-LFG 150 500 1.57 1.01 DXF
WT1515-W200-LFG 200 400 2.10 1.34 DXF
WT1515-W250-LFG 250 400 2.62 1.68 DXF
WT1515-W300-LFG 300 400 3.15 2.01 DXF
WT1515-W350-LFG 350 400 3.67 2.35 DXF
WT1515-W400-LFG 400 400 4.20 2.68 DXF
WT1515-W450-LFG 450 400 4.72 3.02 DXF
WT1515-W500-LFG 500 200 5.25 3.35 DXF
WT1515-W550-LFG 550 200 5.77 3.69 DXF
WT1515-W600-LFG 600 200 6.30 4.02 DXF
WT1515-W650-LFG 650 200 6.82 4.36 DXF
WT1515-W700-LFG 700 200 7.35 4.69 DXF
WT1515-W750-LFG 750 200 7.87 5.03 DXF
WT1515-W800-LFG 800 160 8.40 5.36 DXF
WT1515-W850-LFG 850 160 8.92 5.70 DXF
WT1515-W900-LFG 900 160 9.45 6.03 DXF
WT1515-W950-LFG 950 160 9.97 6.37 DXF
WT1515-W1000-LFG 1000 140 10.5 6.70 DXF
WT1515-W1050-LFG 1050 140 11.0 7.04 DXF
WT1515-W1100-LFG 1100 140 11.5 7.37 DXF
WT1515-W1150-LFG 1150 140 12.0 7.71 DXF
WT1515-W1200-LFG 1200 140 12.6 8.04 DXF
WT1515-W1250-LFG 1250 120 13.1 8.38 DXF
WT1515-W1300-LFG 1300 120 13.6 8.71 DXF
WT1515-W1350-LFG 1350 120 14.1 9.05 DXF
WT1515-W1400-LFG 1400 120 14.7 9.38 DXF
WT1515-W1450-LFG 1450 120 15.2 9.72 DXF
WT1515-W1500-LFG 1500 120 15.7 10.05 DXF
WT1515-W1550-LFG 1550 100 16.2 10.39 DXF
WT1515-W1600-LFG 1600 お問合せください 16.8 10.72 DXF
WT1515-W1650-LFG 1650 お問合せください 17.3 11.06 DXF
WT1515-W1700-LFG 1700 お問合せください 17.8 11.39 DXF
WT1515-W1750-LFG 1750 お問合せください 18.3 11.73 DXF
WT1515-W1800-LFG 1800 お問合せください 18.9 12.06 DXF
WT1515-W1850-LFG 1850 お問合せください 19.4 12.40 DXF
WT1515-W1900-LFG 1900 お問合せください 19.9 12.73 DXF
WT1515-W1950-LFG 1950 お問合せください 20.4 13.07 DXF
WT1515-W2000-LFG 2000 お問合せください 21.0 13.40 DXF
WT1515-W2050-LFG 2050 お問合せください 21.5 13.74 DXF
WT1515-W2100-LFG 2100 お問合せください 22.0 14.07 DXF
WT1515-W2150-LFG 2150 お問合せください 22.5 14.41 DXF
WT1515-W2200-LFG 2200 お問合せください 23.1 14.74 DXF
WT1515-W2250-LFG 2250 お問合せください 23.6 15.08 DXF
WT1515-W2300-LFG 2300 お問合せください 24.1 15.41 DXF
Low Friction/Anti-Wear   LFB Brown 10.5 6.7 50(50) 50(30) -20~(60)80 Special engineering plastic Polyacetal Yellow
Model No. Chain width
X
mm
Number of links
per one unit of chain
Max. allowable load
kN
Chain
weight
kg/m
DXF data Standard Price / link Delivery
WT1515-W50-LFB 50 500 0.52 0.34 DXF
WT1515-W50-SP-LFB 50 500 0.52 0.34 DXF
WT1515-W100-LFB 100 500 1.05 0.67 DXF
WT1515-W100-SP-LFB 100 500 1.05 0.67 DXF
WT1515-W150-LFB 150 500 1.57 1.01 DXF
WT1515-W200-LFB 200 400 2.10 1.34 DXF
WT1515-W250-LFB 250 400 2.62 1.68 DXF
WT1515-W300-LFB 300 400 3.15 2.01 DXF
WT1515-W350-LFB 350 400 3.67 2.35 DXF
WT1515-W400-LFB 400 400 4.20 2.68 DXF
WT1515-W450-LFB 450 400 4.72 3.02 DXF
WT1515-W500-LFB 500 200 5.25 3.35 DXF
WT1515-W550-LFB 550 200 5.77 3.69 DXF
WT1515-W600-LFB 600 200 6.30 4.02 DXF
WT1515-W650-LFB 650 200 6.82 4.36 DXF
WT1515-W700-LFB 700 200 7.35 4.69 DXF
WT1515-W750-LFB 750 200 7.87 5.03 DXF
WT1515-W800-LFB 800 160 8.40 5.36 DXF
WT1515-W850-LFB 850 160 8.92 5.70 DXF
WT1515-W900-LFB 900 160 9.45 6.03 DXF
WT1515-W950-LFB 950 160 9.97 6.37 DXF
WT1515-W1000-LFB 1000 140 10.5 6.70 DXF
WT1515-W1050-LFB 1050 140 11.0 7.04 DXF
WT1515-W1100-LFB 1100 140 11.5 7.37 DXF
WT1515-W1150-LFB 1150 140 12.0 7.71 DXF
WT1515-W1200-LFB 1200 140 12.6 8.04 DXF
WT1515-W1250-LFB 1250 120 13.1 8.38 DXF
WT1515-W1300-LFB 1300 120 13.6 8.71 DXF
WT1515-W1350-LFB 1350 120 14.1 9.05 DXF
WT1515-W1400-LFB 1400 120 14.7 9.38 DXF
WT1515-W1450-LFB 1450 120 15.2 9.72 DXF
WT1515-W1500-LFB 1500 120 15.7 10.05 DXF
WT1515-W1550-LFB 1550 100 16.2 10.39 DXF
WT1515-W1600-LFB 1600 お問合せください 16.8 10.72 DXF
WT1515-W1650-LFB 1650 お問合せください 17.3 11.06 DXF
WT1515-W1700-LFB 1700 お問合せください 17.8 11.39 DXF
WT1515-W1750-LFB 1750 お問合せください 18.3 11.73 DXF
WT1515-W1800-LFB 1800 お問合せください 18.9 12.06 DXF
WT1515-W1850-LFB 1850 お問合せください 19.4 12.40 DXF
WT1515-W1900-LFB 1900 お問合せください 19.9 12.73 DXF
WT1515-W1950-LFB 1950 お問合せください 20.4 13.07 DXF
WT1515-W2000-LFB 2000 お問合せください 21.0 13.40 DXF
WT1515-W2050-LFB 2050 お問合せください 21.5 13.74 DXF
WT1515-W2100-LFB 2100 お問合せください 22.0 14.07 DXF
WT1515-W2150-LFB 2150 お問合せください 22.5 14.41 DXF
WT1515-W2200-LFB 2200 お問合せください 23.1 14.74 DXF
WT1515-W2250-LFB 2250 お問合せください 23.6 15.08 DXF
WT1515-W2300-LFB 2300 お問合せください 24.1 15.41 DXF
Advanced Low Friction/Wear Resistant   ALF Light blue 10.5 6.7 50(50) 50(30) -20~(60)80 Special engineering plastic Polyacetal Yellow Show allowable load graphs
Model No. Chain width
X
mm
Number of links
per one unit of chain
Max. allowable load
kN
Chain
weight
kg/m
DXF data Standard Price / link Delivery
WT1515-W50-ALF 50 500 0.52 0.34 DXF
WT1515-W50-SP-ALF 50 500 0.52 0.34 DXF
WT1515-W100-ALF 100 500 1.05 0.67 DXF
WT1515-W100-SP-ALF 100 500 1.05 0.67 DXF
WT1515-W150-ALF 150 500 1.57 1.01 DXF
WT1515-W200-ALF 200 400 2.10 1.34 DXF
WT1515-W250-ALF 250 400 2.62 1.68 DXF
WT1515-W300-ALF 300 400 3.15 2.01 DXF
WT1515-W350-ALF 350 400 3.67 2.35 DXF
WT1515-W400-ALF 400 400 4.20 2.68 DXF
WT1515-W450-ALF 450 400 4.72 3.02 DXF
WT1515-W500-ALF 500 200 5.25 3.35 DXF
WT1515-W550-ALF 550 200 5.77 3.69 DXF
WT1515-W600-ALF 600 200 6.30 4.02 DXF
WT1515-W650-ALF 650 200 6.82 4.36 DXF
WT1515-W700-ALF 700 200 7.35 4.69 DXF
WT1515-W750-ALF 750 200 7.87 5.03 DXF
WT1515-W800-ALF 800 160 8.40 5.36 DXF
WT1515-W850-ALF 850 160 8.92 5.70 DXF
WT1515-W900-ALF 900 160 9.45 6.03 DXF
WT1515-W950-ALF 950 160 9.97 6.37 DXF
WT1515-W1000-ALF 1000 140 10.5 6.70 DXF
WT1515-W1050-ALF 1050 140 11.0 7.04 DXF
WT1515-W1100-ALF 1100 140 11.5 7.37 DXF
WT1515-W1150-ALF 1150 140 12.0 7.71 DXF
WT1515-W1200-ALF 1200 140 12.6 8.04 DXF
WT1515-W1250-ALF 1250 120 13.1 8.38 DXF
WT1515-W1300-ALF 1300 120 13.6 8.71 DXF
WT1515-W1350-ALF 1350 120 14.1 9.05 DXF
WT1515-W1400-ALF 1400 120 14.7 9.38 DXF
WT1515-W1450-ALF 1450 120 15.2 9.72 DXF
WT1515-W1500-ALF 1500 120 15.7 10.05 DXF
WT1515-W1550-ALF 1550 100 16.2 10.39 DXF
WT1515-W1600-ALF 1600 お問合せください 16.8 10.72 DXF
WT1515-W1650-ALF 1650 お問合せください 17.3 11.06 DXF
WT1515-W1700-ALF 1700 お問合せください 17.8 11.39 DXF
WT1515-W1750-ALF 1750 お問合せください 18.3 11.73 DXF
WT1515-W1800-ALF 1800 お問合せください 18.9 12.06 DXF
WT1515-W1850-ALF 1850 お問合せください 19.4 12.40 DXF
WT1515-W1900-ALF 1900 お問合せください 19.9 12.73 DXF
WT1515-W1950-ALF 1950 お問合せください 20.4 13.07 DXF
WT1515-W2000-ALF 2000 お問合せください 21.0 13.40 DXF
WT1515-W2050-ALF 2050 お問合せください 21.5 13.74 DXF
WT1515-W2100-ALF 2100 お問合せください 22.0 14.07 DXF
WT1515-W2150-ALF 2150 お問合せください 22.5 14.41 DXF
WT1515-W2200-ALF 2200 お問合せください 23.1 14.74 DXF
WT1515-W2250-ALF 2250 お問合せください 23.6 15.08 DXF
WT1515-W2300-ALF 2300 お問合せください 24.1 15.41 DXF
Low Friction   NLF Dark gray 10.5 6.7 50(50) 50(30) -20~(60)80 Special engineering plastic Polyacetal Yellow
Model No. Chain width
X
mm
Number of links
per one unit of chain
Max. allowable load
kN
Chain
weight
kg/m
DXF data Standard Price / link Delivery
WT1515-W50-NLF 50 500 0.52 0.34 DXF
WT1515-W50-SP-NLF 50 500 0.52 0.34 DXF
WT1515-W100-NLF 100 500 1.05 0.67 DXF
WT1515-W100-SP-NLF 100 500 1.05 0.67 DXF
WT1515-W150-NLF 150 500 1.57 1.01 DXF
WT1515-W200-NLF 200 400 2.10 1.34 DXF
WT1515-W250-NLF 250 400 2.62 1.68 DXF
WT1515-W300-NLF 300 400 3.15 2.01 DXF
WT1515-W350-NLF 350 400 3.67 2.35 DXF
WT1515-W400-NLF 400 400 4.20 2.68 DXF
WT1515-W450-NLF 450 400 4.72 3.02 DXF
WT1515-W500-NLF 500 200 5.25 3.35 DXF
WT1515-W550-NLF 550 200 5.77 3.69 DXF
WT1515-W600-NLF 600 200 6.30 4.02 DXF
WT1515-W650-NLF 650 200 6.82 4.36 DXF
WT1515-W700-NLF 700 200 7.35 4.69 DXF
WT1515-W750-NLF 750 200 7.87 5.03 DXF
WT1515-W800-NLF 800 160 8.40 5.36 DXF
WT1515-W850-NLF 850 160 8.92 5.70 DXF
WT1515-W900-NLF 900 160 9.45 6.03 DXF
WT1515-W950-NLF 950 160 9.97 6.37 DXF
WT1515-W1000-NLF 1000 140 10.5 6.70 DXF
WT1515-W1050-NLF 1050 140 11.0 7.04 DXF
WT1515-W1100-NLF 1100 140 11.5 7.37 DXF
WT1515-W1150-NLF 1150 140 12.0 7.71 DXF
WT1515-W1200-NLF 1200 140 12.6 8.04 DXF
WT1515-W1250-NLF 1250 120 13.1 8.38 DXF
WT1515-W1300-NLF 1300 120 13.6 8.71 DXF
WT1515-W1350-NLF 1350 120 14.1 9.05 DXF
WT1515-W1400-NLF 1400 120 14.7 9.38 DXF
WT1515-W1450-NLF 1450 120 15.2 9.72 DXF
WT1515-W1500-NLF 1500 120 15.7 10.05 DXF
WT1515-W1550-NLF 1550 100 16.2 10.39 DXF
WT1515-W1600-NLF 1600 お問合せください 16.8 10.72 DXF
WT1515-W1650-NLF 1650 お問合せください 17.3 11.06 DXF
WT1515-W1700-NLF 1700 お問合せください 17.8 11.39 DXF
WT1515-W1750-NLF 1750 お問合せください 18.3 11.73 DXF
WT1515-W1800-NLF 1800 お問合せください 18.9 12.06 DXF
WT1515-W1850-NLF 1850 お問合せください 19.4 12.40 DXF
WT1515-W1900-NLF 1900 お問合せください 19.9 12.73 DXF
WT1515-W1950-NLF 1950 お問合せください 20.4 13.07 DXF
WT1515-W2000-NLF 2000 お問合せください 21.0 13.40 DXF
WT1515-W2050-NLF 2050 お問合せください 21.5 13.74 DXF
WT1515-W2100-NLF 2100 お問合せください 22.0 14.07 DXF
WT1515-W2150-NLF 2150 お問合せください 22.5 14.41 DXF
WT1515-W2200-NLF 2200 お問合せください 23.1 14.74 DXF
WT1515-W2250-NLF 2250 お問合せください 23.6 15.08 DXF
WT1515-W2300-NLF 2300 お問合せください 24.1 15.41 DXF
Low Friction   WR Dark green 10.5 6.7 50(50) 50(30) -20~(60)80 Special engineering plastic Polyacetal Yellow
Model No. Chain width
X
mm
Number of links
per one unit of chain
Max. allowable load
kN
Chain
weight
kg/m
DXF data Standard Price / link Delivery
WT1515-W50-WR 50 500 0.52 0.34 DXF
WT1515-W50-SP-WR 50 500 0.52 0.34 DXF
WT1515-W100-WR 100 500 1.05 0.67 DXF
WT1515-W100-SP-WR 100 500 1.05 0.67 DXF
WT1515-W150-WR 150 500 1.57 1.01 DXF
WT1515-W200-WR 200 400 2.10 1.34 DXF
WT1515-W250-WR 250 400 2.62 1.68 DXF
WT1515-W300-WR 300 400 3.15 2.01 DXF
WT1515-W350-WR 350 400 3.67 2.35 DXF
WT1515-W400-WR 400 400 4.20 2.68 DXF
WT1515-W450-WR 450 400 4.72 3.02 DXF
WT1515-W500-WR 500 200 5.25 3.35 DXF
WT1515-W550-WR 550 200 5.77 3.69 DXF
WT1515-W600-WR 600 200 6.30 4.02 DXF
WT1515-W650-WR 650 200 6.82 4.36 DXF
WT1515-W700-WR 700 200 7.35 4.69 DXF
WT1515-W750-WR 750 200 7.87 5.03 DXF
WT1515-W800-WR 800 160 8.40 5.36 DXF
WT1515-W850-WR 850 160 8.92 5.70 DXF
WT1515-W900-WR 900 160 9.45 6.03 DXF
WT1515-W950-WR 950 160 9.97 6.37 DXF
WT1515-W1000-WR 1000 140 10.5 6.70 DXF
WT1515-W1050-WR 1050 140 11.0 7.04 DXF
WT1515-W1100-WR 1100 140 11.5 7.37 DXF
WT1515-W1150-WR 1150 140 12.0 7.71 DXF
WT1515-W1200-WR 1200 140 12.6 8.04 DXF
WT1515-W1250-WR 1250 120 13.1 8.38 DXF
WT1515-W1300-WR 1300 120 13.6 8.71 DXF
WT1515-W1350-WR 1350 120 14.1 9.05 DXF
WT1515-W1400-WR 1400 120 14.7 9.38 DXF
WT1515-W1450-WR 1450 120 15.2 9.72 DXF
WT1515-W1500-WR 1500 120 15.7 10.05 DXF
WT1515-W1550-WR 1550 100 16.2 10.39 DXF
WT1515-W1600-WR 1600 お問合せください 16.8 10.72 DXF
WT1515-W1650-WR 1650 お問合せください 17.3 11.06 DXF
WT1515-W1700-WR 1700 お問合せください 17.8 11.39 DXF
WT1515-W1750-WR 1750 お問合せください 18.3 11.73 DXF
WT1515-W1800-WR 1800 お問合せください 18.9 12.06 DXF
WT1515-W1850-WR 1850 お問合せください 19.4 12.40 DXF
WT1515-W1900-WR 1900 お問合せください 19.9 12.73 DXF
WT1515-W1950-WR 1950 お問合せください 20.4 13.07 DXF
WT1515-W2000-WR 2000 お問合せください 21.0 13.40 DXF
WT1515-W2050-WR 2050 お問合せください 21.5 13.74 DXF
WT1515-W2100-WR 2100 お問合せください 22.0 14.07 DXF
WT1515-W2150-WR 2150 お問合せください 22.5 14.41 DXF
WT1515-W2200-WR 2200 お問合せください 23.1 14.74 DXF
WT1515-W2250-WR 2250 お問合せください 23.6 15.08 DXF
WT1515-W2300-WR 2300 お問合せください 24.1 15.41 DXF

Performance Series

Package
(Click the series for more information. )
Package symbol Color Availability Max. allowable
tension
kN/m
Chain
mass
kg/m2
Allowable speed
m/min
Operating Temperature Range
゚C
Pin material Material of the plug Color of the plug Allowable load graphs
With lube No lube
Low Friction/Anti-Wear   HG Navy blue 10.5 6.7 50 50 -20~(60)80 Special engineering plastic Polyacetal Yellow
Model No. Chain width
X
mm
Number of links
per one unit of chain
Max. allowable load
kN
Chain
weight
kg/m
DXF data Standard Price / link Delivery
WT1515-W50-HG 50 500 0.52 0.34 DXF
WT1515-W50-SP-HG 50 500 0.52 0.34 DXF
WT1515-W100-HG 100 500 1.05 0.67 DXF
WT1515-W100-SP-HG 100 500 1.05 0.67 DXF
WT1515-W150-HG 150 500 1.57 1.01 DXF
WT1515-W200-HG 200 400 2.10 1.34 DXF
WT1515-W250-HG 250 400 2.62 1.68 DXF
WT1515-W300-HG 300 400 3.15 2.01 DXF
WT1515-W350-HG 350 400 3.67 2.35 DXF
WT1515-W400-HG 400 400 4.20 2.68 DXF
WT1515-W450-HG 450 400 4.72 3.02 DXF
WT1515-W500-HG 500 200 5.25 3.35 DXF
WT1515-W550-HG 550 200 5.77 3.69 DXF
WT1515-W600-HG 600 200 6.30 4.02 DXF
WT1515-W650-HG 650 200 6.82 4.36 DXF
WT1515-W700-HG 700 200 7.35 4.69 DXF
WT1515-W750-HG 750 200 7.87 5.03 DXF
WT1515-W800-HG 800 160 8.40 5.36 DXF
WT1515-W850-HG 850 160 8.92 5.70 DXF
WT1515-W900-HG 900 160 9.45 6.03 DXF
WT1515-W950-HG 950 160 9.97 6.37 DXF
WT1515-W1000-HG 1000 140 10.5 6.70 DXF
WT1515-W1050-HG 1050 140 11.0 7.04 DXF
WT1515-W1100-HG 1100 140 11.5 7.37 DXF
WT1515-W1150-HG 1150 140 12.0 7.71 DXF
WT1515-W1200-HG 1200 140 12.6 8.04 DXF
WT1515-W1250-HG 1250 120 13.1 8.38 DXF
WT1515-W1300-HG 1300 120 13.6 8.71 DXF
WT1515-W1350-HG 1350 120 14.1 9.05 DXF
WT1515-W1400-HG 1400 120 14.7 9.38 DXF
WT1515-W1450-HG 1450 120 15.2 9.72 DXF
WT1515-W1500-HG 1500 120 15.7 10.05 DXF
WT1515-W1550-HG 1550 100 16.2 10.39 DXF
WT1515-W1600-HG 1600 お問合せください 16.8 10.72 DXF
WT1515-W1650-HG 1650 お問合せください 17.3 11.06 DXF
WT1515-W1700-HG 1700 お問合せください 17.8 11.39 DXF
WT1515-W1750-HG 1750 お問合せください 18.3 11.73 DXF
WT1515-W1800-HG 1800 お問合せください 18.9 12.06 DXF
WT1515-W1850-HG 1850 お問合せください 19.4 12.40 DXF
WT1515-W1900-HG 1900 お問合せください 19.9 12.73 DXF
WT1515-W1950-HG 1950 お問合せください 20.4 13.07 DXF
WT1515-W2000-HG 2000 お問合せください 21.0 13.40 DXF
WT1515-W2050-HG 2050 お問合せください 21.5 13.74 DXF
WT1515-W2100-HG 2100 お問合せください 22.0 14.07 DXF
WT1515-W2150-HG 2150 お問合せください 22.5 14.41 DXF
WT1515-W2200-HG 2200 お問合せください 23.1 14.74 DXF
WT1515-W2250-HG 2250 お問合せください 23.6 15.08 DXF
WT1515-W2300-HG 2300 お問合せください 24.1 15.41 DXF

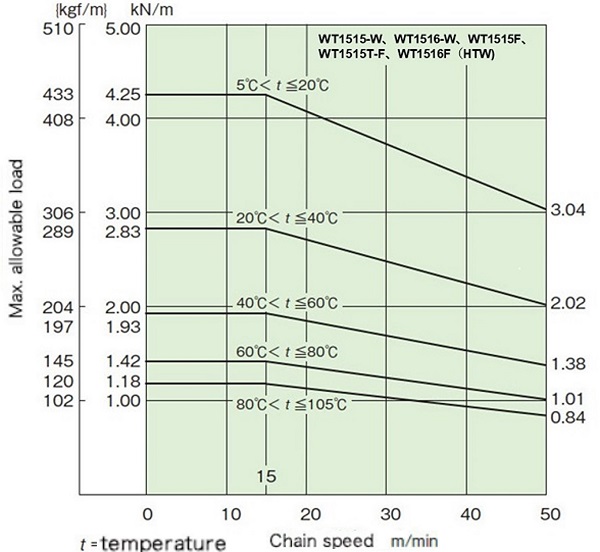

High Temperature   HTW White 4.25 4.5 50 30 5~105 Polypropylene Polypropylene Blue
Model No. Chain width
X
mm
Number of links
per one unit of chain
Max. allowable load
kN
Chain
weight
kg/m
DXF data Standard Price / link Delivery
WT1515-W50-HTW 50 500 0.21 0.23 DXF
WT1515-W50-SP-HTW 50 500 0.21 0.23 DXF
WT1515-W100-HTW 100 500 0.42 0.45 DXF
WT1515-W100-SP-HTW 100 500 0.42 0.45 DXF
WT1515-W150-HTW 150 500 0.63 0.68 DXF
WT1515-W200-HTW 200 400 0.85 0.90 DXF
WT1515-W250-HTW 250 400 1.06 1.13 DXF
WT1515-W300-HTW 300 400 1.27 1.35 DXF
WT1515-W350-HTW 350 400 1.48 1.58 DXF
WT1515-W400-HTW 400 400 1.70 1.80 DXF
WT1515-W450-HTW 450 400 1.91 2.03 DXF
WT1515-W500-HTW 500 200 2.12 2.25 DXF
WT1515-W550-HTW 550 200 2.33 2.48 DXF
WT1515-W600-HTW 600 200 2.55 2.70 DXF
WT1515-W650-HTW 650 200 2.76 2.93 DXF
WT1515-W700-HTW 700 200 2.97 3.15 DXF
WT1515-W750-HTW 750 200 3.18 3.38 DXF
WT1515-W800-HTW 800 160 3.40 3.60 DXF
WT1515-W850-HTW 850 160 3.61 3.83 DXF
WT1515-W900-HTW 900 160 3.82 4.05 DXF
WT1515-W950-HTW 950 160 4.03 4.28 DXF
WT1515-W1000-HTW 1000 140 4.25 4.50 DXF
WT1515-W1050-HTW 1050 140 4.46 4.73 DXF
WT1515-W1100-HTW 1100 140 4.67 4.95 DXF
WT1515-W1150-HTW 1150 140 4.88 5.18 DXF
WT1515-W1200-HTW 1200 140 5.10 5.40 DXF
WT1515-W1250-HTW 1250 120 5.31 5.63 DXF
WT1515-W1300-HTW 1300 120 5.52 5.85 DXF
WT1515-W1350-HTW 1350 120 5.73 6.08 DXF
WT1515-W1400-HTW 1400 120 5.95 6.30 DXF
WT1515-W1450-HTW 1450 120 6.16 6.53 DXF
WT1515-W1500-HTW 1500 120 6.37 6.75 DXF
WT1515-W1550-HTW 1550 100 6.58 6.98 DXF
WT1515-W1600-HTW 1600 お問合せください 6.80 7.20 DXF
WT1515-W1650-HTW 1650 お問合せください 7.01 7.43 DXF
WT1515-W1700-HTW 1700 お問合せください 7.22 7.65 DXF
WT1515-W1750-HTW 1750 お問合せください 7.43 7.88 DXF
WT1515-W1800-HTW 1800 お問合せください 7.65 8.10 DXF
WT1515-W1850-HTW 1850 お問合せください 7.86 8.33 DXF
WT1515-W1900-HTW 1900 お問合せください 8.07 8.55 DXF
WT1515-W1950-HTW 1950 お問合せください 8.28 8.78 DXF
WT1515-W2000-HTW 2000 お問合せください 8.50 9.00 DXF
WT1515-W2050-HTW 2050 お問合せください 8.71 9.23 DXF
WT1515-W2100-HTW 2100 お問合せください 8.92 9.45 DXF
WT1515-W2150-HTW 2150 お問合せください 9.13 9.68 DXF
WT1515-W2200-HTW 2200 お問合せください 9.35 9.90 DXF
WT1515-W2250-HTW 2250 お問合せください 9.56 10.13 DXF
WT1515-W2300-HTW 2300 お問合せください 9.77 10.35 DXF
Electroconductive   E Black 8.0 6.7 50(50) 50(30) -20~(60)80 Special engineering plastic Polyacetal Yellow
Model No. Chain width
X
mm
Number of links
per one unit of chain
Max. allowable load
kN
Chain
weight
kg/m
DXF data Standard Price / link Delivery
WT1515-W50-E 50 500 0.40 0.34 DXF
WT1515-W50-SP-E 50 500 0.40 0.34 DXF
WT1515-W100-E 100 500 0.80 0.67 DXF
WT1515-W100-SP-E 100 500 0.80 0.67 DXF
WT1515-W150-E 150 500 1.20 1.01 DXF
WT1515-W200-E 200 400 1.60 1.34 DXF
WT1515-W250-E 250 400 2.00 1.68 DXF
WT1515-W300-E 300 400 2.40 2.01 DXF
WT1515-W350-E 350 400 2.80 2.35 DXF
WT1515-W400-E 400 400 3.20 2.68 DXF
WT1515-W450-E 450 400 3.60 3.02 DXF
WT1515-W500-E 500 200 4.00 3.35 DXF
WT1515-W550-E 550 200 4.40 3.69 DXF
WT1515-W600-E 600 200 4.80 4.02 DXF
WT1515-W650-E 650 200 5.20 4.36 DXF
WT1515-W700-E 700 200 5.60 4.69 DXF
WT1515-W750-E 750 200 6.00 5.03 DXF
WT1515-W800-E 800 160 6.40 5.36 DXF
WT1515-W850-E 850 160 6.80 5.70 DXF
WT1515-W900-E 900 160 7.20 6.03 DXF
WT1515-W950-E 950 160 7.60 6.37 DXF
WT1515-W1000-E 1000 140 8.00 6.70 DXF
WT1515-W1050-E 1050 140 8.40 7.04 DXF
WT1515-W1100-E 1100 140 8.80 7.37 DXF
WT1515-W1150-E 1150 140 9.20 7.71 DXF
WT1515-W1200-E 1200 140 9.60 8.04 DXF
WT1515-W1250-E 1250 120 10.0 8.38 DXF
WT1515-W1300-E 1300 120 10.4 8.71 DXF
WT1515-W1350-E 1350 120 10.8 9.05 DXF
WT1515-W1400-E 1400 120 11.2 9.38 DXF
WT1515-W1450-E 1450 120 11.6 9.72 DXF
WT1515-W1500-E 1500 120 12.0 10.05 DXF
WT1515-W1550-E 1550 100 12.4 10.39 DXF
WT1515-W1600-E 1600 お問合せください 12.8 10.72 DXF
WT1515-W1650-E 1650 お問合せください 13.2 11.06 DXF
WT1515-W1700-E 1700 お問合せください 13.6 11.39 DXF
WT1515-W1750-E 1750 お問合せください 14.0 11.73 DXF
WT1515-W1800-E 1800 お問合せください 14.4 12.06 DXF
WT1515-W1850-E 1850 お問合せください 14.8 12.40 DXF
WT1515-W1900-E 1900 お問合せください 15.2 12.73 DXF
WT1515-W1950-E 1950 お問合せください 15.6 13.07 DXF
WT1515-W2000-E 2000 お問合せください 16.0 13.40 DXF
WT1515-W2050-E 2050 お問合せください 16.4 13.74 DXF
WT1515-W2100-E 2100 お問合せください 16.8 14.07 DXF
WT1515-W2150-E 2150 お問合せください 17.2 14.41 DXF
WT1515-W2200-E 2200 お問合せください 17.6 14.74 DXF
WT1515-W2250-E 2250 お問合せください 18.0 15.08 DXF
WT1515-W2300-E 2300 お問合せください 18.4 15.41 DXF
Antibacterial/Mold Resistant   MWS Cream 10.5 6.7 50(50) 50(30) -20~(60)80 Special engineering plastic Polyacetal Yellow
Model No. Chain width
X
mm
Number of links
per one unit of chain
Max. allowable load
kN
Chain
weight
kg/m
DXF data Standard Price / link Delivery
WT1515-W50-MWS 50 500 0.52 0.34 DXF
WT1515-W50-SP-MWS 50 500 0.52 0.34 DXF
WT1515-W100-MWS 100 500 1.05 0.67 DXF
WT1515-W100-SP-MWS 100 500 1.05 0.67 DXF
WT1515-W150-MWS 150 500 1.57 1.01 DXF
WT1515-W200-MWS 200 400 2.10 1.34 DXF
WT1515-W250-MWS 250 400 2.62 1.68 DXF
WT1515-W300-MWS 300 400 3.15 2.01 DXF
WT1515-W350-MWS 350 400 3.67 2.35 DXF
WT1515-W400-MWS 400 400 4.20 2.68 DXF
WT1515-W450-MWS 450 400 4.72 3.02 DXF
WT1515-W500-MWS 500 200 5.25 3.35 DXF
WT1515-W550-MWS 550 200 5.77 3.69 DXF
WT1515-W600-MWS 600 200 6.30 4.02 DXF
WT1515-W650-MWS 650 200 6.82 4.36 DXF
WT1515-W700-MWS 700 200 7.35 4.69 DXF
WT1515-W750-MWS 750 200 7.87 5.03 DXF
WT1515-W800-MWS 800 160 8.40 5.36 DXF
WT1515-W850-MWS 850 160 8.92 5.70 DXF
WT1515-W900-MWS 900 160 9.45 6.03 DXF
WT1515-W950-MWS 950 160 9.97 6.37 DXF
WT1515-W1000-MWS 1000 140 10.5 6.70 DXF
WT1515-W1050-MWS 1050 140 11.0 7.04 DXF
WT1515-W1100-MWS 1100 140 11.5 7.37 DXF
WT1515-W1150-MWS 1150 140 12.0 7.71 DXF
WT1515-W1200-MWS 1200 140 12.6 8.04 DXF
WT1515-W1250-MWS 1250 120 13.1 8.38 DXF
WT1515-W1300-MWS 1300 120 13.6 8.71 DXF
WT1515-W1350-MWS 1350 120 14.1 9.05 DXF
WT1515-W1400-MWS 1400 120 14.7 9.38 DXF
WT1515-W1450-MWS 1450 120 15.2 9.72 DXF
WT1515-W1500-MWS 1500 120 15.7 10.05 DXF
WT1515-W1550-MWS 1550 100 16.2 10.39 DXF
WT1515-W1600-MWS 1600 お問合せください 16.8 10.72 DXF
WT1515-W1650-MWS 1650 お問合せください 17.3 11.06 DXF
WT1515-W1700-MWS 1700 お問合せください 17.8 11.39 DXF
WT1515-W1750-MWS 1750 お問合せください 18.3 11.73 DXF
WT1515-W1800-MWS 1800 お問合せください 18.9 12.06 DXF
WT1515-W1850-MWS 1850 お問合せください 19.4 12.40 DXF
WT1515-W1900-MWS 1900 お問合せください 19.9 12.73 DXF
WT1515-W1950-MWS 1950 お問合せください 20.4 13.07 DXF
WT1515-W2000-MWS 2000 お問合せください 21.0 13.40 DXF
WT1515-W2050-MWS 2050 お問合せください 21.5 13.74 DXF
WT1515-W2100-MWS 2100 お問合せください 22.0 14.07 DXF
WT1515-W2150-MWS 2150 お問合せください 22.5 14.41 DXF
WT1515-W2200-MWS 2200 お問合せください 23.1 14.74 DXF
WT1515-W2250-MWS 2250 お問合せください 23.6 15.08 DXF
WT1515-W2300-MWS 2300 お問合せください 24.1 15.41 DXF
Middle Friction series
(for dry condition)
MF Yellow 7.8 6.7 50(30) -20~80 Special engineering plastic Polyacetal Yellow
Model No. Chain width
X
mm
Number of links
per one unit of chain
Max. allowable load
kN
Chain
weight
kg/m
DXF data Standard Price / link Delivery
WT1515-W50-MF 50 500 0.39 0.34 DXF
WT1515-W50-SP-MF 50 500 0.39 0.34 DXF
WT1515-W100-MF 100 500 0.78 0.67 DXF
WT1515-W100-SP-MF 100 500 0.78 0.67 DXF
WT1515-W150-MF 150 500 1.17 1.01 DXF
WT1515-W200-MF 200 400 1.56 1.34 DXF
WT1515-W250-MF 250 400 1.95 1.68 DXF
WT1515-W300-MF 300 400 2.34 2.01 DXF
WT1515-W350-MF 350 400 2.73 2.35 DXF
WT1515-W400-MF 400 400 3.12 2.68 DXF
WT1515-W450-MF 450 400 3.51 3.02 DXF
WT1515-W500-MF 500 200 3.90 3.35 DXF
WT1515-W550-MF 550 200 4.29 3.69 DXF
WT1515-W600-MF 600 200 4.68 4.02 DXF
WT1515-W650-MF 650 200 5.07 4.36 DXF
WT1515-W700-MF 700 200 5.46 4.69 DXF
WT1515-W750-MF 750 200 5.85 5.03 DXF
WT1515-W800-MF 800 160 6.24 5.36 DXF
WT1515-W850-MF 850 160 6.63 5.70 DXF
WT1515-W900-MF 900 160 7.02 6.03 DXF
WT1515-W950-MF 950 160 7.41 6.37 DXF
WT1515-W1000-MF 1000 140 7.80 6.70 DXF
WT1515-W1050-MF 1050 140 8.19 7.04 DXF
WT1515-W1100-MF 1100 140 8.58 7.37 DXF
WT1515-W1150-MF 1150 140 8.97 7.71 DXF
WT1515-W1200-MF 1200 140 9.36 8.04 DXF
WT1515-W1250-MF 1250 120 9.75 8.38 DXF
WT1515-W1300-MF 1300 120 10.1 8.71 DXF
WT1515-W1350-MF 1350 120 10.5 9.05 DXF
WT1515-W1400-MF 1400 120 10.9 9.38 DXF
WT1515-W1450-MF 1450 120 11.3 9.72 DXF
WT1515-W1500-MF 1500 120 11.7 10.05 DXF
WT1515-W1550-MF 1550 100 12.0 10.39 DXF
WT1515-W1600-MF 1600 お問合せください 12.4 10.72 DXF
WT1515-W1650-MF 1650 お問合せください 12.8 11.06 DXF
WT1515-W1700-MF 1700 お問合せください 13.2 11.39 DXF
WT1515-W1750-MF 1750 お問合せください 13.6 11.73 DXF
WT1515-W1800-MF 1800 お問合せください 14.0 12.06 DXF
WT1515-W1850-MF 1850 お問合せください 14.4 12.40 DXF
WT1515-W1900-MF 1900 お問合せください 14.8 12.73 DXF
WT1515-W1950-MF 1950 お問合せください 15.2 13.07 DXF
WT1515-W2000-MF 2000 お問合せください 15.6 13.40 DXF
WT1515-W2050-MF 2050 お問合せください 15.9 13.74 DXF
WT1515-W2100-MF 2100 お問合せください 16.3 14.07 DXF
WT1515-W2150-MF 2150 お問合せください 16.7 14.41 DXF
WT1515-W2200-MF 2200 お問合せください 17.1 14.74 DXF
WT1515-W2250-MF 2250 お問合せください 17.5 15.08 DXF
WT1515-W2300-MF 2300 お問合せください 17.9 15.41 DXF
Ultraviolet Resistant   UVR Light silver 10.5 6.7 50(50) 50(30) -20~(60)80 Special engineering plastic Polyacetal Yellow
Model No. Chain width
X
mm
Number of links
per one unit of chain
Max. allowable load
kN
Chain
weight
kg/m
DXF data Standard Price / link Delivery
WT1515-W50-UVR 50 500 0.52 0.34 DXF
WT1515-W50-SP-UVR 50 500 0.52 0.34 DXF
WT1515-W100-UVR 100 500 1.05 0.67 DXF
WT1515-W100-SP-UVR 100 500 1.05 0.67 DXF
WT1515-W150-UVR 150 500 1.57 1.01 DXF
WT1515-W200-UVR 200 400 2.10 1.34 DXF
WT1515-W250-UVR 250 400 2.62 1.68 DXF
WT1515-W300-UVR 300 400 3.15 2.01 DXF
WT1515-W350-UVR 350 400 3.67 2.35 DXF
WT1515-W400-UVR 400 400 4.20 2.68 DXF
WT1515-W450-UVR 450 400 4.72 3.02 DXF
WT1515-W500-UVR 500 200 5.25 3.35 DXF
WT1515-W550-UVR 550 200 5.77 3.69 DXF
WT1515-W600-UVR 600 200 6.30 4.02 DXF
WT1515-W650-UVR 650 200 6.82 4.36 DXF
WT1515-W700-UVR 700 200 7.35 4.69 DXF
WT1515-W750-UVR 750 200 7.87 5.03 DXF
WT1515-W800-UVR 800 160 8.40 5.36 DXF
WT1515-W850-UVR 850 160 8.92 5.70 DXF
WT1515-W900-UVR 900 160 9.45 6.03 DXF
WT1515-W950-UVR 950 160 9.97 6.37 DXF
WT1515-W1000-UVR 1000 140 10.5 6.70 DXF
WT1515-W1050-UVR 1050 140 11.0 7.04 DXF
WT1515-W1100-UVR 1100 140 11.5 7.37 DXF
WT1515-W1150-UVR 1150 140 12.0 7.71 DXF
WT1515-W1200-UVR 1200 140 12.6 8.04 DXF
WT1515-W1250-UVR 1250 120 13.1 8.38 DXF
WT1515-W1300-UVR 1300 120 13.6 8.71 DXF
WT1515-W1350-UVR 1350 120 14.1 9.05 DXF
WT1515-W1400-UVR 1400 120 14.7 9.38 DXF
WT1515-W1450-UVR 1450 120 15.2 9.72 DXF
WT1515-W1500-UVR 1500 120 15.7 10.05 DXF
WT1515-W1550-UVR 1550 100 16.2 10.39 DXF
WT1515-W1600-UVR 1600 お問合せください 16.8 10.72 DXF
WT1515-W1650-UVR 1650 お問合せください 17.3 11.06 DXF
WT1515-W1700-UVR 1700 お問合せください 17.8 11.39 DXF
WT1515-W1750-UVR 1750 お問合せください 18.3 11.73 DXF
WT1515-W1800-UVR 1800 お問合せください 18.9 12.06 DXF
WT1515-W1850-UVR 1850 お問合せください 19.4 12.40 DXF
WT1515-W1900-UVR 1900 お問合せください 19.9 12.73 DXF
WT1515-W1950-UVR 1950 お問合せください 20.4 13.07 DXF
WT1515-W2000-UVR 2000 お問合せください 21.0 13.40 DXF
WT1515-W2050-UVR 2050 お問合せください 21.5 13.74 DXF
WT1515-W2100-UVR 2100 お問合せください 22.0 14.07 DXF
WT1515-W2150-UVR 2150 お問合せください 22.5 14.41 DXF
WT1515-W2200-UVR 2200 お問合せください 23.1 14.74 DXF
WT1515-W2250-UVR 2250 お問合せください 23.6 15.08 DXF
WT1515-W2300-UVR 2300 お問合せください 24.1 15.41 DXF

Notes
 1."○": Made-to-order product. "△" : Made-to-order product(RFQ).
  Not available for materials that are not listed in Chain Material Table above.

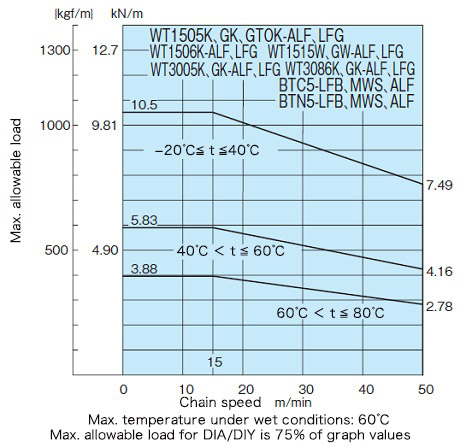

 2.The maximum allowable load indicates the value specified for a normal temperature (20℃) when load is evenly applied to the entire surface of the chain in a widthwide. The value depends on using conditions ( temperature, speed, etc). Refer to the load diagram of the chain. The upper graph indicates the value when the width is 1 meter. Calculate "planned width X maximum allowable load indicated" for the actual value.
 3.Operating temperature of the value in parentheses is for using UHMW-PE-made nose bars.
  No lubrication is needed in case of using nose bars made of SJ-CHO(special polyamide)
 4.Operating temperature of the value in parentheses is for wet condition.
 5.Not available for UVR, ultraviolet resistant series, with slit-pin.
 6.The standard width is in increments of 50 mm. Available for the width greater than listed in catalog.
  Contact a Tsubaki representative for the availability of the width greater than 2,300 mm and special width.
 7.The chain width X is the nominal width and the actual width is about -0.5% at the ambient temperature of 20℃.
  The chain width will expand or contract due to temperature change. The ratio which will be affected by the ambient temperature is 0.00012 for Standard Series at the basis of 20℃.
 8.Not to recommend for slit-pin using under absolutely dry condition.

Applicable sprockets

※Click the model No. for detailed information. Click to enlarge.








N1500 Solid Sprockets (Molded)
Model No. Number of teeth Pitch Diameter
mm
Bore diameter
mm
Type
WT-N1500-12T30 12 57.96 Φ30 Integrated type
WT-N1500-18T40S 18 86.38 □40 Integrated type
Split Sprockets (SW1500)
Model No. Number of teeth Pitch Diameter
mm
Bore diameter
mm
Type
WT-SW1500-24T■ 24 114.9 Φ25, Φ30, Φ35, Φ40, □40 Split
WT-SW1500-32T■ 32 153.0 □40, □50, □60
WT-SW1500-33T■ 33 157.8 □40, □65
×
(Drag to move. )
■SW1500 Split Sprockets
Model No. Number of teeth Pitch Diameter
mm
Bore diameter
mm
Type
WT-SW1500-24T25 24 114.9 Φ25 Split
WT-SW1500-24T30 Φ30
WT-SW1500-24T35 Φ35
WT-SW1500-24T40 Φ40
WT-SW1500-24T40S □40
×
(Drag to move. )
■SW1500 Split Sprockets
Model No. Number of teeth Pitch Diameter
mm
Bore diameter
mm
Type
WT-SW1500-32T40S 32 153.0 □40 Split
WT-SW1500-32T50S □50
WT-SW1500-32T60S □60
×
(Drag to move. )
■SW1500 Split Sprockets
Model No. Number of teeth Pitch Diameter
mm
Bore diameter
mm
Type
WT-SW1500-33T40S 33 157.8 □40 Split
WT-SW1500-33T65S □65
Solid Sprockets (S1500)
Model No. Number of teeth Pitch Diameter
mm
Bore diameter
mm
Plain bore Diameter
mm
Type
WT-S1500-24T 24 114.9 Bore shape
and size
are
made-to-order.
Φ20 Integrated type
WT-S1500-25T 25 119.7
WT-S1500-27T 27 129.2
WT-S1500-31T 31 148.3
WT-S1500-32T 32 153.0
WT-S1500-33T 33 157.8

Applicable idler sprockets

※Click the model No. for detailed information. Click to enlarge.



Model No. Number of teeth Pitch Diameter
mm
Bore diameter
mm
Type
WT-SW1500-24T■-IW 24 114.9 Φ30.3, Φ35.3, Φ40.3 Split
WT-SW1500-32T■-IW 32 153.0 Φ30.3, Φ35.3, Φ40.3
×
(Drag to move. )
Model No. Number of teeth Pitch Diameter
mm
Bore diameter
mm
Type
WT-SW1500-24T30-IW 24 114.9 Φ30.3 Split
WT-SW1500-24T35-IW Φ35.3
WT-SW1500-24T40-IW Φ40.3
×
(Drag to move. )
Model No. Number of teeth Pitch Diameter
mm
Bore diameter
mm
Type
WT-SW1500-32T30-IW 32 153.0 Φ30.3 Split
WT-SW1500-32T35-IW Φ35.3
WT-SW1500-32T40-IW Φ40.3

Applicable accessories

※Click the model No. for detailed information. Click to enlarge.

WT1500/1510シリーズ専用ノーズバー




Type Base Model No. Width
mm
Sliding Series WT-NB 76, 151, 302, 50, 99
WT-NBG 50, 99
Integrated Bearing Series WT-NR 76(75.5), 151

Dead Plate for WT1500 chain


Base Model No. Length
mm
WT-DP 400, 550, 700, 850

WT1510専用ノーズバー

Type Base Model No. Width
mm
Sliding Series WT-NB 50, 99

Applicable plastic rail

※Click the model No. for detailed information. Click to enlarge.



Rail material symbol Model No. Thickness
mm
Width
mm
Main unit End Plate
PR-PH type PLF PR-PH□□□-PLF PR-PH□□□E-PLF 3~5 20~40
PR type PMW PR520-PMW PRE520-PMW 5 20
M PR520-M PRE520-M 5 20

The plastic rail has no heat resistance or chemical resistance.
Contact a Tsubaki representative when using in special environments or usage conditions.

×
(Drag to move. )

Standard Series  [ Package symbol :None , G, W, B, BL, A ]

General-purpose polyacetal chain links

Color : Gray

Color : White

Appearance 色: Blue

Color : Sky blue

■ General use type
Suitable for general purpose due to general-grade polyacetal with excellent mechanical properties
■ Antistatic
Features electrostatic properties to prevent wear and adhesion of dust
(Color: Gray, Blue, Green, Sky Blue )
  • Note) 1. There are Standard series with specification marks Refer to the product information for details
  • Note) 2. Refer to each product's page for color and/or with or without electrostatic preventive function
  • Note) 3. Some products such as Plastic Roller Table and plastic universal chains do not use the description "Standard Series"
×
(Drag to move. )

Low-friction/ Wear-resistant  [ Package symbol : LF ]

Low-friction and wear-resistant polyacetal link

Color : White [LFW]

Color : Green [LFG]

Appearance 色: Brown [LFB]

■ Application

  • Can be used in a wide range of applications
  • Suitable for harsh conditions (high speed, high load) where chain elongation is accelerated resulting in short chain replacement cycle
  • To prevent products from scratching caused by high pressure during accumulation
■ To protect products conveyed
Reduces line pressure and scratches to the products during accumulation due to its coefficient of friction 14% to 45% lower than compared to Standard series
■ Longevity (Compared to Standard Series )
Improves lifespan from 1.2 times to 2 compared to Standard series due to lower coefficient friction
■ Smooth merge/divert
■ To reduce motor power
■ Chain elongation of Standard, LF and ALF series.
×
(Drag to move. )

Low-friction/ Wear-resistant  [ Package symbol : CB ]

Low-friction and wear-resistant polyacetal link

Color : Blue [CB]

■ Application

  • To prevent products from scratching caused by high pressure during accumulation
  • Note) Do not use in printing process due to the material containing silicone-compounded lubricant
■ To protect products conveyed
Reduces line pressure and scratches to the products during accumulation due to its lower coefficient of friction compared to Standard series
■ Smooth merge/divert
■ To reduce motor power
■ Applicable chains are followings.
  • WT2515G-M, WT2515-W, WT2515G-W, WT2515F-W and TTUPM828H
×
(Drag to move. )

Advanced low friction/wear resistant series  [ Package symbol : ALF ]

Adopts advanced low friction/wear resistant polyacetal

Color : Light blue [ALF]

■ Application

  • Before the packaging process where lubricants cannot be used and wear debris generation matters
  • Dry running process in beverage industry
  • Accumulation conveyor
  • For high speed running processes such as beverage industry, inspecting, laser marking and single filer
  • Note) 1. Do not use in printing process due to the material containing silicone-compounded lubricant
  • Note) 2. ULF series had discontinued since October 2018.
■ To protect products conveyed
Suitable for dry running using Tsubaki original plastic material compounded silicone-based lubrication Reduces the volume of wear debris significantly in dry running, while having same coefficient friction as same as ULF series
■ Smooth merge/divert
■ To reduce motor power
■ Comparison of wear against ULF series
65%down
  • ※The upper graph is result of in-house test The wear volume of LF series is represented as 100
  • ※ALF generates less wear debris compared to ULF Recommend using PLF rails to generate less wear debris
×
(Drag to move. )

Low Friction Specifications  [ Package symbol : NLF ]

Adopts low friction polyacetal

Color : Dark gray [NLF]

■ Application

  • Can be used in a wide range of applications
  • To prevent products from scratching caused by high pressure during accumulation
■ To protect products conveyed
Reduces line pressure and scratches to the products during accumulation due to its coefficient of friction 10% to 30% lower than compared to Standard series
■ Smooth merge/divert
■ To reduce motor power
  • ※The maximum allowable tension is as same as Standard series
×
(Drag to move. )

Low Friction Specifications  [ Package symbol : WR ]

Adopts corrosion resistant polyacetal for chain link

Color : Dark green [WR]

■ Application

  • In case of using chemical solvents such as sodium hypochlorite
  • To prevent products from scratching caused by high pressure during accumulation
■ To protect products conveyed
Reduces line pressure during accumulation due to its coefficient of friction 7% to 28% lower than compared to Standard series Minimize scratching to conveyed products
■ Corrosion resistance
Suitable for transporting foods and beverages due to corrosion resistance against sodium hypochlorite
■ Smooth merge/divert
■ To reduce motor power
  • The maximum allowable tension is as same as Standard series
×
(Drag to move. )

Heat resistant/High speed series  [ Package symbol : KV ]

Adopts special engineering plastic for chain link

Color : Black [KV150・KV180・KV250]

■ Application

  • Transportation of laminated solar panels
  • Transportation of printed circuit boards after furnace
  • Transportation through shrink tunnel
  • Transportation of rice cooking cauldron
  • Transportation of bread after oven
  • Transportation through furnace
  • Transportation through washing process using hot water of high concentration chemicals
  • Transportation of syringes through drying process
  • High speed transportation after seamer
  • Note) 1. KV150 does not conform to Food Sanitation Act
  • Note) 2. KV150 is only for dry condition
  • Note) 3. Also refer to the precautions for KV series on the catalog
  • Note) 4. Operating Temperature Range : -20~150℃ (KV150) , -20~180℃ (KV180) , -20~250℃ (KV250)
■ The maximum operating temperature
  • 150℃ (Package symbol ) : KV150
  • 180℃ (Package symbol ) : KV180
  • 250℃ (Package symbol ) : KV250
■ Maximum Speed
200m/min (In case of plastic top chains )
■ Chemical resistance
Excellent chemical resistance against chemicals for sterilizing and washing
■ Electroconductive
Less generation of static electricity due to its low specific volume resistivity (1 X 106Ω・cm) Suitable for preventing dust adhesion and sparks
■ Flame-retardant
Conforms to UL Standard V-0 classification. (The highest flame-retardant class )

Note)   Except KV150

■ Noise
Louder by 2~3 db. (Compared to Standard Series )
■ Applicable chain
  • BTC6, TPU826-T, RSP40 etc
×
(Drag to move. )

Low-friction/ Wear-resistant  [ Package symbol : HG ]

Low-friction and wear-resistant polyacetal link

Color : Navy blue [HG]

■ Application

  • Before the packaging process where lubricants cannot be used and wear debris generation matters
  • For high speed running processes such as beverage industry, inspecting, laser marking and single filer
  • Dry running process in beverage industry
■ Countermeasure for wear-debris
Wear resistance increased by 20% compared to low friction/wear resistant series (LF). Can be replaced with HG series without mi\odifying the conveyor or changing sprockets. (Recommend replacing wearstrips as well as chains Recommend using low friction /wear resistant PLF series and PMW series )
■ To protect products conveyed
Reduces line pressure and scratches to the products during accumulation due to its coefficient of friction , which is as same as LF series, 14% to 45% lower than compared to Standard series
■ Comparison of wear against other series
20%down
  • ※The upper graph is result of in-house test Operating temperature of the value in parentheses is for using UHMW-PE-made nose bars. No lubrication is needed in case of using nose bars made of SJ-CHO(special polyamide) Chain Type : TTP826、 Chain speed : 60m/min、 Ambient Temperature 、 Dry condition
  • Notes
    Company A etc. Wear Resistant chain made by company A , Material of the link : Polyester
    Company B etc. Wear Resistant chain made by company B , Material of the link : Polyacetal
■ Applicable chain
  • WT1506-K, TTP826, RSP50 etc
×
(Drag to move. )

High Temperature Specifications  [ Package symbol : HTW ]

Adopts Polypropylene for chain link

Color : White [HTW]

■ Application

  • Chain for pasteurizer
  • Conveyor for transporting batteries.
  • Slightly inclined conveyor.
■ The maximum operating temperature : 105℃
Suitable for pasteurizer using hot water in beverage factory
■ Chemical resistance
Excellent chemical resistance against acid and alkali
■ High friction
Coefficient of friction is 1.2 to 1.6 times higher than Standard series. Possible to convey slightly inclined in dry application
■ Lightweight
Lighter by 40% compared to the chain made of polyacetal. Effective for reducing motor power
■ Applicable chain
  • WT1907-K, WT2506-K, TTPM500 etc
  • Note) 1. The maximum allowable tension is about 40% of the Standard series
  • Note) 2. Operating Temperature Range :5~105℃
×
(Drag to move. )

High speed Specifications :Exclusively use under dry condition.  [ Package symbol : HS ]

Adopts special engineering plastic for chain link

Color : Beige [HS]

■ Application

  • High-speed transportation of the empty cans
■ Maximum Speed
High limiting PV value for 230 m/min. straight line Prevents melting at high speeding
■ Applicable chain
  • TPU826-T, TP-OTD32 etc
  • Note) 1. The maximum allowable tension is about 80% compared to Standard series
  • Note) 2. Only available for stainless-pin type
  • Note) 3. Exclusively use under dry condition.
  • Note) 4. Recommend using cold rolled stainless steel for wearstrip for high speed conveyor, and also recommend to use SJ-CNO depending on the condition
  • Note) 5. Operating Temperature Range :-20~50℃
×
(Drag to move. )

Low Temperature Series  [ Package symbol : LTW ]

Adopts polyester for chain link

Color : White [LTW]

■ Application

  • Transportation of frozen foods in freezer
  • Transportation of dry ice.
■ Low ambient temperature
Can be used under the environment where the temperature below -70℃.
(Standard series for -20℃ )
■ Chemical resistance
Superior corrosion resistance against chemicals
■ Applicable chains are followings.
  • BTN5, BTC6, BTN6, BTC8
  • Note) 1. The maximum allowable tension is about 33% compared to Standard series
  • Note) 2. Contact a Tsubaki representative for special sprocket for the environment where the ambient temperature is below -20℃
  • Note) 3. Operating Temperature Range :-70~60℃
×
(Drag to move. )

Chemical Resistant  [ Package symbol : Y ]

Adopts special engineering plastic for chain link

Color : Matte white [Y]

■ Application

  • Transportation in production process of lithium-ion batteries
  • Transportation of printed circuit boards and silicon wafers through washing process
  • For outfeed conveyor of aseptic filling room
  • Conveyors if food processing lines that use chemical solutions for cleaning
■ Chemical resistance
Corrosion resistance against many chemicals such as organic solvent, inorganic hydrochloric acid, alkali, oxidants and acetis acid.
■ Shock resistance
Excellent impact resistant compared to Standard series
■ Applicable chain
  • TTP826, TPRF2040, RSP35 etc
  • Note) 1. The maximum allowable tension is about 50% compared to Standard series
  • Note) 2. Coefficient of friction is as same as Standard series
  • Note) 3. Do not use in presence of open flame and/or environment under high temperature
×
(Drag to move. )

Super chemical resistance  [ Package symbol : SY ]

Adopts special engineering plastic for chain link

Color : Matte white [SY]

■ Application

  • Transportation in production process of lithium-ion batteries
  • Transportation of printed circuit boards and silicon wafers through washing process
  • For outfeed conveyor of aseptic filling room
  • Conveyors if food processing lines that use chemical solutions for cleaning
■ Adopts titanium for pin material
Improves chemical resistance due to replacing pins to titan-made knurled pin
■ Chemical resistance
Superior corrosion resistance against highly corrosive chemicals such as hydrochloric acid and sulfuric acid
■ Applicable chain
  • TTP826, RSP40 etc
  • Note) 1. The maximum allowable tension is about 50% compared to Standard series
  • Note) 2. Coefficient of friction is as same as Standard series
  • Note) 3. Not available for D-shaped pin and plastic pin
  • Note) 4. Do not use in presence of open flame and/or environment under high temperature
  • Note) 5. Operating Temperature Range :-20~80℃
×
(Drag to move. )

Electroconductive  [ Package symbol : E ]

Adopts special engineering plastic for chain link

Color : Black [E]

■ Application

  • Transportation of printed circuit boards after soldering
  • For infeed/outfeed of laminating process and transportation to cutter of solar panels
  • Countermeasure against static electricity generated by accumulation of cans
  • Countermeasure of static electricity after washing and drying process
  • Transportation of automotive electrical components
■ Excellent electroconductive
Specific electrical resistivity: 1×106Ω・cm (Specific electrical resistivity of Standard series: 1×1014~15Ω・cm )
■ Suppression of static electricity
Suppress noises and sparks
Note) Entire conveyor must be grounded using steel sprockets and rails
■ Applicable chain
  • WT0705-W, TTP826P, RSP35 etc
  • Note) 1. The maximum allowable tension is about 70% compared to Standard series
  • Note) 2. Coefficient of friction is as same as Standard series
×
(Drag to move. )

Impact Resistant :Exclusively use under dry condition.  [ Package symbol : DIA ]

Adopts special engineering plastic for chain link

Color : Cream [DIA]

■ Application

  • Transportation of medium-load machined products
  • Transportation of trays in bakery factory
  • Transportation of food directly on the conveyor under the dry environment
  • Slightly inclined food conveyors
■ Super Impact resistant
Chain is hard to chip when subjected to impact, and even if the chain breaks, debris does not shatter. Suitable for preventing contamination by foreign matters. )
■ High friction
Coefficient friction is 1.2 times higher compared to Standard series Can be used for slightly inclined transportation under dry condition
■ Lightweight
About 20% lighter than polyacetal-made plastic top chain Easy to handle and effective for reducing motor power
■ Impact resistance (difficult to chip when impact is applied)
■ Applicable chain
  • BTC8H-826-M, TPUSR550-T, RSP60-2 etc
  • Note) 1. The maximum allowable tension is about 75% compared to Standard series
  • Note) 2. Exclusively use under dry condition.
×
(Drag to move. )

Impact Resistant :Available for both wet and dry conditions  [ Package symbol : DIY ]

Adopts special engineering plastic for chain link

Color : Green [DIY]

■ Application

  • Transportation of food/container under wet condition
  • In case of sterilizing frequently
  • To prevent chains from chipping
■ Shock resistance
More resistant to chipping or shattering when the chain is subjected to impact compared to polyacetal
■ Chemical resistance
Excellent chemical resistance against chemicals for sterilizing and washing Suitable for conveyors sterilizing frequently
■ Anti-adhesive
Effective to prevent products sticking to the conveyor
■ Impact resistance (difficult to chip when impact is applied)
■ Ultraviolet Resistant
Higher weather resistant compared to polyacetal
■ Applicable chain
  • BTC6, TPRF2040, RSP60 etc
  • Note) 1. The maximum allowable tension is about 75% compared to Standard series
  • Note) 2. Coefficient of friction is as same as Standard series
  • Note) 3. Shattered fragments may scatter under certain conditions, such as during use at low temperature
  • Note) 4. Do not use in presence of open flame and/or environment under high temperature
×
(Drag to move. )

Middle friction series :Exclusively use under dry condition.  [ Package symbol : MF ]

Adopts special polyacetal for chain link

Color : Yellow [MF]

■ Application

  • Inclined 3 to 5 degree
  • Prevents excessive slippage through inspecting and printing process
    ※ Depends on the product conveyed
■ Suitable for inclined transportation
Suitable for inclined transportation due to moderate frictional material
■ Stable transportation
Prevents misalignment that occurs during startup and stoppage, and slippage of the products as the conveyor accelerates
■ Applicable chain
  • BTC6, TTUP826P, RSP40 etc
  • Note) 1. The maximum allowable tension is about 75% compared to Standard series
  • Note) 2. Coefficient of friction is 1.1 times higher than Standard series
  • Note) 2. Exclusively use under dry condition.
  • Note) 4. Operating Temperature Range : -20~80℃
×
(Drag to move. )

Heat/Radiation/Vacuum resistant series  [ Package symbol : PK150 ]

Adopts PEEK resin for chain and pin

Color : Light brown [PK150]

■ Application

  • Use in high temperature environment such as furnaces and ovens. Use as transfer units to/from ovens.
  • Environment using chemicals for cleaning/sterilization.
  • Transportation through vacuum environment
■ The maximum operating temperature :150℃
■ Chemical resistance
Superior corrosion resistance against chemicals
■ Radiation resistance
The highest level of radiation resistance among other thermoplastic elastomers
■ Less outgassing in vacuum environment
■ Uses materials certified by FDA(US Food and Drug Administration)
■ Applicable chain number
  • WT0405-W
  • Note) Operating Temperature Range : -20~150℃
×
(Drag to move. )

Antibacterial/Mold Resistant  [ Package symbol : MWS ]

Adopts antibacterial agent-compounded low friction/wear resistant polyacetal

Color : Cream [MWS]

■ Application

  • Countermeasure for washing process in bottling factory
  • For conveyors where food is placed directly or before seamer
  • Wet condition caused by moisture and dew condensation
    (Especially for shower or autoclave unloader )
  • Suitable for mold prevention or to use in the area where conveyor becomes dirty easily
■ Antibacterial + mold protection
Uses original antibacterial agent developed jointly with antibacterial agent manufacturer As well as being effective against the most dangerous bacteria in the food industry, such as colon bacillus(E. coli), staphylococcus and lactobacillus, its anti-mold properties are effective against blue and other forms of mold
■ Sustainability
Adopts long-life inorganic antimicrobial agent Because the antimicrobial agent is mixed uniformly into the plastic during manufacturing process, the antimicrobial and anti-mold functions remain strong even if the the surface of the chain wears
■ Safety
Highly safe antimicrobial agent The base material complies with Japan's Food Sanitation Act (Ministry of Health Notification No. 370) and the additional antimicrobial and anti-mold functions ensure further safety. (The material of the link, however, is ineligible for possitive list as of January 1st, 2022)
■ High function
No change in performance arises from the addition of the antimicrobial agent, ensuring excellent low friction/wear resistant properties Uses Low friction/Wear resistant material for link
  • Note) 1. The maximum allowable load is as same as Standard series
  • Note) 2. Coefficient friction is as same as Low friction/Wear resistant series

Antibacterial/Mold Resistant

35℃ X After 24 hours (Saccharomyces )
Equivalent to LF materials MWS series

※Testing method
JIS Z2801:2010

  • Test organization K. K. Eisei Biseibutsu Kenkyu Center
  • Issued date of certificate of analysis October 12, 2020
  • Issued number of certificate of analysis 2020D-BT-0808

Test result for antibacterial activity (Compared to test media without antibacterial agent )

Tested bacteria Tested specimen Immediately after inoculation 35℃ X After 24 hours
E. coil MWS 1.5 X 104 38
(Chain without antibacterial agent ) 1.5 X 104 22 X 106
Staphylococcus aureus MWS 1.6 X 104 Not detected
(Chain without antibacterial agent ) 1.6 X 104 1.5 X 105
Saccharomyces
(A type of yeast )
MWS 2.5 X 104 Not detected
(Chain without antibacterial agent ) 2.5 X 104 1.4 X 104
Lactobacillus MWS 6.4 X 105 1.3 X 102
(Chain without antibacterial agent ) 6.4 X 105 6.9 X 104
Pathogenic E. coil
O-157(H7)
MWS 1 X 103.9 Not detected
(Chain without antibacterial agent ) 1 X 103.9 1 X 103.4

Test result of fungal growth (Compared to test media without antibacterial agent )

Test fungus Tested specimen After 7 days After 14 days After 21 days
Black mold MWS series 0 0 0
(Chain without antibacterial agent ) 0 1 2

●Method of rating test result

Display Descriptions
0 No fungus growth evident with the naked eyes or under a microscope
1 No fungus growth trace with the naked eyes. Trace fungus growth under a microscope
2 Little fungus growth evident (coverage of less than 25% of surface of test specimen)
3 Moderate fungus growth evident (coverage of 25%~50% of surface of test specimen)
4 Heavy fungus growth evident (coverage of 50%~100% of surface of test specimen)
5 Heavy fungus growth evident (coverage of 100% of surface of test specimen)

※Testing method
JIS Z2911-2000(A)

  • Test organization Ishizuka Glass Co., Ltd.
  • Issued date of certificate of analysis September 25, 2020
×
(Drag to move. )

Metal Detectable Specifications  [ Package symbol : MPD/MPW ]

Adopts special engineering plastic for chain link

Color : Black [MPD/MPW]

■ Application

  • Transportation of rubber compound
  • Transportation of food directly on the conveyor before packaging process
  • Transportation of noodles directly on the conveyor (Package symbol :MPW)
  • Transportation of trays in bakery factory (Package symbol :MPD)
■ Detectable by metal detector
Even if the chain is broken and entered into rubber compounds or food products, broken chips and fragments can be detected by metal detectors
■ Shock resistance
Hard to chip even if the impact is applied
■ Applicable chain
  • TTUP826, RSP60-CU-2 etc
  • Note) 1. MPD is only for dry condition, MPW is for dry and wet conditions
  • Note) 2. The maximum allowable load compared to Standard series, MPD: about 80%, MPW: about 40%
  • Note) 3. Operating Temperature Range : -20~80℃ (MPD), -20~60℃ (MPW)
×
(Drag to move. )

Low temperature and chemical resistant series  [ Package symbol : UPE ]

Adopts UHMW-PE for link material

Color : Matte white [UPE]

■ Application

  • Transportation through freezer
  • Transportation of frozen foods in freezer
  • Food conveyors that use chemicals for cleaning and as a measure against contamination
  • Transportation for secondary batteries requiring chemical resistant
  • Environment using chemicals for cleaning/sterilization.
■ Low ambient temperature
Can be used under the environment where the temperature below -70℃. (Standard series for -20℃ )
■ Shock resistance
Excellent impact resistance minimizes contamination even under low temperature
Impact resistance 13 times higher using under the ambient temperature and 26 times higher under low temperature compared to polyacetal
■ Wear Resistant
The amount of wear is decreased to 80% compared to polyacetal-made chains under the ambient temperature
■ Chemical resistance
Superior corrosion resistance against chemicals
■ Uses materials certified by FDA(US Food and Drug Administration)
■ Applicable chain number
  • RSP80
  • Note) 1. The maximum allowable tension is about 30% compared to Standard series
  • Note) 2. Operating Temperature Range : -70~60℃
  • Note) 3. Contact a Tsubaki representative for special sprocket for the environment where the ambient temperature is below -20℃
  • Note) 4. Recommend using cold rolled stainless steel for wearstrip For the material of wearstrip, we do not recommend using UHMW-PE due to same material with chain
×
(Drag to move. )

Acid Resistant  [ Package symbol : AR ]

Adopts special polyacetal for chain link

Color : White [AR]

■ Corrosion resistance
Superior corrosion resistance compared to Standard and low friction/Wear resistant series
■ Corrosion protection
Suitable for corrosion resistance against soapy water containing sodium hypochlorite
■ Applicable chain
  • TTP826, RSP35 etc
  • Note) 1. Use chemical resistant Y series or super chemical resistant SY series under the environment of strong acid and/or strong alkali
  • Note) 2. The maximum allowable tension is about 90% compared to Standard series
  • Note) 3. Coefficient of friction is as same as Standard series
  • Note) 4. Not available for plastic pin
  • Note) 5. Cannot be used under the environment where using water hotter than 60℃.
  • Note) 6. Operating Temperature Range :-20~ (60) 80℃ (60) is for wet condition
×
(Drag to move. )

Ultraviolet Resistant series  [ Package symbol : UVR ]

Adopts special polyacetal for chain link

Color : Light silver [UVR]

■ Application

  • Conveyance in outdoor environment where products are exposed to UV rays.
  • Countermeasure against UV degradation for longer life than Standard series
■ Ultraviolet Resistant
Excellent resistance to outdoor UV degradation (discoloration and loss of strength) compared to Standard series and LF series
■ Applicable chain
  • TTP826, TTPH826P, RSP50 etc
  • Note) 1. Same maximum allowable tension and coefficient of friction as Standard series
  • Note) 2. Also available for plastic pin type
  • Note) 3. Operating Temperature Range :-20~ (60) 80℃ (60) is for plastic pin type under wet condition
×
(Drag to move. )

Food conveying series  [ Package symbol : PFS ]

Adopts polyacetal for chain link

Color : Nile blue [PFS]

■ Application

  • Cooling line for Bakery Industry
  • Other transportation for food producing
■ Conforms to PIM(EU's Plastic Implementation Measure)
Uses Tsubaki original material that comply with the EU's Plastic Implementation Measure (PIM)
■ Applicable chain
  • TTP826, RSP40-T-CU etc
  • Note) 1. Same maximum allowable tension and coefficient of friction as Standard series
  • Note) 2. PIM(EU Plastics Implementation Measure) is essential regulation for offering plastic products on the EU that may come into direct contact with conveyed food
  • Note) 3. Plastic pin types do not conform to PIM (EU Plastic Implementation Measure)
×
(Drag to move. )

Biomass series (BP)  [ Package symbol : BP ]

Adopts environmentally friendly biomass plastic for link material

Color : Dark green [BPG]

■ Environmentally friendly product
Not only saving oil resources by using plant-derived environment-friendly biomass plastic, but also it will be anticipated to reduce CO2 by carbon neutrality of which biomass plastic has.

※バイオマスプラスチックとは:原料として植物などの再生可能な有機資源を使用するプラスチック素材


■ Applicable chain
  • Only for RSP40
  • Note) 1. The maximum allowable tension is about 36% of the Standard series
  • Note) 2. Operating temperature range: -20℃ to 80℃
  • Note) 3. Exclusively use under dry condition.
  • Note) 4. Recommend using in the ambient humidity range from 20% to 80%. Contact a Tsubaki representative for using under the humidity other than this range.
  • Note) 5. Do not conforms to Food Sanitation Act (Ministry of Health Notification No.370)
  • Note) 6. The color may be uneven due to the property of biomass. No effect to its performance.
