Plastic modular chain WT1505G-K  Major Specifications

WT1505G-K

Features

  • Combination of wide type and narrow type plastic module like bricks enables a wide conveying surface suitable for conveying bulk quantities.
  • Small chain pitch of 15mm is ideal for conveying small, lightweight containers.
  • Simple construction with four parts allows for easy part replacement and reduced maintenance time.
  • With tab guide attachments, suitable for lateral conveyor-to-conveyor transfer.
  • All-plastic construction. Lightweight and easy to handle.

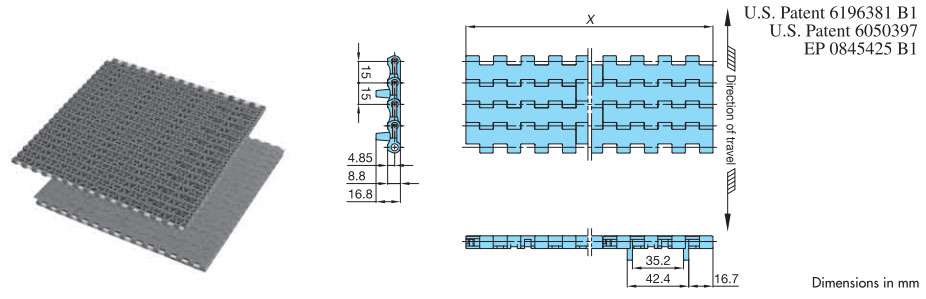

[ Click to enlarge ]
PDF Outline Drawing

Contact us for details.

CAD data in DXF format

See the table below

Click here for a list of all DXF files )

3D CAD data

To CADENAS WEB2CAD website.

The CAD data contained herein is made available to you via the CAD drawing library; PARTcommunity is provided by CADENAS WEB2CAD Co.
Please direct your inquiries regarding the CAD data service or PARTcommunity to:
 CADENAS WEB2CAD Co. TEL: +81 (3) 5961-5031 FAX: +81 (3) 5961-5032

Major Specifications/Price/Delivery time

Chain pitch mmOpen area %
152
Package
(Click the series for more information. )
Package symbol Color Availability Allowable load
per 1m width
kN/m
Mass per
1m2
kg/m2
Allowable speed
m/min
Operating Temperature Range
゚C
Pin material Allowable load graphs
With lube No lube
Normal None Gray 10.5 6.7 50 50 -20~(60)80 Special engineering plastic
Low Friction/Anti-Wear LFW White 10.5 6.7 50 50 -20~(60)80 Special engineering plastic
Low Friction/Anti-Wear  LFG Green 10.5 6.7 50 50 -20~(60)80 Special engineering plastic Show allowable load graphs
Model No. Chain width
X
mm
Number of links
per one unit of chain
Max. allowable tension
kN
Chain
weight
kg/m
DXF data Standard Price / link Delivery
WT1505G-K03-LFG 76.2 240 0.80 0.51 DXF
WT1505G-K06-LFG 152.4 240 1.60 1.02 DXF
WT1505G-K09-LFG 228.6 240 2.40 1.53 DXF
WT1505G-K12-LFG 304.8 240 3.20 2.04 DXF
WT1505G-K15-LFG 381.0 240 4.00 2.55 DXF
WT1505G-K18-LFG 457.2 240 4.80 3.06 DXF
WT1505G-K21-LFG 533.4 140 5.60 3.57 DXF
WT1505G-K24-LFG 609.6 140 6.40 4.08 DXF
WT1505G-K27-LFG 685.8 140 7.20 4.59 DXF
WT1505G-K30-LFG 762.0 140 8.00 5.11 DXF
WT1505G-K33-LFG 838.2 100 8.80 5.62 DXF
WT1505G-K36-LFG 914.4 100 9.60 6.13 DXF
WT1505G-K48-LFG 1219.2 100 12.8 8.17 DXF
WT1505G-K60-LFG 1524.0 60 16.0 10.21 DXF
Low Friction/Anti-Wear LFB Brown 10.5 6.7 50 50 -20~(60)80 Special engineering plastic
Ultra-low friction and wear resistant  ALF Light blue 10.5 6.7 50 50 -20~(60)80 Special engineering plastic Show allowable load graphs
Model No. Chain width
X
mm
Number of links
per one unit of chain
Max. allowable tension
kN
Chain
weight
kg/m
DXF data Standard Price / link Delivery
WT1505G-K03-ALF 76.2 240 0.80 0.51 DXF
WT1505G-K06-ALF 152.4 240 1.60 1.02 DXF
WT1505G-K09-ALF 228.6 240 2.40 1.53 DXF
WT1505G-K12-ALF 304.8 240 3.20 2.04 DXF
WT1505G-K15-ALF 381.0 240 4.00 2.55 DXF
WT1505G-K18-ALF 457.2 240 4.80 3.06 DXF
WT1505G-K21-ALF 533.4 140 5.60 3.57 DXF
WT1505G-K24-ALF 609.6 140 6.40 4.08 DXF
WT1505G-K27-ALF 685.8 140 7.20 4.59 DXF
WT1505G-K30-ALF 762.0 140 8.00 5.11 DXF
WT1505G-K33-ALF 838.2 100 8.80 5.62 DXF
WT1505G-K36-ALF 914.4 100 9.60 6.13 DXF
WT1505G-K48-ALF 1219.2 100 12.8 8.17 DXF
WT1505G-K60-ALF 1524.0 60 16.0 10.21 DXF
Low Friction  NLF Dark gray 10.5 6.7 50 50 -20~(60)80 Special engineering plastic Contact us for details.
Model No. Chain width
X
mm
Number of links
per one unit of chain
Max. allowable tension
kN
Chain
weight
kg/m
DXF data Standard Price / link Delivery
WT1505G-K03-NLF 76.2 240 0.80 0.51 DXF
WT1505G-K06-NLF 152.4 240 1.60 1.02 DXF
WT1505G-K09-NLF 228.6 240 2.40 1.53 DXF
WT1505G-K12-NLF 304.8 240 3.20 2.04 DXF
WT1505G-K15-NLF 381.0 240 4.00 2.55 DXF
WT1505G-K18-NLF 457.2 240 4.80 3.06 DXF
WT1505G-K21-NLF 533.4 140 5.60 3.57 DXF
WT1505G-K24-NLF 609.6 140 6.40 4.08 DXF
WT1505G-K27-NLF 685.8 140 7.20 4.59 DXF
WT1505G-K30-NLF 762.0 140 8.00 5.11 DXF
WT1505G-K33-NLF 838.2 100 8.80 5.62 DXF
WT1505G-K36-NLF 914.4 100 9.60 6.13 DXF
WT1505G-K48-NLF 1219.2 100 12.8 8.17 DXF
WT1505G-K60-NLF 1524.0 60 16.0 10.21 DXF
Low Friction  WR Dark green 10.5 6.7 50 50 -20~(60)80 Special engineering plastic Contact us for details.
Model No. Chain width
X
mm
Number of links
per one unit of chain
Max. allowable tension
kN
Chain
weight
kg/m
DXF data Standard Price / link Delivery
WT1505G-K03-WR 76.2 240 0.80 0.51 DXF
WT1505G-K06-WR 152.4 240 1.60 1.02 DXF
WT1505G-K09-WR 228.6 240 2.40 1.53 DXF
WT1505G-K12-WR 304.8 240 3.20 2.04 DXF
WT1505G-K15-WR 381.0 240 4.00 2.55 DXF
WT1505G-K18-WR 457.2 240 4.80 3.06 DXF
WT1505G-K21-WR 533.4 140 5.60 3.57 DXF
WT1505G-K24-WR 609.6 140 6.40 4.08 DXF
WT1505G-K27-WR 685.8 140 7.20 4.59 DXF
WT1505G-K30-WR 762.0 140 8.00 5.11 DXF
WT1505G-K33-WR 838.2 100 8.80 5.62 DXF
WT1505G-K36-WR 914.4 100 9.60 6.13 DXF
WT1505G-K48-WR 1219.2 100 12.8 8.17 DXF
WT1505G-K60-WR 1524.0 60 16.0 10.21 DXF
Heat Resistant/High Speed KV150,180,250 Black × -
High Temperature HTW White × -
Chemical Resistant Y Matte white × -
Electroconductive E Black Contact us for details.
Impact Resistant DIA/DIY Cream/Green × -
Antibacterial/Mold Resistant MWS Cream × -
Metal Detectable MPD/MPW Black × -
Middle Friction MF Yellow Contact us for details.

Notes
 1.Values for max. allowable load are at ambient temperature (20℃) and assume that tension acts uniformly over the entire chain width.
  Also, it differ depending on usage conditions such as operating temperature, speed, etc. See the allowable load graph
 2.Availability
  ○:Made-to-order product
  ×:Not available
  ▲:Special configurations may be available. Contact a Tsubaki representative for further information.
 3.Cannot be used with nose bars.
 4.Operating temperature of ( ) is for wet conditions.
 5.MF Medium Friction series must be used without lubrication (lube-free).
 6.Chain width can be formed from 3-inch (76.2mm) wide units. Widths greater than the above are available upon request.
  Contact a Tsubaki representative for further information.
 7.Chain width X shown is a nominal width. Actual width range is 0~-0.7% at 20℃operating temperature.
  Chain width is subject to expansion or contraction with changes in temperature.
  Expansion/contraction rate is 0.00015/℃ based on reference temper

Applicable sprockets

※ Click the model No. for detailed information. Click to enlarge.






SW1500 Split Sprockets
Model No. Number of teeth Pitch diameter
mm
Bore diameter
mm
Type
WT-SW1500-24T25 24 114.9 φ25 Split
WT-SW1500-24T30 φ30
WT-SW1500-24T35 φ35
WT-SW1500-24T40 φ40
WT-SW1500-24T40S □40
WT-SW1500-32T40S 32 153.0 □40
WT-SW1500-32T50S □50
WT-SW1500-32T60S □60
WT-SW1500-33T40S 33 157.8 □40
WT-SW1500-33T65S □65
S1500 Solid Sprockets
Model No. Number of teeth Pitch diameter
mm
Bore diameter
mm
Plain bore Diameter
mm
Type
WT-S1500-24T 24 114.9 Bore shape
and size
are
made-to-order.
20 Integrated type
WT-S1500-25T 25 119.7
WT-S1500-27T 27 129.2
WT-S1500-31T 31 148.3
WT-S1500-32T 32 153.0
WT-S1500-33T 33 157.8

N1500 Solid Sprockets (Molded)
Model No. Number of teeth Pitch diameter
mm
Bore diameter
mm
Type
WT-N1500-12T30 12 57.96 φ30 Integrated type

Applicable idler sprockets

※ Click the model No. for detailed information. Click to enlarge.



Model No. Number of teeth Pitch circle dia.
mm
Bore diameter
mm
Type
WT-SW1500-24T30-IW 24 114.9 φ30.3 Split
WT-SW1500-24T35-IW φ35.3
WT-SW1500-24T40-IW φ40.3
WT-SW1500-32T30-IW 32 153.0 φ30.3
WT-SW1500-32T35-IW φ35.3
WT-SW1500-32T40-IW φ40.3

Applicable plastic rail

※ Click the model No. for detailed information. Click to enlarge.



Rail material symbol Model No. Thickness
mm
Width
mm
Main body End Plate
PR type PMW PR520-PMW PRE520-PMW 5 20
M PR520-M PRE520-M 5 20
PR-PH type PLF PR-PH□□□-PLF PR-PH□□□E-PLF 3~5 20~40

The plastic rail has no heat resistance or chemical resistance.
Contact a Tsubaki representative when using in special environments or usage conditions.

Applicable accessories

※ Click the model No. for detailed information. Click to enlarge.

Dead Plate for WT1500 chain


Base Model No. Length
mm
WT-DP 400, 550, 700, 850
