Plastic modular chain WT1505-K  Major Specifications

WT1505-K

Features

  • Combination of wide type and narrow type plastic module like bricks enables a wide conveying surface suitable for conveying bulk quantities.
  • Small chain pitch of 15mm is ideal for conveying small, lightweight containers.
  • Simple construction with four parts allows for easy part replacement and reduced maintenance time.
  • All-plastic construction. Lightweight and easy to handle.

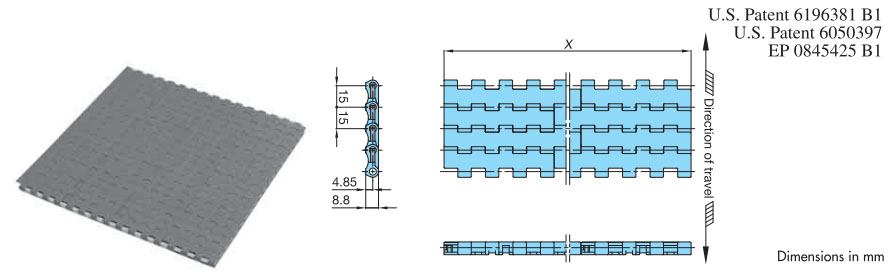

[ Click to enlarge ]

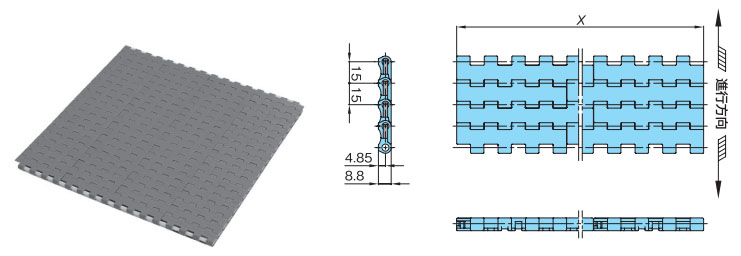

PDF Outline Drawing

Contact us for details.

CAD data in DXF format

See the table below

Click here for a list of all DXF files )

3D CAD data

To CADENAS WEB2CAD website.

The CAD data contained herein is made available to you via the CAD drawing library; PARTcommunity is provided by CADENAS WEB2CAD Co.
Please direct your inquiries regarding the CAD data service or PARTcommunity to:
 CADENAS WEB2CAD Co. TEL: +81 (3) 5961-5031 FAX: +81 (3) 5961-5032

Major Specifications/Price/Delivery time

Chain pitch mm Open area %
15 2
Package
(Click the series for more information. )
Package symbol Color Availability Allowable load
per 1m width
kN/m
Mass per
1m2
kg/m2
Allowable speed
m/min
Operating Temperature Range
゚C

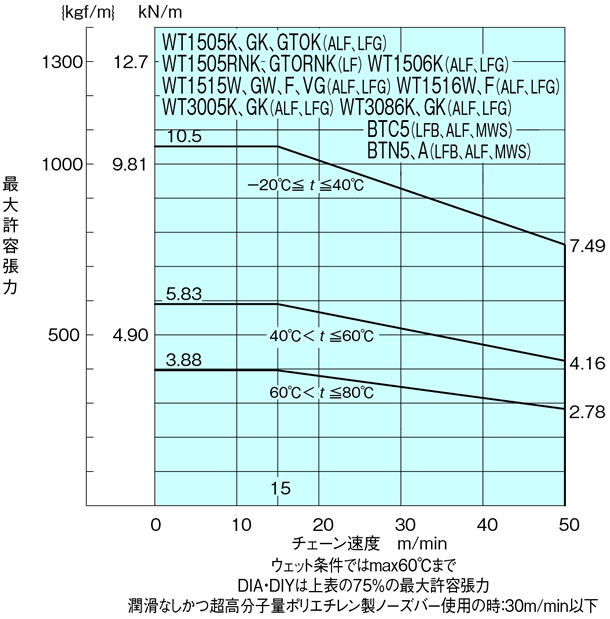

Pin material Allowable load graphs
With lube No lube
Normal None Gray 10.5 6.7 50(50) 50(30) -20~(60)80 Special engineering plastic
Low Friction/Anti-Wear LFW White 10.5 6.7 50(50) 50(30) -20~(60)80 Special engineering plastic
Low Friction/Anti-Wear  LFG Green 10.5 6.7 50(50) 50(30) -20~(60)80 Special engineering plastic Show allowable load graphs
Model No. Chain width
X
mm
Number of links
per one unit of chain
Max. allowable tension
kN
Chain
weight
kg/m
DXF data Standard Price / link Delivery
WT1505-K03-LFG 76.2 500 0.80 0.51 DXF
WT1505-K06-LFG 152.4 500 1.60 1.02 DXF
WT1505-K09-LFG 228.6 400 2.40 1.53 DXF
WT1505-K12-LFG 304.8 400 3.20 2.04 DXF
WT1505-K15-LFG 381.0 400 4.00 2.55 DXF
WT1505-K18-LFG 457.2 300 4.80 3.06 DXF
WT1505-K21-LFG 533.4 200 5.60 3.57 DXF
WT1505-K24-LFG 609.6 200 6.40 4.08 DXF
WT1505-K27-LFG 685.8 200 7.20 4.59 DXF
WT1505-K30-LFG 762.0 200 8.00 5.11 DXF
WT1505-K33-LFG 838.2 160 8.80 5.62 DXF
WT1505-K36-LFG 914.4 160 9.60 6.13 DXF
WT1505-K48-LFG 1219.2 140 12.8 8.17 DXF
WT1505-K60-LFG 1524.0 120 16.0 10.21 DXF
Low Friction/Anti-Wear LFB Brown 10.5 6.7 50(50) 50(30) -20~(60)80 Special engineering plastic
Low Friction/Anti-Wear  HG Navy blue 10.5 6.7 50(50) 50(30) -20~(60)80 Special engineering plastic Contact us for details.
Model No. Chain width
X
mm
Number of links
per one unit of chain
Max. allowable tension
kN
Chain
weight
kg/m
DXF data Standard Price / link Delivery
WT1505-K03-HG 76.2 500 0.80 0.51 DXF
WT1505-K06-HG 152.4 500 1.60 1.02 DXF
WT1505-K09-HG 228.6 400 2.40 1.53 DXF
WT1505-K12-HG 304.8 400 3.20 2.04 DXF
WT1505-K15-HG 381.0 400 4.00 2.55 DXF
WT1505-K18-HG 457.2 300 4.80 3.06 DXF
WT1505-K21-HG 533.4 200 5.60 3.57 DXF
WT1505-K24-HG 609.6 200 6.40 4.08 DXF
WT1505-K27-HG 685.8 200 7.20 4.59 DXF
WT1505-K30-HG 762.0 200 8.00 5.11 DXF
WT1505-K33-HG 838.2 160 8.80 5.62 DXF
WT1505-K36-HG 914.4 160 9.60 6.13 DXF
WT1505-K48-HG 1219.2 140 12.8 8.17 DXF
WT1505-K60-HG 1524.0 120 16.0 10.21 DXF
Advanced Low friction and Wear Resistant  ALF Light blue 10.5 6.7 50(50) 50(30) -20~(60)80 Special engineering plastic Show allowable load graphs
Model No. Chain width
X
mm
Number of links
per one unit of chain
Max. allowable tension
kN
Chain
weight
kg/m
DXF data Standard Price / link Delivery
WT1505-K03-ALF 76.2 500 0.80 0.51 DXF
WT1505-K06-ALF 152.4 500 1.60 1.02 DXF
WT1505-K09-ALF 228.6 400 2.40 1.53 DXF
WT1505-K12-ALF 304.8 400 3.20 2.04 DXF
WT1505-K15-ALF 381.0 400 4.00 2.55 DXF
WT1505-K18-ALF 457.2 300 4.80 3.06 DXF
WT1505-K21-ALF 533.4 200 5.60 3.57 DXF
WT1505-K24-ALF 609.6 200 6.40 4.08 DXF
WT1505-K27-ALF 685.8 200 7.20 4.59 DXF
WT1505-K30-ALF 762.0 200 8.00 5.11 DXF
WT1505-K33-ALF 838.2 160 8.80 5.62 DXF
WT1505-K36-ALF 914.4 160 9.60 6.13 DXF
WT1505-K48-ALF 1219.2 140 12.8 8.17 DXF
WT1505-K60-ALF 1524.0 120 16.0 10.21 DXF
Low Friction  NLF Dark gray 10.5 6.7 50(50) 50(30) -20~(60)80 Special engineering plastic Contact us for details.
Model No. Chain width
X
mm
Number of links
per one unit of chain
Max. allowable tension
kN
Chain
weight
kg/m
DXF data Standard Price / link Delivery
WT1505-K03-NLF 76.2 500 0.80 0.51 DXF
WT1505-K06-NLF 152.4 500 1.60 1.02 DXF
WT1505-K09-NLF 228.6 400 2.40 1.53 DXF
WT1505-K12-NLF 304.8 400 3.20 2.04 DXF
WT1505-K15-NLF 381.0 400 4.00 2.55 DXF
WT1505-K18-NLF 457.2 300 4.80 3.06 DXF
WT1505-K21-NLF 533.4 200 5.60 3.57 DXF
WT1505-K24-NLF 609.6 200 6.40 4.08 DXF
WT1505-K27-NLF 685.8 200 7.20 4.59 DXF
WT1505-K30-NLF 762.0 200 8.00 5.11 DXF
WT1505-K33-NLF 838.2 160 8.80 5.62 DXF
WT1505-K36-NLF 914.4 160 9.60 6.13 DXF
WT1505-K48-NLF 1219.2 140 12.8 8.17 DXF
WT1505-K60-NLF 1524.0 120 16.0 10.21 DXF
Low Friction  WR Dark green 10.5 6.7 50(50) 50(30) -20~(60)80 Special engineering plastic Contact us for details.
Model No. Chain width
X
mm
Number of links
per one unit of chain
Max. allowable tension
kN
Chain
weight
kg/m
DXF data Standard Price / link Delivery
WT1505-K03-WR 76.2 500 0.80 0.51 DXF
WT1505-K06-WR 152.4 500 1.60 1.02 DXF
WT1505-K09-WR 228.6 400 2.40 1.53 DXF
WT1505-K12-WR 304.8 400 3.20 2.04 DXF
WT1505-K15-WR 381.0 400 4.00 2.55 DXF
WT1505-K18-WR 457.2 300 4.80 3.06 DXF
WT1505-K21-WR 533.4 200 5.60 3.57 DXF
WT1505-K24-WR 609.6 200 6.40 4.08 DXF
WT1505-K27-WR 685.8 200 7.20 4.59 DXF
WT1505-K30-WR 762.0 200 8.00 5.11 DXF
WT1505-K33-WR 838.2 160 8.80 5.62 DXF
WT1505-K36-WR 914.4 160 9.60 6.13 DXF
WT1505-K48-WR 1219.2 140 12.8 8.17 DXF
WT1505-K60-WR 1524.0 120 16.0 10.21 DXF
Heat Resistant/High Speed KV150,180,250 Black × -
High Temperature HTW White × -
Chemical Resistant Y Matte white Contact us for details.
Electroconductive E Black Contact us for details.
Impact Resistant DIA/DIY Cream/Green × -
Antibacterial/Mold Resistant MWS Cream × -
Metal Detectable MPD/MPW Black × -
Middle Friction MF Yellow Contact us for details.

Notes
 1.Values for max. allowable load are at ambient temperature (20℃) and assume that tension acts uniformly over the entire chain width.
  Also, it differ depending on usage conditions such as operating temperature, speed, etc. See the load graph of chain.
 2.Availability
  ○:Made-to-order product
  ×:Not available
  ▲:Special configurations may be available. Contact a Tsubaki representative for further information.
 3.Maximum allowable speeds in ( ) are for when using nose bars made of UHMW-PE.
  Nose bars made of SJ-CNO (special polyamide) must be used under dry conditions without lubrication.
 4.Operating temperature of ( ) is for wet conditions.
 5.MF Medium Friction series must be used without lubrication (lube-free).
 6.Standard chain widths are the inclements of 3 inches(76.2mm). Widths other than above are available upon request. Contact a Tsubaki representative for further information.
 7.Chain width X shown is a nominal width. Actual width range is 0~-0.7% at 20℃operating temperature.
  Chain width is subject to expansion or contraction with changes in temperature.
  Expansion/contraction rate is 0.00015/℃ based on reference temperature of 20℃.

Applicable sprockets

※ Click the model No. for detailed information. Click to enlarge.






Split Sprockets(SW1500)
Model No. Number of teeth Pitch Diameter
mm
Bore diameter
mm
Type
WT-SW1500-24T■ 24 114.9 Φ25, Φ30, Φ35, Φ40, □40 Split
WT-SW1500-32T■ 32 153.0 □40, □50, □60
WT-SW1500-33T■ 33 157.8 □40, □65
×
( Drag to move. )
■SW1500 Split Sprockets
Model No.Number of teethPitch Diameter
mm
Bore diameter
mm
Type
WT-SW1500-24T25 24 114.9 Φ25 分割形
WT-SW1500-24T30 Φ30
WT-SW1500-24T35 Φ35
WT-SW1500-24T40 Φ40
WT-SW1500-24T40S □40
×
( Drag to move. )
■SW1500 Split Sprockets
Model No.Number of teethPitch Diameter
mm
Bore diameter
mm
Type
WT-SW1500-32T40S 32 153.0 □40 分割形
WT-SW1500-32T50S □50
WT-SW1500-32T60S □60
×
( Drag to move. )
■SW1500 Split Sprockets
Model No.Number of teethPitch Diameter
mm
Bore diameter
mm
Type
WT-SW1500-33T40S 33 157.8 □40 分割形
WT-SW1500-32T65S □65
Solid Sprockets(S1500)
Model No. Number of teeth Pitch Diameter
mm
Bore diameter
mm
Plain bore Diameter
mm
Type
WT-S1500-24T 24 114.9 Bore shape
and size
are
made-to-order.
Φ20 Integrated type
WT-S1500-25T 25 119.7
WT-S1500-27T 27 129.2
WT-S1500-31T 31 148.3
WT-S1500-32T 32 153.0
WT-S1500-33T 33 157.8


N1500 Solid Sprockets (Molded)
Model No. Number of teeth Pitch Diameter
mm
Bore diameter
mm
Type
WT-N1500-12T30 12 57.96 Φ30 Integrated type
WT-N1500-18T40S 18 86.38 □40 Integrated type

Applicable idler sprockets

※ Click the model No. for detailed information. Click to enlarge.



Model No. Number of teeth Pitch Diameter
mm
Bore diameter
mm
Type
WT-SW1500-24T■-IW 24 114.9 Φ30.3, Φ35.3, Φ40.3 Split
WT-SW1500-32T■-IW 32 153.0 Φ30.3, Φ35.3, Φ40.3
×
( Drag to move. )
Model No.Number of teethPitch Diameter
mm
Bore diameter
mm
Type
WT-SW1500-24T30-IW 24 114.9 Φ30.3 Split
WT-SW1500-24T35-IW Φ35.3
WT-SW1500-24T40-IW Φ40.3
×
( Drag to move. )
Model No.Number of teethPitch Diameter
mm
Bore diameter
mm
Type
WT-SW1500-32T30-IW 32 153.0 Φ30.3 Split
WT-SW1500-32T35-IW Φ35.3
WT-SW1500-32T40-IW Φ40.3

Applicable plastic rail

※ Click the model No. for detailed information. Click to enlarge.



Rail material symbol Model No. Thickness
mm
Width
mm
Main unit End Plate
PR type PMW PR520-PMW PRE520-PMW 5 20
M PR520-M PRE520-M 5 20
PR-PH type PLF PR-PH□□□-PLF PR-PH□□□E-PLF 3~5 20~40

The plastic rail has no heat resistance or chemical resistance.
Contact a Tsubaki representative when using in special environments or usage conditions.

Applicable accessories

※ Click the model No. for detailed information. Click to enlarge.

Nose Bars for WT1500 chain



Type Base Model No. Width
mm
Sliding Series WT-NB 76, 151, 302
Integrated Bearing Series WT-NR 76(75.5), 151

Dead Plate for WT1500 chain


Base Model No. Length
mm
WT-DP 400, 550, 700, 850
