Plastic modular chain WT0405-W  Major Specifications

WT0405-W

Features

  • The minimum chain pitch of 4.5mm in Tsubaki's Top Chain line-up enables a simple conveyor design.
  • It can be used as a transfer unit between conveyors thanks to minimized dead space.
  • It can even be used in vacuums thanks to superior radiation resistance and less outgassing.
  • Plastic Modular Chain made of PEEK resin, of which crystalline resin with excellent heat resistance (max. 150℃), chemical resistance, and sliding characteristics.

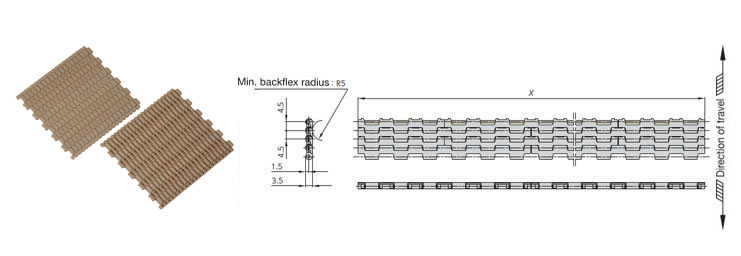

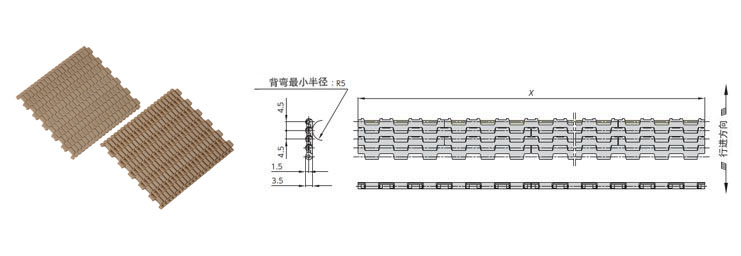

[ Click to enlarge ]
PDF Outline Drawing

Contact us for details.

CAD data in DXF format

See the table below

Click here for a list of all DXF files )

Major Specifications/Price/Delivery time

Chain pitch mm Open area %
4.5 1.4
Package
(Click the series for more information. )
Package symbol Color Availability Allowable load
per 1m width
kN/m
{kgf/m}
Mass per
1m2
kg/m2
Allowable speed
m/min
Operating Temperature Range
゚C

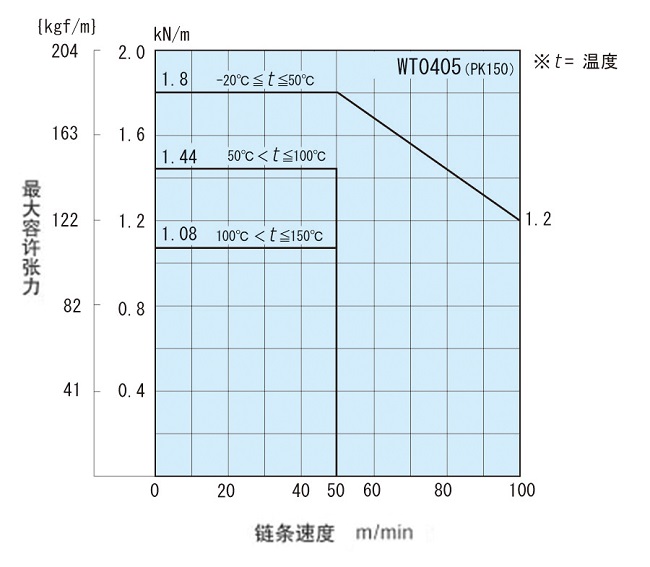

Pin material Allowable load graphs
With lube No lube
PK150  PK150 Light brown 1.8{183} 3 100 60 -20~150 Special engineering plastic Show allowable load graphs
Model No. Chain width
X
mm
Number of links
per one unit of chain
Max. allowable tension
kN
Chain
weight
kg/m
DXF data Standard Price / link Delivery
WT0405-W90-PK150 90 --- 0.16 0.27 DXF
WT0405-W135-PK150 135 --- 0.24 0.41 DXF
WT0405-W180-PK150 180 --- 0.32 0.54 DXF
WT0405-W225-PK150 225 --- 0.40 0.68 DXF
WT0405-W270-PK150 270 --- 0.48 0.81 DXF
WT0405-W315-PK150 315 --- 0.56 0.95 DXF
WT0405-W360-PK150 360 --- 0.64 1.08 DXF
WT0405-W405-PK150 405 --- 0.72 1.22 DXF
WT0405-W450-PK150 450 --- 0.81 1.35 DXF
WT0405-W495-PK150 495 --- 0.89 1.49 DXF
WT0405-W540-PK150 540 --- 0.97 1.62 DXF
WT0405-W585-PK150 585 --- 1.05 1.76 DXF
WT0405-W630-PK150 630 --- 1.13 1.89 DXF
WT0405-W675-PK150 675 --- 1.21 2.03 DXF
WT0405-W720-PK150 720 --- 1.29 2.16 DXF
WT0405-W765-PK150 765 --- 1.37 2.30 DXF
WT0405-W810-PK150 810 --- 1.45 2.43 DXF
WT0405-W855-PK150 855 --- 1.53 2.57 DXF
WT0405-W900-PK150 900 --- 1.62 2.70 DXF
WT0405-W945-PK150 945 --- 1.70 2.84 DXF

Notes
 1.Values for max. allowable load are at ambient temperature (20℃) and assume that tension acts uniformly over the entire chain width.
  Also, it differ depending on usage conditions such as operating temperature, speed, etc. See the load graph of chain.
 2.Availability
  ○:Made-to-order product
  ×:Not available
  ▲:Special configurations may be available. Contact a Tsubaki representative for further information.

Applicable sprockets

※ Click the model No. for detailed information. Click to enlarge.


Model No. Number of teeth Pitch Diameter
mm
Bore diameter
mm
Plain bore Diameter
mm
Type
WT-S0400-16T 16 23.07 Bore shape
and size
are
made-to-order.
Φ8 Integrated type
WT-S0400-20T 20 28.77
WT-S0400-24T 24 34.48
WT-S0400-32T 32 45.91
WT-S0400-40T 40 57.35

The sprocket has no heat resistance or chemical resistance.
Contact a Tsubaki representative when using in special environments or usage conditions.

Applicable plastic rail

※ Click the model No. for detailed information. Click to enlarge.



Rail material symbol Model No. Thickness
mm
Width
mm
Main unit End Plate
PR type PMW PR520-PMW PRE520-PMW 5 20
M PR520-M PRE520-M 5 20
PR-PH type PLF PR-PH□□□-PLF PR-PH□□□E-PLF 3~5 20~40

The plastic rail has no heat resistance or chemical resistance.
Contact a Tsubaki representative when using in special environments or usage conditions.
