Plastic modular chain BTO6  Major Specifications

BTO6

Features

  • Combination of wide type and narrow type plastic module like bricks enables a wide conveying surface suitable for conveying bulk quantities.
  • Small chain pitch of 19.05mm is ideal for conveying small, lightweight containers.
  • Simple construction with four parts allows for easy part replacement and reduced maintenance time.
  • Conveying surface is perforated with numerous drainage holes that effectively remove excess lubricant and water remaining on conveying surface.
  • All-plastic construction. Lightweight and easy to handle.

[ Click to enlarge ]

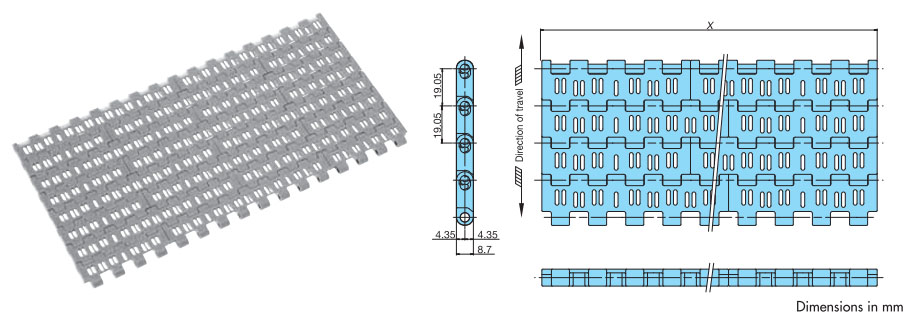

PDF Outline Drawing

Contact us for details.

CAD data in DXF format

See the table below

Click here for a list of all DXF files )

Major Specifications/Price/Delivery time

Chain pitch mm Open area %
19.05 17
Package
(Click the series for more information. )
Package symbol Color Availability Allowable load
per 1m width
kN/m
Mass per
1m2
kg/m2
Allowable speed
m/min
Operating Temperature Range
゚C
Pin material Allowable load graphs
With lube No lube
Normal  None Gray 12.8 6.56 50 50 -20~(60)80 Special engineering plastic Contact us for details.
Model No. Chain width
X
mm
Number of links
per one unit of chain
Max. allowable tension
kN
Chain
weight
kg/m
DXF data Standard Price / link Delivery
BTO6-762 76.2 54 0.97 0.50 DXF
BTO6-1524 152.4 54 1.95 1.00 DXF
BTO6-2286 228.6 54 2.92 1.50 DXF
BTO6-3048 304.8 54 3.90 2.00 DXF
BTO6-3810 381.0 54 4.87 2.50 DXF
BTO6-4572 457.2 54 5.85 3.00 DXF
BTO6-5334 533.4 54 6.82 3.50 DXF
BTO6-6096 609.6 54 7.80 4.00 DXF
BTO6-6858 685.8 54 8.77 4.50 DXF
BTO6-7620 762.0 54 9.75 5.00 DXF
BTO6-8382 838.2 54 10.7 5.50 DXF
BTO6-9144 914.4 54 11.7 6.00 DXF
BTO6-9906 990.6 54 12.6 6.50 DXF
BTO6-10668 1066.8 54 13.6 7.00 DXF
BTO6-11430 1143.0 54 14.6 7.50 DXF
BTO6-12192 1219.2 54 15.6 8.00 DXF
BTO6-12954 1295.4 54 16.5 8.50 DXF
BTO6-13716 1371.6 54 17.5 9.00 DXF
BTO6-14478 1447.8 54 18.5 9.50 DXF
BTO6-15240 1524.0 54 19.5 10.00 DXF
Low Friction/Anti-Wear  LFW White 12.8 6.56 50 50 -20~(60)80 Special engineering plastic Contact us for details.
Model No. Chain width
X
mm
Number of links
per one unit of chain
Max. allowable tension
kN
Chain
weight
kg/m
DXF data Standard Price / link Delivery
BTO6-762-LFW 76.2 54 0.97 0.50 DXF
BTO6-1524-LFW 152.4 54 1.95 1.00 DXF
BTO6-2286-LFW 228.6 54 2.92 1.50 DXF
BTO6-3048-LFW 304.8 54 3.90 2.00 DXF
BTO6-3810-LFW 381.0 54 4.87 2.50 DXF
BTO6-4572-LFW 457.2 54 5.85 3.00 DXF
BTO6-5334-LFW 533.4 54 6.82 3.50 DXF
BTO6-6096-LFW 609.6 54 7.80 4.00 DXF
BTO6-6858-LFW 685.8 54 8.77 4.50 DXF
BTO6-7620-LFW 762.0 54 9.75 5.00 DXF
BTO6-8382-LFW 838.2 54 10.7 5.50 DXF
BTO6-9144-LFW 914.4 54 11.7 6.00 DXF
BTO6-9906-LFW 990.6 54 12.6 6.50 DXF
BTO6-10668-LFW 1066.8 54 13.6 7.00 DXF
BTO6-11430-LFW 1143.0 54 14.6 7.50 DXF
BTO6-12192-LFW 1219.2 54 15.6 8.00 DXF
BTO6-12954-LFW 1295.4 54 16.5 8.50 DXF
BTO6-13716-LFW 1371.6 54 17.5 9.00 DXF
BTO6-14478-LFW 1447.8 54 18.5 9.50 DXF
BTO6-15240-LFW 1524.0 54 19.5 10.00 DXF
Low Friction/Anti-Wear  LFG Green 12.8 6.56 50 50 -20~(60)80 Special engineering plastic Contact us for details.
Model No. Chain width
X
mm
Number of links
per one unit of chain
Max. allowable tension
kN
Chain
weight
kg/m
DXF data Standard Price / link Delivery
BTO6-762-LFG 76.2 54 0.97 0.50 DXF
BTO6-1524-LFG 152.4 54 1.95 1.00 DXF
BTO6-2286-LFG 228.6 54 2.92 1.50 DXF
BTO6-3048-LFG 304.8 54 3.90 2.00 DXF
BTO6-3810-LFG 381.0 54 4.87 2.50 DXF
BTO6-4572-LFG 457.2 54 5.85 3.00 DXF
BTO6-5334-LFG 533.4 54 6.82 3.50 DXF
BTO6-6096-LFG 609.6 54 7.80 4.00 DXF
BTO6-6858-LFG 685.8 54 8.77 4.50 DXF
BTO6-7620-LFG 762.0 54 9.75 5.00 DXF
BTO6-8382-LFG 838.2 54 10.7 5.50 DXF
BTO6-9144-LFG 914.4 54 11.7 6.00 DXF
BTO6-9906-LFG 990.6 54 12.6 6.50 DXF
BTO6-10668-LFG 1066.8 54 13.6 7.00 DXF
BTO6-11430-LFG 1143.0 54 14.6 7.50 DXF
BTO6-12192-LFG 1219.2 54 15.6 8.00 DXF
BTO6-12954-LFG 1295.4 54 16.5 8.50 DXF
BTO6-13716-LFG 1371.6 54 17.5 9.00 DXF
BTO6-14478-LFG 1447.8 54 18.5 9.50 DXF
BTO6-15240-LFG 1524.0 54 19.5 10.00 DXF
Low Friction/Anti-Wear  LFB Brown 12.8 6.56 50 50 -20~(60)80 Special engineering plastic Show allowable load graphs
Model No. Chain width
X
mm
Number of links
per one unit of chain
Max. allowable tension
kN
Chain
weight
kg/m
DXF data Standard Price / link Delivery
BTO6-762-LFB 76.2 54 0.97 0.50 DXF
BTO6-1524-LFB 152.4 54 1.95 1.00 DXF
BTO6-2286-LFB 228.6 54 2.92 1.50 DXF
BTO6-3048-LFB 304.8 54 3.90 2.00 DXF
BTO6-3810-LFB 381.0 54 4.87 2.50 DXF
BTO6-4572-LFB 457.2 54 5.85 3.00 DXF
BTO6-5334-LFB 533.4 54 6.82 3.50 DXF
BTO6-6096-LFB 609.6 54 7.80 4.00 DXF
BTO6-6858-LFB 685.8 54 8.77 4.50 DXF
BTO6-7620-LFB 762.0 54 9.75 5.00 DXF
BTO6-8382-LFB 838.2 54 10.7 5.50 DXF
BTO6-9144-LFB 914.4 54 11.7 6.00 DXF
BTO6-9906-LFB 990.6 54 12.6 6.50 DXF
BTO6-10668-LFB 1066.8 54 13.6 7.00 DXF
BTO6-11430-LFB 1143.0 54 14.6 7.50 DXF
BTO6-12192-LFB 1219.2 54 15.6 8.00 DXF
BTO6-12954-LFB 1295.4 54 16.5 8.50 DXF
BTO6-13716-LFB 1371.6 54 17.5 9.00 DXF
BTO6-14478-LFB 1447.8 54 18.5 9.50 DXF
BTO6-15240-LFB 1524.0 54 19.5 10.00 DXF
Advanced Low friction and Wear Resistant  ALF Light blue 12.8 6.56 50 50 -20~(60)80 Special engineering plastic Show allowable load graphs
Model No. Chain width
X
mm
Number of links
per one unit of chain
Max. allowable tension
kN
Chain
weight
kg/m
DXF data Standard Price / link Delivery
BTO6-762-ALF 76.2 54 0.97 0.50 DXF
BTO6-1524-ALF 152.4 54 1.95 1.00 DXF
BTO6-2286-ALF 228.6 54 2.92 1.50 DXF
BTO6-3048-ALF 304.8 54 3.90 2.00 DXF
BTO6-3810-ALF 381.0 54 4.87 2.50 DXF
BTO6-4572-ALF 457.2 54 5.85 3.00 DXF
BTO6-5334-ALF 533.4 54 6.82 3.50 DXF
BTO6-6096-ALF 609.6 54 7.80 4.00 DXF
BTO6-6858-ALF 685.8 54 8.77 4.50 DXF
BTO6-7620-ALF 762.0 54 9.75 5.00 DXF
BTO6-8382-ALF 838.2 54 10.7 5.50 DXF
BTO6-9144-ALF 914.4 54 11.7 6.00 DXF
BTO6-9906-ALF 990.6 54 12.6 6.50 DXF
BTO6-10668-ALF 1066.8 54 13.6 7.00 DXF
BTO6-11430-ALF 1143.0 54 14.6 7.50 DXF
BTO6-12192-ALF 1219.2 54 15.6 8.00 DXF
BTO6-12954-ALF 1295.4 54 16.5 8.50 DXF
BTO6-13716-ALF 1371.6 54 17.5 9.00 DXF
BTO6-14478-ALF 1447.8 54 18.5 9.50 DXF
BTO6-15240-ALF 1524.0 54 19.5 10.00 DXF
Low Friction  WR Dark green 12.8 6.56 50 50 -20~(60)80 Special engineering plastic Contact us for details.
Model No. Chain width
X
mm
Number of links
per one unit of chain
Max. allowable tension
kN
Chain
weight
kg/m
DXF data Standard Price / link Delivery
BTO6-762-WR 76.2 54 0.97 0.50 DXF
BTO6-1524-WR 152.4 54 1.95 1.00 DXF
BTO6-2286-WR 228.6 54 2.92 1.50 DXF
BTO6-3048-WR 304.8 54 3.90 2.00 DXF
BTO6-3810-WR 381.0 54 4.87 2.50 DXF
BTO6-4572-WR 457.2 54 5.85 3.00 DXF
BTO6-5334-WR 533.4 54 6.82 3.50 DXF
BTO6-6096-WR 609.6 54 7.80 4.00 DXF
BTO6-6858-WR 685.8 54 8.77 4.50 DXF
BTO6-7620-WR 762.0 54 9.75 5.00 DXF
BTO6-8382-WR 838.2 54 10.7 5.50 DXF
BTO6-9144-WR 914.4 54 11.7 6.00 DXF
BTO6-9906-WR 990.6 54 12.6 6.50 DXF
BTO6-10668-WR 1066.8 54 13.6 7.00 DXF
BTO6-11430-WR 1143.0 54 14.6 7.50 DXF
BTO6-12192-WR 1219.2 54 15.6 8.00 DXF
BTO6-12954-WR 1295.4 54 16.5 8.50 DXF
BTO6-13716-WR 1371.6 54 17.5 9.00 DXF
BTO6-14478-WR 1447.8 54 18.5 9.50 DXF
BTO6-15240-WR 1524.0 54 19.5 10.00 DXF
Low Friction NLF Dark gray × -
Heat Resistant/High Speed KV150,180,250 Black × -
High Temperature HTW White Contact us for details.
Low Temperature LTW White × -
Chemical Resistant Y Matte white Contact us for details.
Electroconductive E Black Contact us for details.
Impact Resistant DIA Cream Contact us for details.
Impact Resistant DIY Green Contact us for details.
Antibacterial/Mold Resistant MWS Cream Contact us for details.
Metal Detectable MPD/MPW Black Contact us for details.

Notes
 1.Operating temperature of ( ) is for wet conditions.
  When plastic pins are replaced with stainless steel pins, the chain can be used from 60℃ to 80℃ in wet conditions.
  In this case, initial chain length will be lightly longer and chain mass heavi
 2.Values for max. allowable load are at ambient temperature (20℃) and assume that tension acts uniformly over the entire chain width.
  Also, it differ depending on usage conditions such as operating temperature, speed, etc. See the load graph of chain.
 3.Availability
  ○:Made-to-order product
  ×:Not available
  ▲:Special configurations may be available. Contact a Tsubaki representative for further information.
 4.Standard chain widths are the inclements of 3 inches(76.2mm). Widths other than above are available upon request. Contact a Tsubaki representative for further information.
 5.Chain width X shown is a nominal width. Chain width is subject to expansion or contraction with changes in temperature.
  Expansion/contraction rate is 0.00015/℃ based on reference temperature of 20℃.

Applicable sprockets

※ Click the model No. for detailed information. Click to enlarge.



Model No. Chain types
for KV150 and KV250
Number of teeth Pitch Diameter
mm
Bore diameter
mm
Type
BT6-10T-38H BT6-KV-10T-38H 10 61.65 Hexagonal, width across flat 38 Integrated type
BT6-24T-■ BT6-KV-24T-50S 24 145.95 □40, □50, □65
×
( Drag to move. )
Model No.Chain types
for KV150 and KV250
Number of teethPitch Diameter
mm
Bore diameter
mm
Type
BT6-24T-40S --- 24 145.95 □40 一体形
BT6-24T-50S BT6-KV-24T-50S □50
BT6-24T-65S --- □65

Applicable plastic rail

※ Click the model No. for detailed information. Click to enlarge.



Rail material symbol Model No. Thickness
mm
Width
mm
Main unit End Plate
PR type PMW PR520-PMW PRE520-PMW 5 20
M PR520-M PRE520-M 5 20
PR-PH type PLF PR-PH□□□-PLF PR-PH□□□E-PLF 3~5 20~40

The plastic rail has no heat resistance or chemical resistance.
Contact a Tsubaki representative when using in special environments or usage conditions.
