Plastic modular chain WT1505TOD-M  Major Specifications

WT1505TOD-M

Features

  • Extended taper on one side of the base chain enables smooth right-angle transfers.
  • Small chain pitch of 15mm is ideal for conveying small, lightweight containers.
  • All-plastic construction. Lightweight and easy to handle.

[ Click to enlarge ]
PDF Outline Drawing

Contact us for details.

CAD data in DXF format

See the table below

Click here for a list of all DXF files )

Major Specifications/Price/Delivery time

Chain pitch mm Open area %
15 2
Package
(Click the series for more information. )
Package symbol Color Availability Allowable speed
m/min
Operating Temperature Range
゚C
Pin material Allowable load graphs
With lube No lube
Normal  None Gray 120 50 -20~(60)80 Special engineering plastic Contact us for details.
Model No. Chain width
X
mm
Number of links
per one unit of chain
Allowable load
kN
Chain
weight
kg/m
DXF data Standard Price / link Delivery
WT1505TOD-M450L 160 204 1.4 1.2 DXF
WT1505TOD-M450R 160 204 1.4 1.2 DXF
Low Friction/Anti-Wear  LFW White 120 50 -20~(60)80 Special engineering plastic Contact us for details.
Model No. Chain width
X
mm
Number of links
per one unit of chain
Allowable load
kN
Chain
weight
kg/m
DXF data Standard Price / link Delivery
WT1505TOD-M450L-LFW 160 204 1.4 1.2 DXF
WT1505TOD-M450R-LFW 160 204 1.4 1.2 DXF

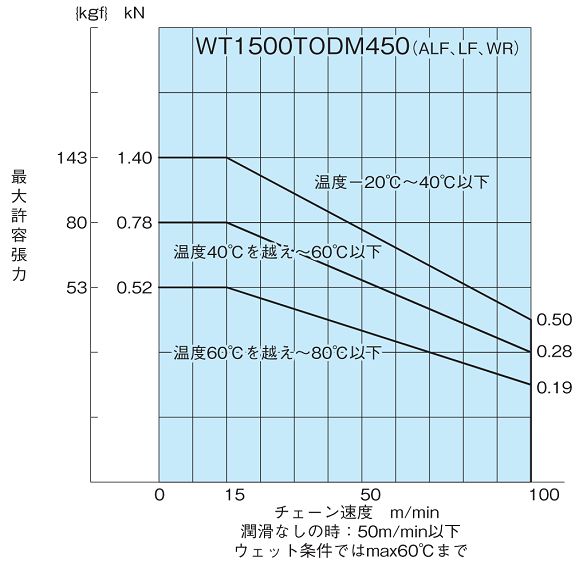

Low Friction/Anti-Wear  LFG Green 120 50 -20~(60)80 Special engineering plastic Show allowable load graphs
Model No. Chain width
X
mm
Number of links
per one unit of chain
Allowable load
kN
Chain
weight
kg/m
DXF data Standard Price / link Delivery
WT1505TOD-M450L-LFG 160 204 1.4 1.2 DXF
WT1505TOD-M450R-LFG 160 204 1.4 1.2 DXF
Low Friction/Anti-Wear  LFB Brown 120 50 -20~(60)80 Special engineering plastic Contact us for details.
Model No. Chain width
X
mm
Number of links
per one unit of chain
Allowable load
kN
Chain
weight
kg/m
DXF data Standard Price / link Delivery
WT1505TOD-M450L-LFB 160 204 1.4 1.2 DXF
WT1505TOD-M450R-LFB 160 204 1.4 1.2 DXF
Advanced Low friction and Wear Resistant  ALF Light blue 120 50 -20~(60)80 Special engineering plastic Show allowable load graphs
Model No. Chain width
X
mm
Number of links
per one unit of chain
Allowable load
kN
Chain
weight
kg/m
DXF data Standard Price / link Delivery
WT1505TOD-M450L-ALF 160 204 1.4 1.2 DXF
WT1505TOD-M450R-ALF 160 204 1.4 1.2 DXF
Low Friction  NLF Dark gray 120 50 -20~(60)80 Special engineering plastic Contact us for details.
Model No. Chain width
X
mm
Number of links
per one unit of chain
Allowable load
kN
Chain
weight
kg/m
DXF data Standard Price / link Delivery
WT1505TOD-M450L-NLF 160 204 1.4 1.2 DXF
WT1505TOD-M450R-NLF 160 204 1.4 1.2 DXF
Low Friction  WR Dark green 120 50 -20~(60)80 Special engineering plastic Show allowable load graphs
Model No. Chain width
X
mm
Number of links
per one unit of chain
Allowable load
kN
Chain
weight
kg/m
DXF data Standard Price / link Delivery
WT1505TOD-M450L-WR 160 204 1.4 1.2 DXF
WT1505TOD-M450R-WR 160 204 1.4 1.2 DXF
Heat Resistant/High Speed KV150,180,250 Black × -
Chemical Resistant Y Matte white × -
Electroconductive E Black × -
Impact Resistant DIA/DIY Cream/Green × -
Antibacterial/Mold Resistant MWS Cream × -
Metal Detectable MPD/MPW Black × -
Middle Friction MF Yellow × -

Notes
 1.Availability
  ● : Standard product
  ○:Made-to-order product
  ×:Not available
  ▲:Special configurations may be available. Contact a Tsubaki representative for further information.
 2.Operating temperature of ( ) is for wet conditions.
 3.Cannot be used with nose bars.

Applicable sprockets

※ Click the model No. for detailed information. Click to enlarge.






Split Sprockets(SW1500)
Model No. Number of teeth Pitch Diameter
mm
Bore diameter
mm
Type
WT-SW1500-24T■ 24 114.9 Φ25, Φ30, Φ35, Φ40, □40 Split
WT-SW1500-32T■ 32 153.0 □40, □50, □60
WT-SW1500-33T■ 33 157.8 □40, □65
×
( Drag to move. )
■SW1500 Split Sprockets
Model No.Number of teethPitch Diameter
mm
Bore diameter
mm
Type
WT-SW1500-24T25 24 114.9 Φ25 分割形
WT-SW1500-24T30 Φ30
WT-SW1500-24T35 Φ35
WT-SW1500-24T40 Φ40
WT-SW1500-24T40S □40
×
( Drag to move. )
■SW1500 Split Sprockets
Model No.Number of teethPitch Diameter
mm
Bore diameter
mm
Type
WT-SW1500-32T40S 32 153.0 □40 分割形
WT-SW1500-32T50S □50
WT-SW1500-32T60S □60
×
( Drag to move. )
■SW1500 Split Sprockets
Model No.Number of teethPitch Diameter
mm
Bore diameter
mm
Type
WT-SW1500-33T40S 33 157.8 □40 分割形
WT-SW1500-32T65S □65
Solid Sprockets(S1500)
Model No. Number of teeth Pitch Diameter
mm
Bore diameter
mm
Plain bore Diameter
mm
Type
WT-S1500-24T 24 114.9 Bore shape
and size
are
made-to-order.
Φ20 Integrated type
WT-S1500-25T 25 119.7
WT-S1500-27T 27 129.2
WT-S1500-31T 31 148.3
WT-S1500-32T 32 153.0
WT-S1500-33T 33 157.8


N1500 Solid Sprockets (Molded)
Model No. Number of teeth Pitch Diameter
mm
Bore diameter
mm
Type
WT-N1500-12T30 12 57.96 Φ30 Integrated type
WT-N1500-18T40S 18 86.38 □40 Integrated type

Applicable idler sprockets

※ Click the model No. for detailed information. Click to enlarge.



Model No. Number of teeth Pitch Diameter
mm
Bore diameter
mm
Type
WT-SW1500-24T■-IW 24 114.9 Φ30.3, Φ35.3, Φ40.3 Split
WT-SW1500-32T■-IW 32 153.0 Φ30.3, Φ35.3, Φ40.3
×
( Drag to move. )
Model No.Number of teethPitch Diameter
mm
Bore diameter
mm
Type
WT-SW1500-24T30-IW 24 114.9 Φ30.3 Split
WT-SW1500-24T35-IW Φ35.3
WT-SW1500-24T40-IW Φ40.3
×
( Drag to move. )
Model No.Number of teethPitch Diameter
mm
Bore diameter
mm
Type
WT-SW1500-32T30-IW 32 153.0 Φ30.3 Split
WT-SW1500-32T35-IW Φ35.3
WT-SW1500-32T40-IW Φ40.3

Applicable plastic rail

※ Click the model No. for detailed information. Click to enlarge.



Rail material symbol Model No. Thickness
mm
Width
mm
Main unit End Plate
PR type PMW PR520-PMW PRE520-PMW 5 20
M PR520-M PRE520-M 5 20
PR-PH type PLF PR-PH□□□-PLF PR-PH□□□E-PLF 3~5 20~40

The plastic rail has no heat resistance or chemical resistance.
Contact a Tsubaki representative when using in special environments or usage conditions.

Applicable accessories

※ Click the model No. for detailed information. Click to enlarge.

Nose Bars for WT1500 chain



Type Base Model No. Width
mm
Sliding Series WT-NB 76, 151, 302
Integrated Bearing Series WT-NR 76(75.5), 151

Dead Plate for WT1500 chain


Base Model No. Length
mm
WT-DP 400, 550, 700, 850
