Sprockets Major Specifications
Model No. ：WT-S6300-16T

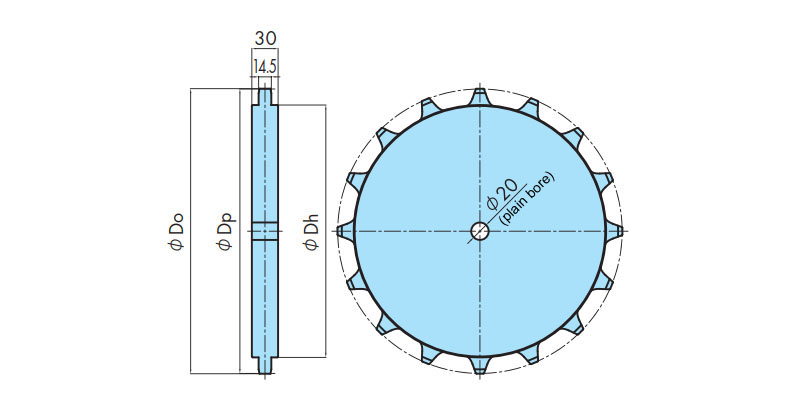

[Click to enlarge ]
PDF Outline Drawing
CAD data in DXF format
Contact us for details.
Standard Price
Contact us for details.
Delivery
Contact us for details.
Catalogs ・Instruction Manuals
Applicable Chains
WT6306-W
Major Specifications
| Model No. | Number of teeth | Pitch Diameter Dp mm | Outer Diameter Do mm | Shaft bore style |
Bore diameter d mm |
Plain bore Diameter mm |
Hub diameter Dh mm |
|---|---|---|---|---|---|---|---|
| WT-S6300-16T | 16 | 325.49 | 326.2 | Production will be considered upon request. Standard is square hole shape. | Bore shape and size are made-to-order. | 20 | 289 |
| Material | Color | Type | Operating Temperature Range |
|---|---|---|---|
| Polyamide | Blue | Integrated type | -20℃～60℃ |
Notes
1.We can also manufacture sprockets with teeth numbers, sprocket shapes, and materials other than those listed above. Please contact us for more information.
