Sprockets WT-S1300 Major Specifications
Model No. ：WT-S1300-28T
[Click to enlarge ]

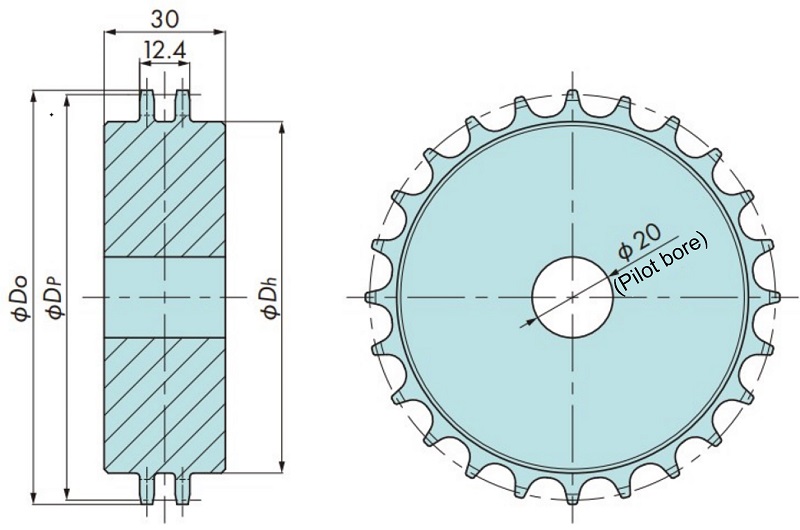

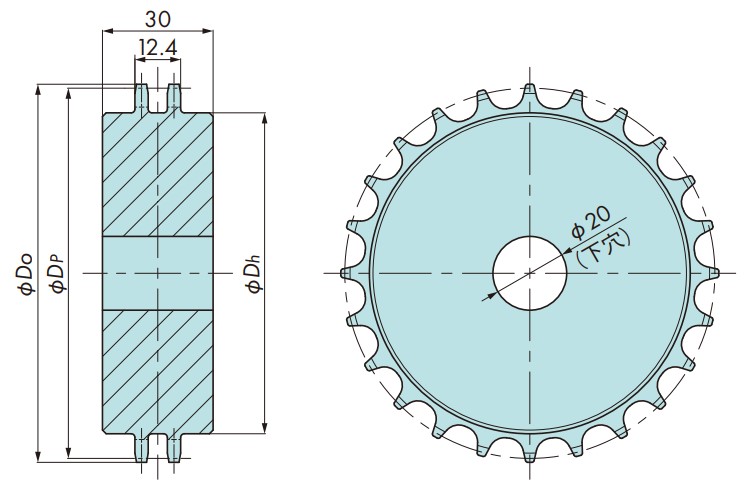

PDF Outline Drawing
CAD data in DXF format
Contact us for details.
（Click here for a list of all DXF files )
3D CAD data
Standard Price
Contact us for details.
Delivery
Contact us for details.
| ※ | The CAD data contained herein is made available to you via the CAD drawing library; PARTcommunity is provided by CADENAS WEB2CAD Co. |
| ※ | Please direct your inquiries regarding the CAD data service or PARTcommunity to: CADENAS WEB2CAD Co. TEL: +81 (3) 5961-5031 FAX: +81 (3) 5961-5032 |
Catalogs ・Instruction Manuals
Applicable Chains
WT1306-W
Major Specifications
| Model No. | Number of teeth | Pitch Diameter Dp mm | Outer Diameter Do mm | Shaft bore style |
Shaft Bore Diameter d mm |
Plain bore Diameter mm |
Hub diameter Dh mm |
|---|---|---|---|---|---|---|---|
| WT-S1300-28T | 28 | 117.00 | 119.3 | Bore shape and size are made-to-order. | Bore shape and size are made-to-order. | 20 | 103 |
| Material | Color | Type | Operating Temperature Range |
|---|---|---|---|
| Ultra high molecular weight polyethylene | Green | Integrated type | -20℃～60℃ |
Notes
1.We can also manufacture sprockets with teeth numbers, sprocket shapes, and materials other than those listed above. Please contact us for more information.
2.Use a cold rolled steel shaft.
Contact Information
Online Inquiries
For inquiries in English, visit the Inquiries page on our Tsubaki Group website.
