Sprockets WT-N1300 Major Specifications
Model No. ：WT-N1300-24T30

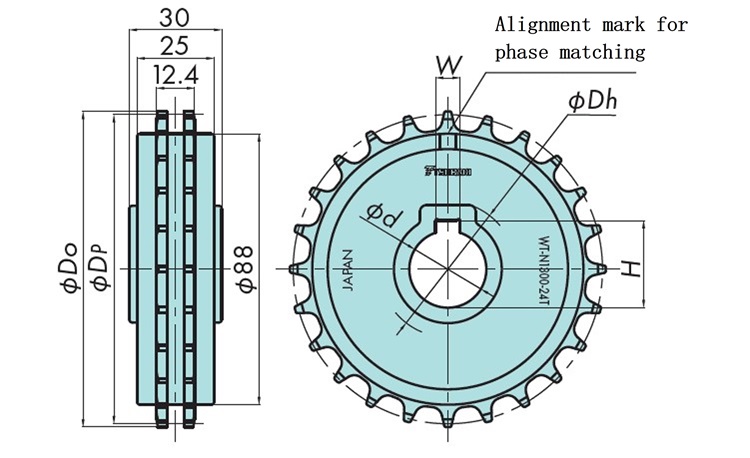

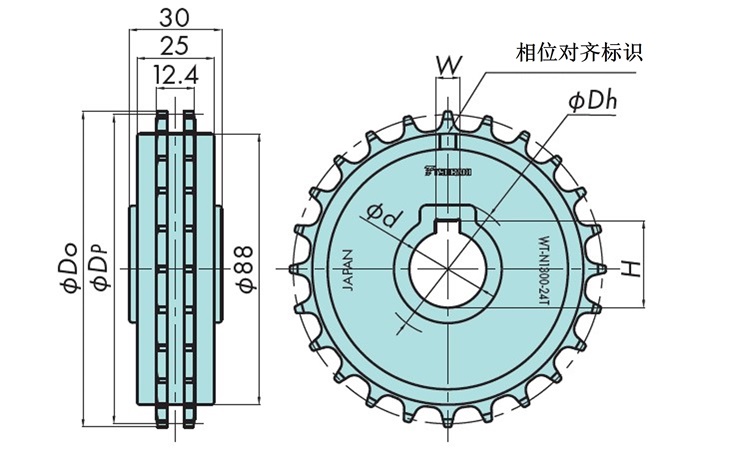

[Click to enlarge ]
Standard Price
Contact us for details.
Delivery
Contact us for details.
| ※ | The CAD data contained herein is made available to you via the CAD drawing library; PARTcommunity is provided by CADENAS WEB2CAD Co. |
| ※ | Please direct your inquiries regarding the CAD data service or PARTcommunity to: CADENAS WEB2CAD Co. TEL: +81 (3) 5961-5031 FAX: +81 (3) 5961-5032 |
Catalogs ・Instruction Manuals
Applicable Chains
WT1306-W
Major Specifications
| Model No. | Number of teeth | Pitch Diameter Dp mm | Outer Diameter Do mm | Shaft bore style |
Shaft Bore Diameter d mm |
Keyway W mm | Keyway H mm |
Hub diameter Dh mm |
Estimated Mass kg |
|---|---|---|---|---|---|---|---|---|---|
| WT-N1300-24T30 | 24 | 100.36 | 102.5 | Round | Φ30 | 8 | 33.3 | 49 | 0.1 |
| Material | Color | Type | Operating Temperature Range |
|---|---|---|---|
| Reinforced polyamide | Black | Integrated type | -20℃～80℃ |
Notes
1.Is Stock.
2.Sprockets are made to fit loosely on the shaft to absorb differences in thermal expansion between the chain and conveyor, and alignment errors between the sprocket and chain.
3.Use a cold rolled steel shaft.
