Sprockets WT-N0700 Major Specifications

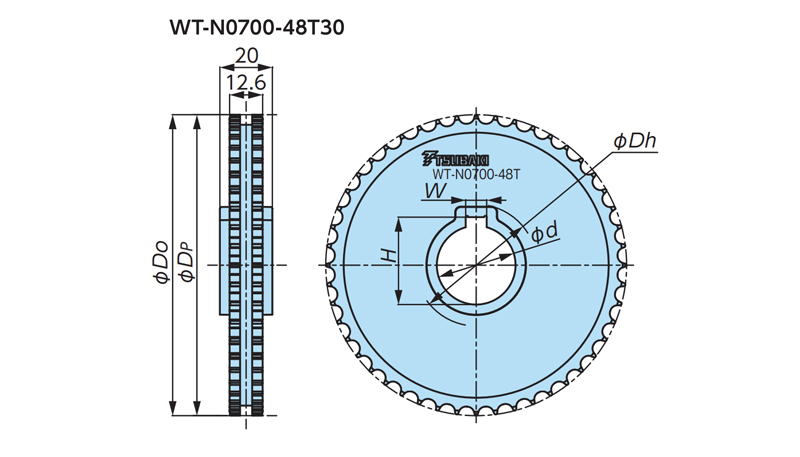

Model No. ：WT-N0700-48T30
[Click to enlarge ]
Standard Price
Contact us for details.
Delivery
Contact us for details.
| ※ | The CAD data contained herein is made available to you via the CAD drawing library; PARTcommunity is provided by CADENAS WEB2CAD Co. |
| ※ | Please direct your inquiries regarding the CAD data service or PARTcommunity to: CADENAS WEB2CAD Co. TEL: +81 (3) 5961-5031 FAX: +81 (3) 5961-5032 |
Catalogs ・Instruction Manuals
Applicable Chains
WT0705-M, WT0705-W
Major Specifications
| Model No. | Number of teeth | Pitch Diameter Dp mm | Outer Diameter Do mm | Shaft bore style |
Shaft Bore Diameter d mm |
Keyway W mm | Keyway H mm |
Hub diameter Dh mm |
Estimated Mass kg |
|---|---|---|---|---|---|---|---|---|---|
| WT-N0700-48T30 | 48 | 114.67 | 114.7 | Round | Φ30 | 8 | 33.3 | 47 | 0.072 |
| Material | Color | Type | Operating Temperature Range |
|---|---|---|---|
| Reinforced polyamide | Black | Integrated type | -20℃～80℃ |
Notes
1.Is Stock.
2.Sprockets are made to fit loosely on the shaft to absorb differences in thermal expansion between the chain and conveyor, and alignment errors between the sprocket and chain.
3.Sprockets can be also manufactured with other numbers of teeth, sprocket types, and materials than noted above (all machined items).
4.Use a cold rolled steel shaft.
5.When installing the sprockets on the shaft, the inscribedmarkings or identification marks should be used to orientthe sprockets so that they all face the same direction and to keep the position of the teeth aligned.
