Universal foot (UF)
The universal foot can be used as a foot for a conveyor or other equipment. Use it on an inclined floor or in a place where the level needs adjustment. The hole-drillable type can be fixed to the floor.
[Click to enlarge ]
| Model No. | Material | Allowable load kN |
Equivalent to MB | DXF data | Standard Price | Delivery | PDF Outline Drawing |
||
|---|---|---|---|---|---|---|---|---|---|
| Bolt | Main body plate | Antiskid rubber pad |
|||||||

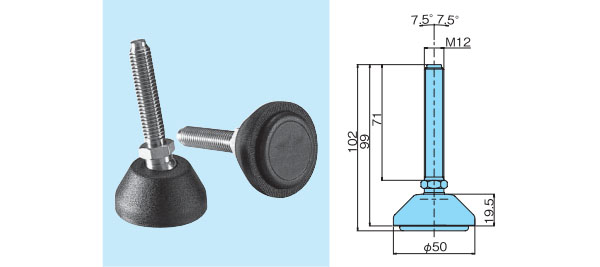

| TP-C17107T-UF | Stainless Steel (SUS304) |
Reinforced polyamide | Oil-resistant rubber Shore hardness 70 |
12.0 | MB173-68729-UF | DXF | Contact us for details. | Contact us for details. | |
Notes
1.The allowable load is the maximum allowable load in a static state.
[Click to enlarge ]
| Model No. | Material | DXF data | Standard Price | Delivery | PDF Outline Drawing |
||
|---|---|---|---|---|---|---|---|
| Bolt | Main body plate | Antiskid rubber pad | |||||

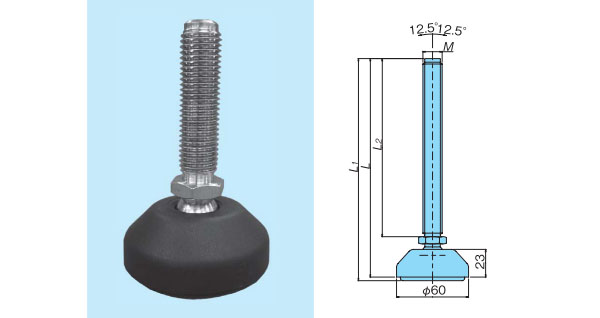

| TP-C171054T-UF | Stainless Steel (SUS304) | Reinforced polyamide | Oil-resistant rubber Shore hardness 70 |
DXF | Contact us for details. | Contact us for details. | |
| TP-C171056T-UF | DXF | Contact us for details. | Contact us for details. | ||||
| TP-C171060T-UF | DXF | Contact us for details. | Contact us for details. | ||||
| Model No. | L | L1 | L2 | Allowable load kN |
M | Equivalent to MB |
|---|---|---|---|---|---|---|
| TP-C171054T-UF | 94 | 97 | 60 | 15.0 | M16 | MB98-59901-UF |
| TP-C171056T-UF | 179 | 182 | 145 | 15.0 | M16 | MB98-67304-RF |
| TP-C171060T-UF | 179 | 182 | 145 | 15.0 | M20 | MB98-67124-RF |
Notes
1.The allowable load is the maximum allowable load in a static state.

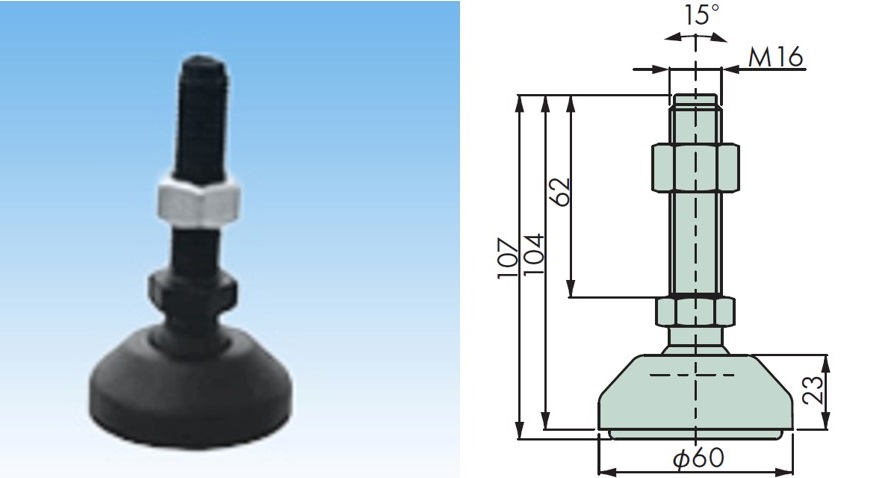

[Click to enlarge ]
| Model No. | Material | Allowable load kN |
Equivalent to MB | DXF data | Standard Price | Delivery | PDF Outline Drawing |
|||
|---|---|---|---|---|---|---|---|---|---|---|
| Bolt | Nut | Main body plate | Antiskid rubber pad |
|||||||
| TP-C17715T-UF | Polyamide with steel insert | Stainless Steel | Reinforced polyamide | Oil-resistant rubber Shore hardness 70 |
0.78 | - | DXF | Contact us for details. | Contact us for details. | |
Notes
1.The allowable load is the maximum allowable load in a static state.
[Click to enlarge ]
| Model No. | Material | Allowable load kN |
Equivalent to MB | DXF data | Standard Price | Delivery | PDF Outline Drawing |
||
|---|---|---|---|---|---|---|---|---|---|
| Bolt, Nut | Main body plate | Antiskid rubber pad |
|||||||

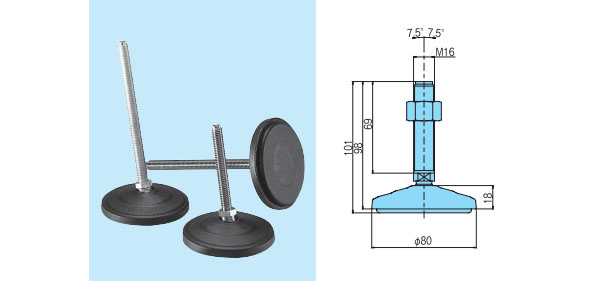

| TP-C17532T-UF | Stainless Steel (SUS304) |
Reinforced polyamide | Oil-resistant rubber Shore hardness 70 |
15.0 | MB172-56571-UF | DXF | Contact us for details. | Contact us for details. | |
Notes
1.The allowable load is the maximum allowable load in a static state.
[Click to enlarge ]
| Model No. | Material | Allowable load kN |
Equivalent to MB | DXF data | Standard Price | Delivery | PDF Outline Drawing |
||
|---|---|---|---|---|---|---|---|---|---|
| Bolt, Nut | Main body plate | Antiskid rubber pad |
|||||||

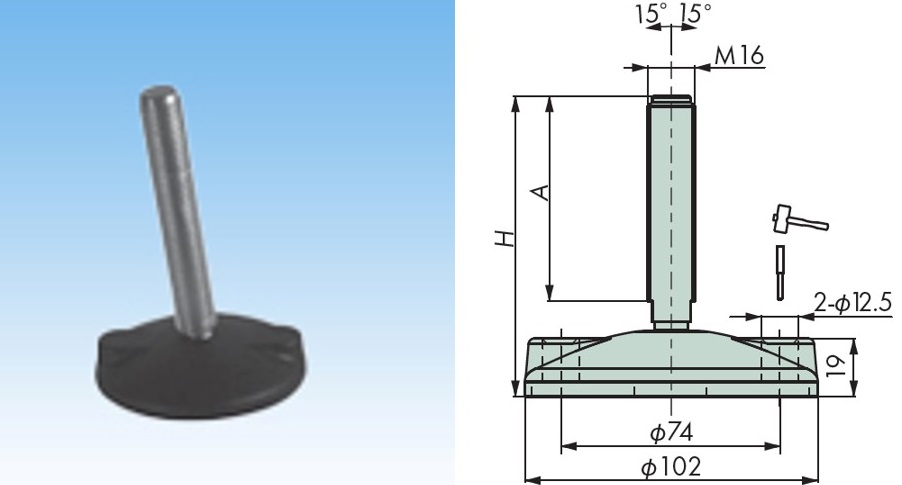

| TP-C17570CT-UF | Stainless Steel (SUS304) |
Reinforced polyamide | Oil-resistant rubber Shore hardness 70 |
15.0 | MB323-69733-UF | DXF | Contact us for details. | Contact us for details. | |
Notes
1.The allowable load is the maximum allowable load in a static state.
2.The fixing hole is not completely drilled through so as to prevent the accumulation of foreign matter. If a fixing hole is needed, punch a hole with a punch and hammer as shown.
[Click to enlarge ]
| Model No. | Material | Allowable load kN |
H | A | Equivalent to MB | DXF data | Standard Price | Delivery | PDF Outline Drawing |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Bolt | Main body plate | Antiskid rubber pad |
|||||||||

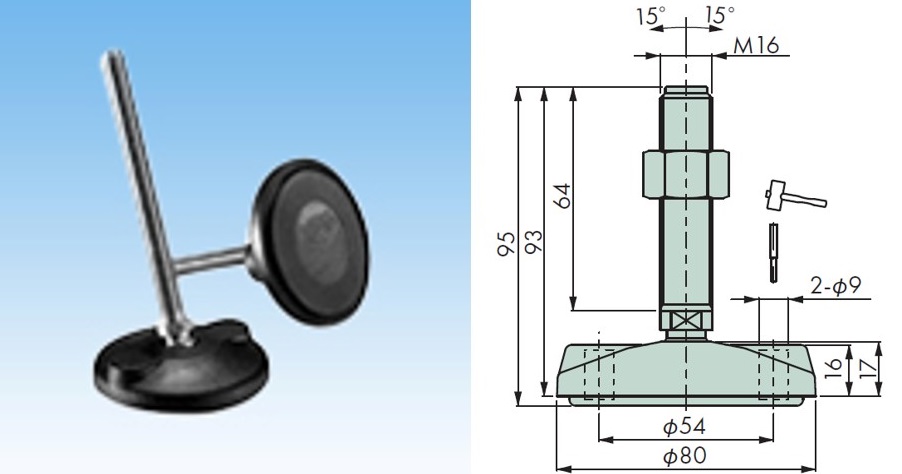

| TP-C176450T-UF | Stainless Steel (SUS304) |
Reinforced polyamide |
Oil-resistant rubber Shore hardness 70 |
18.0 | 100 | 64 | MB133-63343-UF | DXF | Contact us for details. | Contact us for details. | |
| TP-C176453T-UF | 18.0 | 225 | 190 | MB133-67055-UF | DXF | Contact us for details. | Contact us for details. | ||||
Notes
1.The allowable load is the maximum allowable load in a static state.
2.The fixing hole is not completely drilled through so as to prevent the accumulation of foreign matter. If a fixing hole is needed, punch a hole with a punch and hammer as shown.
[Click to enlarge ]
| Model No. | Material | Allowable load kN |
Equivalent to MB | DXF data | Standard Price | Delivery | PDF Outline Drawing |
||
|---|---|---|---|---|---|---|---|---|---|
| Bolt | Main body plate | Antiskid rubber pad |
|||||||

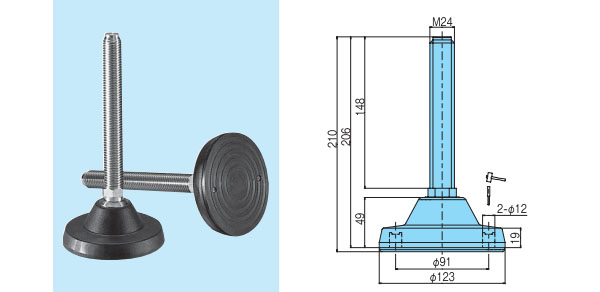

| TP-C17237T-UF | Stainless Steel (SUS304) |
Reinforced polyamide | Oil-resistant rubber Shore hardness 70 |
30.0 | M169-68404N-RF | DXF | Contact us for details. | Contact us for details. | |
Notes
1.The allowable load is the maximum allowable load in a static state.
2.The fixing hole is not completely drilled through so as to prevent the accumulation of foreign matter. If a fixing hole is needed, punch a hole with a punch and hammer as shown.
Support Foot
[Click to enlarge ]
| Model No. | Material | Allowable load kN |
DXF data | Standard Price | Delivery | PDF Outline Drawing |
3DCAD | |
|---|---|---|---|---|---|---|---|---|
| Foot | Bolt, Nut | |||||||

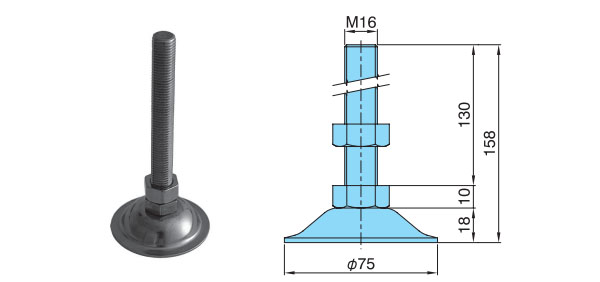

| TP-TA16SUS | Stainless steel | Stainless steel | 11 | DXF | Contact us for details. | Contact us for details. | 3DCAD | |
Notes
1.This is a made to order item.
[Click to enlarge ]
| Model No. | Material | Allowable load kN |
DXF data | Standard Price | Delivery | PDF Outline Drawing |
3DCAD | |
|---|---|---|---|---|---|---|---|---|
| Foot | Bolt, Nut | |||||||

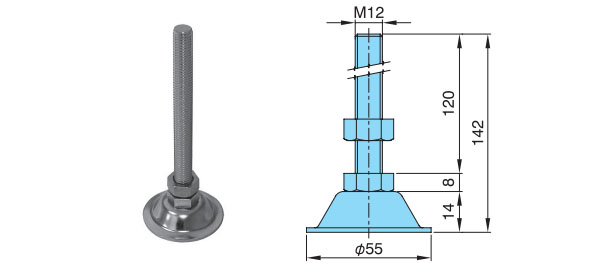

| TP-TB12SUS | Stainless steel | Stainless steel | 10 | DXF | Contact us for details. | Contact us for details. | 3DCAD | |
Notes
1.This is a made to order item.
