Diamond Flange Unit (UCFL)

Since the bearing unit is sealed both on the top and bottom surfaces, it can have a longer service life when used in a wet or dusty environment.

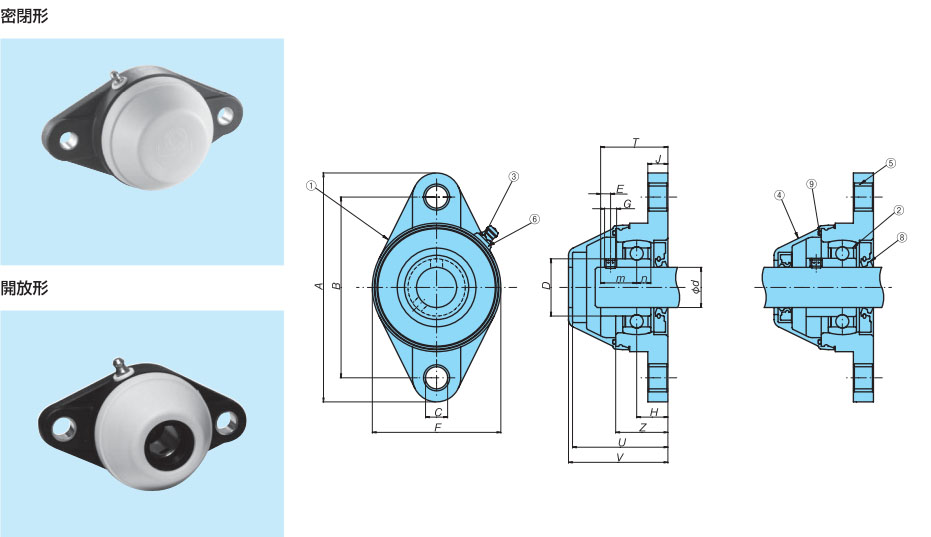

[Click to enlarge ]

Part no.	Product name	Material
1	Housing	Reinforced polyamide
2	Ball bearing	steel
3	Grease nipple	Stainless
4	Safety cap	Polypropylene
5	Spacer bush	Nickel-plated brass

Part no.	Product name	Material
6	Grease nipple washer	Polyethylene
8	Sealing	NBR
9	O-ring	NBR

Model No.	shape	Basic rated load of bearing kN		Max. allowable load of housing kN	Mass kg	Self-Alignment	Operating Temperature Range ℃	DXF data	Standard Price	Delivery	PDF Outline Drawing
		Dynamic Cr	Static Cor
TP-C54204NR-ECT-UCFL	Closed type	9.9	6.6	7.5	0.21	Maximum angle error between housing and shaft ：2.5°	0～80	DXF	Contact us for details.	Contact us for details.	PDF
TP-C59204NR-ECT-UCFL	Open type							DXF	Contact us for details.	Contact us for details.	PDF
TP-C54205NR-ECT-UCFL	Closed type	10.8	7.8	8.0	0.31			DXF	Contact us for details.	Contact us for details.	PDF
TP-C59205NR-ECT-UCFL	Open type							DXF	Contact us for details.	Contact us for details.	PDF

Model No.	Dimensions																Equivalent to MB
	Shaft diameter d	A	B	C	D	E	F	G	H	J	Z	T	m	n	U	V
TP-C54204NR-ECT-UCFL	20	114	90	11	29	5	70	M6× 0.75	15.5	10	26	33.5	18	7	47.5	49.5	MB204C-64647-UCFL
TP-C59204NR-ECT-UCFL																	MB204C-64657-UCFL
TP-C54205NR-ECT-UCFL	25	130	99	11	34	5.5	70	M6× 0.75	17	12.5	29	36.5	19.5	7.5	52.2	54.2	MB205C-68523-UCFL
TP-C59205NR-ECT-UCFL																	MB205C-68533-UCFL

Notes

1.The ball bearing is of the set-screw type.

2.Position of shaft diameter Φ20 grease nipple will vary as shown in the diagram above.
