Square Flange Unit (UCFQ)

Since the bearing unit is sealed both on the top and bottom surfaces, it can have a longer service life when used in a wet or dusty environment.

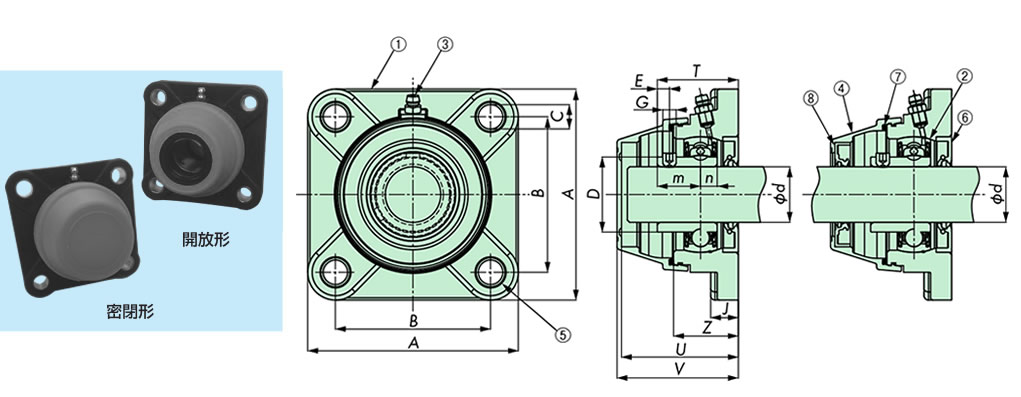

[Click to enlarge ]

Part no.	Product name	Material
1	Housing	Reinforced polyamide
2	Ball bearing	Nickel-plated brass
3	Grease nipple	Nickel-plated brass
4	Safety cap	Polypropylene
5	Spacer bush	Nickel-plated brass

Part no.	Product name	Material
6	Sealing	NBR
7	O-ring	NBR
8	Sealing	NBR

Model No.	shape	Basic rated load of bearing kN		Max. allowable load of housing kN	Mass kg	Self-Alignment	Operating Temperature Range ℃	DXF data	Standard Price	Delivery	PDF Outline Drawing
		Dynamic Cr	Static Cor
TP-C50205VREC-UCFQ	Closed type	10.8	7.8	11.5	0.3	Maximum angle error between housing and shaft ：2.5°	0～80	DXF	Contact us for details.	Contact us for details.	PDF
TP-C55205VREC-UCFQ	Open type							DXF	Contact us for details.	Contact us for details.	PDF
TP-C50206VREC-UCFQ	Closed type	15.0	11.3	11	0.5			DXF	Contact us for details.	Contact us for details.	PDF
TP-C55206VREC-UCFQ	Open type							DXF	Contact us for details.	Contact us for details.	PDF
TP-C50207VREC-UCFQ	Closed type	19.7	15.3	10.5	0.6			DXF	Contact us for details.	Contact us for details.	PDF
TP-C55207VREC-UCFQ	Open type							DXF	Contact us for details.	Contact us for details.	PDF
TP-C50208VREC-UCFQ	Closed type	22.4	17.9	10	0.8			DXF	Contact us for details.	Contact us for details.	PDF
TP-C55208VREC-UCFQ	Open type							DXF	Contact us for details.	Contact us for details.	PDF

Model No.	Dimensions															Equivalent to MB
	Shaft diameter d	A	B	C	D	E	G	H	J	Z	T	m	n	U	V
TP-C50205VREC-UCFQ	25	98	70	11	34	5.5	M6× 1.00	15	12.5	29	36.5	19.5	7.5	52	54	MB205C-64573-UCF
TP-C55205VREC-UCFQ																MB205C-64623-UCF
TP-C50206VREC-UCFQ	30	110	83	11	40.3	6.5		18				22	8	51	53	MB206C-63112-UCF
TP-C55206VREC-UCFQ																MB206C-63172-UCF
TP-C50207VREC-UCFQ	35	118	92	14	48	6.5	M8× 1.00	20	16	33	41.5	23.5	8.5	64	66	MB207C-64068-UCF
TP-C55207VREC-UCFQ																MB207C-64078-UCF
TP-C50208VREC-UCFQ	40	130	101.5	14	53	7.0	M8× 1.00	20		35	43	25	9	63	65	MB208C-64667-UCF
TP-C55208VREC-UCFQ																MB208C-64677-UCF

Notes

1.The ball bearing is of the set-screw type.
