Frame support parts Major Specifications
Catalogs ・Instruction Manuals

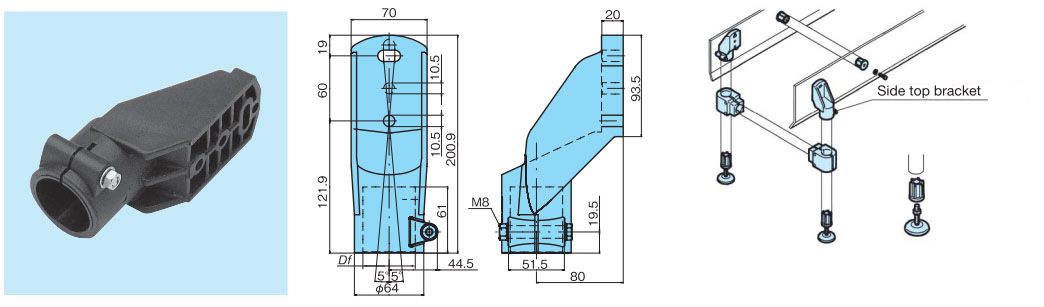

Side top bracket (STB)
The side top bracket supports a conveyor frame from the side. Use this part when installing a tray or other item under the conveyor or on simple conveyors.
[Click to enlarge ]
| Model No. | Material | Color | Pipe outside dia. mm (Nominal diameter ) Df |
Bracket tilt angle | Equivalent to MB | DXF data | Standard Price | Delivery | PDF Outline Drawing |
|
|---|---|---|---|---|---|---|---|---|---|---|
| Main unit | Bolt, Nut, Washer | |||||||||
| TP-C14748NT-STB | Reinforced polyamide |
Stainless Steel (SUS304) |
Black | 48.6 (1½) | 5° | MB199-59171-STB | DXF | Contact us for details. | Contact us for details. | |
