Threaded tube end (SRB)

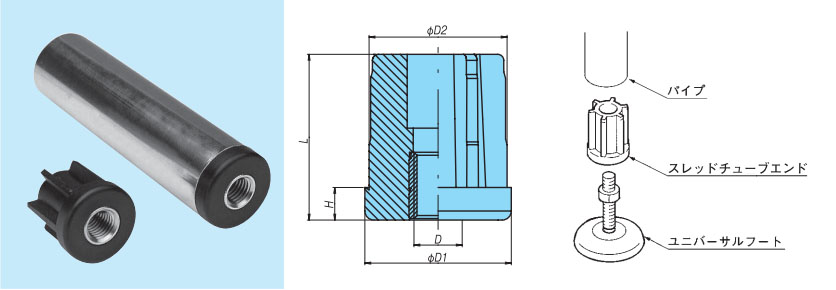

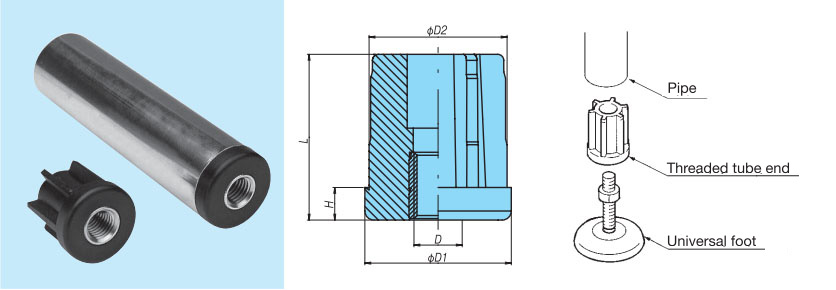

When this part is inserted into a pipe and used in combination with a universal foot, it can be used as a leg for a conveyor frame.
[Click to enlarge ]
| Model No. | Material | Pipe outside dia. mm (Nominal diameter ) |
DXF data | Standard Price | Delivery | PDF Outline Drawing |
|
|---|---|---|---|---|---|---|---|
| Main unit | Bush | ||||||
| TP-C14767T-SRB | Polyamide | Nickel-plated brass | 48.6 (1½) | DXF | Contact us for details. | Contact us for details. | |
| TP-C14791T-SRB | Polyamide | Nickel-plated brass | 60.5 (2) | DXF | Contact us for details. | Contact us for details. | |
| Model No. | D | D1 | D2 | H | L | Equivalent to MB |
|---|---|---|---|---|---|---|
| TP-C14767T-SRB | M16 | 48 | 45.8 | 10 | 55 | MB180-63081-SRB |
| TP-C14791T-SRB | M16 | 60 | 58 | 12 | 50 | MB180-65154-SRB |
Notes
1.Use a pipe with a thickness of 1.65mm.
