Chain guide parts 　Major Specifications

Catalogs ・Instruction Manuals

Spacer, Washer (SP)


[Click to enlarge ]

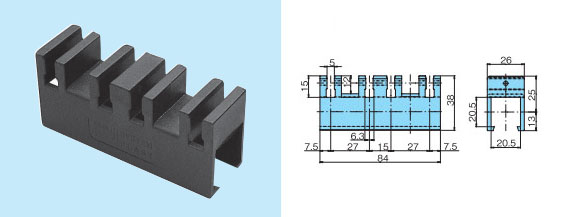

Spacer (SP)
Model No. Material Color Equivalent to MB Operating Temperature Range
℃		 DXF data Standard Price Delivery PDF
Outline Drawing
TP-C14320T-SP Polyamide Black MB523-643451-SP -20～80 DXFContact us for details. Contact us for details. PDF

Notes

1.For use with TP-C19067VT-PR guide rail.

2.Mount on 20 x 20mm square shaft.



[Click to enlarge ]

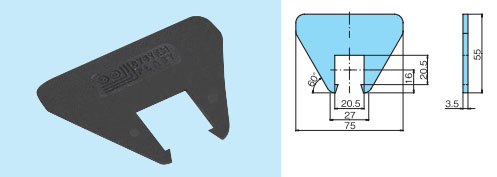

Washer (WS)
Model No. Material Color Equivalent to MB Operating Temperature Range
℃		 DXF data Standard Price Delivery PDF
Outline Drawing
TP-C14322T-WS Polyamide Black MB533-672801-WS -20～80 DXFContact us for details. Contact us for details. PDF

Notes

1.For use with multiple strands of top chain to prevent interference between the chains.

2.For use with TP-C14320T-SP spacer.



[Click to enlarge ]

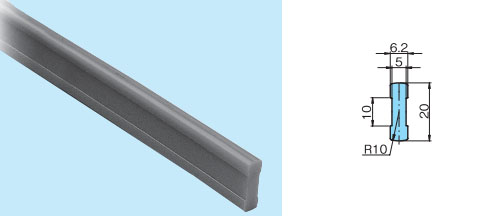

Dedicated rail (PR)
Model Standard Length Material Color Equivalent to MB Operating Temperature Range
℃		 DXF data Standard Price / 1m Delivery
TP-C19067VT-PR 60m Ultra high molecular weight polyethylene Green MB524-643501-PR -20～60 DXFContact us for details. Contact us for details.

Notes

1.Guide rail for use with TP-C14320T-SP spacer. Order length: Sold by the piece in one-meter lengths.

2.When a rail has become worn, its service life can be extended by flipping it over.
