Chain guide parts Major Specifications
Catalogs ・Instruction Manuals
Sliding shoe (SD)
[Click to enlarge ]
| Model No. | Shaft Bore Diameter Df |
Material | Color | Applicable | Equivalent to MB | DXF data | Standard Price | Delivery | PDF Outline Drawing |
|---|---|---|---|---|---|---|---|---|---|

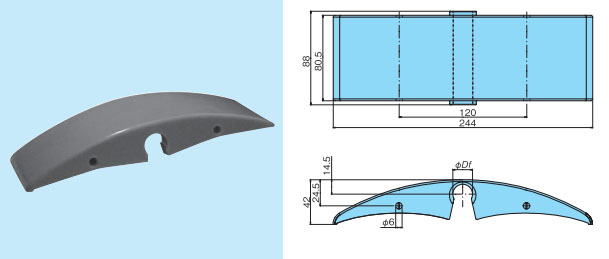

| TP-C14833BT-SD | 20.5 | Polyethylene | Black | For use with 82.6mm wide top chain | MB153-684221N-SD MB153-684221N1-SD |
DXF | Contact us for details. | Contact us for details. |
Notes
1.For use with accumulation chains and roller tables.
2.Mount on 20mm-dia. round machined bar.
3.For use at chain speeds of less than 50 meters/minute.
[Click to enlarge ]
| Model No. | Material | Color | Applicable | Equivalent to MB | Operating Temperature Range ℃ |
DXF data | Standard Price | Delivery | PDF Outline Drawing |
|---|---|---|---|---|---|---|---|---|---|

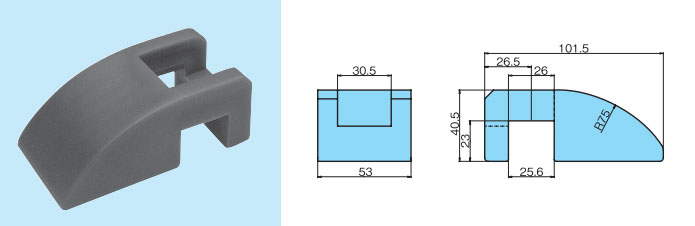

| TP-C14343T-SD | Polyethylene | Green | For use with 82.6mm wide top chain. | MB729-697662-SD | -20～60 | DXF | Contact us for details. | Contact us for details. |
Notes
1.For use with TP-C14320T-SP spacer.
