Support base (SB)

The support base supports the base of a conveyor.

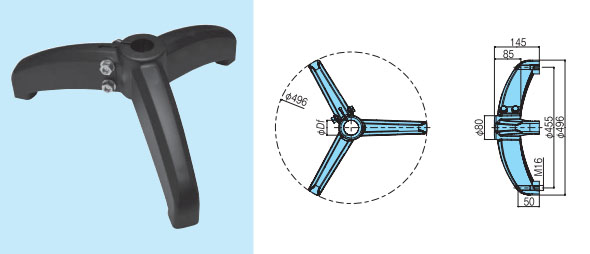

[Click to enlarge ]
Model No. Material Pipe outside dia.
mm (Nominal diameter )
Df		 Equivalent to MB DXF data Standard Price Delivery PDF
Outline Drawing
Main unit Bolt, Nut Bush
TP-C15084T-SB Reinforced polyamide Stainless Steel Brass 48.6 (1½) MB615-600373-SB DXFContact us for details. Contact us for details. PDF
TP-C15088T-SB Reinforced polyamide Stainless Steel Brass 60.5 (2) MB615-699992-SB DXFContact us for details. Contact us for details. PDF
TP-C15084TSS-SB Reinforced polyamide Stainless Steel Stainless Steel 48.6 (1½) MB615-604583-SB DXFContact us for details. Contact us for details. PDF
TP-C15088TSS-SB Reinforced polyamide Stainless Steel Stainless Steel 60.5 (2) MB615-600453-SB DXFContact us for details. Contact us for details. PDF

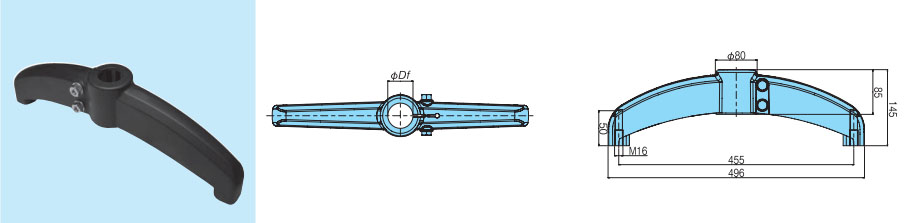

[Click to enlarge ]
Model No. Material Pipe outside dia.
mm (Nominal diameter )
Df		 Equivalent to MB DXF data Standard Price Delivery PDF
Outline Drawing
Main unit Bolt, Nut Bush
TP-C15060T-SB Reinforced polyamide Stainless Steel Brass 48.6 (1½) MB618-600383-SB DXFContact us for details. Contact us for details. PDF
TP-C15064T-SB Reinforced polyamide Stainless Steel Brass 60.5 (2) MB618-600223-SB DXFContact us for details. Contact us for details. PDF
TP-C15060TSS-SB Reinforced polyamide Stainless Steel Stainless Steel 48.6 (1½) MB618-604593-SB DXFContact us for details. Contact us for details. PDF
TP-C15064TSS-SB Reinforced polyamide Stainless Steel Stainless Steel 60.5 (2) MB618-600403-SB DXFContact us for details. Contact us for details. PDF

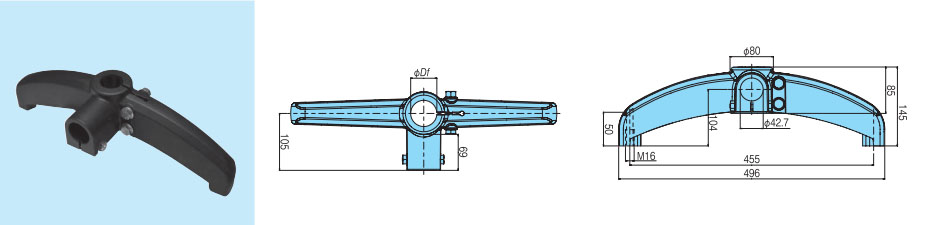

[Click to enlarge ]
Model No. Material Pipe outside dia.
mm (Nominal diameter )
Df		 Equivalent to MB DXF data Standard Price Delivery PDF
Outline Drawing
Main unit Bolt, Nut Bush
TP-C15068T-SB Reinforced polyamide Stainless Steel Brass 48.6 (1½) MB619-600413-SB DXFContact us for details. Contact us for details. PDF
TP-C15072T-SB Reinforced polyamide Stainless Steel Brass 60.5 (2) MB619-600423-SB DXFContact us for details. Contact us for details. PDF
TP-C15068TSS-SB Reinforced polyamide Stainless Steel Stainless Steel 48.6 (1½) MB619-604573-SB DXFContact us for details. Contact us for details. PDF
TP-C15072TSS-SB Reinforced polyamide Stainless Steel Stainless Steel 60.5 (2) MB619-600433-SB DXFContact us for details. Contact us for details. PDF


[Click to enlarge ]

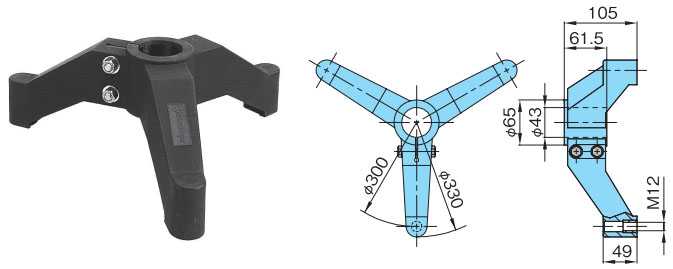

Three-legged Support base
Model No. Material Load capacity
kN		 The tightening torque of bolts and nuts
N･m		 DXF data Standard Price Delivery PDF
Outline Drawing 		3DCAD
Main unit Bolt, Nut Bush
TP-3SB43 Reinforced polyamide Stainless steel Nickel-plated brass 2.45 9.8 DXFContact us for details. Contact us for details. PDF 3DCAD


[Click to enlarge ]

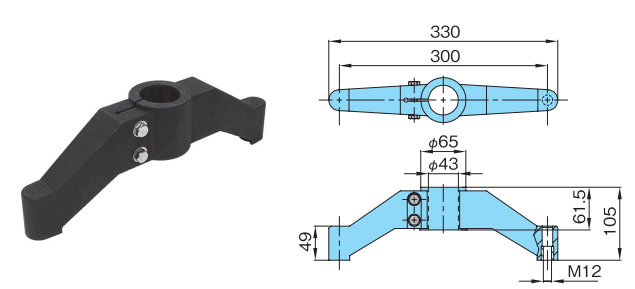

Two-legged Support base
Model No. Material Load capacity
kN		 The tightening torque of bolts and nuts
N･m		 DXF data Standard Price Delivery PDF
Outline Drawing 		3DCAD
Main unit Bolt, Nut Bush
TP-2SB43 Reinforced polyamide Stainless steel Nickel-plated brass 2.45 9.8 DXFContact us for details. Contact us for details. PDF 3DCAD


[Click to enlarge ]

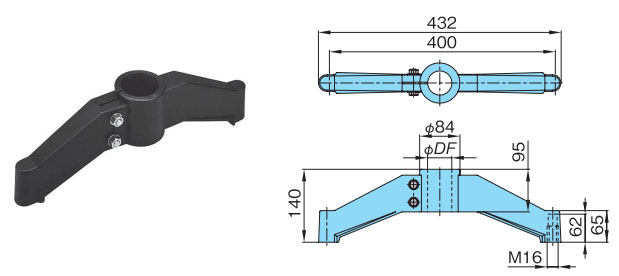

Two-legged Support base
Model No. Material DF Load capacity
kN		 The tightening torque of bolts and nuts
N･m		 DXF data Standard Price Delivery PDF
Outline Drawing 		3DCAD
Main unit Bolt, Nut Bush
TP-2SB48 Reinforced polyamide Stainless steel Nickel-plated brass 48.6 3.43 14.7 DXFContact us for details. Contact us for details. PDF 3DCAD
TP-2SB60 Reinforced polyamide Stainless steel Nickel-plated brass 60.5 3.43 14.7 DXFContact us for details. Contact us for details. PDF
