Module transfer roller plate (MTRP)
Installing rollers at conveyor-to-conveyor connection points prevents jams and ensures smooth transitions. In addition, the rotation of the rollers reduces resistance, making it possible to also reduce toppling of conveyed items.
[Click to enlarge ]
| Model No. | Material | Equivalent to MB | DXF data | Standard Price | Delivery | PDF Outline Drawing |
|
|---|---|---|---|---|---|---|---|
| Body & roller | Pin & bolt | ||||||

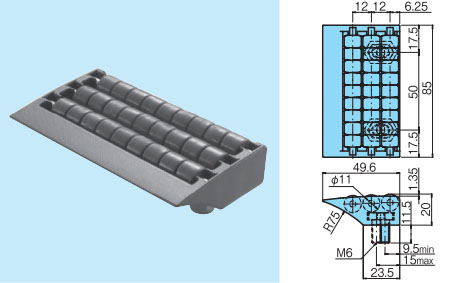

| TP-C16770ST-MTRP | Low-friction polyacetal | Stainless Steel | MB567-688812-MTRP | DXF | Contact us for details. | Contact us for details. | |
[Click to enlarge ]
| Model No. | Material | Equivalent to MB | DXF data | Standard Price | Delivery | PDF Outline Drawing |
|
|---|---|---|---|---|---|---|---|
| Body & roller | Pin & bolt | ||||||

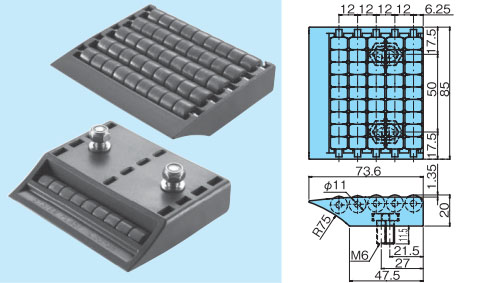

| TP-C16772ST-MTRP | Low-friction polyacetal | Stainless Steel | - | DXF | Contact us for details. | Contact us for details. | |
