High-rotation return rollers (RR)

These return rollers use an engineering plastic having low resistance to the shaft on the inner circumference and a soft material having a high resistance to the chain on the outer circumference, thus ensuring exceptionally smooth rotation. These rollers

TP-IR60, TP-IR18 : For dry conditions

TP-C121963, 121966RNT-RR, TP-C121967, 121970RNFT-RR : For wet and dry conditions



Use return rollers on the return way of the conveyor to support the top surface of the chain.


[Click to enlarge ]

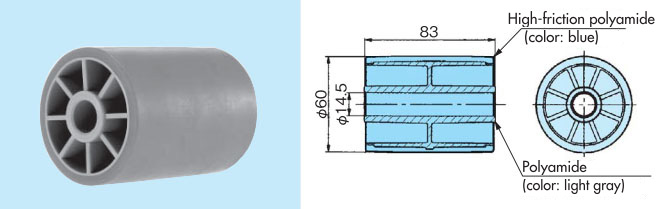

Return roller TP-IR60
Model No. Material Color Operating Temperature Range
℃		 DXF data Standard Price Delivery PDF
Outline Drawing 		3DCAD
Shaft/sides Outer circumference Shaft/sides Outer circumference
TP-IR60 Polyamide High-friction polyamide Light silver Blue -20～80 DXFContact us for details. Contact us for details. PDF 3DCAD

Notes

1.This is a made to order item.

2.Should not be used under wet conditions.

3.For use at chain speeds of less than 50 meters/minute.



[Click to enlarge ]

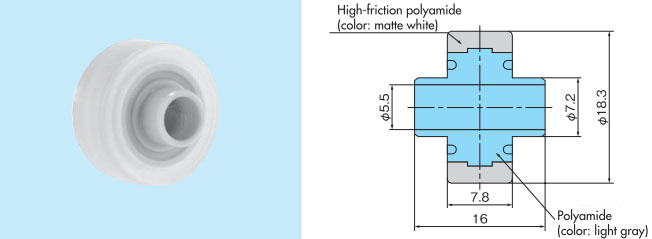

Return roller TP-IR18
Model No. Material Color Operating Temperature Range
℃		 DXF data Standard Price Delivery PDF
Outline Drawing 		3DCAD
Shaft/sides Outer circumference Shaft/sides Outer circumference
TP-IR18 Polyamide High-friction polyamide Light silver Matte white -20～80 DXFContact us for details. Contact us for details. PDF 3DCAD

Notes

1.This is a made to order item.

2.Should not be used under wet conditions.

3.For use with BTC4-500-M.



[Click to enlarge ]

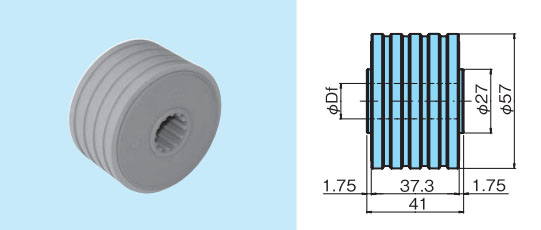

Split-Hub Return Roller (no guide flange)
Model No. Shaft diameter
Df		 Material Color Equivalent to MB Operating Temperature Range
℃		 DXF data Standard Price Delivery PDF
Outline Drawing
Shaft/sides Outer circumference Shaft/sides Outer circumference
TP-C121963RNT-RR 15.5 High-density polyethylene Thermoplastic rubber Green Gray MB613-615342-RR -20～60 DXFContact us for details. Contact us for details. PDF
TP-C121966RNT-RR 20.5 High-density polyethylene Thermoplastic rubber Green Gray MB613-615372-RR -20～60 DXFContact us for details. Contact us for details. PDF

Notes

1.For use at chain speeds of less than 50 meters/minute.

2.TP-C121966RNT-RR is for use with wide chains.



[Click to enlarge ]
Split-Hub Return Roller (with guide flange)
Model No. Shaft diameter
Df		 Material Color Equivalent to MB Operating Temperature Range
℃		 DXF data Standard Price Delivery PDF
Outline Drawing
Shaft/sides Outer circumference Shaft/sides Outer circumference
TP-C121967RNFT-RR 15.5 High-density polyethylene Thermoplastic rubber Green Gray MB614-615382-RR -20～60 DXFContact us for details. Contact us for details. PDF
TP-C121970RNFT-RR 20.5 High-density polyethylene Thermoplastic rubber Green Gray MB614-615412-RR -20～60 DXFContact us for details. Contact us for details. PDF

Notes

1.For use at chain speeds of less than 50 meters/minute.

2.TP-C121970RNFT-RR is for use with wide chains.


Guide Flange


[Click to enlarge ]
Guide Flange 　 (for TP-C12890T-RR )
Model No. Material Color Operating Temperature Range
℃		 DXF data Standard Price Delivery PDF
Outline Drawing 		3DCAD
TP-GF70 Antistatic polyacetal Light silver -20～80 DXFContact us for details. Contact us for details. PDF 3DCAD

Notes

1.This is a made to order item.

2.For use with TP-IR60 return roller.
