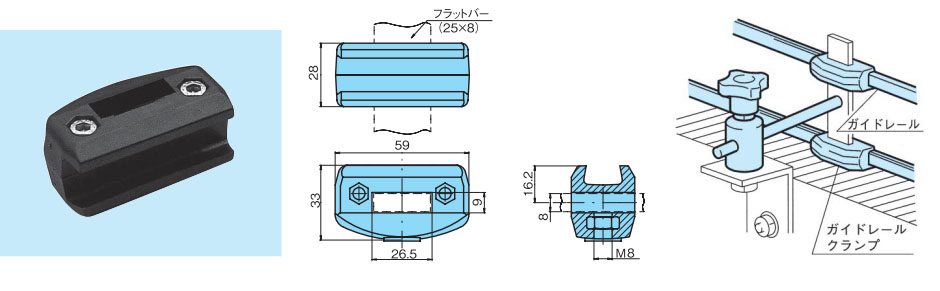

Guide Rail Clamp (GRC)

Use the guide rail clamp for securing the guide rail.


[Click to enlarge ]
Model No. Material Compatible guide rail Part to be clamped with Equivalent to MB DXF data Standard Price Delivery PDF
Outline Drawing
Main unit Bolt Nut
TP-C13007T-GRC Reinforced polyamide Stainless Steel Nickel-plated brass TP-C19S00130-3MT-GR
TP-C19S00165-3MT-GR		 Flat bars
25×8		 MB580-603292-ARG DXFContact us for details. Contact us for details. PDF


[Click to enlarge ]
Model No. Material Compatible guide rail Part to be clamped with Equivalent to MB DXF data Standard Price Delivery PDF
Outline Drawing
Main unit

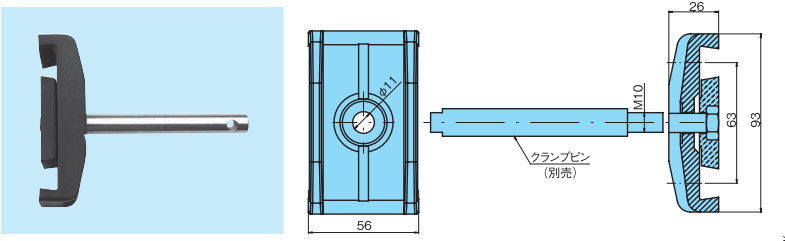

TP-C13008NVT-GRC Reinforced polyamide TP-C19S00130-3MT-GR
TP-C19S00165-3MT-GR		 Clamp pin MB213-60101-GRC DXFContact us for details. Contact us for details. PDF

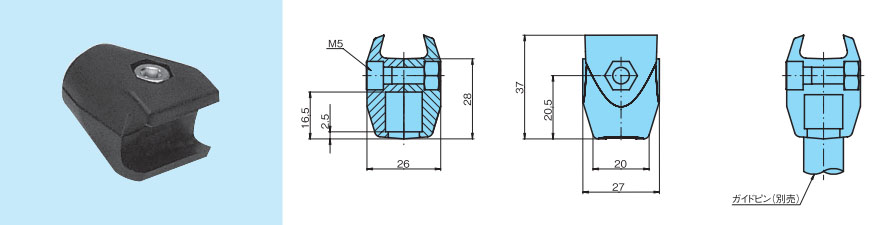

[Click to enlarge ]
Model No. Material Compatible guide rail Part to be clamped with Equivalent to MB DXF data Standard Price Delivery PDF
Outline Drawing
Main unit Bolt Nut
TP-C13006NVT-GRC Reinforced polyamide Stainless Steel Nickel-plated brass TP-C19S00130-3MT-GR
TP-C19S00165-3MT-GR		 Guide pin MB210-59941-GRC DXFContact us for details. Contact us for details. PDF

Notes

1.This guide rail clamp is stronger than the TP-C13012T-GRC clamp. Use this clamp in places where a stronger pressure is applied to rails (such as corner areas and accumulation lines).



[Click to enlarge ]
Model No. Material Compatible guide rail Part to be clamped with Equivalent to MB DXF data Standard Price Delivery PDF
Outline Drawing
Main unit
TP-C13012T-GRC Reinforced polyamide TP-C19S00130-3MT-GR
TP-C19S00165-3MT-GR		 Bracket pin
Φ14		 MB275-66811-GRC DXFContact us for details. Contact us for details. PDF


[Click to enlarge ]
Model No. Material Compatible guide rail Part to be clamped with Equivalent to MB DXF data Standard Price Delivery PDF
Outline Drawing

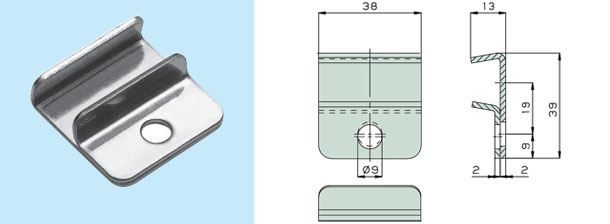

TP-C13014T-GRC Stainless Steel TP-C19S00130-3MT-GR
TP-C19S00165-3MT-GR		 Frame MB215-60121-GRC
MB215-65976-GRC		 DXFContact us for details. Contact us for details. PDF


[Click to enlarge ]
Guide rail joint
Model No. Material Compatible guide rail Equivalent to MB DXF data Standard Price Delivery PDF
Outline Drawing
TP-C13120T-GRC Stainless Steel TP-C19S00130-3MT-GR
TP-C19S00165-3MT-GR		 MB214-60111-GRC DXFContact us for details. Contact us for details. PDF

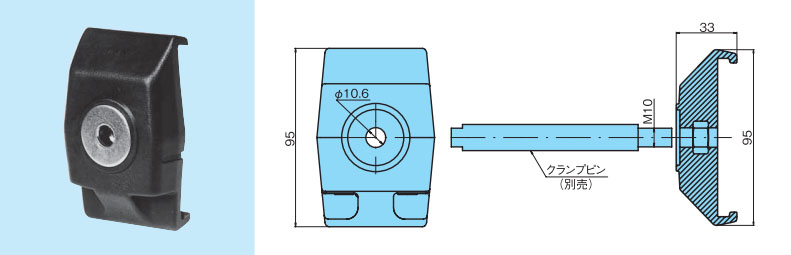

Guide Rail Clamp 〈Exclusively for TP-C19050LT-GR Guide Rail 〉 (GRC)


[Click to enlarge ]
Guide rail joint
Model No. Material Compatible guide rail Part to be clamped with Equivalent to MB DXF data Standard Price Delivery PDF
Outline Drawing
Main unit Nut, Washer
TP-C13718T-GRC Reinforced polyamide Stainless Steel TP-C19050LT-GR Clamp pin MB298-60362-GRC DXFContact us for details. Contact us for details. PDF

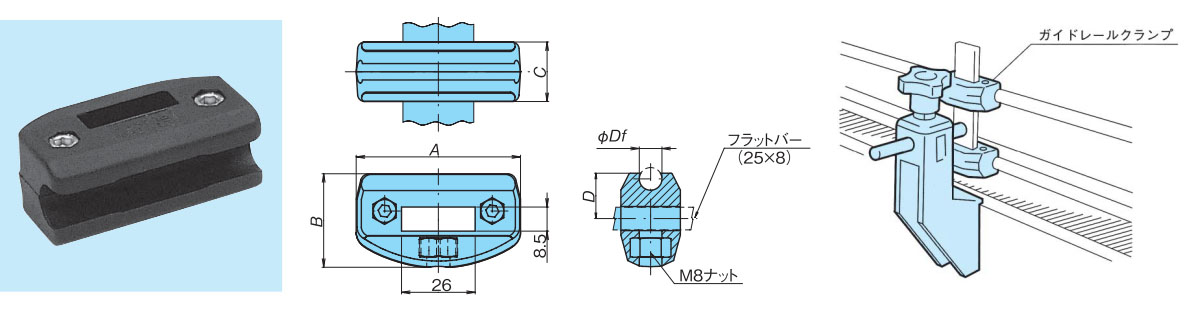

Guide Rail Clamp 〈for Round Bar 〉 (GRC)

Use this guide rail clamp for securing the round bar guide.


[Click to enlarge ]
Model No. Material Flat bars DXF data Standard Price Delivery PDF
Outline Drawing
Main unit Bolt Nut
TP-C13743T-GRC Reinforced polyamide Stainless Steel Nickel-plated brass 25×8 DXFContact us for details. Contact us for details. PDF
TP-C13741T-GRC DXFContact us for details. Contact us for details. PDF
TP-C13744NVT-GRC DXFContact us for details. Contact us for details. PDF
Model No. Df A B C D Equivalent to MB
TP-C13743T-GRC 8 58 33 21 16 MB159-6912-GRC
TP-C13741T-GRC 10 58 33 21 16 MB159-63389-GRC
TP-C13744NVT-GRC 12 59 34.5 24 19 MB159-6913-GRC

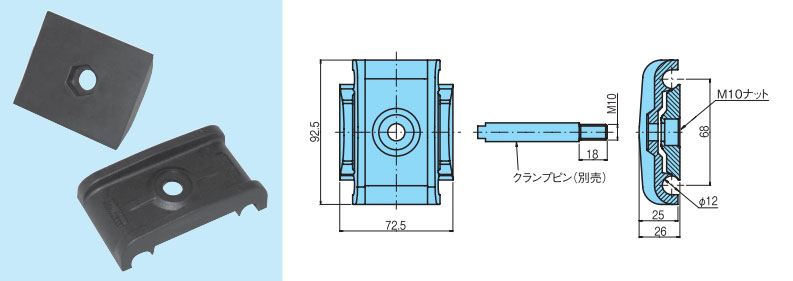

[Click to enlarge ]
Guide rail joint
Model No. Material Compatible round bar Equivalent to MB DXF data Standard Price Delivery PDF
Outline Drawing
Main unit Nut, Washer
TP-C13761XPT-GRC Reinforced polyamide Stainless Steel Φ12 MB70-5095-GRC DXFContact us for details. Contact us for details. PDF

T-Shaped Clamp (TC)


[Click to enlarge ]
For use with round bar and square bar guide
Model No. Material Φ Df □ A Bolt tightening torque Allowable load of pin (holding force) Equivalent to MB DXF data Standard Price Delivery PDF
Outline Drawing
Main unit Bolt, Nut
TP-C13152T-TC Reinforced
polyamide 		Stainless Steel Φ10 8 2.94N･m 49.0N MB339-68363-TC DXFContact us for details. Contact us for details. PDF
TP-C13115T-TC Φ12 10 MB339-68375-TC DXFContact us for details. Contact us for details. PDF


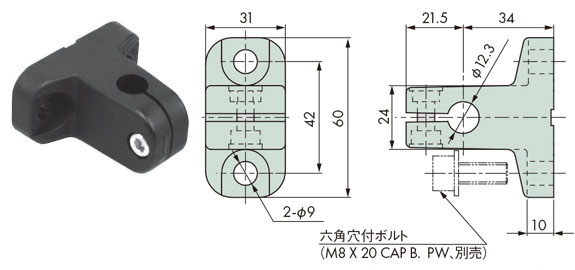

[Click to enlarge ]
Model No. Material DXF data Standard Price Delivery PDF
Outline Drawing 		3DCAD
Main unit Bolt, Nut
TP-TC Reinforced polyamide Stainless steel DXFContact us for details. Contact us for details. PDF 3DCAD

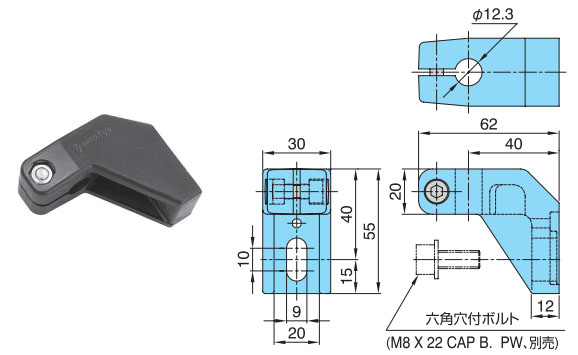

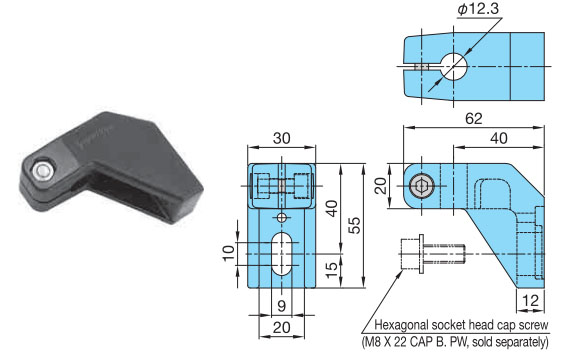

L-Shaped Clamp


[Click to enlarge ]
Model No. Material DXF data Standard Price Delivery PDF
Outline Drawing 		3DCAD
Main unit Bolt, Nut
TP-LC Reinforced polyamide Stainless steel DXFContact us for details. Contact us for details. PDF 3DCAD

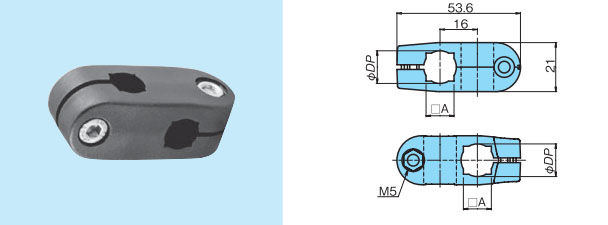

Cross Block (CC)

Use the cross block in combination with the T-shaped clamp or photosensor clamp when installing the guide or sensor.


[Click to enlarge ]
For use with round bar and square bar guide
Model No. Material Φ
DP		 □A Bolt tightening torque Allowable load of pin (holding force) Equivalent to MB DXF data Standard Price Delivery PDF
Outline Drawing
Main unit Nut, Washer
TP-C13S00114T-CC Polyacetal Stainless Steel Φ10 8 2.94N･m 49.0N MB340-68373-CC DXFContact us for details. Contact us for details. PDF
TP-C13S00115T-CC Φ12 10 MB340-68385-CC DXFContact us for details. Contact us for details. PDF
TP-C13S00116T-CC Φ14 12 MB340-67375-CC DXFContact us for details. Contact us for details. PDF

Notes

1.Always check the table above when comparing MB equipment model numbers.



[Click to enlarge ]
High-Strength Type
Model No. Material Φ DP Bolt tightening torque Allowable load of pin (holding force) Equivalent to MB DXF data Standard Price Delivery PDF
Outline Drawing
Main unit Bolt Nut
TP-C13108T-CC
(Sales will be discontinued in September 2025 )		 Reinforced polyamide Stainless Steel Nickel-plated brass Φ15 4.9N･m 98.1N - DXFContact us for details. Contact us for details. PDF


[Click to enlarge ]
Model No. Material DXF data Standard Price Delivery PDF
Outline Drawing 		3DCAD
Main unit Bolt, Nut
TP-CRB Reinforced polyamide Stainless steel DXFContact us for details. Contact us for details. PDF 3DCAD

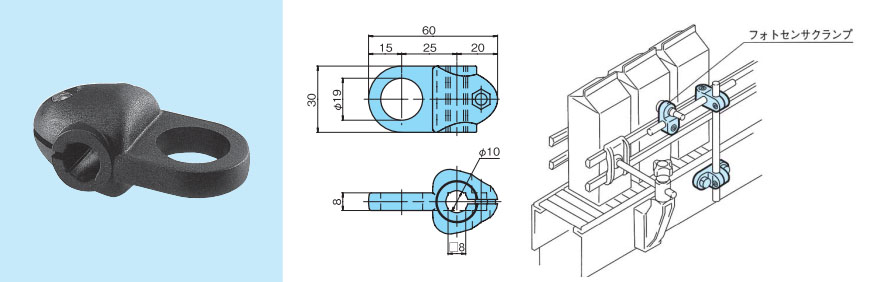

Photosensor Clamp (FSC)

Use this clamp in combination with the cross block or T-shaped clamp when installing a sensor.


[Click to enlarge ]
Guide rail joint
Model No. Material Bolt tightening torque Allowable load of pin (holding force) Equivalent to MB DXF data Standard Price Delivery PDF
Outline Drawing
Main unit Nut, Washer
TP-C13153T-FSC Reinforced polyamide Stainless Steel 2.94N･m 49.0N MB341-68383-FSC DXFContact us for details. Contact us for details. PDF

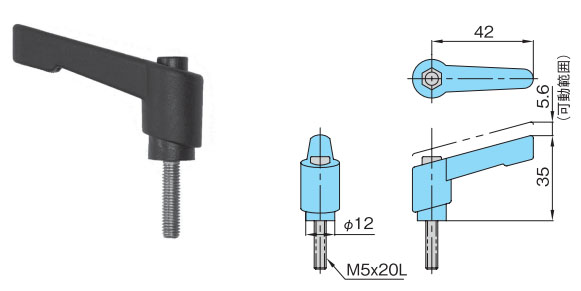

Clamp Lever


[Click to enlarge ]
Model No. Material DXF data Standard Price Delivery PDF
Outline Drawing 		3DCAD
Main unit Bolt, Nut
TP-CL Reinforced polyamide Stainless steel DXFContact us for details. Contact us for details. PDF 3DCAD

Notes

1.This is a made to order item.

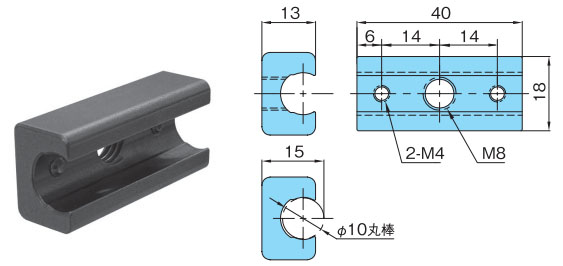

Guide Rail Clamp


[Click to enlarge ]
for Bracket
Model No. Material DXF data Standard Price Delivery PDF
Outline Drawing 		3DCAD
TP-GHB Stainless steel
(sintered )		 DXFContact us for details. Contact us for details. PDF 3DCAD

Notes

1.This is a made to order item.



[Click to enlarge ]

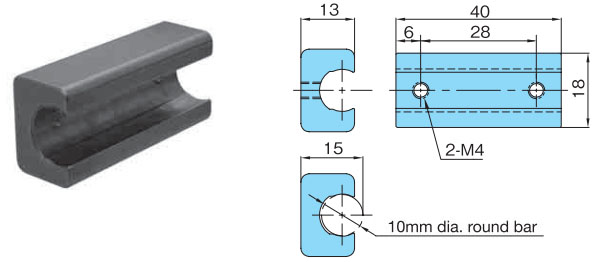

for Connection
Model No. Material DXF data Standard Price Delivery PDF
Outline Drawing 		3DCAD
TP-GHA Stainless steel
(sintered )		 DXFContact us for details. Contact us for details. PDF 3DCAD

Notes

1.This is a made to order item.
