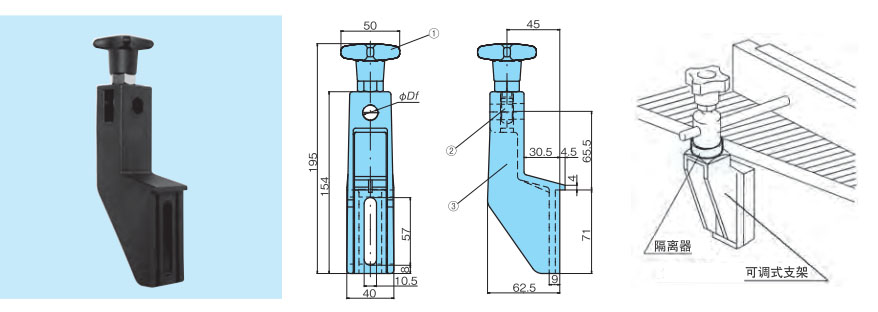

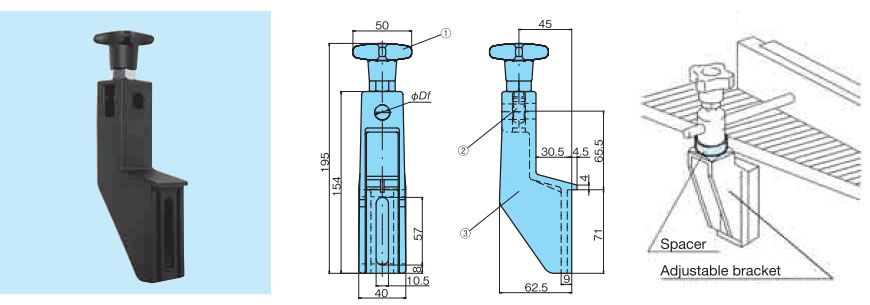

Adjustable bracket (GRB)
Use the adjustable bracket in combination with the clamp to secure the guide.
[Click to enlarge ]
| Model No. | Material | Df | Equivalent to MB | DXF data | Standard Price | Delivery | PDF Outline Drawing |
||
|---|---|---|---|---|---|---|---|---|---|
| 1.Knob | 2.Eyebolt | 3.Bracket | |||||||
| TP-C13696T-GRB | Nickel-plated brass nut inserted into polyamide (Color ：Black ) |
Stainless Steel | Reinforced polyamide (Color ：Black ) |
12 | MB107-68200N-GRB MB107-6820-GRB |
DXF | Contact us for details. | Contact us for details. | |
| TP-C13697T-GRB | 14 | MB107-67821N-GRB MB107-67821-GRB |
DXF | Contact us for details. | Contact us for details. | ||||
Notes
1.For the pin to use, see page Clamp pin, Bracket pin.
2.TP-C13250T-TS or TP-C13255-TS (tray supporter) can be installed in the groove on the back of the main body.
[Click to enlarge ]
| Model No. | Material | Df | Equivalent to MB | DXF data | Standard Price | Delivery | PDF Outline Drawing |
|||
|---|---|---|---|---|---|---|---|---|---|---|
| 1.Adjustable head (rotatable 360 degrees) | 2.Knob | 3.Nut | 4.Bracket | |||||||
| TP-C13054T-GRB | Reinforced polyamide | Stainless Steel | Stainless Steel | Reinforced polyamide | 12 | MB637-648372-GRB MB257-64591-GRB |
DXF | Contact us for details. | Contact us for details. | |
| TP-C13055T-GRB | 14 | MB637-648382-GRB MB257-64601-GRB |
DXF | Contact us for details. | Contact us for details. | |||||
Notes
1.For the pin to use, see page Clamp pin, Bracket pin.
2.TP-C13250T-TS or TP-C13255-TS (tray supporter) can be installed in the groove on the back of the main body.

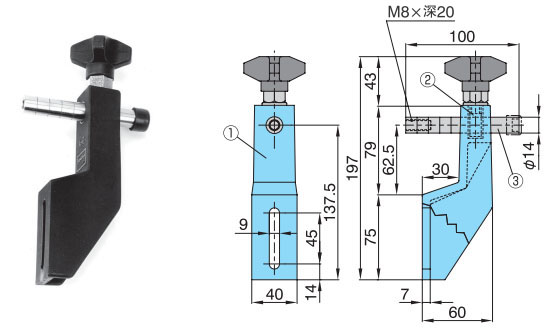

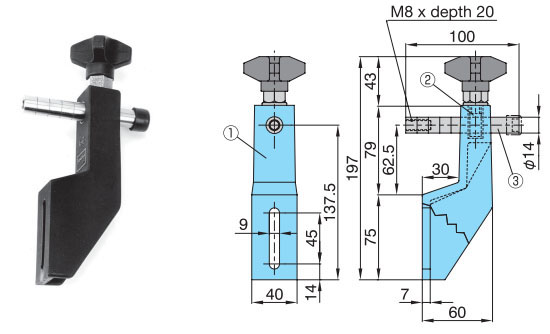

Guide Bracket
[Click to enlarge ]
| Model No. | Material | DXF data | Standard Price | Delivery | PDF Outline Drawing |
3DCAD | ||
|---|---|---|---|---|---|---|---|---|
| 1.Main unit | 2.Eyebolt | 3.Adjustment pin | ||||||
| TP-A0 | Reinforced polyamide | Brass | Stainless steel | DXF | Contact us for details. | Contact us for details. | 3DCAD | |
Notes
1.The model number is “A zero.”

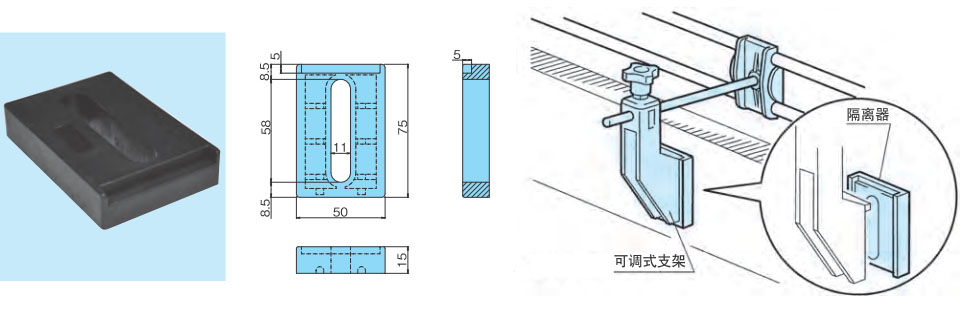

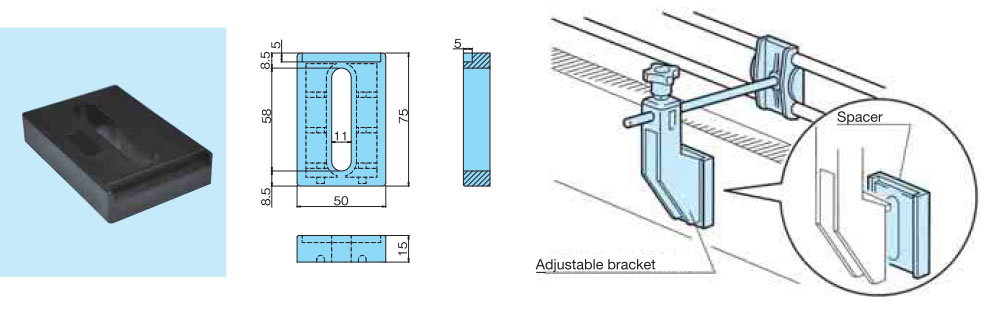

Spacer (SP)
Use the spacer to adjust the height and width of the adjustable bracket.
[Click to enlarge ]
| Model No. | Material | Compatible adjustable bracket | Equivalent to MB | DXF data | Standard Price | Delivery | PDF Outline Drawing |
|---|---|---|---|---|---|---|---|
| TP-C13400T-SP | Reinforced polyamide | TP-C13696T-GRB TP-C13697T-GRB |
MB61-50870N-SP MB61-5087-SP |
DXF | Contact us for details. | Contact us for details. |
Notes
1.There is a groove on the back in which TP-C13250T-TS or TP-C13255-TS (tray supporter) can be installed.

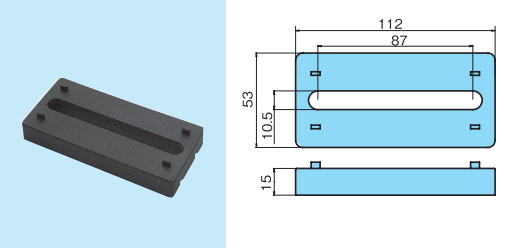

[Click to enlarge ]
| Model No. | Material | Compatible adjustable bracket | Equivalent to MB | DXF data | Standard Price | Delivery | PDF Outline Drawing |
|---|---|---|---|---|---|---|---|
| TP-C13019T-SP | Reinforced polyamide | TP-C13054T-GRB TP-C13055T-GRB |
MB142-6587-SP | DXF | Contact us for details. | Contact us for details. |
Notes
1.There is a groove on the back in which TP-C13250T-TS or TP-C13255-TS (tray supporter) can be installed. A number of trays can be installed in a stack.

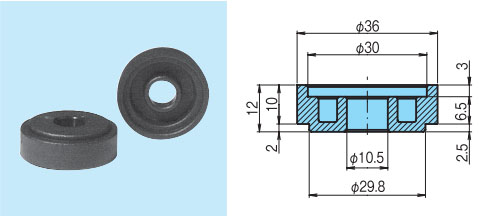

[Click to enlarge ]
| Model No. | Material | Compatible adjustable bracket | Equivalent to MB | DXF data | Standard Price | Delivery | PDF Outline Drawing |
|---|---|---|---|---|---|---|---|
| TP-C13752T-SP | Reinforced polyamide | TP-C13054T-GRB TP-C13055T-GRB |
MB227-61931-SP | DXF | Contact us for details. | Contact us for details. |

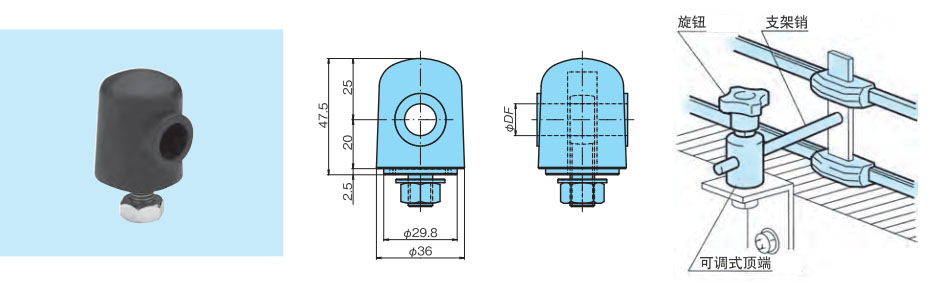

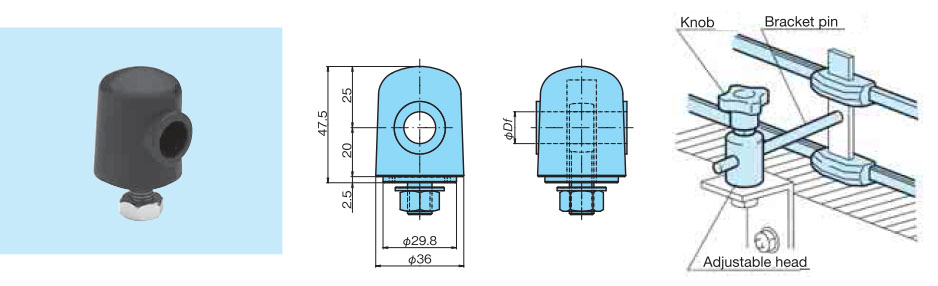

Adjustable Head (SH)
Use the adjustable bracket in combination with the clamp to secure the guide.
[Click to enlarge ]
| Model No. | Material | Df | Equivalent to MB | DXF data | Standard Price | Delivery | PDF Outline Drawing |
|
|---|---|---|---|---|---|---|---|---|
| Head | Portion other than head | |||||||
| TP-C13028T-SH | Reinforced polyamide | Stainless Steel | 12 | MB255-6967-SH | DXF | Contact us for details. | Contact us for details. | |
| TP-C13029T-SH | 14 | MB255-6968-SH | DXF | Contact us for details. | Contact us for details. | |||

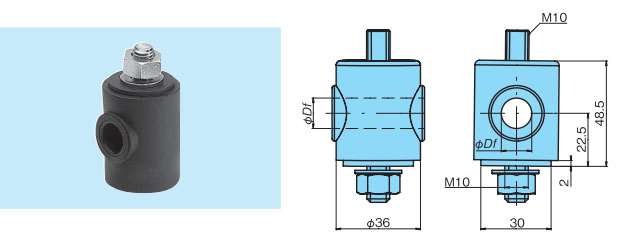

[Click to enlarge ]
| Model No. | Material | Df | Equivalent to MB | DXF data | Standard Price | Delivery | PDF Outline Drawing |
|
|---|---|---|---|---|---|---|---|---|
| Head | Portion other than head | |||||||
| TP-C13037T-SH | Reinforced polyamide | Stainless Steel | 12 | MB256-64561-SH | DXF | Contact us for details. | Contact us for details. | |
| TP-C13038T-SH | 14 | MB256-64571-SH | DXF | Contact us for details. | Contact us for details. | |||
Notes
1.For use with TP-C13355T-HD knob

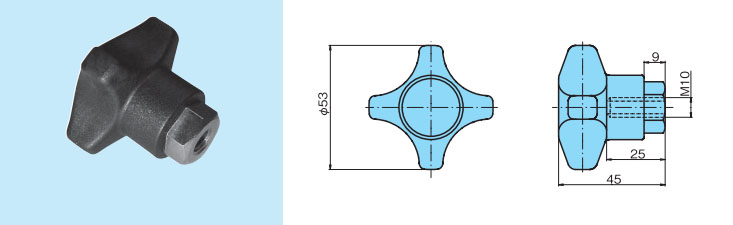

Knob (HD)
[Click to enlarge ]
| Model No. | Material | Compatible adjustable bracket | Equivalent to MB | DXF data | Standard Price | Delivery | PDF Outline Drawing |
|
|---|---|---|---|---|---|---|---|---|
| Knob | Threaded portion | |||||||
| TP-C13355T-HD | Reinforced polyamide | Nickel-plated brass | TP-C13037T-SH TP-C13038T-SH |
MB183-54921-HD | DXF | Contact us for details. | Contact us for details. | |

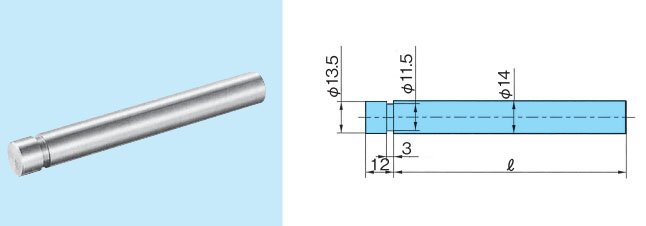

Guide pin (GP)
This is a pin for exclusive use with the TP-C13006NVT-GRC guide rail clamp.
[Click to enlarge ]
| Model No. | Material | ℓ | Equivalent to MB | DXF data | Standard Price | Delivery | PDF Outline Drawing |
|---|---|---|---|---|---|---|---|
| TP-C14-100T-GP | Stainless Steel | 100 | MB14-100-GP | DXF | Contact us for details. | Contact us for details. | |
| TP-C14-200T-GP | 200 | MB14-200-GP | DXF | Contact us for details. | Contact us for details. |

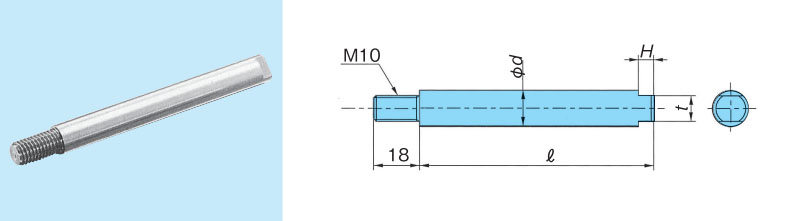

Clamp pin (CP)
The external thread is on the securing side. Use the clamp pin in combination with the guide rail clamp and adjustable bracket.
[Click to enlarge ]
| Model No. | Material | Dimensions | Equivalent to MB | DXF data | Standard Price | Delivery | PDF Outline Drawing |
|||
|---|---|---|---|---|---|---|---|---|---|---|
| d | ℓ | H | t | |||||||
| TP-C12-100T-CP | Stainless Steel | 12 | 100 | 5 | 8 | MB12-100-CP | DXF | Contact us for details. | Contact us for details. | |
| TP-C12-200T-CP | 12 | 200 | 5 | 8 | MB12-200-CP | DXF | Contact us for details. | Contact us for details. | ||
| TP-C14-100T-CP | 14 | 100 | 6 | 10 | MB14-100-CP | DXF | Contact us for details. | Contact us for details. | ||
| TP-C14-200T-CP | 14 | 200 | 6 | 10 | MB14-200-CP | DXF | Contact us for details. | Contact us for details. | ||
| TP-C16-100T-CP | 16 | 100 | 8 | 13 | MB16-100-CP | DXF | Contact us for details. | Contact us for details. | ||
| TP-C16-200T-CP | 16 | 200 | 8 | 13 | MB16-200-CP | DXF | Contact us for details. | Contact us for details. | ||

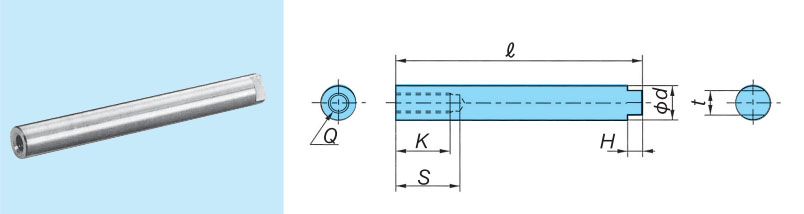

Bracket pin (BP)
The internal thread is on the securing side. Use the bracket pin in combination with the guide rail clamp and adjustable bracket.
[Click to enlarge ]
| Model No. | Material | Dimensions | Equivalent to MB | DXF data | Standard Price | Delivery | PDF Outline Drawing |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| d | ℓ | H | t | Q | S | K | |||||||
| TP-C12-100T-BP | Stainless Steel | 12 | 100 | 5 | 8 | M6 | 24 | 20 | MB12-100-BP | DXF | Contact us for details. | Contact us for details. | |
| TP-C12-200T-BP | 12 | 200 | 5 | 8 | M6 | 24 | 20 | MB12-200-BP | DXF | Contact us for details. | Contact us for details. | ||
| TP-C14-100T-BP | 14 | 100 | 6 | 10 | M8 | 26 | 22 | MB14-100-BP | DXF | Contact us for details. | Contact us for details. | ||
| TP-C14-200T-BP | 14 | 200 | 6 | 10 | M8 | 26 | 22 | MB14-200-BP | DXF | Contact us for details. | Contact us for details. | ||
| TP-C16-100T-BP | 16 | 100 | 8 | 13 | M10 | 30 | 27 | MB16-100-BP | DXF | Contact us for details. | Contact us for details. | ||
| TP-C16-200T-BP | 16 | 200 | 8 | 13 | M10 | 30 | 27 | MB16-200-BP | DXF | Contact us for details. | Contact us for details. | ||
