Guide rail (GR)
Use the guide rail to prevent conveyed objects from overturning or being scratched.
[Click to enlarge ]
| Model No. | Standard Length | Material | Color | Mass kg/m |
Equivalent to MB | DXF data | Standard Price | Delivery | PDF Outline Drawing |
|---|---|---|---|---|---|---|---|---|---|
| TP-C19S00130-3MT-GR | 3m | Ultra high molecular weight polyethylene Stainless steel frame |
White | 0.6 | MB317-69072-GR | DXF | Contact us for details. | Contact us for details. |
[Click to enlarge ]
| Model No. | Standard Length | Material | Color | Mass kg/m |
Equivalent to MB | DXF data | Standard Price | Delivery | PDF Outline Drawing |
|---|---|---|---|---|---|---|---|---|---|

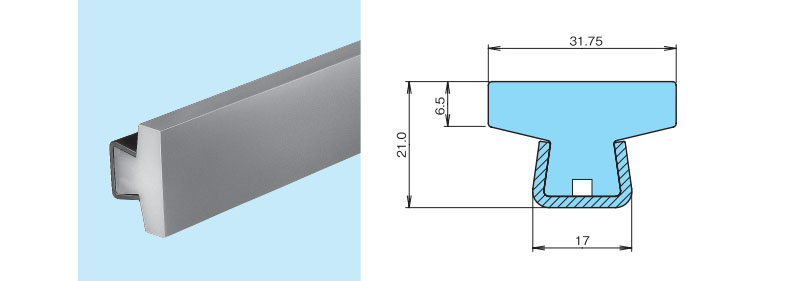

| TP-C19S00165-3MT-GR | 3m | Ultra high molecular weight polyethylene Stainless steel frame |
White | 0.86 | MB273-66791-GR | DXF | Contact us for details. | Contact us for details. |
[Click to enlarge ]
| Model No. | Standard Length | Material | Color | Mass kg/m |
Equivalent to MB | DXF data | Standard Price | Delivery | PDF Outline Drawing |
|---|---|---|---|---|---|---|---|---|---|

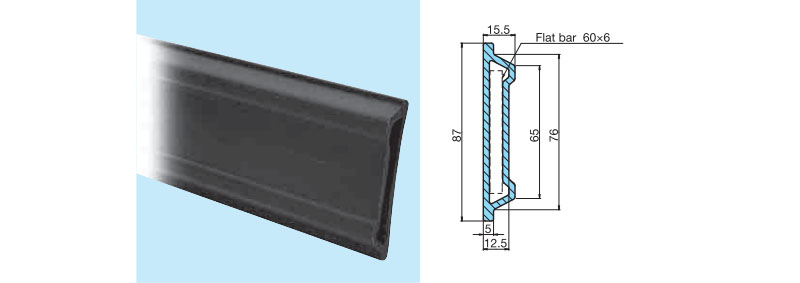

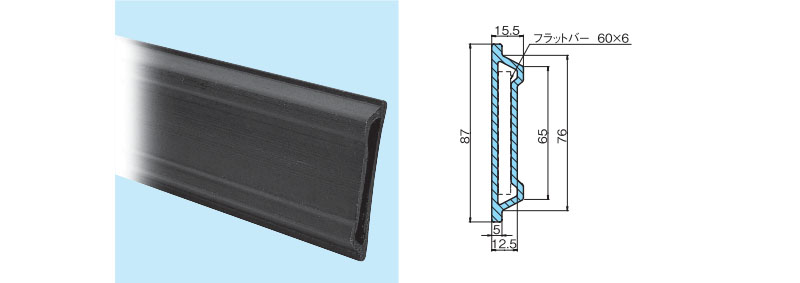

| TP-C19050LT-GR | 3m | Ultra high molecular weight polyethylene | Black | 0.6 | MB296-68811-GR | DXF | Contact us for details. | Contact us for details. |

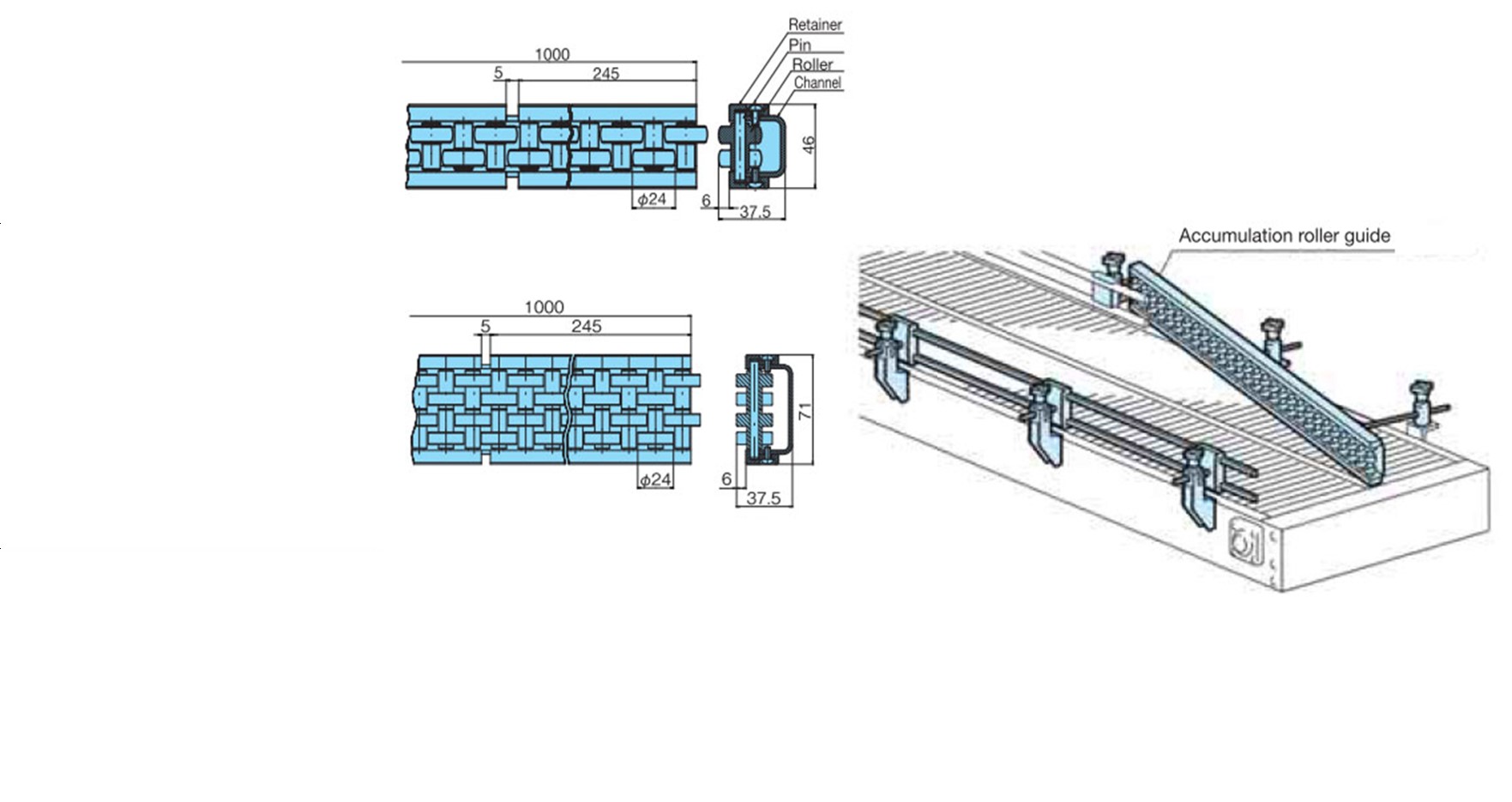

Accumulation Roller Side Guide (ARG) (Sales will be discontinued in September 2025 )
The accumulation roller side guide reduces the chances of conveyed objects being scratched by the rollers.
Use this part as a guide in the accumulation areas of the conveyor.
[Click to enlarge ]
| Model No. | Standard Length | Mass kg/m |
Equivalent to MB | DXF data | Standard Price | Delivery | PDF Outline Drawing |
|---|---|---|---|---|---|---|---|
| TP-C16686LSST-ARG | 1m | 2.6 | MB128-6264-ARG | DXF | Contact us for details. | Contact us for details. | |
| TP-C16683LSST-ARG | 3.8 | MB128-6265-ARG | DXF | Contact us for details. | Contact us for details. |
| Model No. | Material | |||
|---|---|---|---|---|
| Roller | Pin | Retainer | Channel | |
| TP-C16686LSST-ARG | Polyacetal | Polyacetal | Reinforced polyamide | Stainless Steel |
| TP-C16683LSST-ARG | ||||

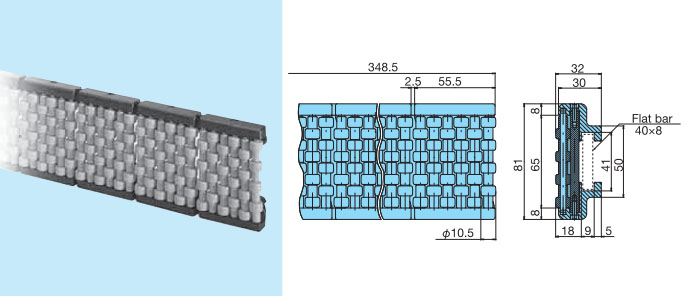

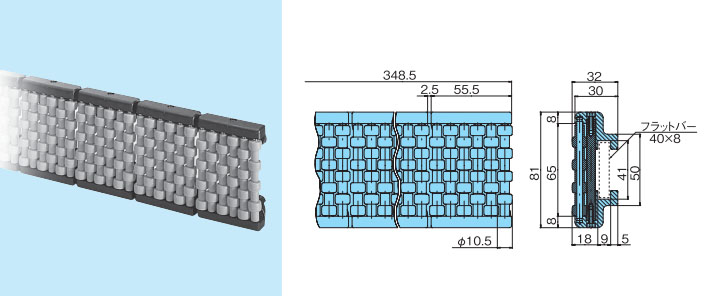

Roller Module Side Guide (Curve Type) (ARG)
The roller module side guide reduces the chances of conveyed objects on the curved section from being scratched.
[Click to enlarge ]
| Model No. | Standard Length mm |
Material | Equivalent to MB | DXF data | Standard Price | Delivery | PDF Outline Drawing |
|
|---|---|---|---|---|---|---|---|---|
| Frame | Roller, Pin | |||||||
| TP-C16801KT-ARG | 348.5 | Reinforced polyamide | Polyacetal | MB580-603292-ARG | DXF | Contact us for details. | Contact us for details. | |
Notes
1.Minimum sidefl ex radius: inner radius R250, outer radius R300
2.Use this part in combination with a 40x8 fl at bar.
