Frame support parts Major Specifications
Catalogs ・Instruction Manuals
Connecting joint (CJ)

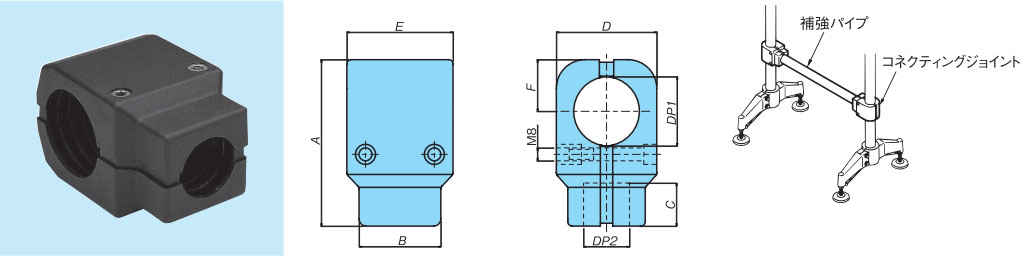

The connecting joint connects two conveyor legs to stabilize a conveyor.
[Click to enlarge ]
| Model No. | Material | Pipe outside dia. mm (Nominal diameter ) |
DXF data | Standard Price | Delivery | PDF Outline Drawing |
||
|---|---|---|---|---|---|---|---|---|
| Main unit | Bolt | Bush | ||||||
| TP-C14733T-CJ | Reinforced polyamide | Stainless Steel (SUS304) | Brass | 48.6 & 42.7 (1½ & 1¼) |
DXF | Contact us for details. | Contact us for details. | |
| TP-C14746T-CJ | Reinforced polyamide | Stainless Steel (SUS304) | Brass | 60.5 & 42.7 (2 & 1¼) |
DXF | Contact us for details. | Contact us for details. | |
| Model No. | DP1 | DP2 | A | B | C | D | E | F | Equivalent to MB |
|---|---|---|---|---|---|---|---|---|---|
| TP-C14733T-CJ | 48.6 | 42.7 | 122 | 62 | 40 | 78 | 78 | 39 | MB137-66813-CJ |
| TP-C14746T-CJ | 60.5 | 42.7 | 130 | 65 | 41 | 82 | 82 | 42.5 | MB137-6502-CJ |
