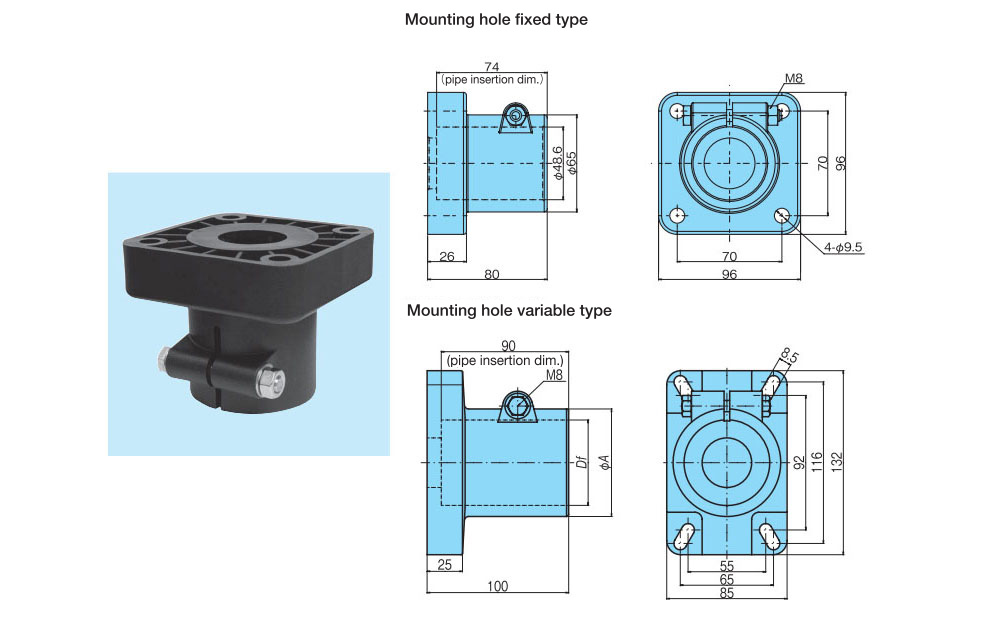

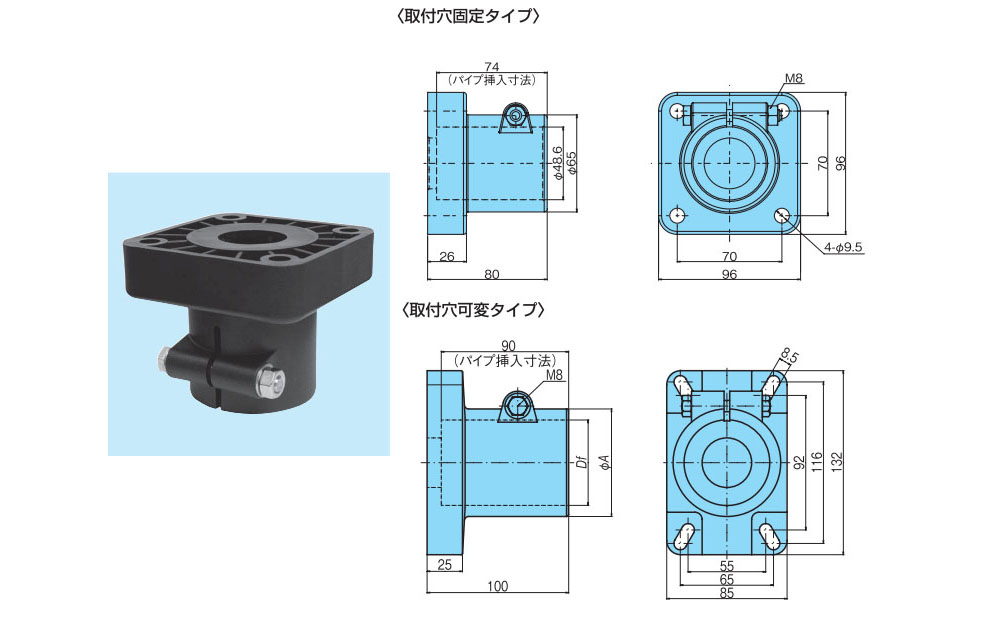

Support Head

Use this part for securing a pipe onto a frame. Wiring can be installed inside the support head.


[Click to enlarge ]
Mounting hole fixed type
Model No. Material Color Pipe outside dia.
mm (Nominal diameter )		 Equivalent to MB DXF data Standard Price Delivery PDF
Outline Drawing
Main unit Bolt, Nut, Washer
TP-C14050T-BH Reinforced polyamide Stainless Steel
(SUS304)		 Black 48.6 (1½) MB198-59161-BH DXFContact us for details. Contact us for details. PDF
Mounting hole variable type
Model No. Material Color Pipe outside dia.
mm (Nominal diameter )
Df		 Outer Diameter
ΦA		 Equivalent to MB DXF data Standard Price Delivery PDF
Outline Drawing
Main unit Bolt, Nut, Washer
TP-C14741T-BH Reinforced polyamide Stainless Steel
(SUS304)		 Black 48.6 (1½) 65 MB280-63503-BH DXFContact us for details. Contact us for details. PDF
TP-C14739T-BH Reinforced polyamide Stainless Steel
(SUS304)		 Black 60.5 (2) 76 MB280-66781-BH DXFContact us for details. Contact us for details. PDF


[Click to enlarge ]

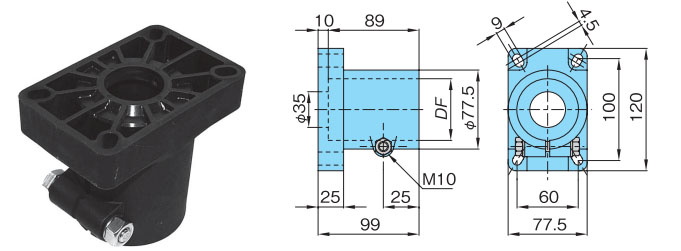

Support Head
Model No. Material Df DXF data Standard Price Delivery PDF
Outline Drawing 		3DCAD
Main unit Bolt, Nut
TP-CPSH48 Reinforced polyamide Stainless steel 48.6 DXFContact us for details. Contact us for details. PDF 3DCAD
TP-CPSH60 Reinforced polyamide Stainless steel 60.5 DXFContact us for details. Contact us for details. PDF
