Top chain accessories Major Specifications
Nose Bars for WT1300/1500/1510 (Sliding Series) ：WT-NB
[Click to enlarge ]
PDF Outline Drawing
See the table below
CAD data in DXF format
See the table below
(Click here for a list of all DXF files )
3D CAD data
| ※ | The CAD data contained herein is made available to you via the CAD drawing library; PARTcommunity is provided by CADENAS WEB2CAD Co. |
| ※ | Please direct your inquiries regarding the CAD data service or PARTcommunity to: CADENAS WEB2CAD Co. TEL: +81 (3) 5961-5031 FAX: +81 (3) 5961-5032 |
Catalogs ・Instruction Manuals
Applicable Chains
WT1306-W, WT1515VG-W, WT1515-W, WT1516-W, WT1505GTO-K, WT1505GTO-M, WT1505GTORN-K, WT1505-K, WT1505RN-K, WT1506-K
Major Specifications
| Model No. | Material grade | Standard Price | Delivery | CAD data in DXF format PDF Outline Drawing |
|
|---|---|---|---|---|---|
| WT-NB76-10-301 | 10-301 | Contact us for details. | Contact us for details. | DXF | |
| WT-NB76-10-100M9 | 10-100M9 | Contact us for details. | Contact us for details. | ||
| WT-NB76-CNO | SJ-CNO | Contact us for details. | Contact us for details. | ||
| WT-NB151-10-301 | 10-301 | Contact us for details. | Contact us for details. | DXF | |
| WT-NB151-10-100M9 | 10-100M9 | Contact us for details. | Contact us for details. | ||
| WT-NB151-CNO | SJ-CNO | Contact us for details. | Contact us for details. | ||
| WT-NB302-10-301 | 10-301 | Contact us for details. | Contact us for details. | DXF | |
| WT-NB302-10-100M9 | 10-100M9 | Contact us for details. | Contact us for details. | ||
| WT-NB302-CNO | SJ-CNO | Contact us for details. | Contact us for details. | ||
| WT-NB151TOL-10-301 | 10-301 | Contact us for details. | Contact us for details. | DXF | |
| WT-NB151TOL-10-100M9 | 10-100M9 | Contact us for details. | Contact us for details. | ||
| WT-NB151TOL-CNO | SJ-CNO | Contact us for details. | Contact us for details. | ||
| WT-NB151TOR-10-301 | 10-301 | Contact us for details. | Contact us for details. | DXF | |
| WT-NB151TOR-10-100M9 | 10-100M9 | Contact us for details. | Contact us for details. | ||
| WT-NB151TOR-CNO | SJ-CNO | Contact us for details. | Contact us for details. | ||
| WT-NB50-10-301 | 10-301 | Contact us for details. | Contact us for details. | DXF | |
| WT-NB50-10-100M9 | 10-100M9 | Contact us for details. | Contact us for details. | ||
| WT-NB50-CNO | SJ-CNO | Contact us for details. | Contact us for details. | ||
| WT-NB99-10-301 | 10-301 | Contact us for details. | Contact us for details. | DXF | |
| WT-NB99-10-100M9 | 10-100M9 | Contact us for details. | Contact us for details. | ||
| WT-NB99-CNO | SJ-CNO | Contact us for details. | Contact us for details. | ||
Notes
1.Operating temperature range: 10-301・10-100M9：-20 to 60℃、SJ-CNO（Special polyamide）：-20 to 80℃
2.Max. allowable speed 10-301: With lubrication 50m/min or less, without lubrication:30m/min or less, 10-100M9: Without lubrication:30m/min or less, SJ-CNO (special polyamide):50m/min or less
3.SJ-CNO (Special Polyamide) is for use under dry conditions only.
4.SJ-CNO (special polyamide) does not comply with the Food Sanitation Law (Japan‘s Ministry of Health Notification No. 370).
5.Use low head bolt, flat washer and spring washer when installing, and apply thread-locking fluid to the threads.
6.WT1306-W type can be used only with WT-NB50-10-301, WT-NB50-10-100M9, WT-NB50-CNO, WT-NB99-10-301, WT-NB99-10-100M9 and WT-NB99-CNO.
| Material grade | Material | Color | Application |
|---|---|---|---|
| 10-301 | Ultra high molecular weight polyethylene | Green | Ideal for use with water lubricant or under other wet running conditions. |
| 10-100M9 | Ultra-high molecular weight polyethylene (oil impregnated) | White | Ideal for use under light load, low speed, dry running conditions. |
| SJ-CNO | Special polyamide | Purple | Ideal for use under heavy load, high speed, dry running conditions. |

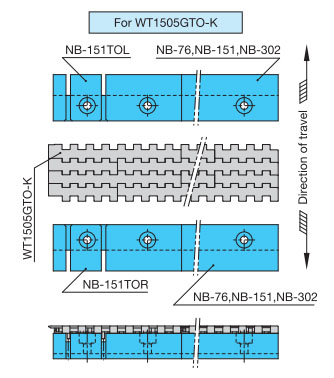

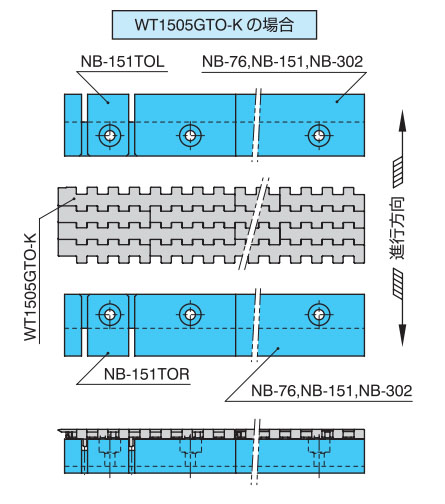

Using
[Click to enlarge ]
