Top chain accessories Major Specifications
Corner Disk for TPUN555 Chain：TPUN555-CD-R150R
[ Click to enlarge ]

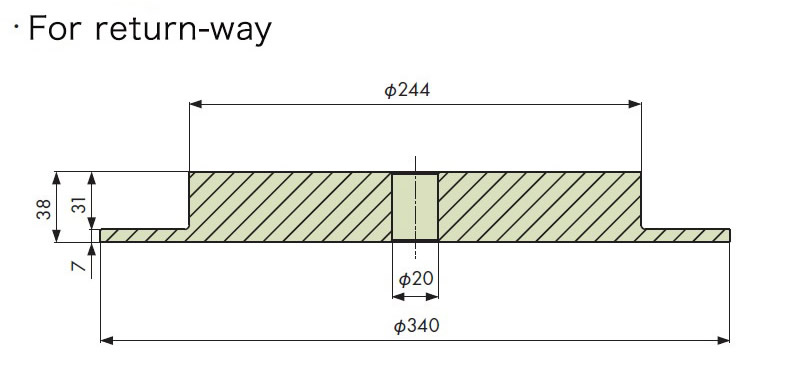

PDF Outline Drawing
CAD data in DXF format
See the table below
Applicable Chains
TPUN555
Major Specifications
| Applicable | Carry Way | Return Way |
|---|---|---|
| Model No. | TPUN555-CD-R150C | TPUN555-CD-R150R |
| Material | Ultra-high molecular weight polyethylene | |
| Color | White | |
| Estimated Mass kg | 2.1 | |
| Chain sideflex radius mm | R150 | |
| Operating Temperature Range ℃ | -20～60 | |
| CAD data in DXF format | DXF | DXF |
| Standard Price | Contact us for details. | Contact us for details. |
| Delivery | Contact us for details. | Contact us for details. |
Notes
1. This is a made to order item.
2.Contact a Tsubaki representative if dimensions, bearings, or materials other than those shown in the drawing above are required.
