Top chain accessories Major Specifications
Turn Discs for TP-UB36 Chain ：TP-UB36TW-R
[Click to enlarge ]

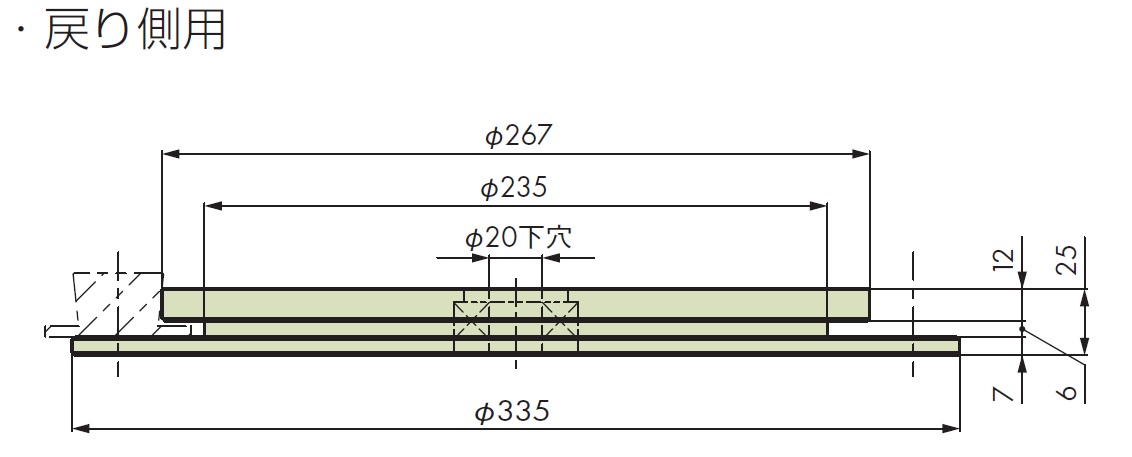

PDF Outline Drawing
CAD data in DXF format
See the table below
(Click here for a list of all DXF files )
Catalogs ・Instruction Manuals
Applicable Chains
TP-UB36, TP-UB36P
Major Specifications
| Applicable | Carry Way | Return Way |
|---|---|---|
| Model No. | TP-UB36TW-D | TP-UB36TW-R |
| Material | Ultra-high molecular weight polyethylene | |
| Material grade | 10-100 | |
| Color | White | |
| CAD data in DXF format | DXF | DXF |
| Standard Price | Contact us for details. | Contact us for details. |
| Delivery | Contact us for details. | Contact us for details. |
Notes
1.This is a made to order item.
2.Contact a Tsubaki representative regarding bearings.
